Workrite Ergonomics FDEX 60-B02-WP Programming manual

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 18

Worksurfaces

Grommet Kits

Parts Included, Benching System Parts Required, Ordered Separately

Assembly & Installation Instructions:

Fundamentals Benching System

FDEX 60-B02-WP; FDLX 60-B02-WP; FDEX 72-B02-WP; FDLX 72-B02-WP

Parts List Quantity

Included Two Stations

FUNDAMENTALS FRAME SETS

FDEX/FDLX 60-72-BXX-WPXX includes: Required/Included

FUNDAMENTALS BENCH FOOT KIT, DUAL

SE-BFK48-X 1 Kit

(2 Feet) Required/Included

FUNDAMENTALS PROGRAMMABLE SWITCH

PROSWITCH 2 Required/Included

POWER MODULE, CIRCUIT 1, BLACK

ACC-PMC1-4P2U-B 2 Required/Included

POWER JUMPER BLOCK, BLACK

ACC-PWR-JBLOCK-B 1 Required/Included

POWER IN FEED CABLE

ACC-PWR-IN-HDWR-B 1 Required/Included

POWER CROSS CABLE

ACC-PWR-CCBL-36 or ACC-PWR-CCBL-48 1 Required/Included

54" BACK TO BACK CABLE

ACC-PWR-JBBCBL-54-B 1 Required/Included

CABLE TROUGH WITH END PLATES

ACC-CBLTRKIT-53-X or ACC-CBLTRKIT-65-X

2 Included

Parts List Quantity Two Stations

WORKSURFACE

Benching - 29" Deep Only

T5829-XX-B3-XXXXXXX-XXX, or

T7029-XX-B3-XXXXXXX-XXX

(Options include width, grommet type, laminate

and edge band colors)

2Required/Order

Separately

GROMMET ONLY KIT

ACC-PWR-REMNT-X or

ACC-PWR-INMNT-X 2Required/Order

Separately

Fundamentals Benching System

2 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Workcenters

Trough

Benching

Foot Kit

Inlay Power

Grommets

Back to Back

Cable

Power In Feed

Recessed Power

Table of Contents

Step Page

You will assemble TWO complete Benching Workcenters joined by a pair of Benching

Feet.

Build Workcenters Page 6

FDEX/FDLX 60-72-BXX

Add Power & Recessed Mount Kit Page 10

ACC-PMC1-4P2U-B, ACC-PWR-JBLOCK-B,

ACC-PWR-CCBL-36 or ACC-PWR-CCBL-48, ACC-PWR-REMNT-X

Add Trough Page 13

ACC-CBLTRKIT-53-X or ACC-CBLTRKIT-65-X

Add Benching Foot Kit Page 14

SE-BF-CONKIT

Add Inlay Mount Kit (if applicable) Page 15

ACC-PWR-INMNT-X

Install Grommets Page 15

ACC-PWR-REMNT-X or ACC-PWR-INMNT-X

Connect Back to Back Cable Page 16

ACC-PWR-JBBCBL-54-B

Connect Power Page 16

ACC-PWR-IN-HDWR-B

Adjust Glides Page 17

Initialize Legs Page 17

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 18

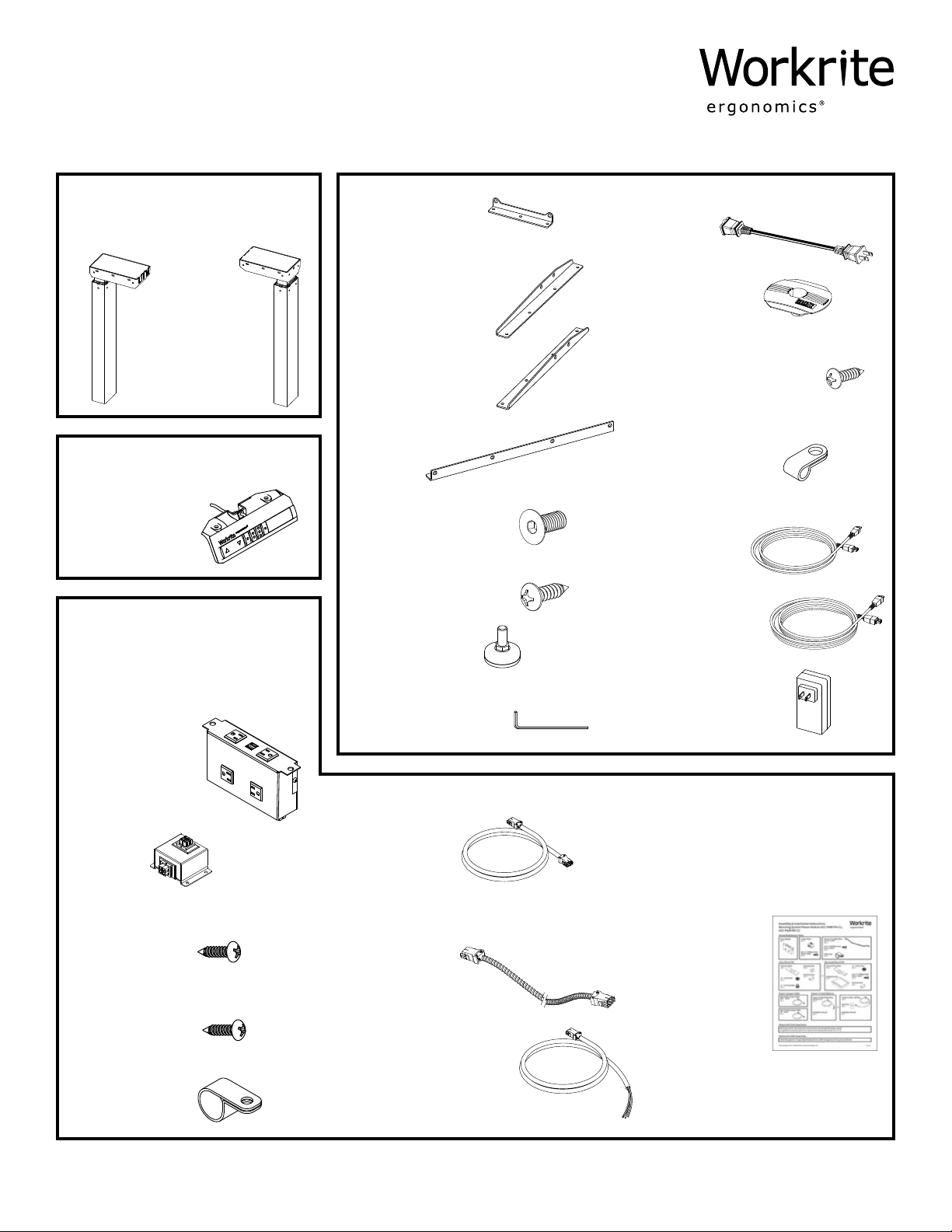

Parts Included

ELong Bracket

Qty: 4

NLeg Cable,

2 meter

Qty: 4

OPower Cable

Qty: 2

KCable Spool

Qty: 2

M" Cable Loops

Qty: 20

AControl Leg

(Right)

Qty: 2 Companion

Leg (Le)

Qty: 2 BShort Bracket

Qty: 4

I4 mm Allen Wrench

Qty: 1

HFoot Glide

Qty: 6

CLe End Bracket

Qty: 2

DRight End Bracket

Qty: 2

F#M6 × 14 mm Flat Head Cap

Screw

Qty: 24

L#8 × ⅝" Pan Head Screw

Qty: 24

G#12 × ¾" Pan Head Laminate

Top Screw

Qty: 50

Frame Assembly Parts:

Fundamentals Benching System

FDEX 60-B02-WP; FDLX 60-B02-WP; FDEX 72-B02-WP; FDLX 72-B02-WP

JShort Power Cord

Qty: 4

QProgrammable Switch

Qty: 2

RTop/Worksurface Trim Kit

Circuit 1 Power Module

Qty: 2

#10 × 3/4" Phillips Head

Screw - Black

Qty: 4

Jumper Block

Qty: 1

Back To Back Jumper

Cable, 54" - Black

Qty: 1

Power Cross Cable-Silver

24", 36" or 48"

Qty: 1

#8 × 3/4" Phillips Head

Screw - Black

Qty: 2

Cable Loop

Qty: 2

Power In Cable, 96" Hardwire,

Dual Circuit

Qty: 1

Installation Manual

Qty: 1

PPower Supply

Qty: 2

4 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

IMPORTANT NOTE!

You must complete initialization (Step 19)/(Step 20) at the end of

assembly or your workcenter WILL NOT FUNCTION PROPERLY.

WARNING: Maximum loading of table assembly is 125 lb. (56 kg.). Maximum load includes the

weight of the table top itself, any equipment placed upon it, and any equipment suspended or hanging under it. Loading

should be evenly distributed over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum

loading which includes the Workrite sourced worksurface.

Fundamentals 2-leg

V = 120VAC, 60Hz / 2.5 A maximum

IMPORTANT SAFETY INSTRUCTIONS:

When using an electrical furnishing, basic precautions should always be followed, including the following:

Read all instructions before using this Sierra Workcenter.

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons:

•Unplug from outlet before putting on or taking o parts, always unplug this Sierra Workcenter from the electrical outlet

before cleaning.

•Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.

•Use this furnishing only for its intended use as described in these instructions. Do not use attachments not

recommended by the manufacturer.

•Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or

damaged, or dropped into water. Return the furnishing to a service center for examination and repair.

•Keep the cord away from heated surfaces.

•Do not use outdoors.

•Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

FOR COMMERCIAL USE ONLY

✓

THIS ELECTRICAL SYSTEM IS UL CERTIFIED BY ETL FOR USE AS DESCRIBED BELOW. ALL SPECIFICATIONS

AND WARNINGS MUST BE FOLLOWED CLOSELY IN ASSEMBLY AND USE OF THIS SYSTEM.

CAUTIONS AND WARNINGS

WARNING: FAILURE TO FOLLOW CAUTIONS AND WARNINGS BELOW COULD RESULT IN ELECTRICAL SHOCK,

FIRE, PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

CAUTIONS:

•Read Instructions: Read all warnings and installation instructions before installing and use

•Retain Instructions: Retain this instruction sheet for future use

•Wet Environment

· This system is designed for use indoors in a dry environment

· Never use this system in a wet environment

· Never allow liquids of any type to spill into the electrical system

•Follow Warnings: Read and follow all warnings and directions in this instruction sheet and marked on the components

of the system

•Service

· There are no serviceable parts contained in this system

· Do not open and or modify any parts used in this electrical system

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 18

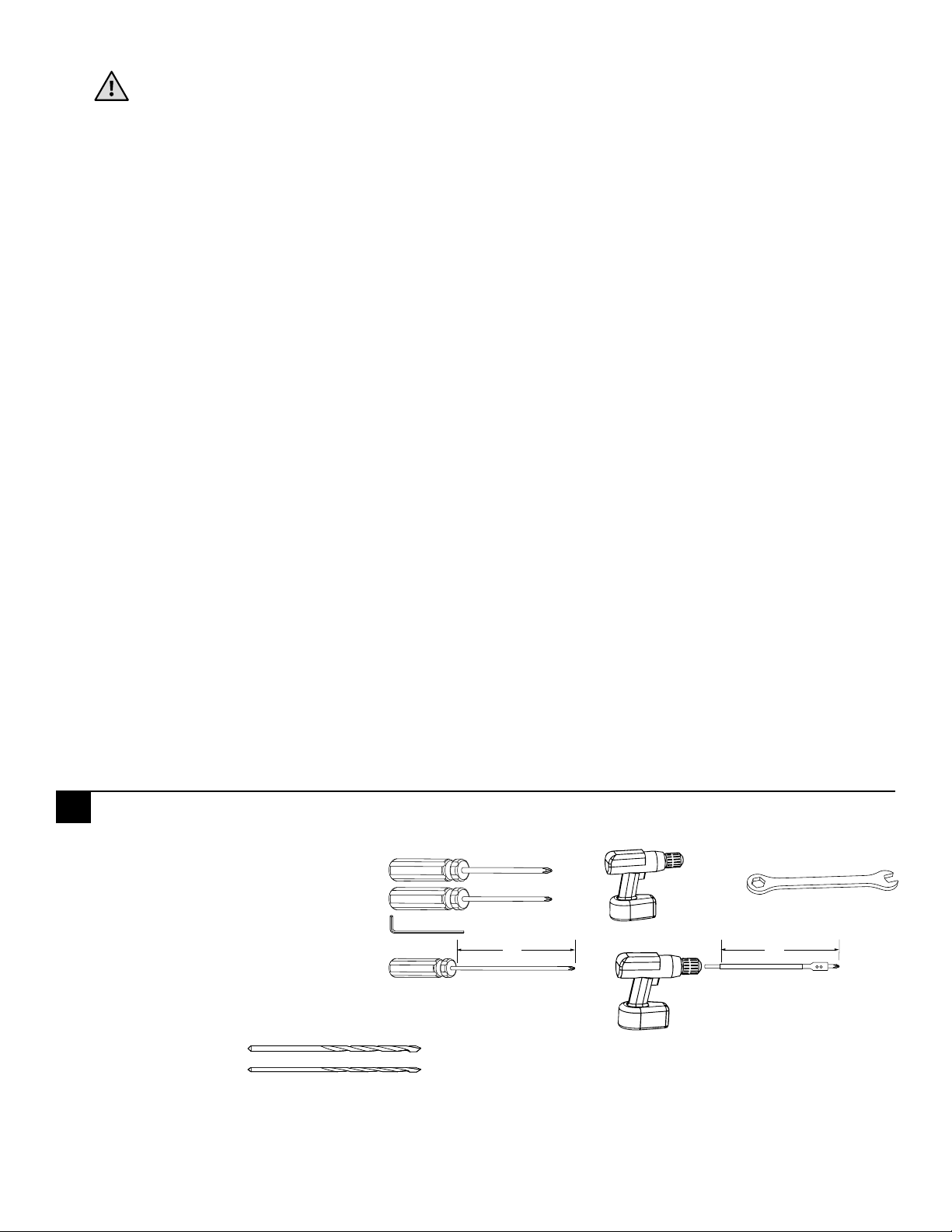

✓ Verify that you have all the tools needed for the assembly

You will need the following tools:

#2 tip Phillips screwdriver or drill/driver

#3 tip Phillips screwdriver or drill/driver

M4 tip bit or 4 mm Allen Wrench (E) " Wrench

#2 tip Phillips screwdriver over

6" long or drill/driver with extension

" wrench if needed for Hex Nut

If you do not have a Workrite worksurface, you will also need:

⅛" pilot drill bit

3/32" pilot drill bit

or and

+6"

·

WARNINGS:

•Risk of fire or electrical shock

· Do not electrically connect to more than one source of power supply

· Always verify the electrical system is only connected to one and only one source of power supply

•Power Entry Cable

· Route the Power Entry Cable where it will not be stepped on, pinched, have devices placed on it, or become a tripping

hazard

· Never allow Power Entry Cable to sit in any liquid or get wet in any manner

•Power Cross Cables

· Secure the Power Cross Cables to the underside of the worksurface using P-Loops and screws provided

· Ensure the Power Cross Cables will not be pinched or have devices placed on them

· Never allow Power Cross Cables to sit in any liquid or get wet in any manner

•Power Jumper Cables: Side to Side or Front to Back

· Install Power Jumper Cables only when benching feet and foot connectors are installed and in use

· Ensure the Power Jumper Cables will not be pinched or have devices placed on them

· Never allow Power Jumper Cables to sit in any liquid or get wet in any manner

•Location: This system is intended for use indoors in a dry environment only

SYSTEM DESCRIPTION AND REQUIREMENTS: DAISY CHAIN POWER SYSTEM

•Limits & Restrictions

· Four wire system designed to operate using two dedicated 120 V, 60 Hz, 20 A circuits

· Power Modules oered in Circuit 1 and Circuit 2 options

· Total power modules per four wire dual circuit system not to exceed 10 total modules (Maximum five each Circuit 1 and

Circuit 2)

· The Daisy Chain Power System may only be installed in Workrite height adjustable workcenters that are connected with

either Bench Feet (see parts list) as back to back stations or as multiple bench systems using both Bench Feet and Bench Foot

Connectors (see parts list)

•Assembly

· All assembly must be completed as outlined in the assembly instructions. All system parts must be used as supplied with no

alterations or modifications

•Connection/Power Entry

· Power Connection for power entry options oered with this daisy chain power system must be connected by a commercial

electrician

6 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Attach Short & Medium Brackets

1.1 Attach Short Brackets (B) and Long Brackets (E) using Allen Wrench (I) and Flat Cap Screws (F) to both legs. Do

not tighten screws completely.

1.2 Attach Right End Bracket (D) to sides of the right (Control) Leg (A) using Flat Cap Screws (F). Attach Le End

Bracket (C) to sides of the le (Companion) Leg (A) using Allen Wrench (I) and Flat Cap Screws (F).Do not tighten

screws completely.

Note: the right leg will be on your le and vice versa when the assembly is seen upside down

1.1

1.2

1.1

To avoid stripping the threads, always

insert and make the first few turns

of the screw BY HAND with an Allen

wrench (H), ensuring it is in straight.

Control Leg (Right)

Companion Leg (Le)

front

F#M6 × 14 mm Flat Head

Cap Screw

Hardware at actual size

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 18

Attach Base to Pre-Drilled Workrite Worksurface and Tighten Screws

2.1 Align leg assemblies to to pre-drilled holes in Top then attach loosely #12 × ¾" Pan Head Laminate Top (G)

screws. If you use an electric screwdriver, be sure it is on the lowest torque setting to avoid stripping the holes in

the top

2.2 Tighten all screws attaching brackets to leg assemblies, then tighten all screws attaching brackets to top

2.1

2.2

2.1

Control Leg (Right)

Companion Leg

(Le)

3 screws per Short Bracket (B)

5 screws per Long Bracket (E)

G#12 × ¾" Pan Head

Laminate Top Screw

Hardware at actual size

4 screws per End Bracket

(C & D)

8 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

Attach Switch

Install Switch (Q) with two #8 × 5/8” Pan Head Screws (L).

Attach Cable Spools and Cable Loops

4.1 Attach Cable Spool (K) with the #12 × ¾"Pan Head Laminate Top Screw (G) and Cable Loops (M) to underside of

worksurface using #8 × ⅝"Pan Head Screw (L)

4.2 Route Switch Cable from switch to Cable Spool. Install P-Loops (M) using (1) #8 x 5/8” Pan Head Screw (L) per loop

Hardware at actual size

G#12 × ¾" Pan Head

Laminate Top Screw

Hardware at actual size

L#8 × ⅝" Pan Head Screw

Laminate Top Screw

L#8 × ⅝" Pan Head Screw

Laminate Top Screw

4.2 4.1

Programmable Control shown

Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 18

Install Leg Cables, Switch Cable & Cable Loops

5.1 Connect the Leg Cable (N) to the six position connector labeled ”1” on both the Right (Control) Leg (A) and the

Le Leg (A).

5.2 Uncoil Leg Cable and wrap extra cable length around each cable spool

(Be sure to leave enough cable length to reach control box and plug in properly)

5.3 Insert the Power Cable (O) into the two position connector labeled “DC” on the Control Leg.

5.4 Insert the Control Cable into the data connector labeled “A1” on the Control Leg.

5.5 Use remaining P-Loops (M) and #8 x 5/8” Pan Head Screws(L) to neatly attach remaining loose cables to top

Hardware at actual size

L#8 × ⅝" Pan Head Screw

Laminate Top Screw

5.2

5.3

5.5

5.4

5.1

Wrap extra cables clockwise

Control Cable

Leg Cable

Power Cable

Control Leg (Right)

Companion Leg

(Le)

Control Cable

10 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com

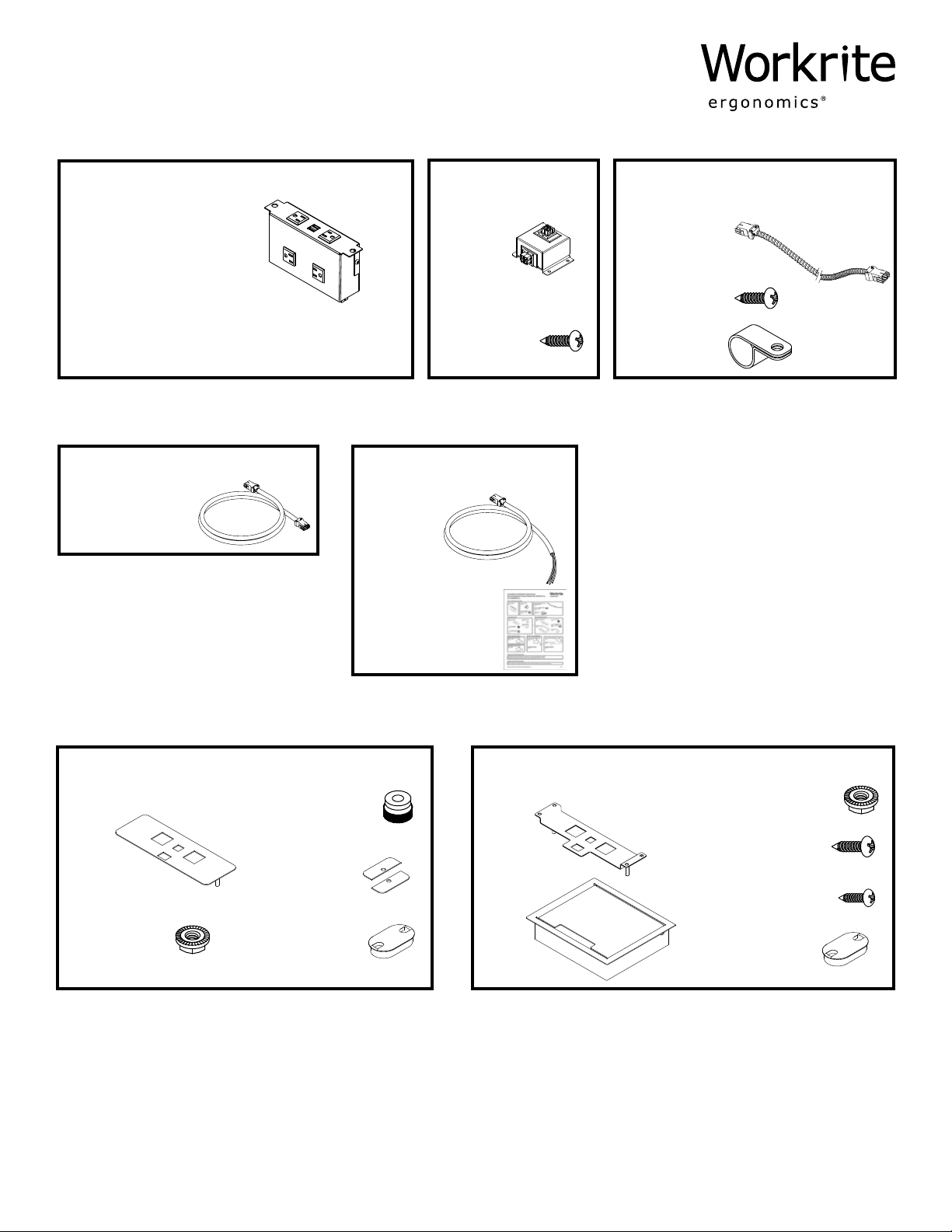

Inlay Mount Kit–Ordered Separately Recessed Mount Kit–Ordered Separately

Inlay Face Plate

Qty: 2

#8 × " Phillips Head

Screw - Black

Qty: 2

Cable Loop

Qty: 2

Recessed Face Plate

Qty: 2

Mounting Tabs

Qty: 4

#10 × " Phillips Head

Screw - Black

Qty: 4

#10 × " Phillips Head

Screw - Black

Qty: 8

#6 × " Phillips Head

Screw - Black

Qty: 4

Grommet Cover

Qty: 2

Oval Grommet

Qty: 4 Oval Grommet

Qty: 4

"-20 Flange Nut-Silver

Qty: 4

¼"-20 Thumb Nut-

Black

Qty: 4

"-20 Flange Nut-Silver

Qty: 4

Jumper Block

Qty: 1

Power Cross Cable-Silver

36" or 48"

Qty: 1

Benching Power System Parts

ACC-PWR-INMNT-X ACC-PWR-REMNT-X

ACC-PWR-JBLOCK-B ACC-PWR-CCBL-XX

Power Modules & Cables

Circuit 1 Power Module

Qty: 2

ACC-PMC1-4P2U-B

Power In Feed OptionsPower Jumper Cable

Power In Cable, 96" Hardwire,

Dual Circuit

Qty: 1

Installation Manual

Qty: 1

Back To Back Jumper

Cable, 54" - Black

Qty: 1

ACC-PWR-JBBCBL-54-B ACC-PWR-IN-HDWR-B

This manual suits for next models

Other Workrite Ergonomics Indoor Furnishing manuals

Workrite Ergonomics

Workrite Ergonomics Sentinel ST2E-30-48 Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra Privacy Panel User manual

Workrite Ergonomics

Workrite Ergonomics Sentinel ST2E-54-72 Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Cascade Counterbalance Workcenters CC S... User manual

Workrite Ergonomics

Workrite Ergonomics SM-ACR Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra HX User manual

Workrite Ergonomics

Workrite Ergonomics Sierra SEHX7890-4272OC Series Programming manual

Workrite Ergonomics

Workrite Ergonomics FDLX5472-4272EOC Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra SEHX7890-4272OC Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra SEHX5472-4272EOC Series Programming manual

Workrite Ergonomics

Workrite Ergonomics ST2E-5472-4272EOC Series Programming manual

Workrite Ergonomics

Workrite Ergonomics ACC-HPED-X Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra SEHX78-90 Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra Series User manual

Workrite Ergonomics

Workrite Ergonomics Advent ADV 6030 Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra HX User manual

Workrite Ergonomics

Workrite Ergonomics Rise Quiet RISE-3E-3044-X Programming manual

Workrite Ergonomics

Workrite Ergonomics FDEX30-48-X Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra 2-Leg Desk SEHX30-48 Series Programming manual

Workrite Ergonomics

Workrite Ergonomics Sierra HXL Crank User manual

Workrite Ergonomics

Workrite Ergonomics FDEX30-48-X Programming manual

Workrite Ergonomics

Workrite Ergonomics Essentia ES2E30-48 Programming manual

Popular Indoor Furnishing manuals by other brands

Homelegance

Homelegance California 1662PEK-1CK Assembly instruction

Osmond Ergonomics

Osmond Ergonomics FLO instructions

OVE

OVE ELOISE 42 installation manual

overstock

overstock MF286255 Assembly instructions

Sonoma

Sonoma 160-801 Assembly instructions

BOLERO

BOLERO Wicker Side Chair CF158 Care Instructions

Coaster

Coaster 4799N Assembly instructions

Stor-It-All

Stor-It-All WS39MP Assembly/installation instructions

Lexicon

Lexicon 194840161868 Assembly instruction

Next AMELIA NEW 462947 Assembly instructions

Furinno

Furinno 18089 Assembly instruction

Munchkin

Munchkin Push to Close MK0001 manual

impekk

impekk Manual II Assembly And Instructions

Elements

Elements Ember Nightstand CEB700NSE Assembly instructions

JWA

JWA CARY 68429 Assembly instruction

VIPACK

VIPACK AMORI AMKB9014 Assembly instructions

Anthro

Anthro GT03 Series Assembly instructions

Rowico

Rowico SANNA Assembly instructions
