Whynter ARC-12SD User manual
WHYNTER ECO-FRIENDLY 12,000 BTU PORTABLE AIR CONDITIONER
co
Instruction Manual
MODEL# : ARC-12SD
Congratulations on your new WHYNTER product. Please read this Instruction Manual carefully before using
this product to ensure proper operation. Keep this manual in a safe place for future reference.
V 4.20.2017-1200
2 | P a g e
TABLE OF CONTENTS
INTRODUCTION
3
SAFETY PRECAUTIONS
4-5
IDENTIFICATION OF ACCESSORIES
6
IDENTIFICATION OF PARTS
7
OPERATING YOUR AIR CONDITIONER
8
INSTALLATION INSTRUCTIONS
9-10
AIR FILTERS INSTALLATION
11
OPERATION INSTRUCTIONS
12-13
WATER DRAINAGE
13
REMOTE CONTROL
14
CARE AND MAINTENANCE
15
TECHNICAL DATA
16
TROUBLESHOOTING
17-18
WARRANTY INFORMATION
19
3 | P a g e
Thank you for choosing the Whynter portable air conditioner. Please follow the instructions provided
in this user guide to obtain the very best performance from your portable air conditioner and take full
advantage of the many features your portable air conditioner offers you. We trust that your Whynter
air conditioner will provide the performance and reliability that we stand for.
Please keep this user manual in a safe place for future reference.
DISPOSAL
This symbol on the product or its packaging indicates that the appliance cannot be treated as normal
domestic trash, but must be handed in at a collection point for recycling electric and electronic
appliances. Your contribution to the correct disposal of this product protects the environment. Further
information about the recycling of this product can be obtained from your local municipal authority.
4 | P a g e
SAFETY PRECAUTIONS
Before the portable air conditioner is used, it must be properly positioned and installed
as detailed in this manual.
Do not under any circumstances cut or remove the third (ground) prong from the power
cord.
Make sure this unit is connected to a correctly grounded power supply outlet. Do not use an
extension cord or power strip.
The power cord is UL listed. It has a built-in L.C.D.I. (leakage, current, detection,
interruption) circuit breaker for added safety. If the power supply is interrupted, press the
reset button to reconnect the unit to power source.
It is recommended to use a separate circuit that its size should be 15 Amps for the air
conditioner.
Do not use an excessively wet cloth, industrial solvents, oil-based products to clean this
portable air conditioner.
To avoid the risk of shock, the product should never be used in bathrooms, shower rooms,
or in any other steamy or wet areas.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliances.
Do not repair, disassemble and/or modify the unit by yourself.
Always turn off the portable air conditioner when cleaning the air filter, and transporting.
Do not turn this unit on and off by plugging and unplugging. Always use the ON/OFF switch.
Transport the unit in an upright position only, or leave it in an upright position for a minimum
of 4 hours before first use.
Ensure curtains or other objects are not obstructing the air inlet filters.
Do not bend or crush the exhaust hose while in use.
Always allow at least 20” of clearance around the unit for ventilation. Do not use this unit
inside closets, cabinets and/or cramped spaces between furniture.
This unit is optimized to operate in an ambient temperature of 64°F –95°F.
This unit must be installed in an area protected from the elements, such as wind, rain,
water spray or drips.
The unit should not be placed next to ovens, grills or other heat sources.
Always place the unit on even and hard and level surface.
Do not sit or place objects on the unit.
Do not allow children to climb, stand or hang on the unit. The air conditioner could tip over
and get damaged and/or seriously injure somebody.
Your safety and the safety of others are very important to us.
To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions.
5 | P a g e
Keep fingers out of the air intakes and air outlets.
The unit is an electrical appliance. To avoid injury from electrical shock do not operate it with
wet hands, while standing on a wet surface or while standing in water. Do not use it in
outdoors or in wet conditions.
When positioning or moving the unit, ensure it is not turned upside down or greater than 45°
or more off level.
This unit is designed for household, non-commercial use only. Any other use will void the
warranty.
Do not plug into the power outlet before set up is completed.
Do not operate this unit without the air filter(s).
Do not use harsh chemicals to clean the filter(s). Dry thoroughly before inserting the filter(s)
into the unit.
Do not add extra length to the exhaust hose by more than a total length of 9’. This will
reduce the cooling efficiency of the portable air conditioner.
At the end of each season, all water must be drained from the unit and filter(s) must be
cleaned before storage.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS
ARE NOT FOLLOWED.
OPERATING CONDITION
MODE
ROOM TEMPERATURE
COOL
Higher than 64°F
DRY
Higher than 60°F
Your portable air conditioner is supplied with a Leakage-Current
Detection and Interruption (LCDI) plug. This plug reduces the risk of
fire due to arcing faults in the power supply cord. Please follow the
instructions below to ensure that LCDI plug works properly.
1. Plug the power cord to a grounded wall outlet. Do not plug to
a power strip or extension cord.
2. Press the TEST button on the plug. This should trip the plug
and cut the power to the air conditioner. If the plug does not
trip and the unit comes on, please contact technical support.
3. Press the RESET button to start the air conditioner.
4. Do NOT use the TEST and RESET buttons to turn the air
conditioner on and off.
6 | P a g e
IDENTIFICATION OF ACCESSORIES
ACCESSORY NAME
QUANTITY
Intake and Exhaust
hose
2 pieces
Fixture 2 pieces
Screws 8 pieces
Hose connectors4 pieces
Window slider kit
1 set
Cover 2 pieces
Remote control 1 piece
Optional Intake pre-filter (sold separately)
1 piece
Storage Cover 1 piece
Carbon Filter 1 piece
Note: Please visit whynter.com for optional accessories information
7 | P a g e

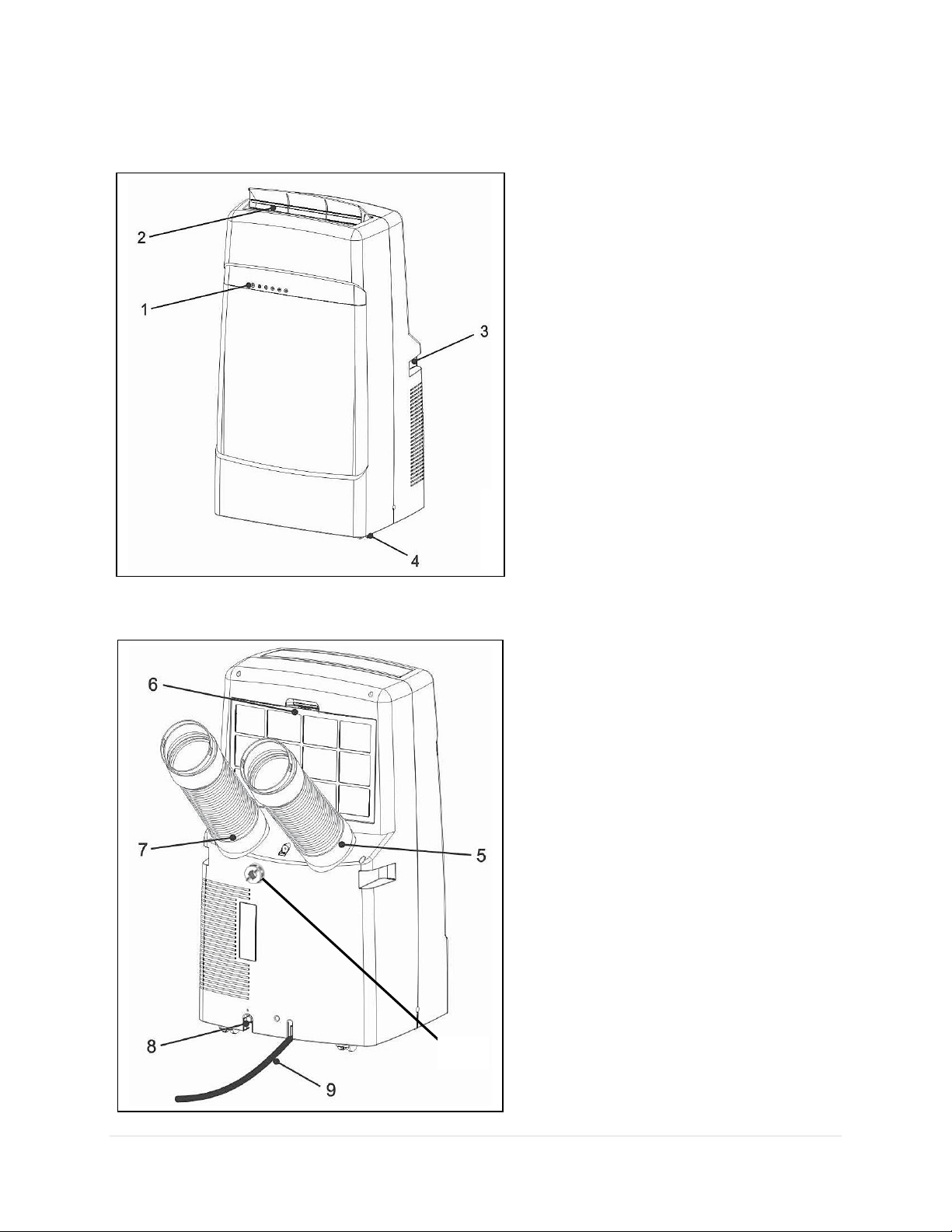

IDENTIFICATION OF PARTS
Front
1. Air vent
2. Control panel
3. Handle
4. Casters
Rear
10
5.
Air exhaust hose
6.
Evaporator air intake / air filter
7.
Air intake hose
8.
Drain plug and cover
9.
Power cord
10.
Upper Drain Port
8 | P a g e
OPERATING YOUR AIR CONDITIONER
Before you begin, thoroughly familiarize yourself with the control panel, remote control and all of
the functions. Follow the symbol for the desired function. The unit can be controlled by the unit
control panel alone or with the remote control.

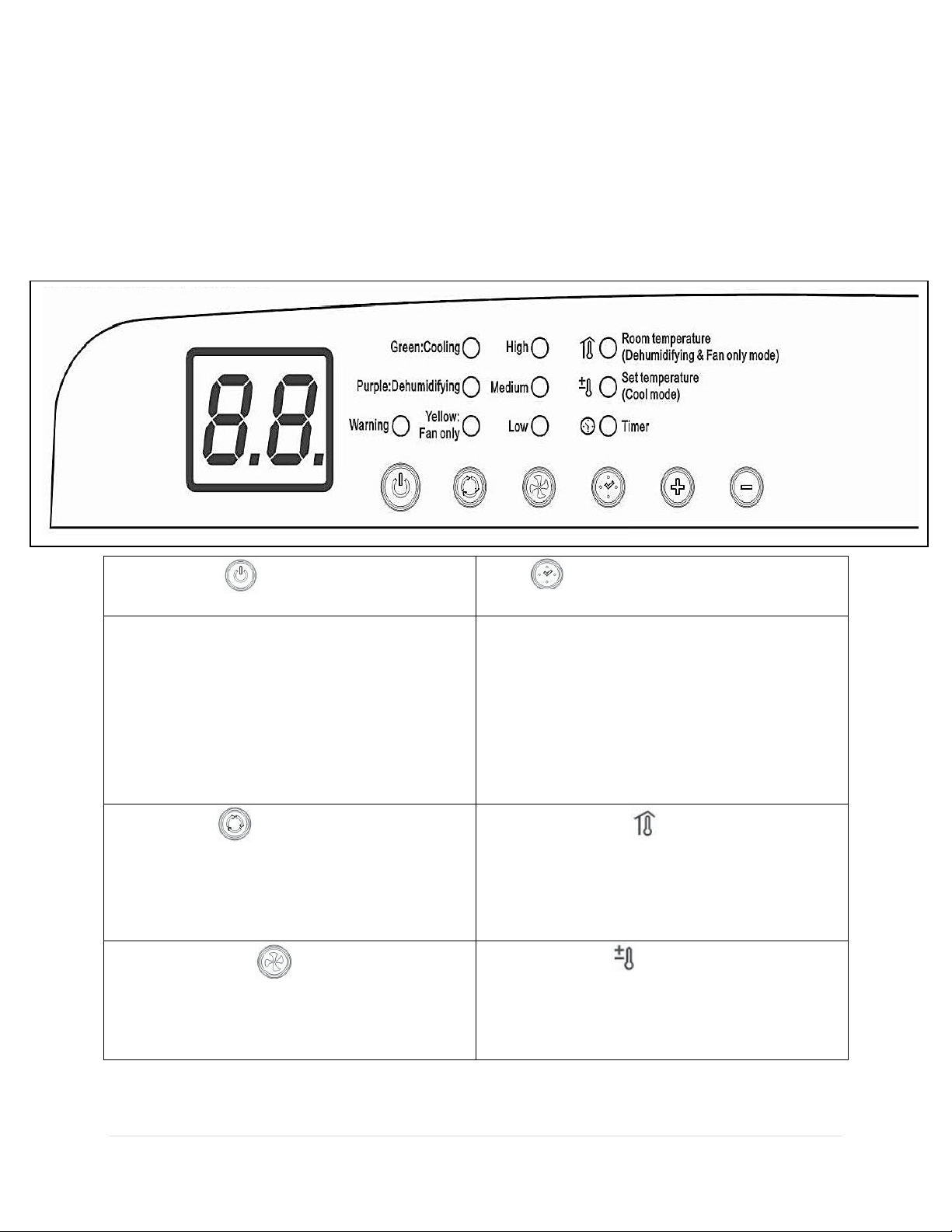

CONTROL PANEL
Power Control
Turns the unit on and off.
Timer
Turns the timer function on and off.
Warning Light
Condensation water may accumulate in the unit. If
the internal reservoir becomes full, the warning light
and the STOP light will come on and the unit will
stop until the water is drained.
Timer / Temperature Set Control
Adjusts set thermostat temperature and timer.
The display temperature is the set temperature.
NOTE: This unit is capable of displaying set
temperature in Fahrenheit or in Celsius. To convert
from one to the other, press and hold the Up and
Down buttons for 3 seconds.
Mode Control
Controls the 3 function modes: COOL,
DEHUMIDIFYING and FAN ONLY.
Green light: COOL mode
Purple light: DEHUMIDIFY mode
Yellow light: FAN ONLY mode
Room Temperature
Indicates room temperature in DEHUMIDIFYING
mode and FAN ONLY mode.
Fan Speed Control
Controls the 3 fan speeds: High, Medium & Low.
NOTE: Unit does not need to be vented in Fan
mode
Set Temperature
Indicates set temperature in COOL mode.
9 | P a g e
INSTALLATION INSTRUCTIONS
Location
The air conditioner should be placed on a hard and level surface strong enough to support its weight.
The unit is equipped with caster wheels for portability. It should only be rolled on smooth, flat surfaces.
Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
The air inlet and outlet should be free of any obstructions and be placed with at least 20” of clearance
for efficient air-conditioning and circulation.

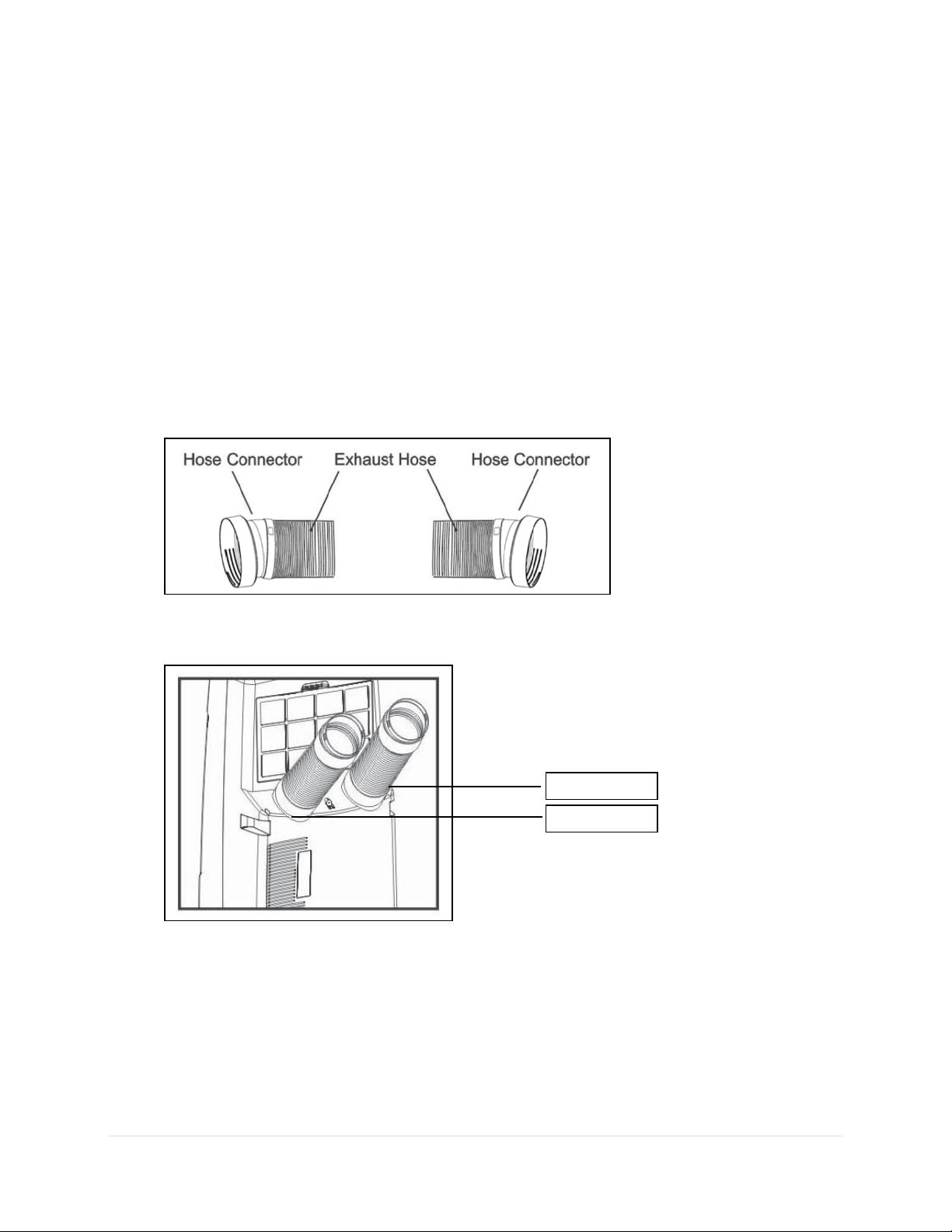

Exhaust hose Installation
When using the air conditioner, the hot air from the exhaust hose must be exhausted out of the room to
complete the air exchange of the condenser. The intake hose is optional. When the unit is operating in
dehumidifying or fan-only mode, installation of the exhaust hose is optional.
1. Expand each end of the exhaust and intake hoses about 6”.
2. Install the hose connectors onto the exhaust and intake hoses by turning clockwise.
3. Align the tab cut-outs of each of the hose connectors to the tabs on the air exhaust and air intake at
the rear of the unit and snap in place.
If installing the optional air intake hose in an area with poor air quality, we recommend
purchasing the intake hose pre-filter accessory.
Only extend the hose to the necessary length, keeping it as short and as straight as possible.
We do not recommend extending the hose more than 9' long.
If you are interested in purchasing an additional 5’ exhaust hose, please contact
[email protected] for retail sales information or visit whynter.com for a list of optional
accessories.
INTAKE
EXHAUST
10 | P a g e

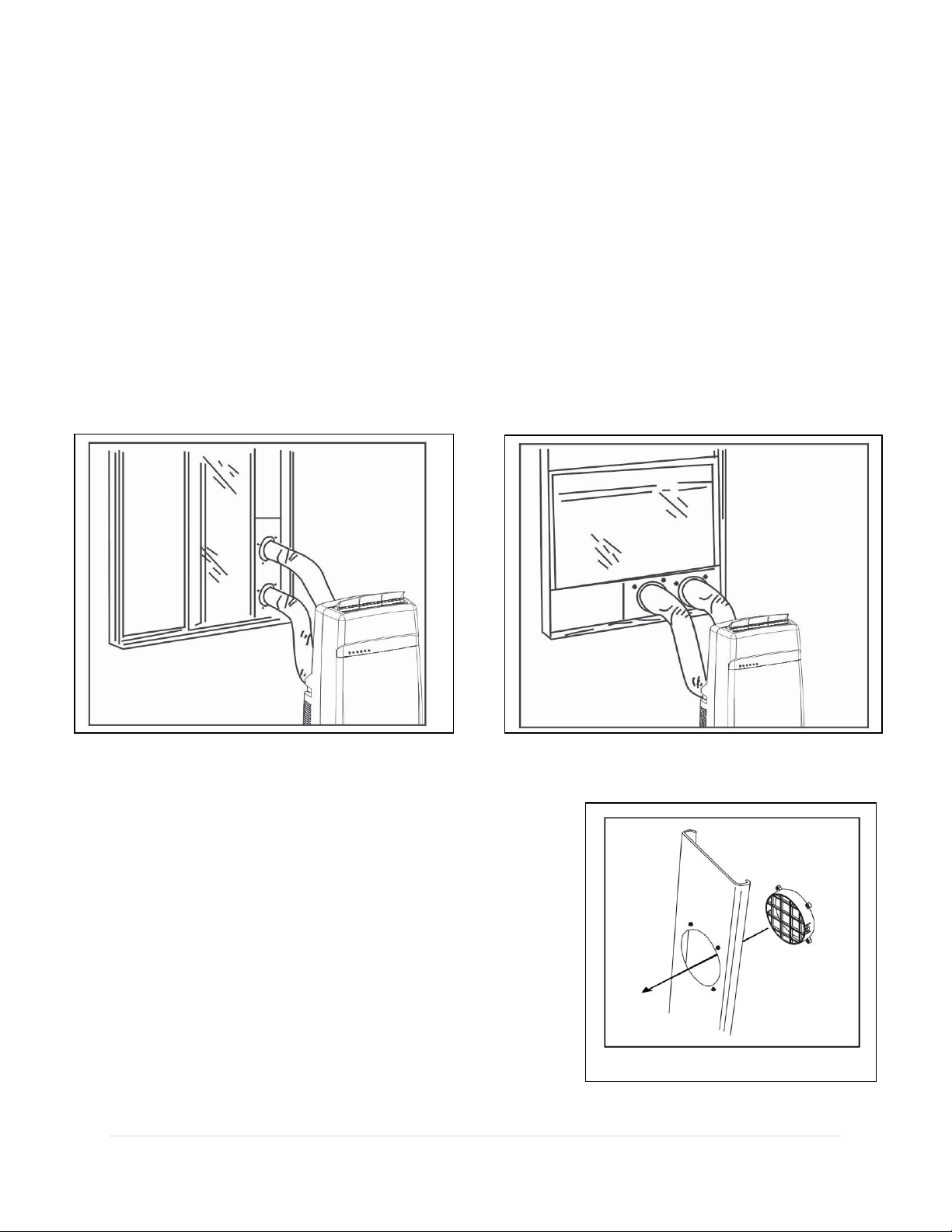

Window kit Installation
The window kit has been designed to fit most standard vertical and horizontal windows. However, it
may be necessary to modify the installation procedures to accommodate your window.
NOTE:
• If your window opening is smaller than the minimum length of the window slider kit, the window
slider kit can be cut to fit the window opening. Never cut into the exhaust and intake hose cut-outs on
the window slider kit.
• If your window opening is larger than the maximum length of the window slider kit, additional
material will be needed to cover the open space such as, Plexiglas, PVC plastic, ply wood, etc.
Alternately, an additional window slider kit can be purchased to be used in combination with the
included kit.
• When using the window slider kit on a window or sliding door, additional security measures may be
needed.
1. Open the window approximately 5”.
2. Adjust the length of the window slider to the same length
and width of the opening of the window. Cut the window
slider if necessary to fit the length of your window.
3. Insert the fixture through the back grooved side of the
window slider hose cut-out. Line up the fixture with the 4
screw holes and tighten the fixture with 4 screws from the
front side of the slider panel. (Fig. 1)
4. Fit the window slider kit into the window opening and close
the window to secure the window slider kit. For long term
installation, you may screw the window kit into your window
frame.
5. Move the air conditioner close to the window, extend the
hose to the necessary length, keeping it as short and as
straight as possible and attach the other end of the hose to
the window slider kit.
6. Align the tab cut-outs of the hose connector to the tabs on
the fixture and snap the hose connector to the window slider
kit.
Figure 1
Other manuals for ARC-12SD
4
Table of contents
Other Whynter Air Conditioner manuals
Whynter
Whynter ARC-148M User manual
Whynter
Whynter ARC-101CW User manual
Whynter
Whynter ARC-14SH User manual
Whynter
Whynter MSFS-024H23016-01NE User manual
Whynter
Whynter MSFS-009H11517-01NE User manual
Whynter
Whynter ARC-14S User manual
Whynter
Whynter ARC-1030WN User manual
Whynter
Whynter ARC-115WG User manual
Whynter
Whynter ARC-110WD User manual
Whynter
Whynter ARC-148MS User manual
Whynter
Whynter ARC-12S User manual
Whynter
Whynter Sno ARC-14D User manual
Whynter
Whynter ARC-12SD User manual
Whynter
Whynter HAC-100S User manual
Whynter
Whynter ARC-148MHP User manual
Whynter
Whynter ARC-12SD User manual
Whynter
Whynter SNO ARC-10D User manual
Whynter
Whynter ELITE ARC-122DS User manual
Whynter
Whynter ARC-12SDH User manual
Whynter
Whynter ARC-14SH User manual
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
