Whispbar K822W User manual

K822W

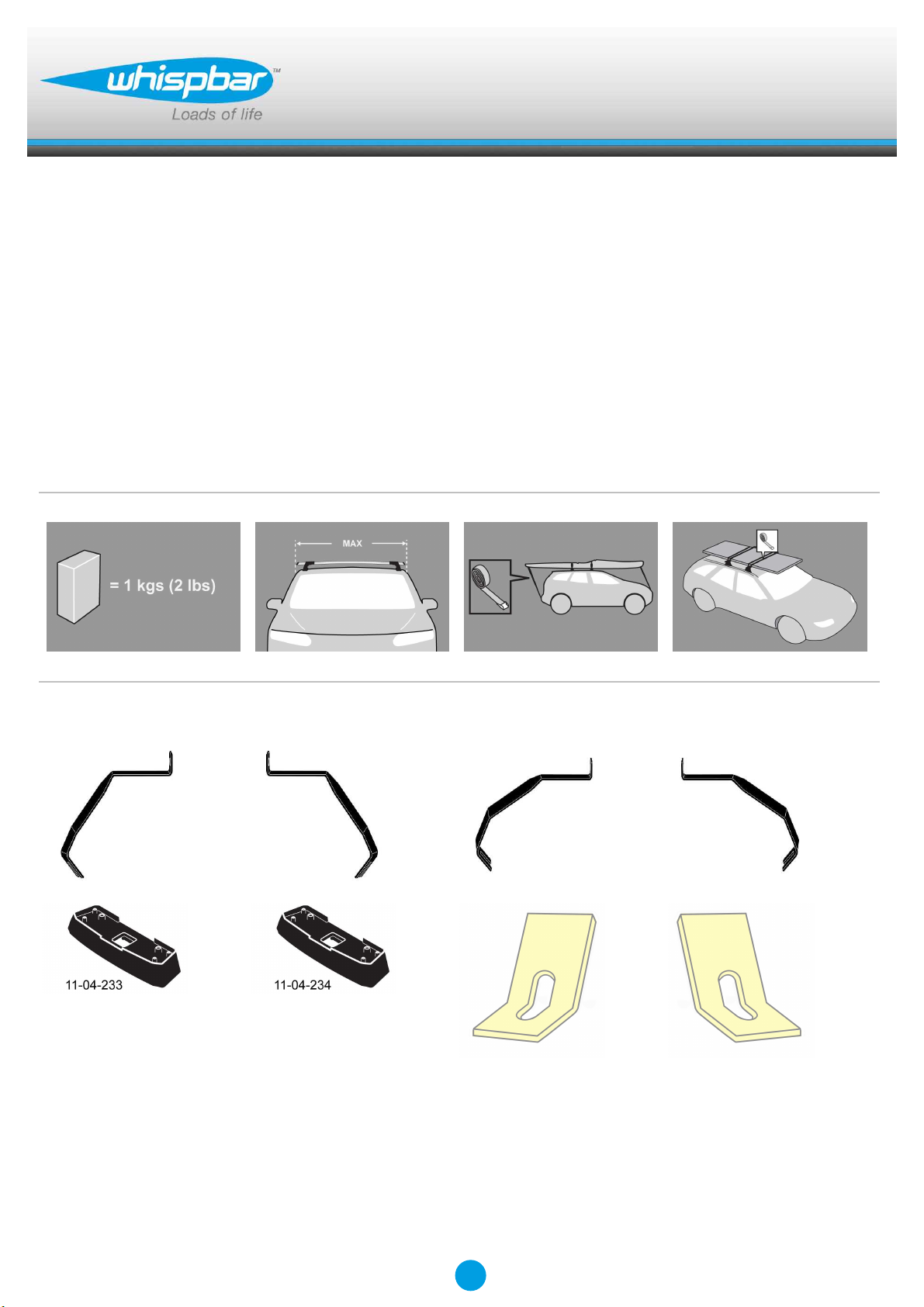

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 2 x 2 x 2 x 2

Revision No: 2B 1

Fitting Kit K822W

MAX kgs (lbs)

W/P WHD

Audi

TT, 2dr Coupe Aug 06-14 EU 60 kgs (132 lbs) 60 kgs (132 lbs)

TT, 2dr Coupe Aug 08-15 AU 60 kgs (132 lbs) 60 kgs (132 lbs)

TT, 2dr Coupe Aug 08-15 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)

TT, 2dr Coupe Aug 08-15 US 60 kgs (132 lbs) 60 kgs (132 lbs)

TT, 2dr Coupe Aug 08-15 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)

Fitting Kit EN

K822W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K822W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K822W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A468

B = A469

C = A470

D = A471

Fitting Kit EN

K822W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K822W

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 233

B = 234

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K822W

●Foot to sit in position shown.

●Clamps onto anchor points under rubber

door frame mouldings

●The rubber seal must be peeled back from

the vehicle body to allow the clamp to be

inserted between the vehicle body and the

rubber seal.

Fitting Kit EN

K822W

Fitment

●Place crossbar on vehicle.

●Bar 1: X = 920mm (36 1/4")

Bar 2: X = 872mm (34 3/8")

●Bar 1: X = 920mm (36 1/4")

Bar 2: X = 872mm (34 3/8")

●Press adjusting screw to adjust the leg

positions on the crossbar.

Fitting Kit EN

K822W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

3 Nm (2.2 ft lb).

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
