Whispbar K387W User manual

K387W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 2 x 2 x 2 x 2

x 2 x 2

Revision No: 4C 1

Fitting Kit K387W

MAX kgs (lbs)

W/P WHD

Hyundai

Grandeur , 4dr Sedan 05-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Grandeur , 4dr Sedan 06-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Grandeur , 4dr Sedan 06-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K387W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K387W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K387W

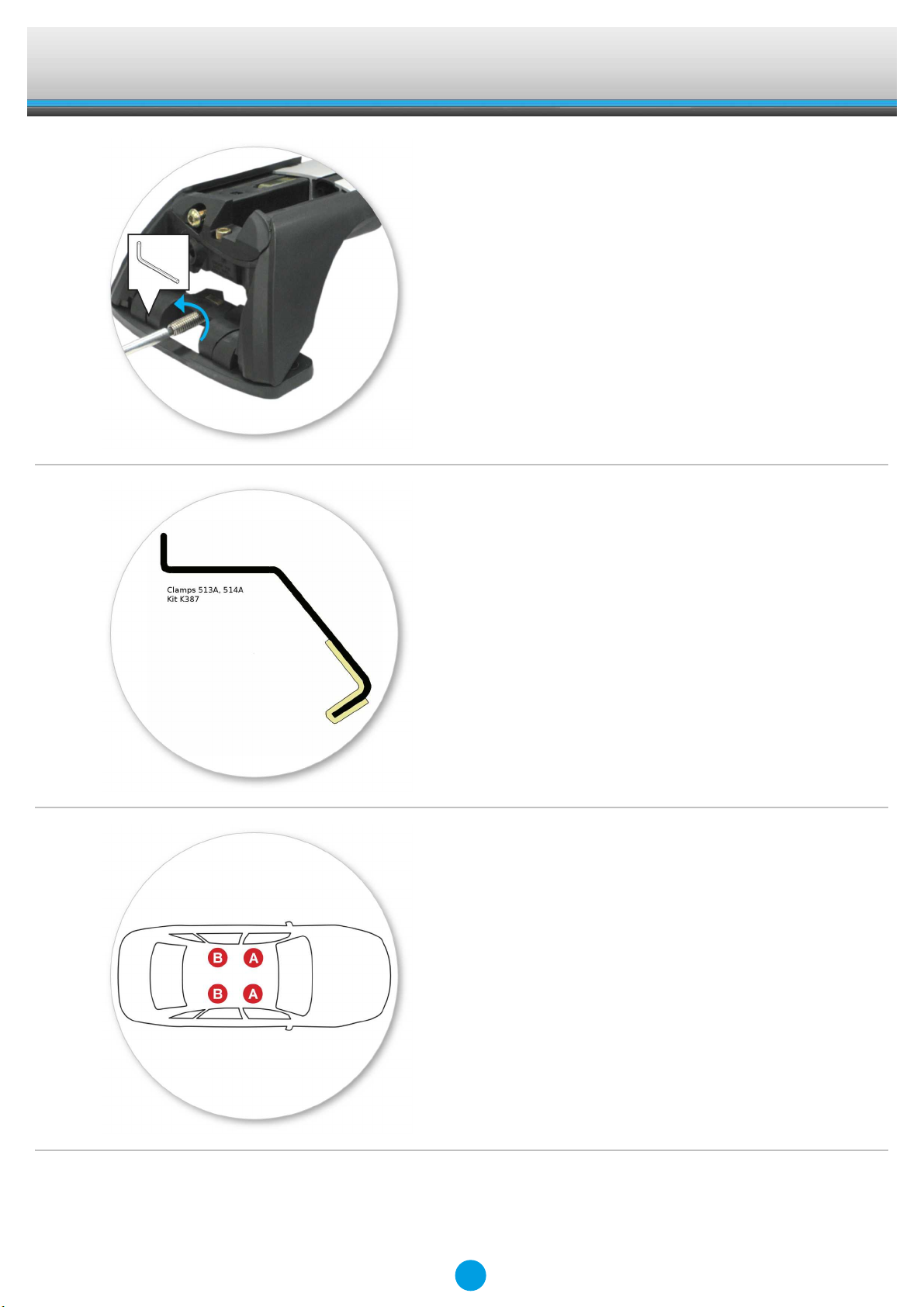

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 513A

B = 514A

Fitting Kit EN

K387W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K387W

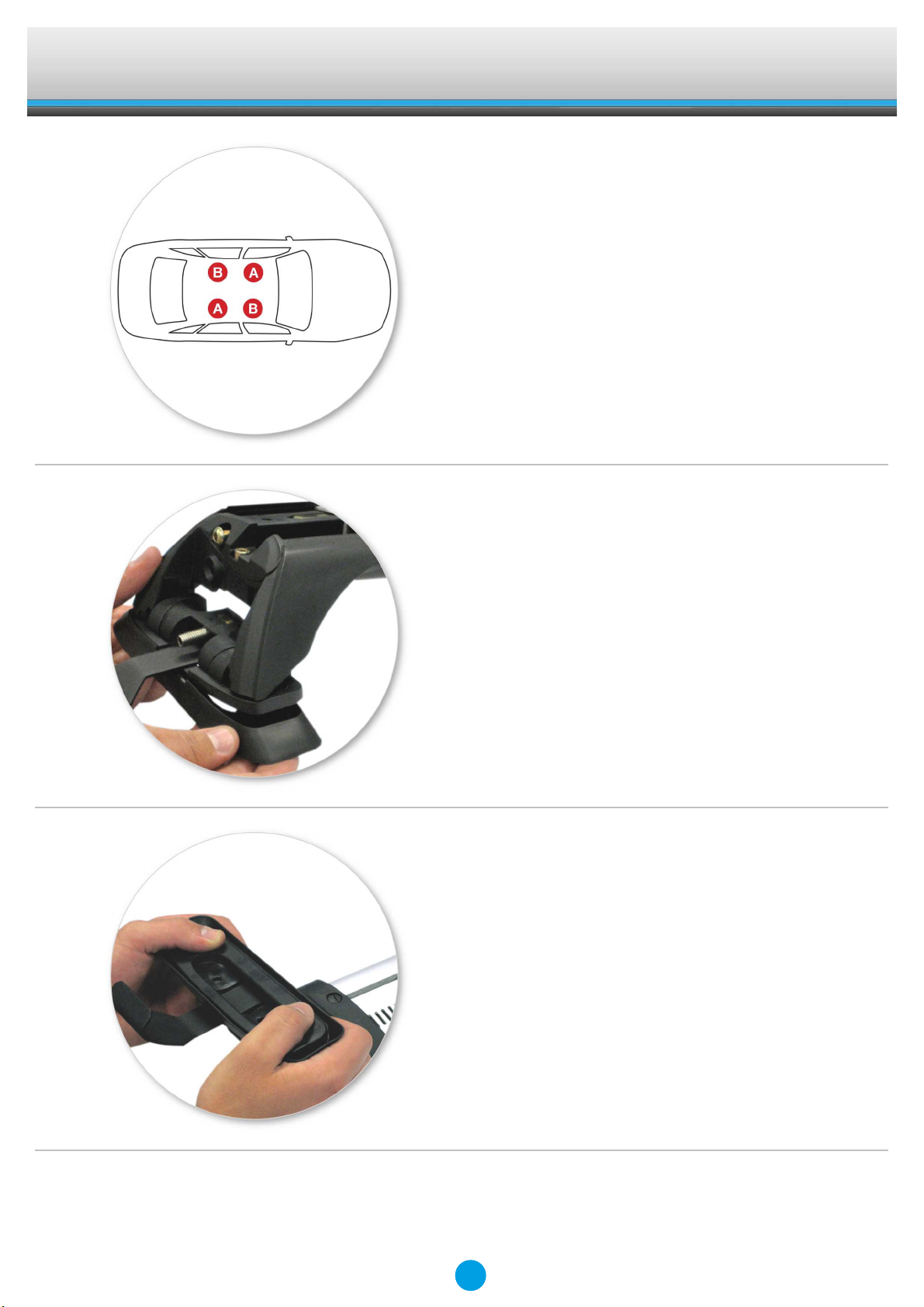

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-252

B = 11-04-253

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

Fitting Kit EN

K387W

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

Fitting Kit EN

K387W

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K387W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
