Whirlpool LXR7144EQ2 User manual

TOP AND CABINET PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

AUTOMATIC WASHER

3−00 Litho In U.S.A. (rcg) Part No. 881645 Rev.A

TOP AND CABINET PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Use And Care Guide

LIT3363573

English

LIT3951073

French

Installation

Instructions

LIT3952817

English

LIT3951578

French

LIT3953932

Wiring Diagram

LIT3953891

Energy Label

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Automatic Washer

2 Top

3949310 White

3949311 Almond

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

63425 Almond

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3949237 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361400 White

3361401 Almond

20 358684 Strike, Lid Switch

22 9724509 Bumper, Lid (2)

28 62863 Screw 10−16 x 3/8

31 90016 Clip, Harness

CONTROLS AND REAR PANEL PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

CONTROL AND REAR PANEL PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 9740848 Screw 8−18 x 1/2

3 Hose, Water

Inlet (2)

3949374 Hose (Inlet)

3949375 Hose (Inlet)

4 3357027 Nozzle−Drain

Hose

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 3951609 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’−9")

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches)

(Not Included)

9 3948323 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3400064 Screw 10−32 x 5/16

11 90767 Screw, 8A x 3/8

12 3366847 Switch, Water Level

13 3948608 Bracket, Control

14 3948063 Cord, Power

15 3952821 Strain Relief,

Power Cord

16 End Cap (L.H.)

3358528 White

3358529 Almond

18 3952164 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3361805 Hose−Corrugated

Assy.

27 356138 Clamp, Hose

30 3363366 Clamp, Hose

31 660628 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes #30)

35 3949184 Switch, Water

Temperature

39 Panel, Console

3948257 White

3948258 Almond

44 Knob, Timer

3364291 White

3364293 Almond

45 Dial, Timer

3951053 White

3951054 Almond

47 Knob, Control

3950759 White

3950760 Almond

49 388326 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 End Cap (R.H.)

3358513 White

3358514 Almond

55 3390647 Screw 8−18 x 1/2

58 3366913 Clamp, Drain

Hose

59 3952568 Harness, Wiring

(For Detail See

Page 9.)

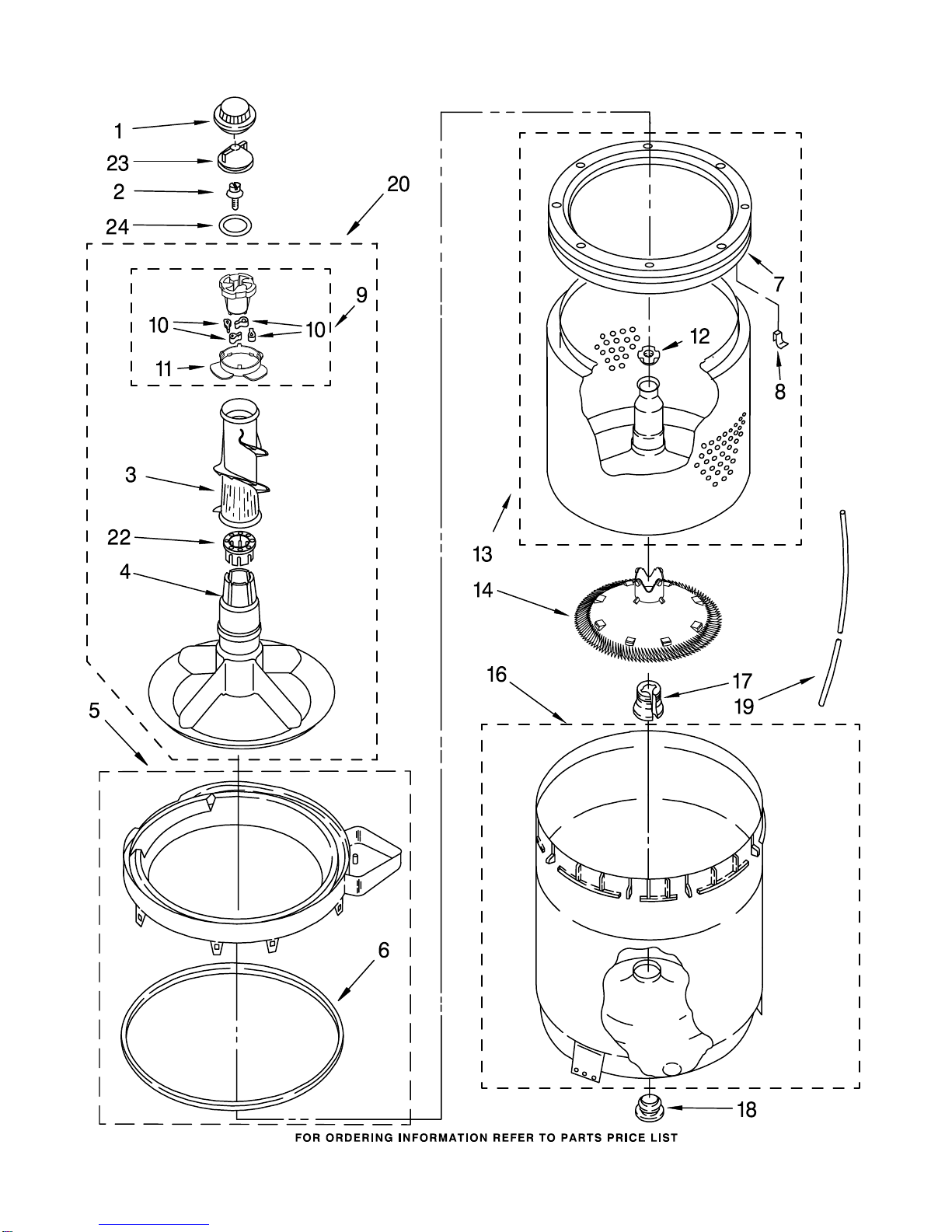

AGITATOR, BASKET AND TUB PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

AGITATOR, BASKET AND TUB PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

9 3363663 Cam Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3363661 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 8271639 Basket & Balance

Ring Assembly

(Also Order #14)

14 3952746 Filter, Plate

16 63125 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3350829 Agitator

(Complete Asy.)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 12

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 13

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw (2)

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661599 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

25 62863 Screw,

10−16 x 3/8

26 357021 Capacitor

27 357030 Clamp, Capacitor

3946792

MACHINE BASE PARTS

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

Illus. Part

No. No. DESCRIPTION

1 3387485 Screw, Bracket

Mounting

(10−16 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 16, 17,

18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Items

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

WH2G

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645

WIRING HARNESS PARTS

WH2G

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

(Use Term. 3948619

OR 3948620.)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

(Use Term.3948619

OR 3948620.)

28 3354925 Block, Connector

(Cold Valve)

(Use Term.693217)

29 3354926 Block, Connector

(Hot Valve)

(Use Term.693217)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

(Use Term.3948619

OR 3948620.)

For Models: LXR7144EQ2, LXR7144EZ2

(Designer White) (Designer Almond)

881645
