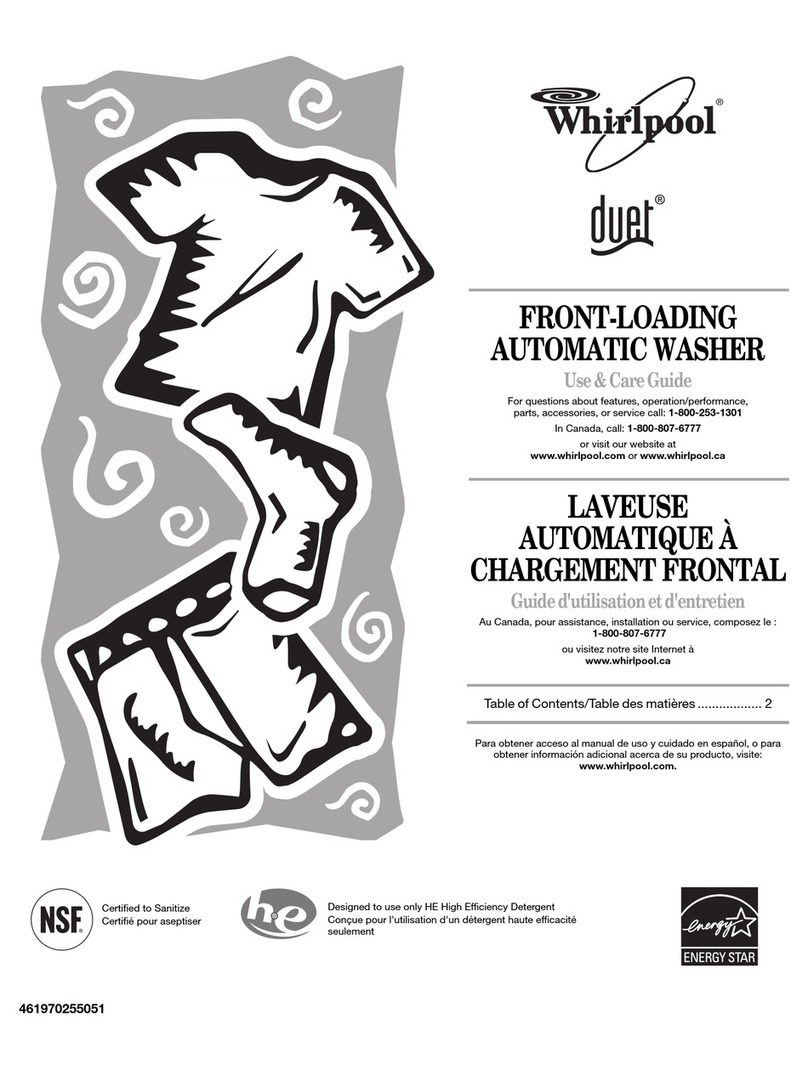

Whirlpool FRONT-LOADINGAUTOMATIC WASHER User manual

Whirlpool

Whirlpool WFW9400VE - 27in Front Load Washer User manual

Whirlpool

Whirlpool AWV6200 User manual

Whirlpool

Whirlpool Cabrio,- WED7300X User manual

Whirlpool

Whirlpool LA6300XS User manual

Whirlpool

Whirlpool LBR5232EQ0 User manual

Whirlpool

Whirlpool 2DLSQ8000JQ3 User manual

Whirlpool

Whirlpool WTW5800SG0 User manual

Whirlpool

Whirlpool LA5400XS User manual

Whirlpool

Whirlpool WTW8500BW User manual

Whirlpool

Whirlpool LB53OOXL User manual

Whirlpool

Whirlpool W11156985A User manual

Whirlpool

Whirlpool CAWB522SQ0 User manual

Whirlpool

Whirlpool 6ALSR7244MW3 User manual

Whirlpool

Whirlpool FSCR10431 User manual

Whirlpool

Whirlpool LC45OOXS User manual

Whirlpool

Whirlpool LA528OXT User manual

Whirlpool

Whirlpool LA7899XP User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG

LG TV2516DV3B owner's manual

LG

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual

SERVICE MANUAL

Automatic Washer LSP880GP

(Philippines)

SPECIFICATION

Power source

Overall dimension(Net dimension)

Net weight

Power consumption

Motor output

Marked capacity of washing/spinning

Washing method

Water capacity

Water consumption

Pulsator speed

Spinner tub speed

AC 220V, 60Hz

540(W) × 562(D) × 930(H)

34kg

350W

180W

8.8kg

Automatic reverse turn

52 Liters

140 Liters (Regular wash cycle

Water level: High)

170 rpm(DELICATE 60 rpm)

850 rpm

Specification: Subject to change without notice.

2

ABNORMAL CONDITION

When the washer is abnormal, the washer stops as the every actions turns off, beep tone

sounds ON-0.1 second and OFF-0.1 second for 6 seconds and number window LED display

abnormal code. The washer judges the following six conditions as abnormal condition.

1) Abnormal condition of water supply

In supplying with water, the water level does not reach extra low level within 10 minutes or

does not reach your chosen water level within 20 minutes.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

2) Abnormal condition of drain

In draining, the water level does not go down below the reset level of the water level sensor

within 8 minutes.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

3) Abnormal condition of spin-dry

• The safety switch works 3 times continuously during the program of rinse-spin or works 1

time in the single program of spin-dry.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

• The washer lid is opened.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

4) Abnormal condition of child lock.

Running in setting child lock, the washer lid is opened beyond 4 seconds.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

5) Abnormal condition of water level sensor.

The water level sensor malfunctions or the water level is overrunning the alert level when the

water does not stop.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

6) Abnormal condition of load sensor.

The number window LED display abnormal code: and the electric buzzer sounds to

indicate a problem at the same time.

3

CIRCUIT DIAGRAM

THOUBLESHOOTING

a. Power Source

Yes

No

COLOR SYMBOL

Gr

Bl

G

B

LB

Br

O

P

R

W

Y

V

GRAY

BLUE

GREEN

BLACK

LIGHT BLUE

BROWN

ORANGE

PINK

RED

WHITE

YELLOW

VIOLET

TROUBLE INSPECTION CAUSES REMEDY

Any indications

and beep do not

work when

power switch is

on and the start

button is pressed

INSPECTION

Is fuse blown? Deterioration of fuse.

Motor is defective.

Capacitor is defective.

Replace.

Replace.

Replace.

Poor connect of 6-pin

connectors (blue&white).

Control circuit board is

defective

Repair or replace.

Replace.

4

Hose joint assembly

Cushion

Filter

Does water stop

when the plug

is removed or

power switch is

OFF?

b. Water Supply

Yes

No

Low

High

Note: When removing the flow sheet, reinstate the filter in place correctly.

Yes

No

TROUBLE INSPECTION CAUSES REMEDYINSPECTION

Water does not

flow when the

power switch is

on and start

button is pressed.

Does humming

noise come on

from water

valve？

Something on the filter of

the water valve or hose

joint assembly.

Clean the filter.

Poor connect of 6-pin

connectors (blue& white).

Water valve is defective.

Water level sensor is

defective.

Control circuit board is

defective.

Repair or replace.

Replace.

Replace.

Replace.

Water is not

supplied normally.

Check water

pressure.

Remove the flow

sheet of the water

valve.

Replace the water

valve.

Clean the filter on

the water valve or

hose joint

assembly.

Replace the water

valve.

Water does not stop

Something in the air trap

hose or air leaks from a

part related water level

sensor system.

Water level sensor is

defective.

Control circuit board is

defective

.

Something on the

diaphragm on the water

valve.

Diaphragm is deformed

Clean or replace.

Replace .

Replace.

Replace or

disassemble the

valve and clean

the diaphragm

Replace

The height of drain hose is

less than 0.7m.

Make the height of

drain hose is not less

than 0.7m.

5

Bearing ass

’

y is defective. Replace.

Motor wires are

dis-connected.

Capacitor wires are

dis

-

connected

.

Capacitor is defective.

Motor coil shorten.

Brake lining on bearing ass

’

y

is

worn out.

Brake lever ass

’

y is defective.

Torque motor is broken.

Brake lining is

worn out.

Brake lever ass

’

y is defective.

Foreign matter in drain hose.

Valve bel

low is deformed.

Pump lead wire is

disconnected.

Control circuit board is

defective.

c. Wash/Rinse

No

Yes

No

Yes

No

Yes

Yes

No

No

d. Drain

Yes

No

TROUBLE INSPECTION CAUSES REMEDY

Washing cycle does

not start even if

water keeps the

selected water level.

INSPECTION

Does the spin tub

rotated normally

when the

COURSE button

is set to SPIN?

Bearing ass

’

y is defective.

Poor connect of 6-pin

connectors (blue & white)

Thermostat on motor is

opened.

Control circuit board is

defective.

Replace.

Replace.

Repair or replace

after cooling down.

Replace.

Does the pulsator

rotate by hand?

Does humming

noise come on

from motor?

Replace or repair.

Replace or repair.

Replace.

Replace.

The spin tub rotates

together with the

pulsator during

washing or rinsing

cycle.

Is the torque motor

working normally? Replace bearing ass

’

y.

Replace bearing ass

’

y.

Replace.

Note:

Brake-work is

normal when spin

tub stops within 10

sec. under no-load.

Does brake-work

normally?

Replace bearing ass

’

y.

Replace

bearing

ass

’

y.

Water does not

drain out.

Is the built-in

pump working

normally？

Clean drain hose

inside.

Repair or replace.

Replace.

6

e. Spin Drying

Yes

No

TROUBLE INSPECTION CAUSES REMEDYINSPECTION

Drain takes time too

long. Drain hose

ass

’

y is deformed.

Hose is connected in the

wrong way.

Hose is too long or position of

hose is too high.

Repair or replace.

Repair.

Repair.

Note: In draining, the water lever sensor can

not reset in 8minutes.

The number window LED display

abnormal code: and begin blinking

on and off at the same time and the

electric buzzer sounds to indicate a

problem.

Note: In draining, the water level sensor can

not reset in 8 minutes.

The number window LED display

abnormal code: and begin blinking

on and off at the same time and the

electric buzzer sounds to indicate a

problem.

• If the Drain Hose is too long or high, it may

make draining impossible.

• The extend Drain Hose to a maximum long of

3 meters and maximum high of 10 centimeters.

Spin drying cycle

does not work.

INSPECTION

Does safety

device work?

Machine inclines. Replace with level.

The V-belt is slipping.

The V-belt is snapped.

Small pulley mounting

screw is loosed.

Motor is disconnected or

burnt.

Capacitor is broken or

disconnected.

Bearing ass

’

y is defective.

Torque motor is defective.

Brake lever is defective.

Thermostat on motor is

opened.

Poor contact of 6-pin

connectors (blue &white).

Control circuit board is

defective.

Adjust the motor

position.

Replace.

Tighten up.

Replace.

Replace.

Replace.

Replace.

Repair or replace.

Repair or replace

after cooling down.

Repair or replace.

Replace.

Note:

1.

The safety switch works 3 times

continuously

or works 1 time in the

single program of spin-dry

.

The

number window LED display abnormal

code: and begin blinking on and off

at the same time and the electric buzzer

sounds to indicate a problem.

2. Do not disconnect the wire from the

capacitor, because this wire acts as

de-pressing noise from outside to the

micro-computer.

7

Operation of safety device

When the safety device works by abnormal swing of spin drum, machine works automatically to

stop Spin-Dry cycle and operates water supply valve to pour water into the Wash/Spin Tub and

then starts washing cycle for replacing washing clothes evenly.

After above operation has down twice, if safety device works again, machine will stop, and the

number window LED display abnormal code: and begin blinking on and off at the same time

and the electric buzzer sounds to indicate a problem.

• Open the Wash Lid and rearrange the clothes evenly around the Wash/Spin Tub.

• Close the Wash Lid and press the START/PAUSE button again.

f. Buzzing and rattling

Low

High

TROUBLE INSPECTION CAUSES REMEDYINSPECTIONINSPECTION

Start of spin-drying. Normal spin.Safety device work.

Electric circuit

counts operation

of safety device.

Electric circuit works to stop

spin when safety device

detects continuously three

times of abnormal swing of

spin drum.

Automatic

adjustment or

load.

Buzzing/rattling

during water

supply.

INSPECTION Something in water valve. Replace.

INSPECTION

Is high water

pressure (more

than 4kg/cm

2

)?

Faucet open too far Adjust faucet

turning.

Stop of Spin-Dry

Agitation of load (Rinsing

for 2 minutes).

Water supply

8

Yes

No

TROUBLE INSPECTION CAUSES REMEDYINSPECTION

Buzzing/rattling

during washing

or rinsing.

Does some noise

sound during

spin drying?

Belt is slipping.

Pulley is loose.

Some part touch motor

Adjust.

Tighten.

Repair or replace

Something underneath

pulsator.

Pulsator is rubbing.

P

ulsator shaft is burnt.

Remove.

Adjust bearing ass

’

y.

Replace bearing ass

’

y.

Buzzing/rattling

during spin-dry. Is sound in

low-pitched

monotone?

Bearings of bearing ass

’

y

is defective.

Replace.

Is variable sound

happened by

vibration?

Does noise sound

when the washer

begins to work?

Is clattering on

maximum

rotation?

Is flapping?

Machine is in unbalance.

Suspension rod ass

’

y is

worn out.

Belt is slipping

Motor pulley is loose.

Wire and/or air trap hose

is loose.

Place machine

evenly on base.

Replace.

Adjust.

Tighten up.

Tighten.

9

PART LIST

Key No. Part No. Description 中文名称 Q

’

ty

1 301B801701331 Control Circuit Board Complete 电脑板完成 1

2 ST1TN40160SE SCR 4×16 4X16 螺钉(电脑板安装用) 5

3 301B121000507 Panel sticker 控制板塑贴印刷完成 1

4 301B141300415 Washer Lid B Complete 洗涤上盖 B烫印完成 1

4a 301B141400150 Lid Handle 盖板抓手 1

5 3012571403140 Hinge Spring 安全爪弹簧 1

6 3012571501140 Hinge Arm 安全爪 1

7 3012160605140 Hinge Shaft 盖板轴 1

8 301B141200222 Washer Lid A Complete 洗涤上盖组件 A 1

8a 301B141200221 Washer Lid complete

洗涤上盖完成(虚拟件)

1

9 3012160606141 Hinge Shaft 盖板轴销 1

10 3012160702140 Lid Spring 盖板弹簧 1

11 301213179F140 Notice Label 注意铭牌 1

12 301B141500127 Back Plate 后板 1

14 ST1TN40120SE SCR 4×12 4X12 螺钉(后板安装用) 2

15 3010571701140 Safty Lever 安全杆组件 1

16 ST1TN40140SE Screw 螺钉 1

17 STATN40140SE SCR 4×14 4X14 螺钉(进水阀和进水盒连接) 2

18 3014294S12140 Valve Assembly(Water Valve) 进水阀 1

19 3012212701140 Water Valve tie_in 进水阀接头 1

20 301B311100004 Pour Inlet assembly 进水盒组件 1

21 ST1TN40120SE SCR 4×12 4X12 螺钉(进水盒组件安装用) 3

22 3014291S03140 Response Switch(Water Level Sensor) 水位传感器 1

23 3012334002140 Hose Band 软管卡簧(水位传感器用) 1

24 3012324205140 Air Trip Hose 通气软管(水位传感器用) 1

25 3012143414140 Cushion 海绵套环 1

26 301B141100065 Top Plate 面架罩光完成 1

27 ST1TN40120SE SCR 4×12 4X12 螺钉(面架安装用) 4

28 301B151300015 Screw Cap 螺钉盖 2

29 301B311500065 Detergent Tray 粉末盒印刷罩光完成 1

30 301B141600189 Control Panel Assembly 控制板 1

31 ST1TN40120SE Screw 螺钉 2

32 3012143468140 Cushion

上盖缓冲垫(盖板用)

2

33 3010571003140 Safty Device Spring 安全开关组件 1

34 3012176201140 aluminum foil 50x75 铝箔(50X75 面架用) 1

34a 3012176220140 aluminum foil 100x100 铝箔(100X100 面架用) 1

35 301B801100169 Wire bunch 洗衣机线束 1

35a 3012152502140 Wire fix 导线束缚(通气软管及导线用) 1

36 301B111000014 Frame Complete 箱体铆接组件 1

37 Stopping Pin 止退销（包含在吊杆完成里） 4

38 Spring Damper Base 吊杆球座（包含在吊杆完成里） 4

39 3012912223140 SCR 4×8 4X8 螺钉(

后罩盖安装

用) 7

40 3012122232140 Back Cover 后罩盖 1

10

Key No. Part No. Description 中文名称 Q

’

ty

41 301B111700008 Frame Handle

箱体把手

2

42 301B111900002 Drain Cap

排水口盖

1

43 3012334001140 Hose Band 软管卡簧(排水内管和外桶) 1

44 3010324702140 Drain Hose (Inside) 排水内管组件 1

45 3012912203140 Special

screws

M5×14

特种螺钉 M5×14

2

46 ST1TN40140SE SCR 4×14E

螺钉 4×14E

1

47 3010342014140

Drain

valve

Assembly

排水阀组件

1

51 3010325103141 Drain Hose assembly(Outside) 排水软管组件 1

54 3012334004140 Hose Band 软管卡簧(排水软管组件,附件) 1

55 301B131000015 Leg 底托 1

56 ST1TN40120SE SCR 4×12 4X12 螺钉(底托后部安装用) 8

56a ST1TN40160SE SCR 4×16 4X16 螺钉(底托前部安装用) 5

57 3010143002140 Adjuster Assembly 可调脚组件 1

58 3012234305140 Sound-Proof Board 底托屏蔽板 1

59 ST1TN40140SE SCR 4×14 4X14 螺钉(底托屏蔽板用,附件) 1

60 3012143401140 Cushion 缓冲垫 3

61 ST2TN60200SE SCR 6×20 6×20 螺钉(缓冲垫安装用) 3

62 3012152503140 Lead Stay

导线卡

2

63 3010812012140 Cord Assembly 电源线组件 1

64 3012152501140 Cord Stay

电源线束缚

1

65 ST1TN40100SE SCR 4×10 4X10 螺钉(电容器安装用) 1

66 3010868006140 Capacitor Assembly, 10µF/450V Ac 电容器组件 1

67 3010856501140 Earthing Wire Assembly 地线组件 1

68 SFSPG40100SA SCR 4×10A 4X10 螺钉(箱体接地用) 2

69 SVCNN40KA--- Washer SPR 4 垫片(箱体接地用) 2

70 3012813007140 Part Bag

扎线塑料袋

1

70a 3012234109140 Sound-Proof Board

防音板

1

71 3012871103140 Compressed Connector 压接套管 4

72 3012871102140 Compressed Connector 压接套管 1

73 3012411301140 Pulsator Screw 波轮螺钉 1

74 3012411401140 Pulsator Screw Washer

波轮螺钉衬垫

1

75 3012411007044 Pulsator 波轮 1

76 3012411501140 Pulsator Washer 波轮垫片 1

77 3012221202140 Outer Tub Cover 外桶盖 1

78 ST1TN40140SE SCR 4×14 4X14 螺钉(外桶盖安装用) 4

79 3012912202140 Special Screw assembly 螺栓组件(脱水桶固定用) 4

80 3010240022040 Spin Tub Complete

脱水桶完成(虚拟件)

1

81 3010240103045 Balance Weight Assembly

平衡环组件（无图）(虚拟件)

1

82 3012241205141 Cap 软化剂口盖 1

83 3010241106042 Spin Tub Assembly

脱水桶组件

1

84 ST1TN50210UK SCR 5×21K 5X21 螺钉(平衡环安装用) 6

85 3012240208140 Spin Tub Boss

脱水桶法兰

1

86 201D0033 Motor Complete 电机完成 1

87 3010212305142 Lint filter Assembly

滤网组件

1
