Whirlpool LSC9355BQ1 User manual

TOP AND CABINET PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

3−95 Litho in U.S.A.(L.T.) Part No. 881180

AUTOMATIC WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

357213

Nut, Push−In (2)

Top

3358200

For White Model

3358201

For Almond Model

62750

Spacer, Cabinet To

Top (4)

Cabinet

63424

For White Model

63425

For Almond Model

62780

Clip, Top & Cabinet

& Rear Panel (2)

3356311

Screw & Washer,

Lid Switch (2)

3352629

Switch, Lid

3351355

Screw, Lid Hinge

Mounting (4)

54584

Hinge, Lid (L.H.)

54583

Hinge, Lid (R.H.)

19119

Bumper, Lid Hinge

21258

Bearing, Lid

Hinge (2)

Lid

3361392

For White Model

3361393

For Almond Model

358684

Strike, Lid Switch

93770

Bumper, Lid (2)

384435

Screw,

10−16 x 1/2 (5)

90016

Clip, Harness

3362952

Dispenser, Bleach

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3360057

Sheet, Installation

Instructions

LIT3357470

Guide, Use and

Care

LIT3361371

Energy Guide

LIT3361173

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, (Washer)

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

72110

Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350938

Primer, Gray

350930

White

350956

Almond

261890

Golden Harvest

PAINT, BULK (1 qt.)

799344

White (Uncut)

978883

Almond (Uncut)

261891

Golden Harvest

(Uncut)

OIL

350572

Oil, Gearcase

(16 Oz.)

LUBRICANT

285208

Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195

Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675

Shipping Kit

ACCESSORY PARTS

89121

Stand−Pipe Kit

367031

Drain Protector

285320

Siphon Break Kit

CONTROLS AND REAR PANEL PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

CONTROLS AND REAR PANEL PARTS

MISCELLANEOUS PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

16123

Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3354858

Hose, Water

Inlet (2)

694419

Mini Buzzer

387402

Hinge, Console (2)

3357978

Panel, Rear

62747

Pad, Rear Panel

661575

Hose, Drain

(4’− 8")

661577

Hose, Drain

(9’−9")

(Not Included)

3357090

Extension

Drain Hose

(21 Inches)

(Not Included)

3946440

Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

3390646

Screw, 8−18 x 5/16

Switch,Water Level

3357481

For White Model

3357480

For Almond Model

3361233

Bracket, Control

3360514

Cord, Power

63848

Strain Relief,

Power Cord

Cap, End (L.H.)

3358531

White/Chrome

3358532

Almond/Chrome

96160

Screen, Filter (2)

3360392

Valve, Water

Mixing

90864

Screw,

10−24 x 3/8 (2)

370451

Clamp, Hose

272846 (Alt.)

353367 (Alt.)

3357328

Hose, Vacuum

Break

371503

Clamp, Hose

387606

Break, Vacuum

63290

Support, Rear

Panel

3361805

Hose−Corrugated

Assy.

356138

Clamp, Hose

371502

Clamp, Hose

660628

Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

62731

Hose, Pump To Tub

Switch, Touch Pad

(2)

3360452

For White Model

3360453

For Almond Model

Switch, Touch−Pad

(7)

3363673

For White Model

3363675

For Almond Model

96435

Screw, Timer

Mounting

(10−32 x 1) (2)

Panel, Console

3364054

For White Model

3364055

For Almond Model

Knob, Timer

3364291

For White Model

3364293

For Almond Model

Dial, Timer

3946261

For White Model

3946262

For Almond Model

3353145

Screw, 8−18 (2)

(Panel to Top)

62863

Screw, 10−16 x 3/8

Cap , End (R.H.)

3358516

White/Chrome

3358517

Almond/Chrome

3357011

Screw,

10−16 x 1/2

3357027

Nozzle, Hose

Drain

3357331

Clamp, Drain

Hose

3348424

Shield, Suds

3361937

Harness, Wiring

(For Detail See

Page 10.) Also

See Clips.

Illus. Part

No. No. DESCRIPTION

3359460

Miscellaneous

Parts Bag

16123

Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

3359452

Nut, Lock

(3/8−16)

389102

Foot, Front (2)

356138

Clamp, Hose

AGITATOR, BASKET AND TUB PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

AGITATOR, BASKET AND TUB PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION

63580

Dispenser

358237

Screw & Washer

(5−16−24 x 1)

3348752

Clothes Mover

3347288

Agitator

63851

Tub Ring & Gasket

3359585

Seal, Tub Ring

3354845

Clip, Agitator

3355921

Washer, Agitator

3351001

Cam Driven

387091

Dog, Agitator

Clutch

21366

Nut, Spanner

3350649

Basket & Balance

Ring

3361948

Filter, Plate

388893

Tub

(Includes Item 25)

389140

Block, Basket

Drive

383727

Gasket, Centerpost

3347780

Hose, Pressure

Switch

3348117

Agitator

(Complete Asy.)

3350389

Spacer, Thrust

3347290

Cap, Barrier

3348855

Seal, Inner Cap

3358198

Hose, Bleach

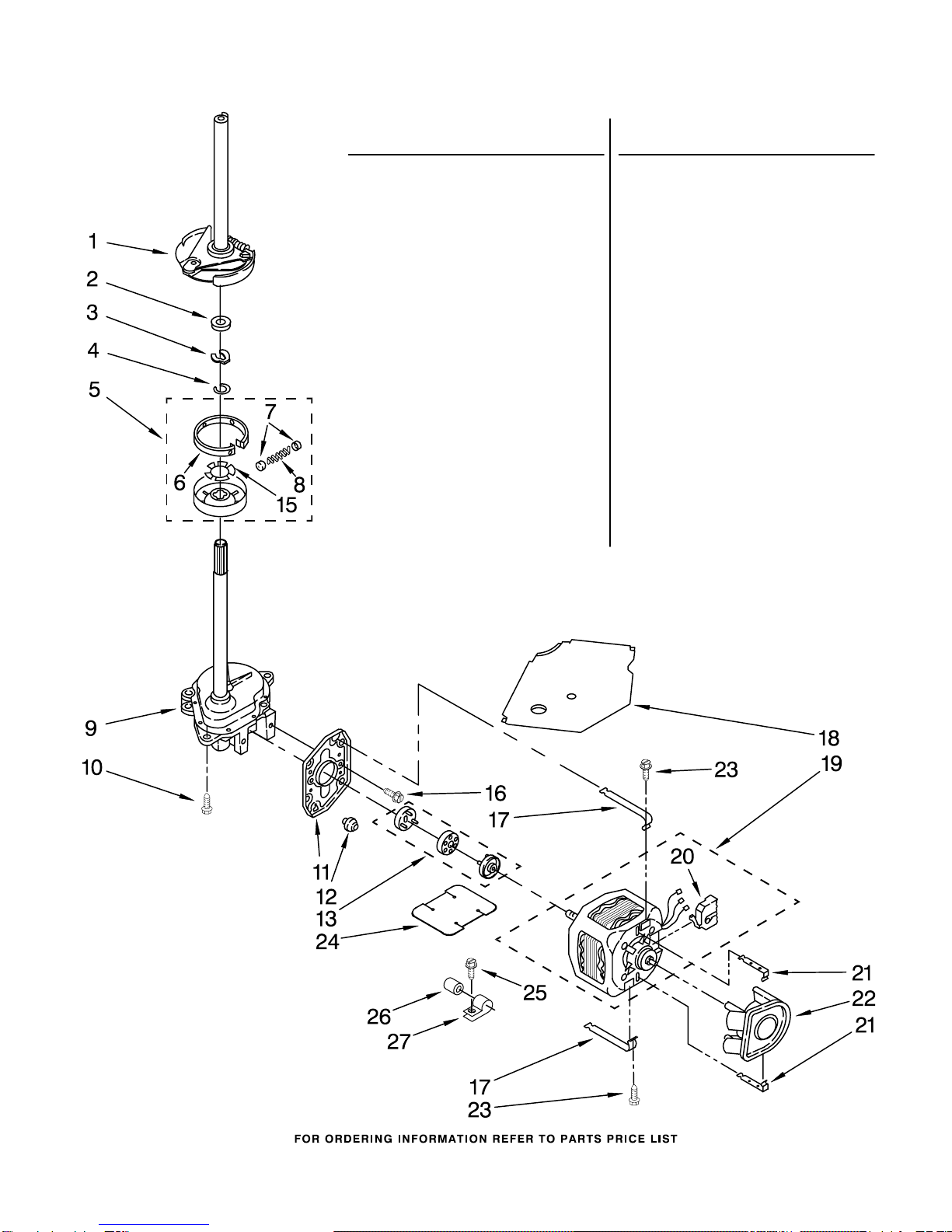

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

388952

Brake & Drive

Tube (Complete)

(Refer to Page 10

For Further

Breakdown)

63292

Washer, Spin

Tube Thrust

62697

Ring, Spin

Tube Support

63283

Ring, Retainer

3946794

Clutch (Complete)

3946793

Band & Lining,

Clutch (Includes

Illus. 7 & 8)

62646

Cap, Clutch

Spring (2)

3363337

Spring, Clutch

3360630

Gearcase

(Complete)

(Refer To Page 11

For Further

Breakdown

3357334

Screw, Gearcase

To Base (3)

62611

Plate, Motor

Mount To

Gearcase

62691

Grommet, Motor (4)

3363664

Coupling, Motor

& Isolation

3355454

Clip,

Anti−Rattle

3357334

Screw

3349637

Retainer, Motor (2)

3362089

Shield, Tub

To Motor

3352287

Motor, Main

Drive

62850

Switch, Main

Drive Motor

62700

Retainer, Pump (2)

3363394

Pump (Complete)

3387485

Screw, 10−16 x 5/8

3946532

Shield, Motor

62863

Screw,

10−16 x 3/8

3348058

Capacitor

357030

Clamp, Capacitor

MACHINE BASE PARTS

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION

343641

Screw, Bracket

Mounting

(10−16 x 5/8)

64067

Bracket, Spring

Outer (2)

63907

Spring

Suspension,(3)

3362087

Support & Brake,

Tub

64065

Bracket, Spring

Outer (L.F.)

3348727

Link, Leveling

Mechanism (2)

62597

Spring, Leveling

Mechanism

62837

Pin, Knurled

62596

Foot, Rear (2)

3347047

Bearing,

Centerpost (2)

357409

Seal, Centerpost (3)

388492

Spring,

Counterweight

62568

Pad, Plate

3946509

Plate, Suspension

(Includes Illus. 16)

3363660

Pad, Base

3946512

Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

3359452

Nut, Lock

(3/8−16)

389102

Foot, Front (2)

356934

Seal, Centerpost (2)

285203

Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

63134

Ring, Sound

Deadening

63806

Retainer,

Suspension Spring

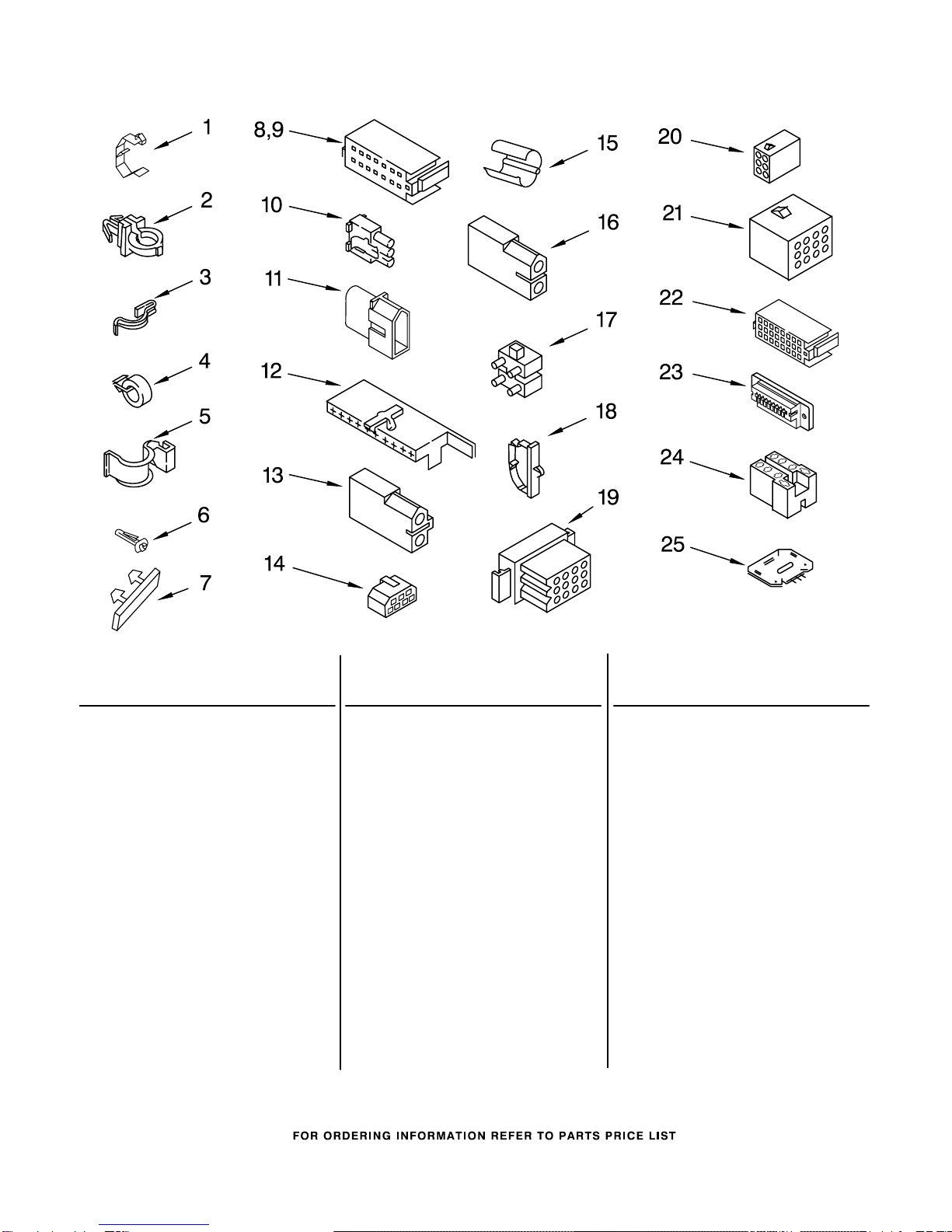

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

WH2D

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569

Or 338664.)

25 3407125 E.T.C. Control

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

Illus. Part

No. No. DESCRIPTION

BRAKE AND DRIVE TUBE PARTS

1 388952 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Shoe, Brake

9 62703 "T" Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 387806 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

BD−315A

For Model: LSC9355BQ1, LSC9355BZ1

(Designer White) (Designer Almond)

881180

This manual suits for next models

Table of contents

Other Whirlpool Washer manuals

Whirlpool

Whirlpool JS854F User manual

Whirlpool

Whirlpool FSCR 10431 Installation guide

Whirlpool

Whirlpool WFW96HEYW User manual

Whirlpool

Whirlpool WFW9050XW User manual

Whirlpool

Whirlpool Duet Steam WFW9550WW00 User manual

Whirlpool

Whirlpool CATALYST User manual

Whirlpool

Whirlpool 3956025 User manual

Whirlpool

Whirlpool 4KWTW4845FW User manual

Whirlpool

Whirlpool AWE 9725 User manual

Whirlpool

Whirlpool Duet WFW9200SQA11 User manual

Whirlpool

Whirlpool Cabrio WTW6700T User manual

Whirlpool

Whirlpool w10280544f User manual

Whirlpool

Whirlpool CAM2742TQ User manual

Whirlpool

Whirlpool FDLR70210 User manual

Whirlpool

Whirlpool WTW5500XW User manual

Whirlpool

Whirlpool 2DLSQ8000JQ3 User manual

Whirlpool

Whirlpool WTW4715EW User manual

Whirlpool

Whirlpool WFE 1480DW User manual

Whirlpool

Whirlpool duet 461970235721 User manual

Whirlpool

Whirlpool 5-Position - WTW5900TW 27" Washer Fabric Select... User manual

Whirlpool

Whirlpool WFW9500TC01 User manual

Whirlpool

Whirlpool FWL61452W User manual

Whirlpool

Whirlpool LA3300XS User manual

Whirlpool

Whirlpool W10775514B User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual
