SPEED SELECT AUTOMATIC WASHERS

A Note ToYou

‘hhank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have

gone into its manufacturing. To ensure many years of trouble-free operation, we have developed

this Use and Care Guide. It is full of valuable information on how to operate and maintain your

appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new

information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols

and follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers

as personal injury, burns, fire and electrical

shock.

This symbol will help you avoid actions which

could cause product damage (scratches,

dents, etc.) and damage to your personal

property.

Our Consumer Assistance Center number, l-800-253-1301, is

toll-free 24 hours a day.

If you have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on pages 24 and 25. If you need further help, call us. When

calling, you will need to know your appliance’s complete model number and serial number. You

can find this information on the model and serial number plate (see diagram on page 4). For your

convenience, we have included a handy place below for you to record these numbers, the pur-

chase date from the sales slip and your dealer’s name and telephone number. Keep this book and

the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock or injury to persons

when using your washer, follow basic precautions, including the

Read all instructions before using your

washer.

Do not machine wash or machine dry

items cleaned, washed, soaked in, or

spotted with wax, paint, gasoline, oil, or

other flammable fluids. The fumes can

create a fire hazard or explosion. Always

hand wash and line dry items containing

these materials.

Flammable fluids (dry-cleaning solvents,

kerosene, gasoline, etc.) should not be

used or stored in or near your washer. Do

not add flammable fluids to your wash

water. These substances give off vapors

that can create a fire hazard or explosion.

Do not allow children to operate, play with,

or crawl on or inside your washer. Super-

vise children closely when your washer is

used near them.

Before your washer is removed from

service or discarded, remove the lid to

prevent accidental entrapment.

.After starting a cycle, do not reach into the

basket unless the Cycle Control Knob is

pushed in and all motion stops.

Do not tamper with the controls.

If your hot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in your

water heater and your hot water pipes.

HYDROGEN GAS IS EXPLOSIVE. To

prevent injury or damage, before using

your washer, turn on all hot water faucets

and allow water to run for several min-

utes. This will allow gases to escape. Do

not smoke or use any open flame near

your faucet while it is open.

Please ...

Have only a qualified repairman install,

repair, or replace parts on washer.

Maintain washer properly.

* Protect washer from the weather and

keep it where the temperature will not fall

below freezing.

Install and level washer on a floor that

can support the weight.*

Connect washer to the correct 3-prong

outlet, electrical supply, water supply, and

drain.*

Ground washer properly.*

‘See the Installation Instructions.

Understanding your responsibilities

Store detergent, laundry aids and other

materials in a cool, dry place where

children cannot reach them (in a locked

cabinet if possible).

Read and follow instructions on pack-

ages of detergent and laundry aids,

especially warnings and precautions.

Do not wash or dry items that are soiled

with vegetable or cooking oil. These

items may contain some oil after launder-

ing. Due to the remaining oil, the fabric

may smoke or catch fire by itself.

Do not use chlorine bleach and ammonia

or acids (such as vinegar or rust re-

mover) in the same wash. Hazardous

fumes can form.

Unplug power supply cord before

attempting to service your washer.

g Do not machine wash fiberglass materi-

als. Small particles can stick to the

fabrics washed in following loads and

cause skin irritation.

- SAVE THESE INSTRUCTIONS -

Knowing Your Washer’s

Features

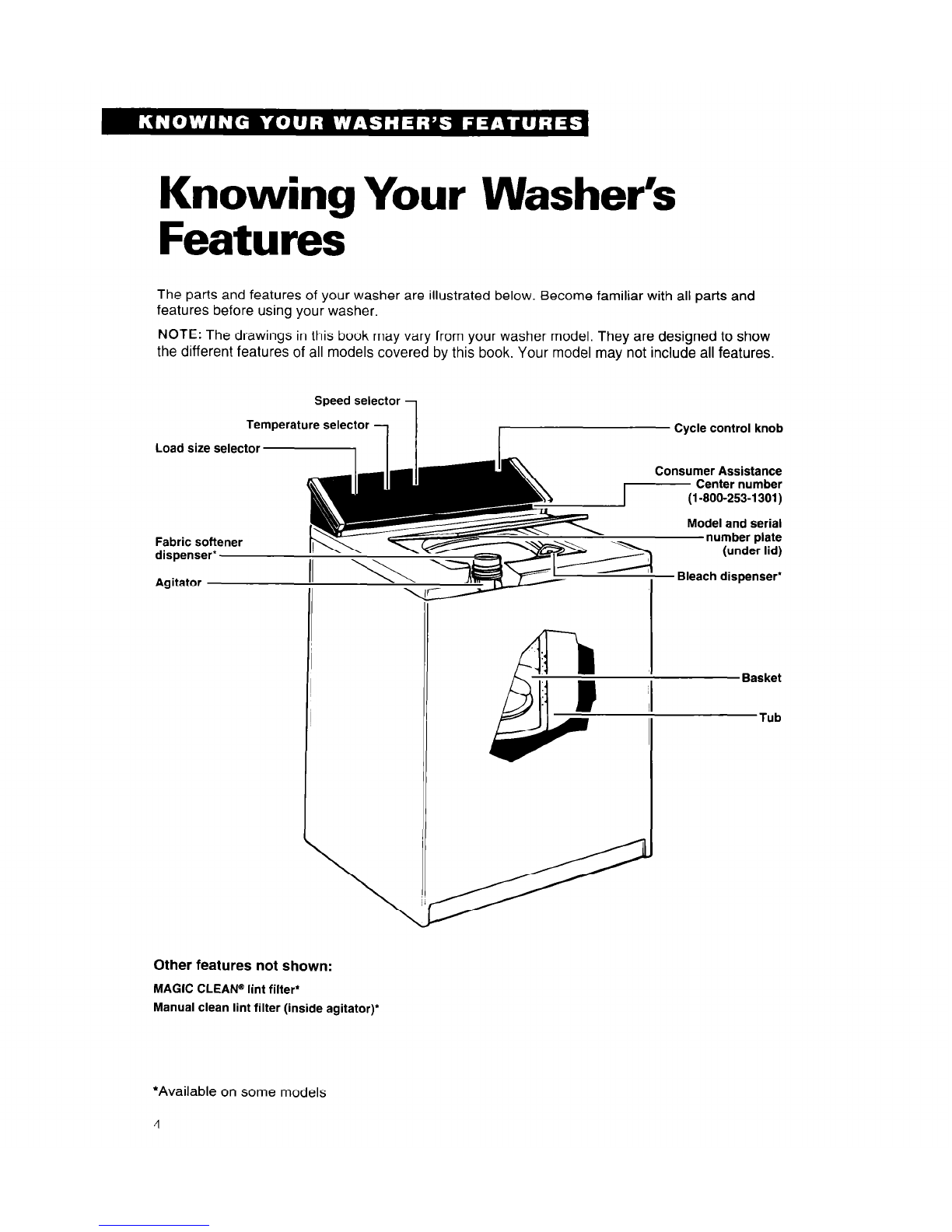

The parts and features of your washer are illustrated below. Become familiar with all parts and

features before using your washer.

NOTE: The drawings in this book may vary from your washer model. They are designed to show

the different features of all models covered by this book. Your model may not include all features.

Temperature selector

Load size selector

Cycle control knob

mer Assistance

Center number

Fabric softener del and serial

(under lid)

Other features not shown:

MAGIC CLEAN@ lint filter’

Manual clean lint filter (inside agitator)’

-Bleach dispenser’

Basket

Tub

*Available on some models

Operating Your Washer

In This Section

Page Page

Before starting your washer.. 15

...........................

Starting or stopping your washer .................... .5

Selecting a load size ......................................... .6

Selecting wash-rinse temperatures ................ .6

Selecting agitation-spin speeds ...................... .7

Selecting a cycle and time ............................. .7

Using rinse and spin ..................................... 10

Using drain and spin ..................................... 10

What happens in each cycle ........................

.l 1

Operating your washer properly assures maximum washing efficiency. This section gives you

important information to help you make selections for your wash loads.

Before starting your washer

Add measured detergent. Then place a sorted

NOTE:

If your washer has a Consumer Buy

load in the washer before starting. See page 14 Guide, remove it and place it in your Use and

for additional “Before you wash” information. Care Guide.

Starting or stopping your washer

Starting your washer:

1. Push in the Cycle Control Knob and turn it

clockwise. Stop when the indicator on the

knob’s outer ring points to the number in the

wash cycle you want. The numbers are

minutes of wash time.

2. Select a load size, water temperature,

agitation and spin speeds.

3. Pull out the Cycle Control Knob.

Stopping and restarting your washer:

To stop the washer at any time, push in the

Cycle Control Knob.

To restart the washer, close the lid (if neces-

sary) and pull out the Cycle Control Knob.

Selecting a load size

Position the Load Size Selector at the setting

that corresponds to the size load you want to

wash. Select a load size based upon the size

of the load and the fabric you are washing.

See page 14 for additional loading information.

To change the load size setting after the

washer has started to fill, move the Selector to

the desired new setting.

Your washer has a knob or slide Load Size

Selector

If your washer has a knob Load Size Selec-

tor, turn selector to the desired load size.

If your machine has a slide Load Size Selec-

tor, you may set the load size anywhere on or

between the ex small and ex large settings.

NOTE: If your washer has RESET on the Load

Size Selector, change the load size selection by

first moving the Selector to RESET, then to the

new load size.

Load size tips

Items should move freely in the washer. Do

not overload the machine or select a load size

that is too small for the wash load.

Use a large load size setting for best results

with permanent press clothes.

Reduce wash time when using a small load

size setting. Loads with only a few small items

need less wash time.

Selecting wash-rinse temperatures

Match the water temperature to the type of

fabric and soils being washed. The top tempera-

ture is the wash water and the bottom tempera-

ture is the rinse water. Your washer has a knob,

CLEAN TOUCH’” or push button Water Tem-

perature Selector.

Water temperature tips

Use warm wash water with the Permanent

Press and Delicate cycles. For heavily soiled

permanent press items, use hot wash water.

. Always use cold rinse water for permanent

press fabrics.

For heavily soiled permanent press or knit

clothes, pre-wash or presoak in warm water

before washing.

See the “Water usage guide” on page 1I3for

more information.

Knob selector

Push button selector

CLEAN TOUCH selector-

an indicator appears

above the water

temperatures selected

Selecting agitation-spin speeds

NOTE: If you have selected high speed

agitation, the Gentle Wash system helps

protect your fabrics by reducing wash agitation

speed during the last few minutes of wash

agitation in the Regular and Permanent Press

cycles.

Knob selector CLEAN TOUCH selector-

an indicator appears

above the speeds

selected

Agitation and spin speeds usage guide

The following speed selections are recommended for better fabric care. See pages 8 and 9 for

suggested cycles.

SPEEDS

AGITATION SPIN

LOW LOW

LOW HIGH

USE FOR

Delicate fabrics or bulky

knits that wrinkle easily

Delicate fabrics

HIGH LOW

HIGH HIGH

Permanent press,

synthetic fabrics

Sturdy cottons, blends

COMMENTS

Gentle cleaning for light soils

Minimizes wrinkling

Gentle cleaning for light soils

Shortens drying time

Removes heavy soils

Minimizes wrinkling

Removes heavy soils

Shortens drying time

Selecting a cycle and time

You will find information you need to help you

make correct cycle selections in this section.

Pages 8-l 0: Use the information on these

pages to guide you when selecting a wash

cycle and time.

Page 11: Use this page to help you under-

stand what happens during a wash cycle.

Cycles may vary with model

Regular cycle

The Regular cycle features the Gentle Wash

system if high-speed agitation is selected.

Use 1O-14 minutes of wash time to clean

sturdily constructed cotton fabrics and

heavily soiled loads.

Use 6-10 minutes of wash time to clean

loads of fabrics that are moderately soiled.

Permanent Press cycle

The Permanent Press cycle features the

Gentle Wash system, if high-speed agitation is

selected, and a cool-down rinse to reduce

wrinkling.

Use 10 minutes of wash time to clean

moderately soiled permanent press and

some synthetic fabrics.

Use 6 minutes of wash time to clean lightly

soiled permanent press and some synthetics.

NOTE: The washer pauses briefly during the

wash cycle. This is normal for washer

operation.

Delicate cycle

The Delicate cycle features a reduced agitation

time for gentle soil removal.

Use 6 minutes of wash time, to clean lightly

and moderately soiled delicate items and

washable knits.

Soak cycle

(on

some models)

The Soak cycle features brief periods of

agitation and soak time to help remove heavy

soils and stains that need pretreatment.

Use warm water when soaking laundry (hot

water can set stains). See page 15 for stain

removal information.

Use the amount of detergent or presoak

additive recommended by manufacturer.

After the Soak cycle ends, add detergent

and set a new wash cycle.

Permanent press cycle

Delicate cycle

Soak cycle

Pre-Wash cycle

(on some models)

The Pre-Wash cycle features a brief period of

agitation to help remove heavy soils and stains

that need pretreatment.

Use warm water for prewashing stained

laundry (hot water can set stains). See page

15 for stain removal information.

After the Pre-Wash cycle ends, add deter-

gent and set a new wash cycle.

Super Wash cycle

(on some models)

The Super Wash cycle automatically pre-

washes the laundry and advances into the

Regular cycle (the washer does not need to be

reset after the Super Wash cycle). Use this

cycle when washing heavily soiled loads that

need maximum soil removal.

For proper cleaning use double the amount

of detergent recommended for a regular

wash cycle.

NOTE: The machine pauses during Super

Wash. This is normal for washer operation.

Soft Wash cycle

(on some models)

The Soft Wash cycle features a low agitation

speed. Select the spin speed that is suitable

for your load.

. Use this 6 minute cycle for washable wool-

ens and knits.

Super wash cycle

Using rinse and spin

When using extra detergent for heavily soiled

clothes, or washing special-care items, you

may want an extra rinse and spin.

1. Push Cycle Control Knob in and turn

clockwise to RINSE, as illustrated.

2. Pull Cycle Control Knob out. The washer

will fill to selected load size, agitate, drain,

and spin.

Using drain and spin

A drain and spin may help shorten drying times

for some heavy fabrics or special-care items

by removing excess water.

1. Push Cycle Control Knob in and turn

clockwise to SPIN, as illustrated.

2. Pull Cycle Control Knob out. The washer

will drain and spin.

Table of contents

Other Whirlpool Washer manuals

Whirlpool

Whirlpool LA6800XS User manual

Whirlpool

Whirlpool LSP6244BN0 User manual

Whirlpool

Whirlpool WWDC 8420/1 Instruction and safety manual

Whirlpool

Whirlpool LA5530XP User manual

Whirlpool

Whirlpool duet GHW9100L User manual

Whirlpool

Whirlpool WFW9450WR - ADA COMPLIANT 4.4 CF 12 CYCLESTEMPS 1300 RPM CHROME... User manual

Whirlpool

Whirlpool LA65OOXS User manual

Whirlpool

Whirlpool WTW5057LW User manual

Whirlpool

Whirlpool FFWDBL 964369 WSBSV User manual

Whirlpool

Whirlpool FWDG 961483 User manual

Whirlpool

Whirlpool FFCR70820 User manual

Whirlpool

Whirlpool AWV6200 User manual

Whirlpool

Whirlpool AWE 9527 User manual

Whirlpool

Whirlpool LA5720XTW0 User manual

Whirlpool

Whirlpool 3RGSC9400 User manual

Whirlpool

Whirlpool WFW9400SZ - Metallic Water Drop R Duet HTR Ultra... Assembly instructions

Whirlpool

Whirlpool LHW0050PQ User manual

Whirlpool

Whirlpool LA9500XT User manual

Whirlpool

Whirlpool LA6090XT User manual

Whirlpool

Whirlpool WFW9470W Series User manual

Whirlpool

Whirlpool 3360464 User manual

Whirlpool

Whirlpool W11114976B User guide

Whirlpool

Whirlpool LA6l5OXT User manual

Whirlpool

Whirlpool WFRB1054BHG User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Beko

Beko WKB 51231 PTMA manual
