Parts and features

LAUNDRY

LOAD INFORMATION TEMPERATURE

SIZE / SELECTOR

SELECTOR

\ / / _ CONTROL

7”“”/ -----._..

CYCLE MAGIC CLEAN@

LINT FILTER

(not shown)

MODEL AND SERIAL

NUMBER PLATE

(not shown)

AGITATOR

~1 BASKET

LIQUID BLEACH

DISPENSER

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

Remove the Consumer

/ Buy Guide label. It will be

easier to remove before

Copy your Model and Serial Numbers here

When you need service or call with a --

question, have this information ready.

Model Number

I. Complete Model and Serial Num-

bers (from plate under the lid near the

hinge).

Serial Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keep this book in the Laundry Informa-

tion Center with your “Laundry Guide,”

sales slip and warranty.

Servtce Company,

Phone Number

There is no warranty registration to return, Proof-of-purchase IS all

that is required for in-warranty servtce

Your responsibilitie

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain?

is properly grounded?

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the”Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN

EACH CYCLE 6

OTHER OPERATING

INSTRUCTIONS a

For o Rinse and Spin 8

For o i)raln and Spin 8

For a

Soak

or Pre-Wash

iiquid Bleach Dispenser

MAG!C CLEAN Lint Filter

CARING FOR YOUR WASHER

IF YOU NEED SERVICE

OR ASSISTANCE

1 Before Calling for

Assistance 11

2 If You Need Assistance 11

If You Need Service 11

4. If vou Have a Problem 11

‘~1984 Whirlpool Corporation -SAVE THESE INSTRUCTIONS - 3

Starting your washer

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

To change the setting on the LOAD

SIZE SELECTOR, turn the knob to RESET.

Then turn the knob to point at a

setting that describes the size of the

load you want to wash.

Set the knob anywhere on or be-

tween HAND WASHABLE (a few small

items] and LARGE (a full load).

See your “Laundry Guide” for details

on load sizes.

Select wash and rinse water tem-

peratures by pushing a button.

This drawing shows a warm wash

[top temperature] and cold rinse

(bottom temperature) selection.

Recommended wash temperatures

can be found in your “Laundry Guide”

and printed under the washer lid.

LOAD SIZES AND WATER LEVELS

Use less than a full tub of water For best cleaning results, the

when you have less than a full load load must be able to move freely

to wash. in the water. Too big a load or too

little water can tear items.

LARGE (16.9 gals.164.0 L)’

MEDIUM (13.0 gals.149.2 L)*

HAND WASHABLE (9.1 gals./34.0 L)’

‘Approximate fill with load

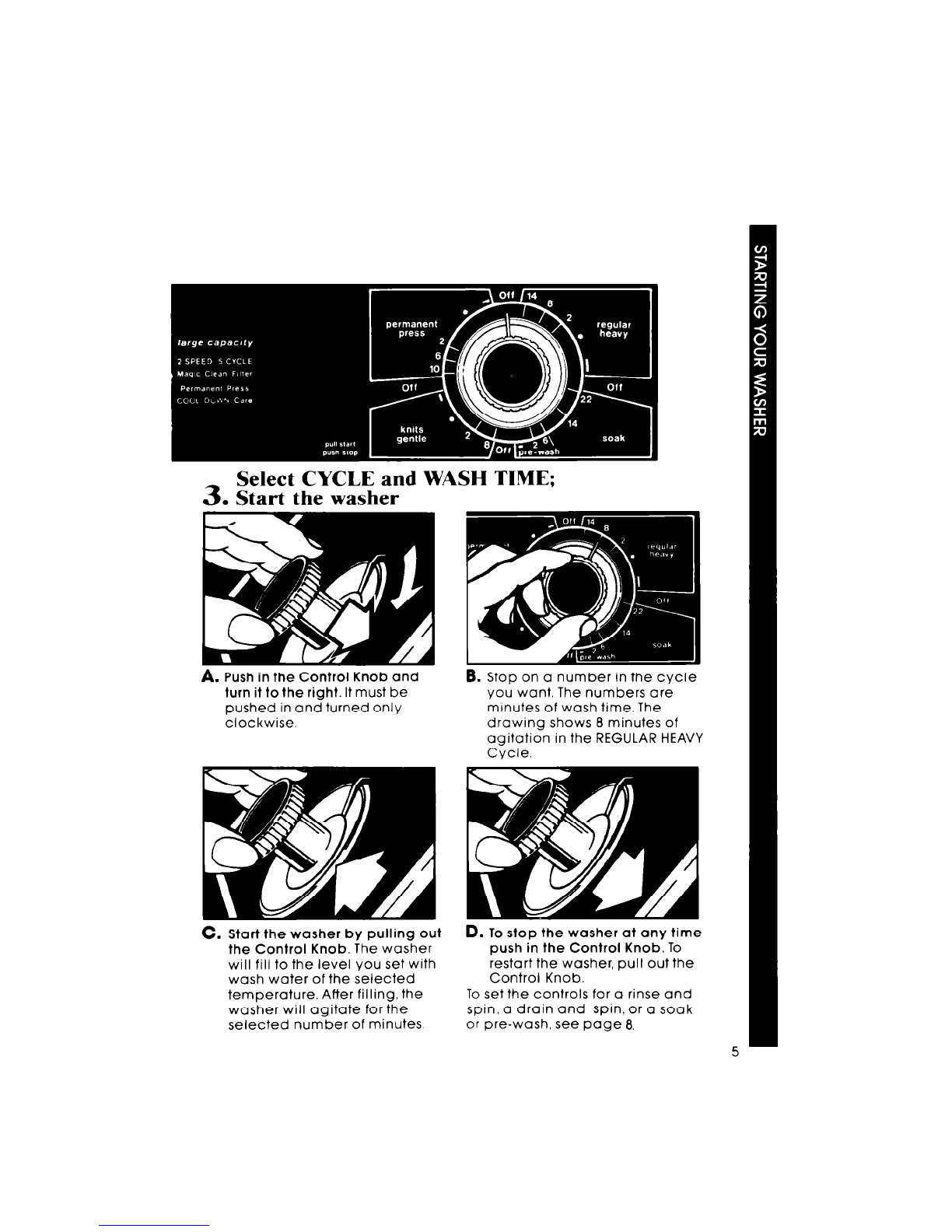

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

Stop on a number in the cycle

you want. The numbers are

minutes of wash time. The

drawing shows f3minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes

To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To set the controls for a rinse and

spin, a drain and spin, or a soak

or pre-wash, see page 8.

What happens in each cycle

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing start. After agitation starts, the knob turns

REGULAR HEAVY Cycle

PERMANENT PRESS Cycle

Low-speed spins and

cooling of the wash water

before the spin helps

keep wrinkles from setting

into permanent press

fabrics

KNITS/GENTLE Cycle

[

Low agitation and spin

speeds and shorter wash

time gently wash delicate

items and washable

2 synthetic knits.

S0.4K AND PRE-WASH Cycles

Periods of agitation and

soaking time clean

stained, yellowed, gray

or heavily soiled laundry.

Use recommended

amount of detergent.

FILL

Selected

Level

clockwise until it points to OFF and the cycle ends

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing.

REFILL

COOL

DOWN

WASH

NOTE: Always use cold rinse water for

, Minutes permanent press fabrics.

High

Speed

- Pre-wash setting

begins here (see page 8).

Special care is needed when soaking or pre-washing laundry.

See your “laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin

You may need an extra rrnse and

spin for heavily soiled loads which

need more detergent. (Extra de-

tergent can require an extra rinse.]

Push Control Knob in.

Turn clockwise to any

on the dial.

See above drawing.

. Pull Control Knob out.

The washer will fill to selected level

with cold water, agitate 2 minutes,

drain and spin.

For a drain and spin

Your washer can be set to drain

and spin out water.

9 Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 6 and 7

For a soak or pre-wash

For best results, use warm water

for soaking or pre-washing stained

laundry.

Use enough detergent or pre-soak

product for a single load.

Push Control Knob in.

. Turn clockwise to point at a number

in the SOAK Cycle.

Pull Control Knob out.

When the cycle is over, add de-

tergent for the next selected wash

cycle. Important: See additional

care information on page 7 of your

“Laundry Guide!’

Set the washer and start the next

selected wash cycle.

To start the soak or pre-wash with agitation, the Cycle Control

Knob must point to a number in the SOAK Cycle.

Liquid bleach dispenser

Always measure bleach. Do not

guess. Follow directions on the bottle

for the amount to use. Never use

more than 1 cup (250 ml) for a full

load. Use less with lower water level

settings. Use a cup with a pouring

spout to avoid spilling.

1. Load the washer first.

2. Pour measured bleach carefully

into dispenser. DO NOT let bleach

splash, drip or run down into the

washer basket. Undiluted bleach

will damage any fabric it touches.

3. Start the washer. Bleach will be

diluted automatically during the

wash part of the cycle.

For more information on bleaching, see “Laundry Guide” page 11.

MAGIC CLEAN” lint filter

The lint filter in your washer cleans

itself. Collected lint is drained away

with the wash and rinse water.

If your washer drains into a tub,

remove any lint collected in the drain

or strainer.

Caring for your washer

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet valve

and hoses.

AFTER WASHING, use a soft dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right away. Spills can

dull or damage the finish.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer dials,

consoles and finishes. Do not use

these products on or near your

washer or dryer.
