Whirlpool Duet WFW9470WW User manual

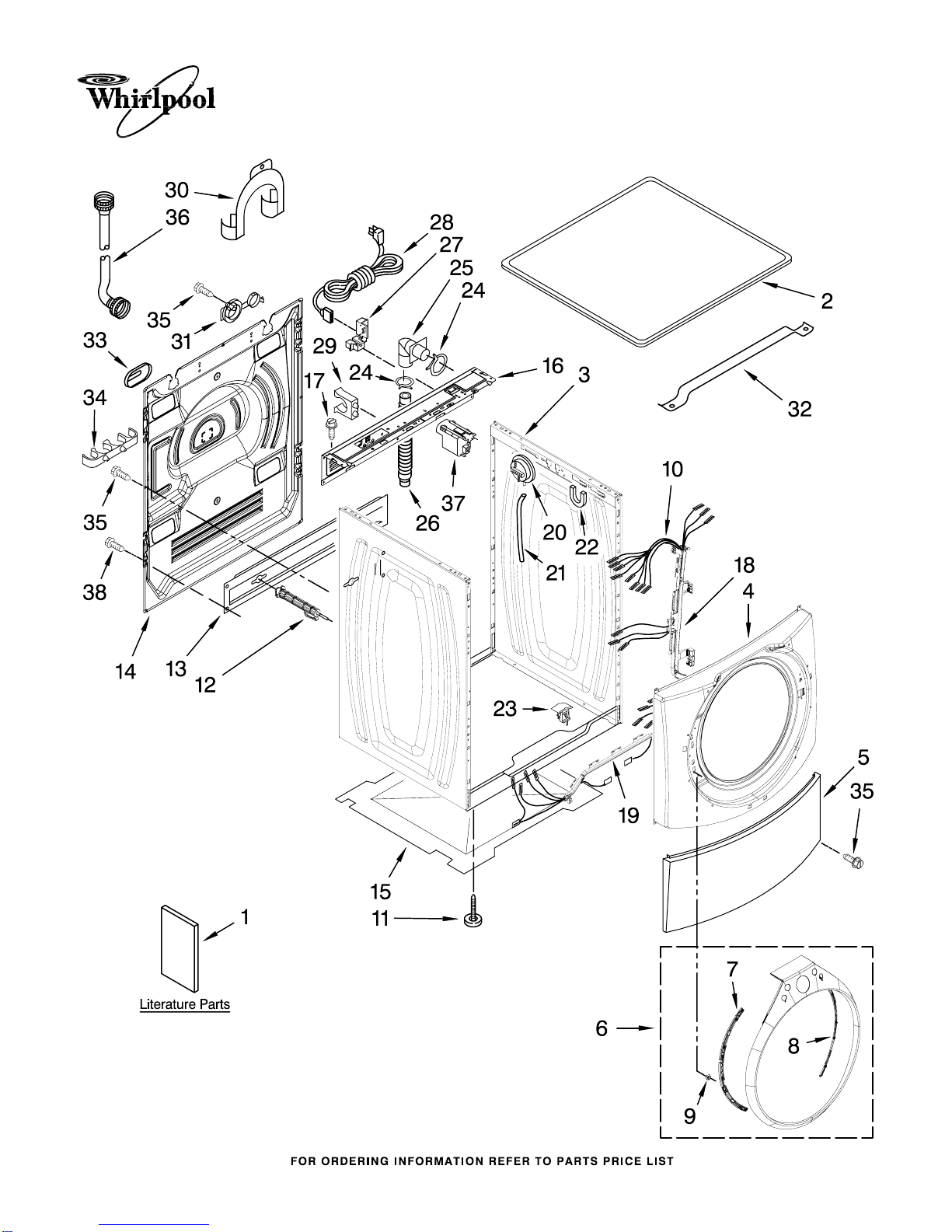

TOP AND CABINET PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

4−10 Printed in U.S.A. (drd) (eeb) Part No. W10326930 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10296133

Use & Care Guide

W10250503

Tech Sheet

8183017 Quick Start Guide

W10296490

Energy Guide

2 Top

8181799 White

W10289411

Red

W10289419

Mercury Silver

3 Cabinet

W10288155

White

W10288157

Red

W10288158

Mercury Silver

4 Panel, Front

8183151 White

W10289418

Red

W10289421

Mercury Silver

5 Toe Panel

8181643 White

W10289410

Red

W10289422

Mercury Silver

6 Trim Ring,

Teardrop Assembly

W10296487

White

W10296488

Red

W10296489

Mercury Silver

7 8183208 Bracket, Trim

Fixation (Left)

8 8183209 Bracket, Trim

Fixation (Right)

9 8183210 Clip, Trim

W10283494

Harness, Wiring

(Lower Main)

(Includes Items

18 & 19)

11 8181636 Foot, Leveling

12 Bolt, Shipping

W10283353

Upper

W10283354

Lower

13 8182661 Brace, Transport

W10242507

Panel, Rear

15 8181635 Pan, Bottom

W10289389

Brace, Rear

17 8181756 Screw

W10121609

Channel, Harness

(Side)

W10121610

Channel, Harness

(Bottom)

W10271610

Switch, Pressure

21 8181739 Hose, Pressure

Switch

22 8181763 Bracket, Spring

W10189678

Microswitch

24 8181752 Clamp, Hose

25 8181738 Connector,

Drain Hose

26 8181737 Hose, Drain

(Outer)

27 8181690 Strain Relief

28 8183009 Cord, Power

29 8182702 Clip, Outer

Hose Holder

30 8181768 Storage, Hose

31 8182699 Sleeve,

Cord Support

32 8181632 Brace, Top

33 8182700 Cover, Transport

34 8182701 Clip, Outer

Hose Holder

35 8181828 Screw

36 Hose, Water Inlet

8182795 Blue Coupler

8182792 Red Coupler

W10326464

Filter,

Interference

W10157885

Screw, 4.2 x 14

DOOR AND LATCH PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION

1 8182210 Clamp, Bellow

To Tub

2 8182119 Bellow

3 8183270 Lock, Door

4 8182211 Clamp, Bellow

To Front Panel

W10313165

Screw

W10217552

Hook, Door

7 8181758 Screw

8 8181661 Screw

9 8181660 Screw

10 8183195 Frame, Door

Back Support

11 8181659 Clamp, Glass

Support

12 8181655 Glass, Door

13 8183202 Hinge, Door

W10295703

Clamp, Glass

15 8183256 Frame, Door

Front Support

W10248071

Screen, Door

W10248123

Trim Ring,

Outer Door

(Includes Item 18)

W10121607

Pad, Door Handle

CONTROL PANEL PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel−Control

W10296481

White

W10296482

Red

W10296483

Mercury Silver

W10190685

Knob, Control

(Includes Item 9)

W10133927

Wheel, Detent Kit

(Includes Item 9)

W10131661

Wheel, Rast

(Service In

Kit Only)

W10131377

Spring, Knob

(Service In

Kit Only)

W10131378

Wheel, Detent

(Service In

Kit Only)

W10131376

Ring, Knob Light

(Includes Item 9)

W10131381

Wheel, Encoder

W10131382

Retainer, Snap

W10283460

User Interface,

Center

11 8183177 Adapter,

Encoder Wheel

W10283462

User Interface,

Right

W10283465

Harness, Wiring

(User Interface)

W10326995

Microcomputer,

Machine Control

15 8183203 Brace, Front Top

16 8183204 Channel, Water

17 8181756 Screw

W10283495

Harness, Wiring

(Upper Main)

DISPENSER PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

DISPENSER PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION

W10289387

Valve, Inlet

W10291582

Hose, Inlet Valve

To Dispenser

3 8181751 Clamp, Hose

4 8183181 Nozzle, Inlet

5 8181718 Tube, Dispenser

To Bellow

6 8183183 Lever, Water

Distribution

7 8183184 Cam, Actuator

W10161052

Lever, Connection

9 8181661 Screw

W10283468

Actuator

W10157886

Dispenser,

Complete

(Includes Item 8)

W10164400

Plate,

Distribution

13 8181712 Nozzle,

Distribution

14 8181721 Hook, Drawer

W10121596

Separator, With

Selection Slider

W10121598

Syphon,

Bleach/Softener

17 8183179 Cover,

Detergent Drawer

18 8183173 Drawer, Detergent

(Complete)

W10156617

Bracket, Handle

Fixation

20 Handle, Drawer

(Includes Items

19 & 21)

W10296484

White

W10296485

Red

W10296486

Mercury Silver

21 8183253 Medallion

22 8181747 Seal

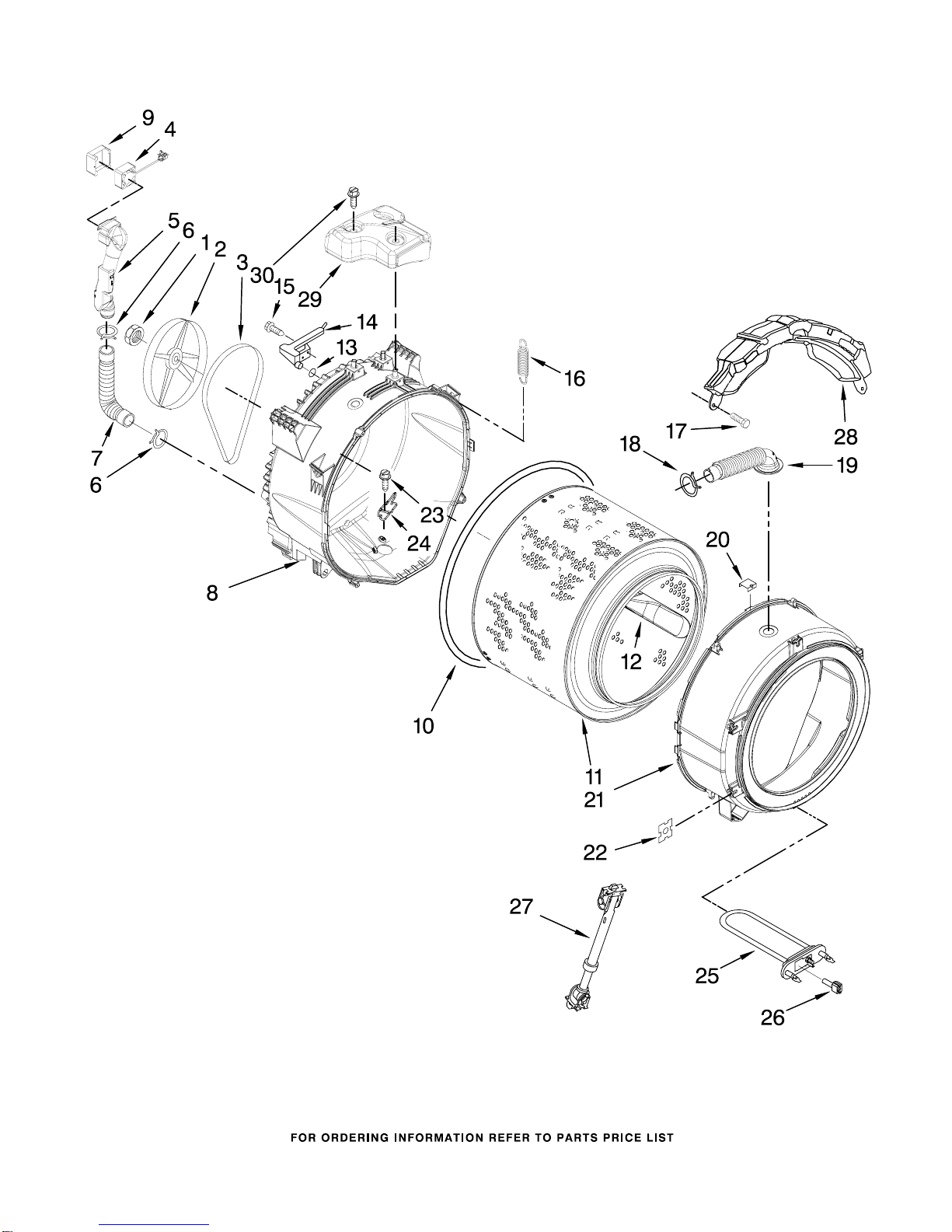

TUB AND BASKET PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

TUB AND BASKET PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION

W10283361

Nut, Pulley

2 8182650 Pulley

3 8181670 Belt

W10283362

Fan, Active

Ventilation

W10283513

Pipe, Ventilation

W10208156

Clamp

7 8181743 Hose, Exhaust

W10283358

Tub, Rear

(Includes Items

10, 22, 23 & 24)

W10283366

Support,

Ventilation Fan

10 8181673 Gasket, Tub

W10283352

Basket

W10283356

Baffle, Tub

W10250553

O−Ring

14 8181731 Airtrap

15 8181785 Screw

16 8182814 Spring, Suspension

(Set Of 2)

17 8181647 Bolt, Front

Counterweight

18 8181742 Clamp, Hose

19 8183187 Hose, Exhaust

20 8181667 Clamp, Tub

21 8182312 Tub, Front

(Includes Items

10 & 22)

22 8182512 Nut, Push−In

23 8182214 Screw

W10250558

Bracket,

Heater Support

25 8182666 Element, Heating

26 8181705 NTC

27 8182812 Shock Absorber

W10326457

Counterweight,

Front

W10326456

Counterweight,

Rear

W10283359

Screw, Rear

Counterweight

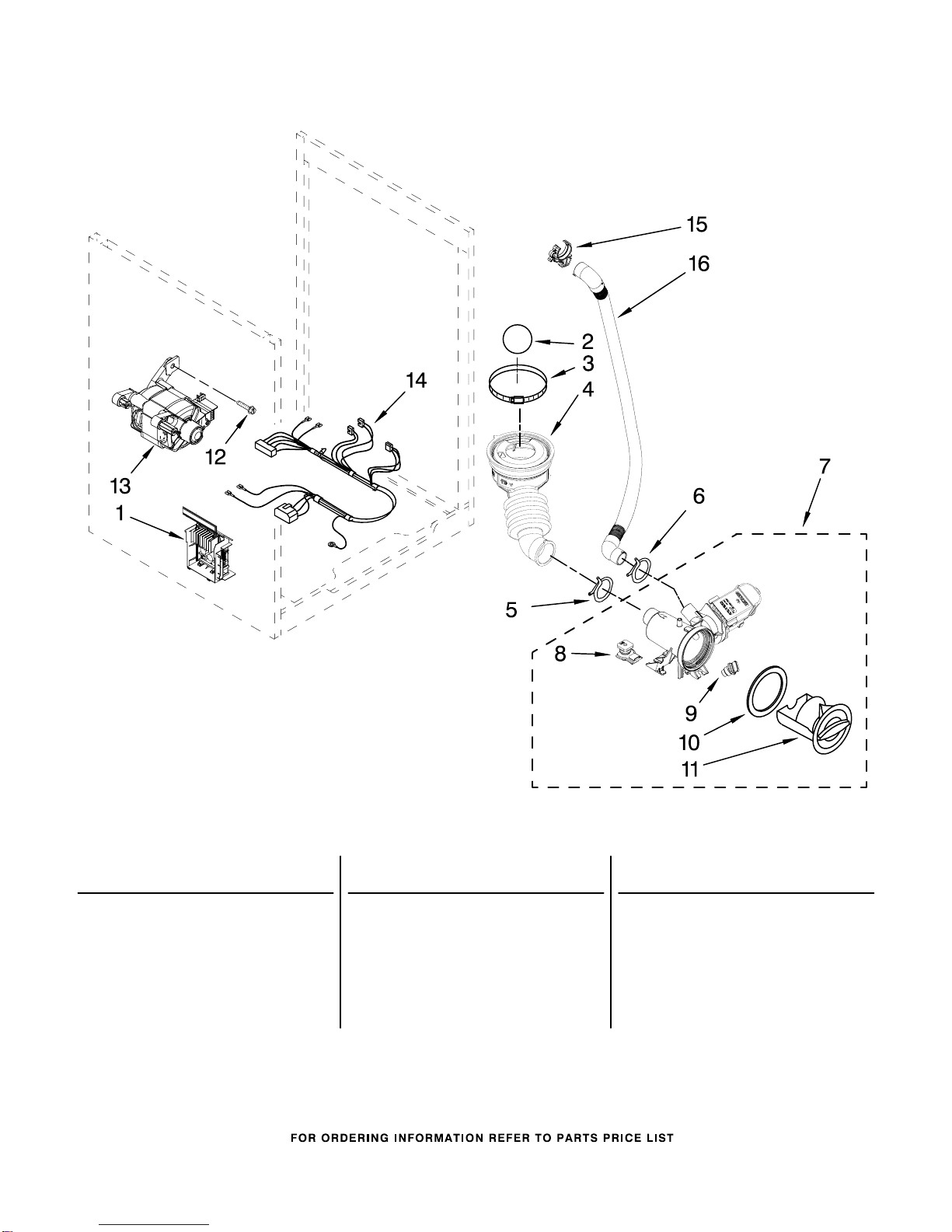

PUMP AND MOTOR PARTS

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8183196 Motor Control Unit

W10121657

Ball

3 8181734 Clamp

4 8181732 Hose,

Tub to Pump

5 8181753 Clamp

6 8181752 Clamp

7 8182821 Pump (Complete)

8 8182820 Grommet, Damper

(Rear)

9 8182816 Grommet, Damper

(Front)

10 8181736 Seal, Filter Cap

11 8183027 Cap, Filter

(Includes Item 10)

W10128585

Bolt, Motor

13 8182793 Motor

W10189680

Harness, Motor

15 8182209 Retainer,

Drain Hose

16 8181740 Drain Hose

(Inner)

OPTIONAL PARTS (NOT INCLUDED)

For Models: WFW9470WW01, WFW9470WR01, WFW9470WL01

(White) (Red) (Mercury Silver)

W10326930

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

W10218245

Red

W10268217

Mercury Silver

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8212487RP

Inlet Hoses, 5 Ft.

(Two Braided Hoses

W/Straight Ends &

4 Rubber Washers)

8212638RP

Inlet Hoses, 6 Ft.

(Two Braided Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

285863 Drain Extension

4396899 Rear Guard

8541503 Stack Kit

31682 All Purpose

Appliance Cleaner

W10135699

Affresh

Odor Remover

8212526 Washer Drip Tray

1903WH Laundry Supply

Storage Cart
