Whirlpool LHW0050PQ1 User manual

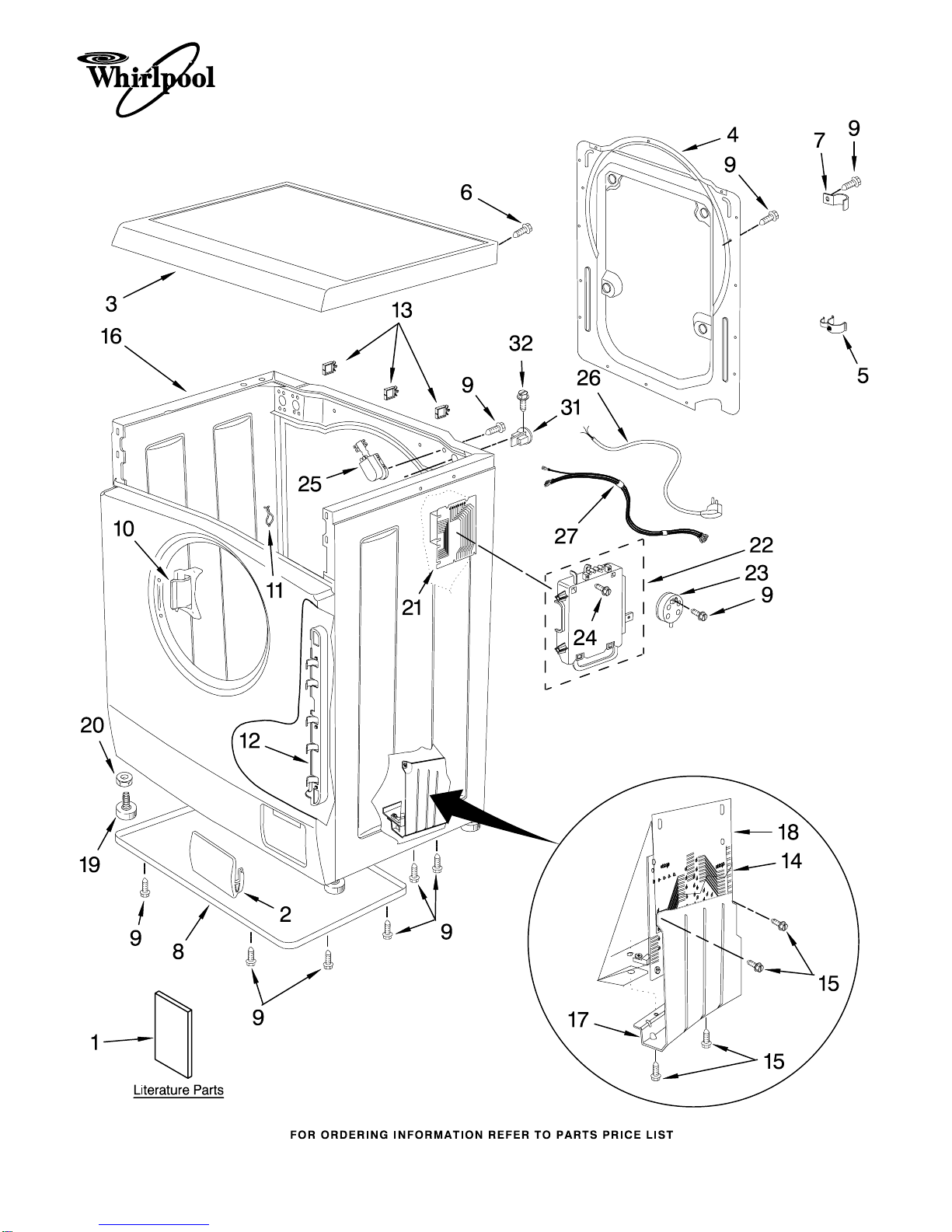

TOP AND CABINET PARTS

For Model: LHW0050PQ1

(White)

9−05 Litho in U.S.A. (rcg) Part No. 8180820

COMPACT AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8565591 Use & Care Guide

8182467 Wiring Diagram

8182569 Energy Guide

2 8182721 Cover, Filter

3 8182719 Top

4 8182589 Panel, Rear

5 8182325 Clamp, Hose

6 8182338 Screw

7 8182324 Clamp, Hose

8 8182319 Bottom Plate

9 8182323 Screw

10 Hinge

(Not Serviced)

11 8182321 Clip, Harness

12 8182322 Support, Harness

13 8182328 Clip

14 8182330 Control, Inverter

15 8182333 Screw

16 Cabinet

(Not Serviced)

17 8182331 Bracket

18 8182332 Shield

19 8182334 Foot, Leveling

20 8182337 Nut

21 8182340 Electronic Control

22 8182342 Bracket, Contrl

23 8182388 Switch, Pressure

24 8182341 Screw

25 8182645 Filter

26 8182392 Power Cord

27 8182394 Harness, Main

31 8182731 Strain Relief

32 8182732 Screw

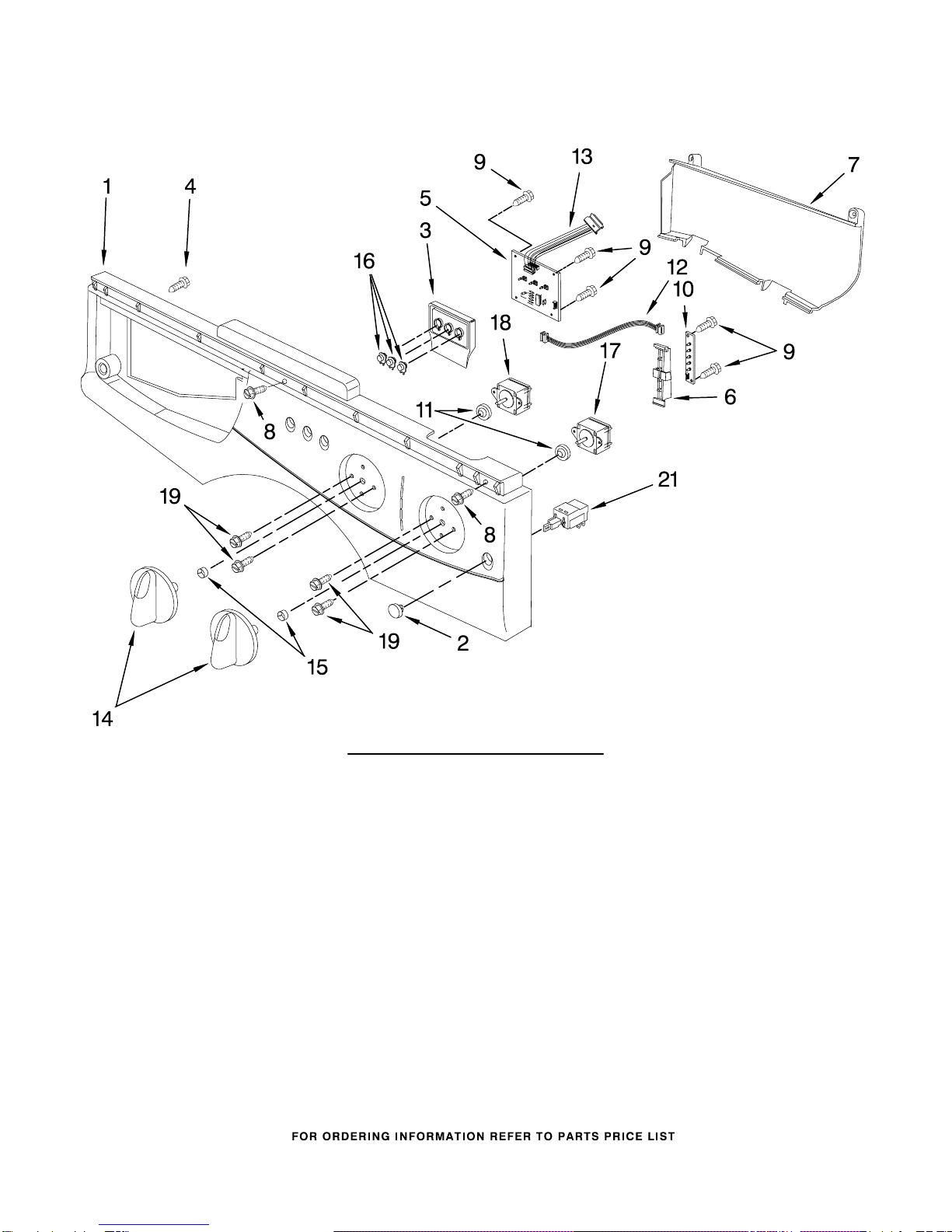

CONTROL PANEL PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 8182348 Control Panel

2 8182725 Button

3 8182350 Housing

4 8182720 Screw

5 8182351 Control, PCB

6 8182353 Support

7 8182354 Shield

8 8182355 Screw

9 8182352 Screw (6)

10 8182356 LED, PCB

11 8182357 Gasket

12 8182358 Cable

13 8182359 Cable, Ribbon

14 8182360 Knob (2)

15 8182361 Spring, Knob

16 8182362 Push Button (3)

17 8182724 Switch, Cycle

18 8182346 Switch, Spin Speed

19 8182723 Screw

21 8182395 Switch, On/Off

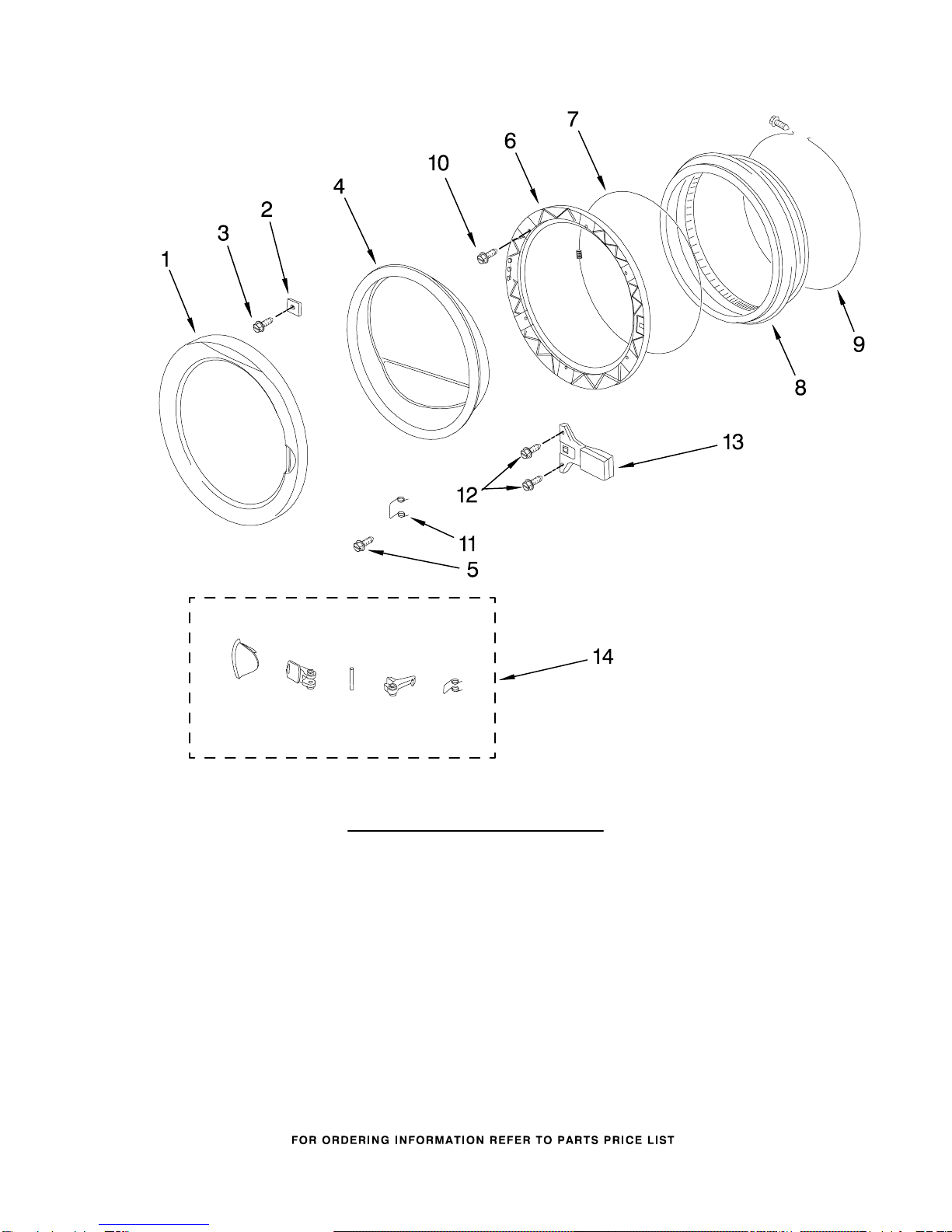

DOOR PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 8182406 Door, Outer Frame

2 8182410 Retainer

3 8182333 Screw

4 8182405 Door Glass

5 8182412 Screw

6 8182414 Inner Frame

7 8182404 Inner Ring

8 8182403 Door Gasket

9 8182402 Outer Ring

10 8182733 Screw

11 8182413 Spring, Door Catch

12 8182401 Screw

13 8182407 Microswitch

14 8182408 Door Handle

DISPENSER PARTS

For Model: LHW0050PQ1

(White)

8180820

DISPENSER PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 8182371 Handle, Drawer

2 8182729 Overlay

3 8182383 Pin

4 8182730 Spring

5 8182367 Housing, Dispenser

6 8182370 Drawer, Detergent

7 8182377 Screw

8 8182727 Cover, Drawer

9 8182376 Screw

10 8182378 Dispenser

11 8182375 Clamp

12 8182323 Screw

13 8182373 Hose, Drawer

14 8182372 Cover, Bleach

15 8182379 Link

16 8182366 Actautor (2)

17 8182365 Bracket, Actuator

18 8182364 Arm

19 Hose, Fill

8182389 Cold

8182397 Hot

20 8182390 Washer

21 Water Valve

8182387 Cold

8182398 Hot

22 8182380 Connector

23 8182381 Hose

24 8182374 Clamp, Hose (8)

25 8182386 Hose

26 8182396 Screen

27 8182399 Hose

28 8182728 Hose

29 8182726 Spring

BASKET AND TUB PARTS

For Model: LHW0050PQ1

(White)

8180820

BASKET AND TUB PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 8182441 Tub

2 8182454 Basket

3 8182737 Pulley

4 8182444 Baffle

5 8182450 Drive Belt

6 8182539 Nut

7 8182445 Gasket, Tub

8 8182440 Screw

9 8182446 Counterweight,

Bottom

10 8182448 Heater

11 8182447 Motor, Main Drive

12 8182457 Washer

13 8182453 Washer

14 8182439 Shock Absorber

15 8182451 Bushing

16 8182443 Screw

17 8182456 Thermostat

18 8182432 Screw

19 8182458 Screw, Ground

20 8182433 Thermal Cutoff

21 8182435 Gasket

22 8182455 Cover, Rear Tub

(Includes Seal

& Bearings)

23 8182459 Screw (Ground)

24 8182434 Support, Element

25 8182436 Washer

26 8182437 Bushing, Upper

27 8182438 Bushing, Lower

28 8182442 Washer

29 8182739 Kit, Motor Mount

30 8182567 Vent Tube, Upper

31 8182412 Screw

32 8182568 Ring, Locking

33 8182566 Vent Tube, Lower

34 8055063 Elbow, Right

35 8055228 Collar

36 8182572 Elbow, Left

37 8182571 Clamp, Hose

PUMP PARTS

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

1 8182385 Grommet

2 8182415 Pump

3 8182416 Housing, Filter

4 8182417 Filter

5 8182418 Gasket

6 8182419 Washer

7 8182420 Cap

8 8182421 Hose

9 8182422 Hose

10 8182423 Hose, Drain

11 8182424 Clamp, Hose

12 8182425 Clamp, Hose

13 8182426 Screw

14 8182427 Screw

15 8182428 Bracket, Hose

16 8182429 Clamp, Hose

17 8182430 Support

18 8182431 Screw

19 8182409 Hose, Pressure

Switch

20 8182375 Clamp, Hose

OPTIONAL PARTS (NOT INCLUDED)

For Model: LHW0050PQ1

(White)

8180820

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORIES

8182452 Stack Kit

285987 Shipping Kit
