Whirlpool CAM2742TQ0 User manual
c2008 WHIRLPOOL CORPORATION
MODEL
COMMERCIAL
AUTOMATIC WASHER
CAM2742TQ0
6−08 Litho In U.S.A. (slc) (psw) Part No. W10114743 Rev. C
CAM2742TQ2
TOP AND CABINET PARTS
2
W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
TOP AND CABINET PARTS
3W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8316532 Instructions,
Coin Kit
W10135801
Wiring Diagram
W10172194
Energy Guide
W10114743
Repair Parts List
2
W10173243
Lid
3 356908 Bumper, Lid
4 356907 Rivet, Plastic
5
W10119828
Screw, Lid Hinge
Mounting (4)
6 54583 Hinge, Lid (R.H.)
7 19119 Bumper, Lid Hinge
8 8524784 Hinge, Lid (L.H.)
9 3351614 Screw, Ground
10 3400611 Screw, Lid Switch
11 62780 Clip, Top &
Cabinet & Rear
Panel (2)
12 358473 Nut, Push−In (2)
13
W10114733
Top
14 21258 Bearing, Lid
Hinge (2)
15 8054980 Switch, Lid
16 3390631 Screw, 10−16 X 3/8
17 387371 Plug Lock
18 62750 Spacer, Cabinet
To Top (4)
19 63424 Cabinet
CONTROL PANEL PARTS
4
W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8577883 Panel, Console
2 3978858 Bracket, Control
3 8578168 Control,
Automatic Temp.
(ATC)
4 8577359 Switch, Cycle
Selector
(Includes Item 12)
5 3390646 Screw, 8−18 X 5/16
6 3949740 End Cap (R.H.)
7 8281182 Screw (2)
8 8573825 Pressure Switch,
High Water Level
(Includes "T"
Fitting−Not Shown)
9 3352457 Lights, Indicator
10 3348109 Lens, Amber (2)
11 3348110 Lens, Yellow (1)
12 8316433 Pushbutton (7)
13 8524802 Pressure Switch,
Low Water Level
14 3400073 Screw, 10−24 x 3/8
15 90767 Screw,
8−18 x 3/8 (2)
16 3949734 End Cap (L.H.)
17 689559 Nut, Push−In (2)
18 97787 Screw, End Cap
To Bracket (4)
19
W10138030
Harness, Console
20 357572 Clip, Grounding
METER CASE PARTS
5W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION
1 3406994 Meter Case
2 385421 Funnel, Coin
3 339805 Screw,
10−32 X 3/16
4 90406 Nut, Cage
5 3954761 Plate, Adapter
(Includes Item 2)
6 3349065 Bolt, Meter Case
5/16 − 24 X 1 (4)
7
W10138351
Harness, Timer
8 3351136 Door, Service
9 3400029 Nut, Adapter
Plate (3)
10 3954812 Cushion, Case
11 385575 Bracket, Timer
12
W10112081
Timer, 60 Hz.
13 98654 Screw, Set (2)
14 385571 Clutch, Timer
354987 E−Ring
15 3400064 Screw, Timer
16 98445 Screw, 10−16 x 3/4
17 3347825 Plate, Mounting
18 Key, Money Box
19 8316525 Money Box
(Includes Item 18)
20 8316520 Coin Chute
21 W10114740 Key, Service Door
22 8316526 Security Lock &
Cam Assembly
23 8318517 Bolt,
Coin Chute
24 8316522 Extension
25 3400086 Screw, 10−32 x 3/8
26 8316524 Kit,
Chute Decal
Coin Mechanism Parts May Be
Ordered From Whirlpool ( )
Or Vendor(s) Listed Below
ESD
270 New Jersey Dr.
Fort Washington, PA
19034
1−800−523−1510
@
info esdcoin.com
REAR PANEL PARTS
6
W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
REAR PANEL PARTS
7W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3976300 Washer, Water
Inlet Hose (4)
(1−1/16 x 5/8)
2 9740848 Screw, 8−18 x 1/2
3 Hose, Water
Inlet
3949380 Blue Coupler
3949381 Red Coupler
4 8282518 Clip, Harness
5 8568314 Strap, Console (2)
6 8541649 Panel, Rear
(Includes
Items, 5,12 & 15)
7 62747 Pad,
Rear Panel (2)
8 96743 Hose, Drain
(4’)
9 8317496 Clamp, Hose
10 62863 Screw, 10−16 x 3/8
11 3351614 Screw, 10−24 X 3/8
12 8055003 Clip, Harness
& Pressure Hose
13 8541624 Plate, Mixing
Valve
14 3976231 Cord, Power
15 3952821 Strain Relief,
Power Cord
To Rear Panel
16
W10114216
Harness, Wiring
(Includes
Items 31 & 32)
(For Detail See
Pages 12 & 13)
17 3951449 Hose, Pump To Tub
(Includes Item 30)
18 3979347 Valve, Water Inlet
& Thermistor Assy.
19 3366912 Clamp, Hose
20 8539874 Shield, Suds
21 301958 Clamp, Hose
22 8317974 Hose, Vacuum
Break
23 370450 Clamp, Hose
24 387606 Break, Vacuum
25 8519200 Support, Rear
Panel
26 8317940 Drain Hose
Assembly
(Includes Item 28)
27
W10096784
Edge Protector
28 3976395 Restraint, Hose
29 8559320 Restraint, Hose
30 3363366 Clamp, Hose
31 8524801 Hose, Pressure
Switch To Air Dome
32 8524791 Hose, Pressure
Switch Link
FOLLOWING PARTS
NOT ILLUSTRATED
3954579 Miscellaneous
Parts Bag
AGITATOR, BASKET AND TUB PARTS
8
W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
AGITATOR, BASKET AND TUB PARTS
9W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION
1 3355758 Cap, Agitator
2 387094 Cap, Barrier
3
W10072840
Seal, Inner Cap
4 358237 Screw & Washer
(5/16−24 X 1)
5 3949550 Washer
6 3349743 Agitator
(Complete)
7 3947410 Cam, Driven
8 3366877 Dog, Agitator
Clutch (4)
9 3349610 Clothes Mover
10 3351014 Spacer, Thrust
11 3349578 Agitator
12 8528150 Tub Ring & Gasket
13 3976308 Gasket, Tub Ring
14 8526017 Basket & Balance
Ring
15 387240 Balance Ring
16 21366 Nut, Spanner
17 389140 Block, Basket
Drive
18
W10135425
Tub
19 383727 Gasket, Centerpost

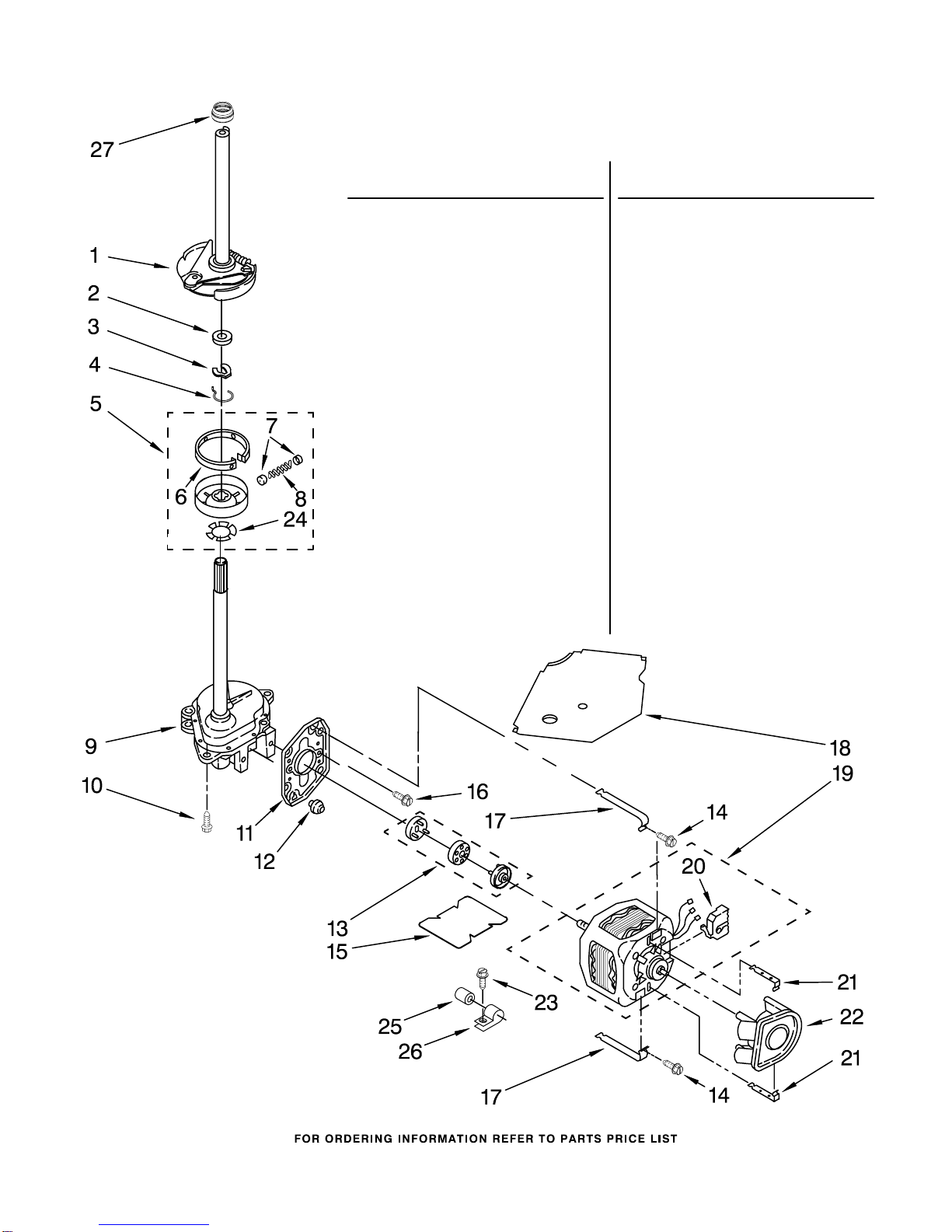

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
10
W10114743
For Models: CAM2742TQ0, CAM2742TQ2
(White) (White)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 388952 Brake & Drive
Tube (Complete)
(Refer to Page 14
For Further
Breakdown)
2 63292 Washer, Spin
Tube Thrust
3 62697 Ring, Spin
Tube Support
4 63283 E−Clip,
Clutch Retainer
5 8299642 Clutch (Complete)
6 3951993 Band & Lining,
Clutch (Includes
Items 7 & 8)
7 62646 Cap, Clutch
Spring (2)
8 8559387 Spring & Damper
Assembly
9 3360630 Gearcase
(Complete)
(Refer To Page
15 For Further
Breakdown)
10 3357334 Screw, Gearcase
To Base (3)
11 62611 Plate, Motor
Mount To
Gearcase
12 62691 Grommet, Motor (4)
13 3978849 Coupling, Motor
And Isolation
14 3387485 Screw (2)
#10−16 x 5/8
15 3946532 Shield, Motor
16 3400516 Bolt,
Motor Plate
17
W10086010
Retainer, Motor (2)
18 3362089 Shield, Tub
To Motor
19 661600 Motor, Main
Drive
20 62850 Switch, Main
Drive Motor
21 8546127 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 62863 Screw,
10−16 x 3/8
24 3355454 Clip, Anti−
Rattle
25 8572717 Capacitor
26 3949496 Clamp, Capacitor
27 8577374 Seal, Shaft
