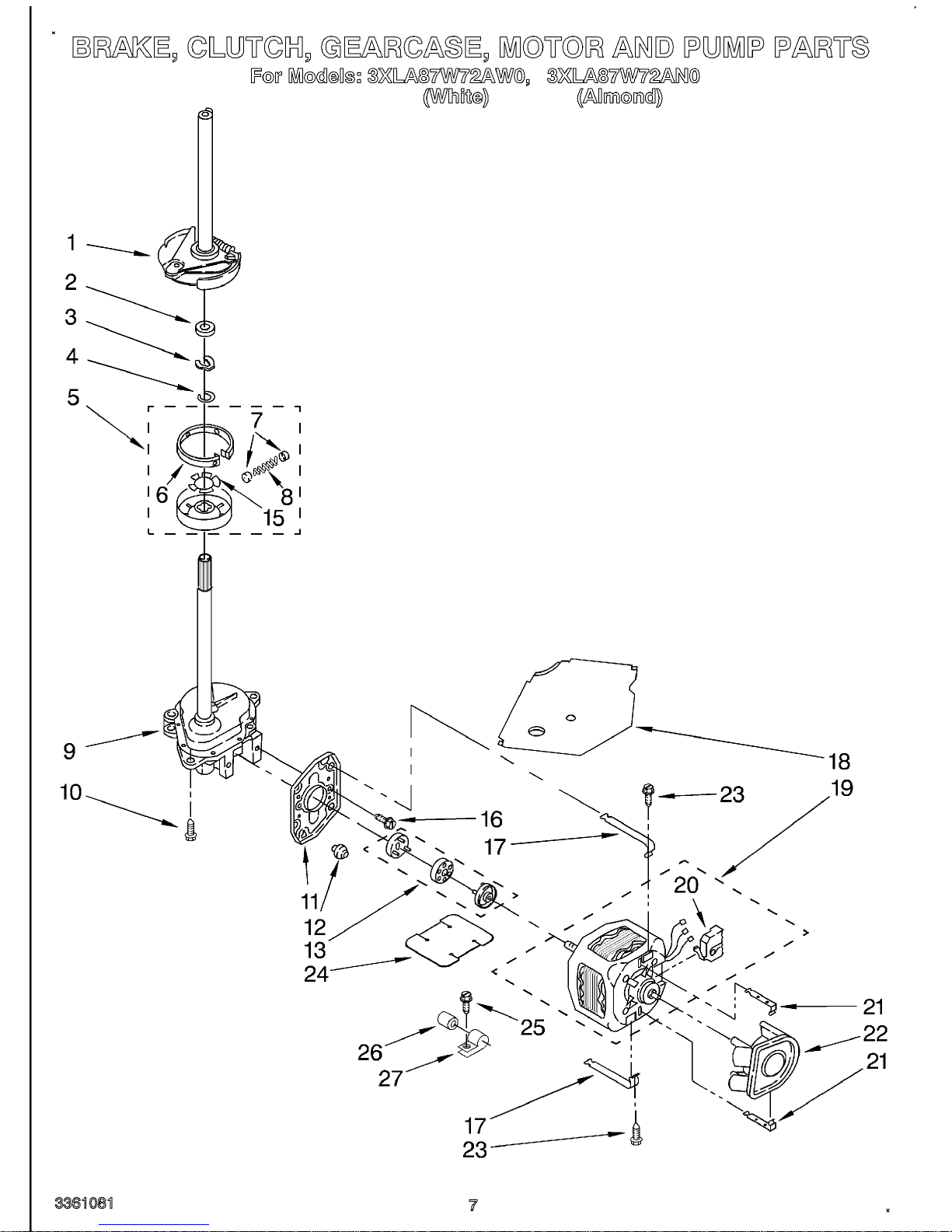

Whirlpool 3XLA87W72AW0 User manual

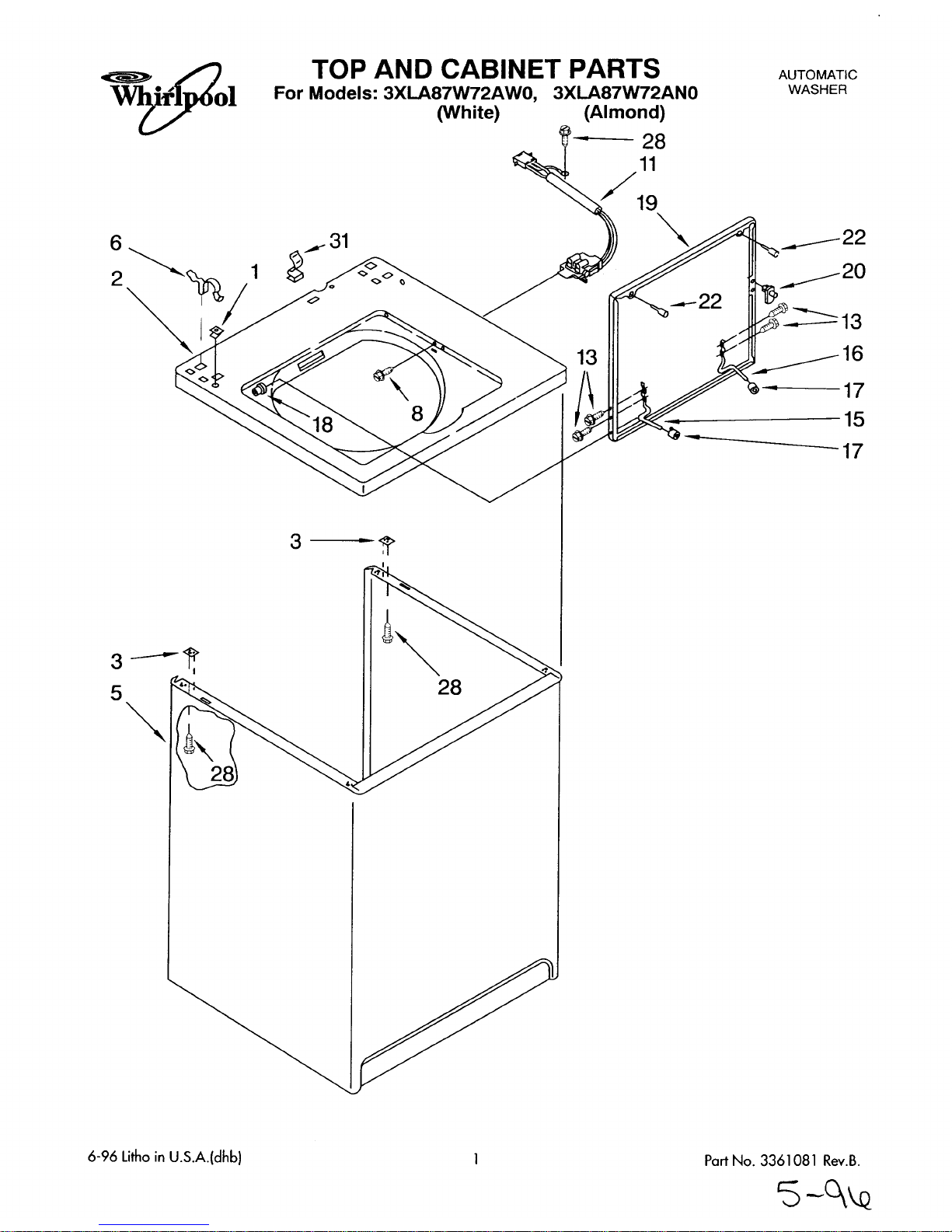

1 357213 Nut, Push-In

2 Top

3358213 For White Model

3358214 For Almond Model

3 62750 Spacer, Cabinet To Top (4)

5 Cabinet

63424 For White Model

63425 For Almond Model

6 62780 Clip, Top & Cabinet & Rear Panel (2)

8 3356311 Screw & Washer, Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid Hinge (2)

19 Lid

3947509 For White Model

3947510 For Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw, 10-16 x 1/2 (5)

31 90016 Clip, Harness

LITERATURE PARTS

LIT3363124 Sheet, Installation Instructions

LIT3360464 Guide, Use and Care

LIT3361005 Label, Wiring Diagram

LIT4313896 Manual, (Washer) Do-It-Yourself

LIT3361081 List, Repair Parts

OPTIONAL PARTS

Paint (Touch_up 1/2 Oz.)

72017 White

72107 Almond

72110 Golden Harvest

Paint Pressurized Spray 13 Oz.

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

Paint, bulk 1 Qt.

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

Oil 350572 Oil, Gearcase (16 Oz.)

Lubricant

285208 Lubricant (Use Only in Brake Shoe Assembly On Roller and Pin)

Sealer

285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml)

Shipping Kit

3348675 Shipping Kit

Accessory Parts

3348790 Earth Ground Assembly

89121 Stand-Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

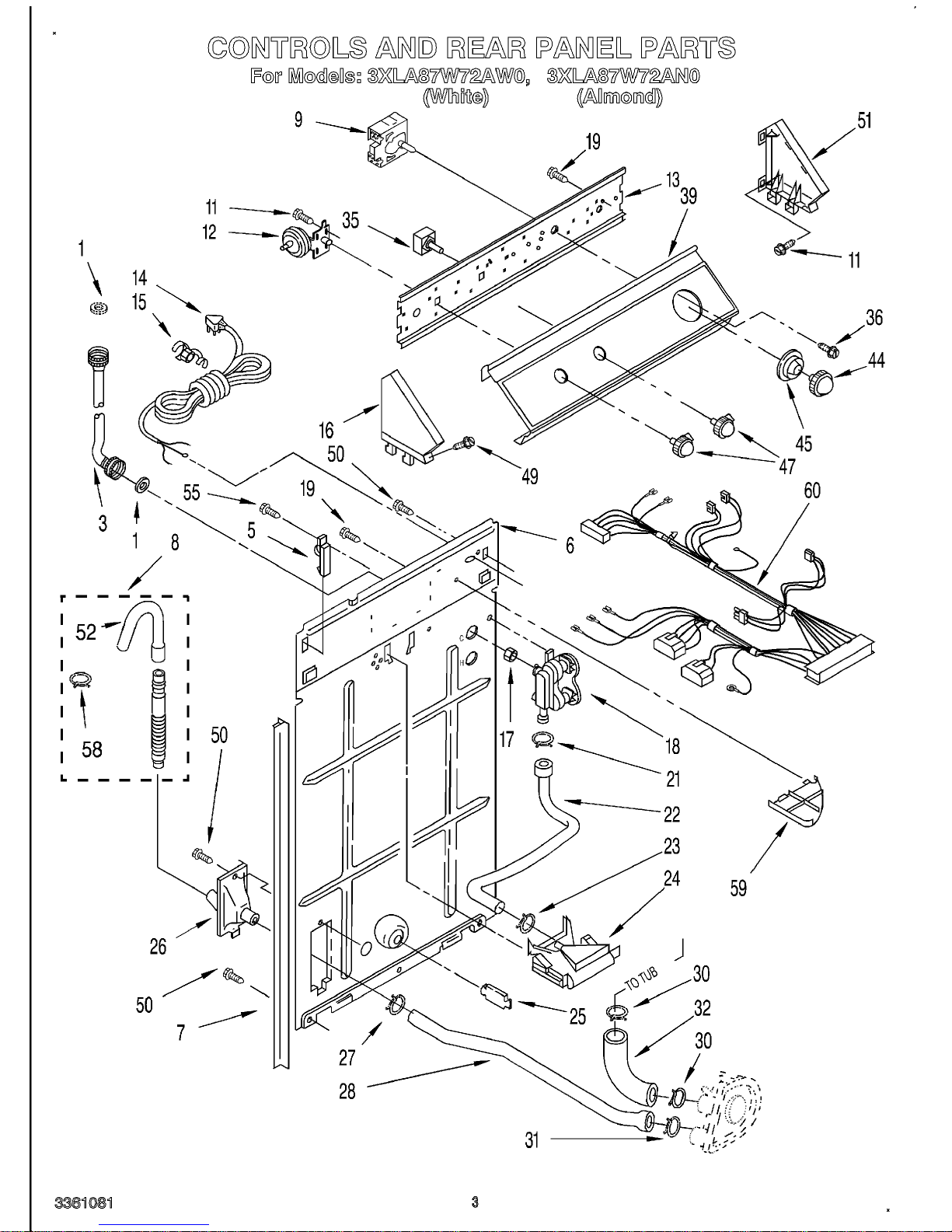

1 16123 Washer, Water Inlet Hose (4) (1-1/16 x 5/8)

3 3358798 Hose, Water Inlet (2)

5 387402 Hinge, Console (2)

6 3361752 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain (4'- 4")

661577 Hose, Drain (9'- 9") (Not Included)

3357090 Extension Drain Hose (21 Inches) (Not Included.)

9 3946445 Timer, Control (50 Hz.) (Motor Not A Service Part)

11 90767 Screw, 8A x 3/8

12 3356465 Switch, Water Level

13 3360936 Bracket, Control

14 3948931 Cord, Power

15 387710 Strain Relief, Power Cord

16 Cap, End (L.H.)

3358531 For White Model

3358532 For Almond Model

17 96160 Screen, Filter (2)

18 3360393 Valve, Water Mixing

19 90864 Screw, 10-24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear Panel

26 3355497 Connector, Drain Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 661535 Switch, Water Temperature

36 96435 Screw, Timer Mounting (10-32 x 1) (2)

39 Panel, Console

3360375 For White Model

3360376 For Almond Model

44 3364290 Knob, Timer

45 3358446 Dial, Timer

47 3358431 Knob, Control

49 388326 Screw, 8-18 (2) (Panel to Top)

50 62863 Screw, 10-16 x 3/8

51 Cap , End (R.H.)

3358516 For White Model

3358517 For Almond Model

52 3357027 Nozzle, Drain Hose

55 3357011 Screw, 10-16 x 1/2

58 3357331 Clamp, Drain Hose

59 3348424 Shield, Suds

60 3361098 Harness, Wiring (For Detail See Wiring Harness Parts Page)

Also See Clips.

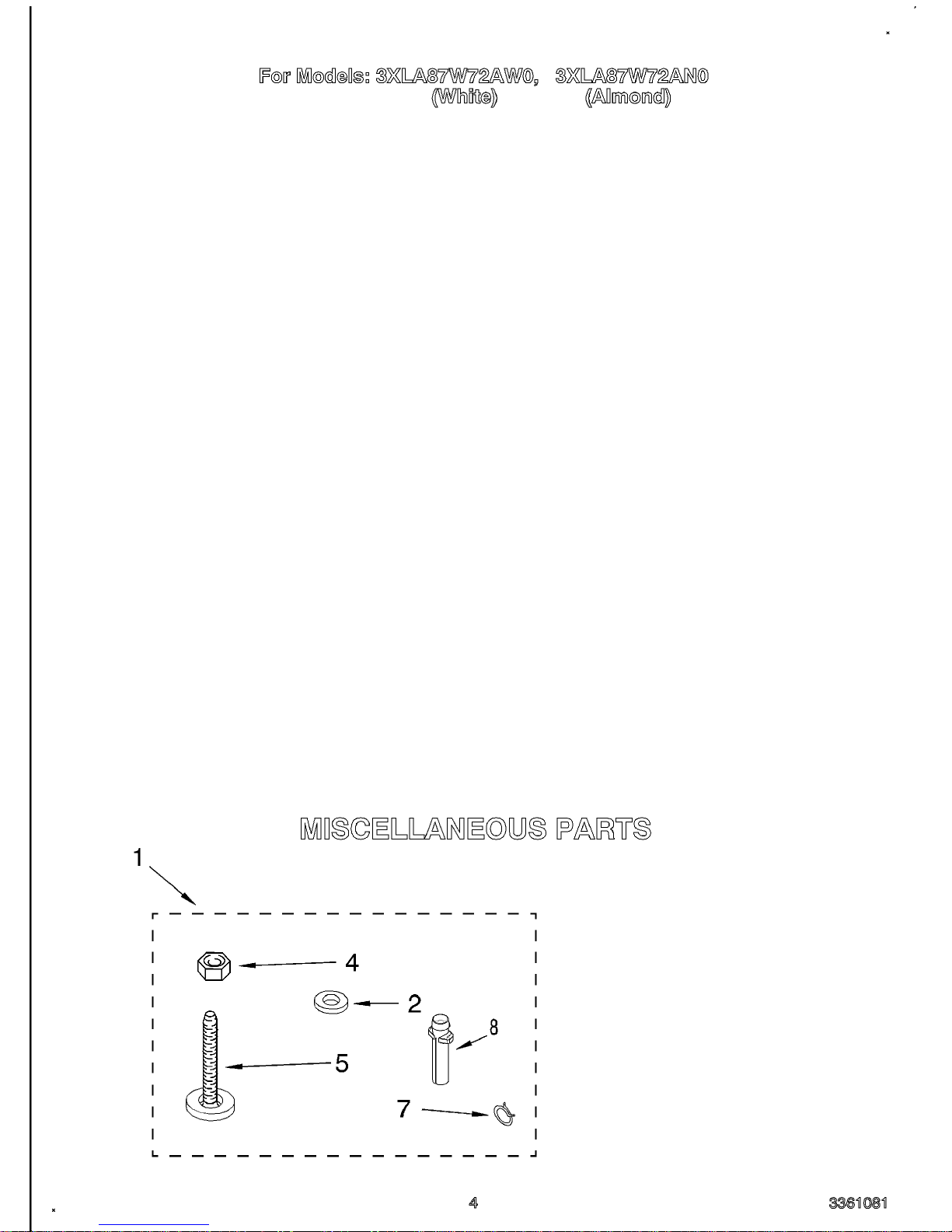

1 3359464 Miscellaneous Parts Bag

2 16123 Washer, Inlet Hose (1-1/16 x 5/8) (4)

4 3359452 Nut, Lock (3/8-16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

8 3363920 Adapter, Drain Hose

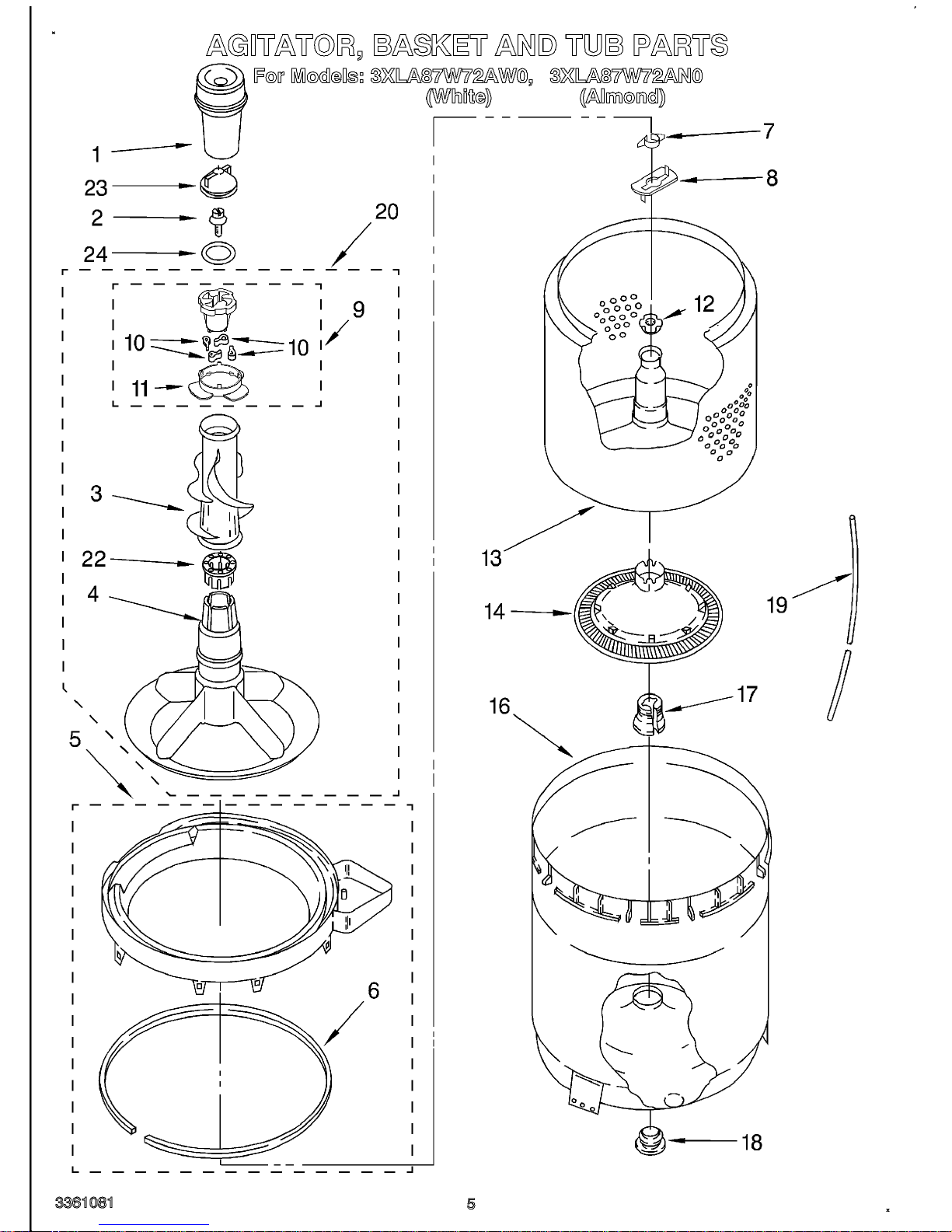

1 63580 Dispenser

2 358237 Screw & Washer (5-16-24 x 1)

3 3348752 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 3355921 Washer, Agitator

9 3363663 Cam Driven Short

10 3366877 Dog, Agitator Clutch

11 3363661 Bearing, Driven Cam

12 21366 Nut, Spanner

13 3350649 Basket & Balance Ring

14 3361948 Filter, Plate

16 63849 Tub

17 389140 Block, Basket Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure Switch

20 3348117 Agitator (Complete Asy.)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap
