Whirlpool ACS082PK Instruction Manual

UNIT PARTS

For Model: ACS082PK0

6−01 Printed In U.S.A. (rcg) Part No. 8167561

AIR CONDITIONER

UNIT PARTS

For Model: ACS082PK0

8167561

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT789978

Use and Care Guide

2 789973 Base

4 789778 Pan, Drain

(Evaporator)

5 789974 Evaporator

8 789755 Grommet, Tube

9 789729 Tube, Restrictor

.049 I.D. x 25"

10 789673 Strainer

12 789971 Condenser

13 789831 Gasket, Terminal

Cover

14 789828 Compressor

15 789829 Overload

16 789830 Spring, Overload

17 789833 Nut, Terminal

Cover

18 789732 Cover, Terminal

19 789661 Nut

20 789784 Washer

21 789827 Grommet

22 789783 Sleeve

25 789799 Clip, Thermostat

Bulb

REFRIGERANT CHARGE

16.50 oz.

AIRFLOW AND CONTROL PARTS

For Model: ACS082PK0

8167561

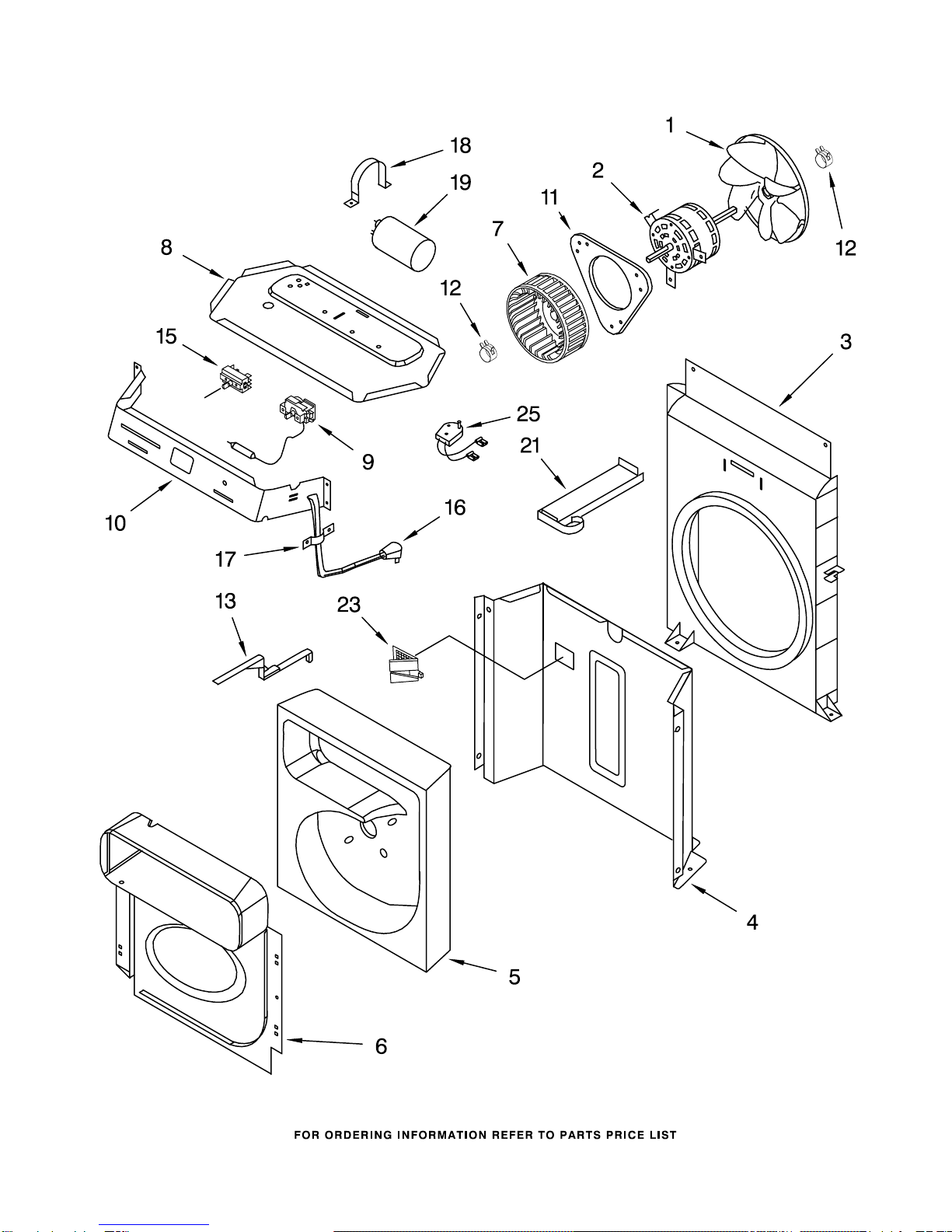

AIR FLOW AND CONTROL PARTS

For Model: ACS082PK0

8167561

Illus. Part

No. No. DESCRIPTION

1 789834 Blade, Fan

2 789837 Motor, Fan

3 789836 Shroud, Condenser

4 789794 Wall, Dividing

5 789916 Housing, Blower

6 789796 Shroud, Evaporator

(Includes Insul.)

7 789838 Wheel, Blower

8 789803 Panel, Control

(Bottom)

9 789627 Thermostat

10 789804 Panel, Control

11 789793 Plate, Motor

Mounting

12 789835 Clamp

13 789917 Actuator, Exhaust

Door

15 789932 Switch, Rotary

16 789936 Cord, Power

17 789806 Relief, Strain

18 789749 Strap, Capacitor

19 789839 Capacitor

21 789807 Support, Unit

23 789907 Door, Exhaust

25 789801 Assist, Start

CABINET PARTS

For Model: ACS082PK0

8167561

CABINET PARTS

For Model: ACS082PK0

8167561

Illus. Part

No. No. DESCRIPTION

1 789960 Cabinet Assembly

(Includes

Insulation and

Nos. 2 and 5)

2 789965 Panel, Rear

4 789961 Retainer, Side

(Cabinet)(2)

5 789962 Retainer, Top

(Cabinet)

6 789963 Retainer, Panel

(Side)(2)

7 789817 Panel, Filler

8 789919 Front Assembly

(Includes Item 18)

9 789925 Nameplate

10 789809 Filter, Air

11 789959 Escutcheon

(Also Order

Item 15)

12 3148443 Screw #8 x 1/4 Hex

13 4389654 Screw #8 x 3/8 Hex

14 Insulation, Cab.

789747 (Top)

789746 (Side)(2 Required)

15 789812 Spacer, Escutcheon

16 789841 Knob

17 789964 Retainer, Filler

Board (Top)

18 789933 Insert, Front

INSTALLATION PARTS

For Model: ACS082PK0

8167561

Illus. Part

No. No. DESCRIPTION

1 789687 Kit, Installation

2 789692 Seal, Meeting Rail

3 789745 Seal, Strip

4 789688 Retainer, Filler

Panel (Top)

(Not Serviced

Separately)

5 789744 Seal, Strip

6 Plate, Sill (Not

Serviced Separate)

7 Hardware (Not

Serviced Separate)

8 Bolt, Leveling

3/8−16 x 2.5"

9 Angle, Support

(Not Serviced

Separately)

10 Platform, Support

(Not Serviced

Separately)
