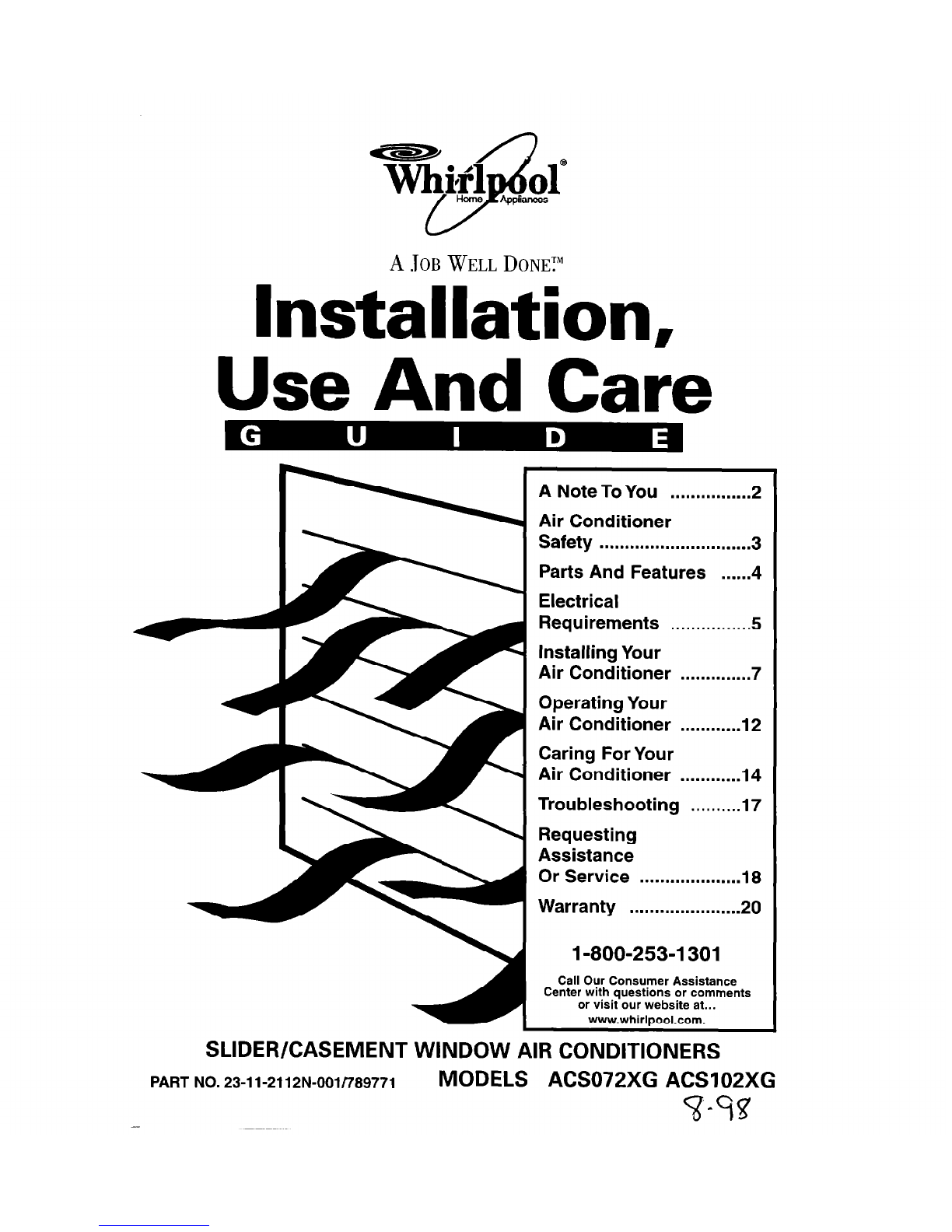

JOB WELL DONE?

Installation,

Use And Care

A Note To You ................2

Air Conditioner

Safety ..............................

Parts And Features ......4

Electrical

Requirements ................5

Installing Your

Air Conditioner ..............7

Operating Your

Air Conditioner ............12

Caring For Your

Air Conditioner ............14

Troubleshooting ..........17

Requesting

Assistance

Or Service ....................18

Warranty ......................

1-800-253-1301

Call Our Consumer Assistance

Center with questions or comments

or visit our website at...

www.whirlDool.com.

SLIDER/CASEMENT WINDOW AIR CONDITIONERS

PART NO. 23-ll-2112N-001/789771

MODELS ACS072XG ACS102XG

s-%3

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully. Also, please complete and mail the Ownership Registration Card provided

with your appliance. This card helps us notify you about any new information on your

appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

Serial Number

complete model number and serial number.

You can find this information on the model

Purchase Date

and serial number label (see diagram on

Dealer Name

page 4 for location of label).

Please also record the ourchase date of

Dealer Address

your appliance and your dealer’s name,

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-I 301 1

To find detailed product information, the location of the nearest Whirlpool dealer or

authorized servicer; to purchase an accessory item, or register your appliance on-line,

please visit our website at...

www.whirlpool.com.

Air Conditioner Safety

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always

read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word “DANGER” or

“WARNING.” These words mean:

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you

i what can haDDenif the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING -To reduce the risk of fire, electric shock, injury, or sickness when using

your air conditioner, follow these basic precautions:

l Plug into a grounded 3 prong outlet. . Use two or more people to move or

l Do not remove ground prong. install air conditioner.

l Do not use an adapter. . Do not drink water collected inside the

l Do not use an extension cord. cabinet.

l Unplug air conditioner before servicing.

- SAVE THESE INSTRUCTIONS-

Help us help you

Please:

l Install your air conditioner in a window that l Use the air conditioner only to do what a

will hold the weight, and secure the air window air conditioner is designed to do.

conditioner according to the Installation l Make sure the air conditioner is not used

Instructions. by anyone unable to operate it properly.

l Connect the air conditioner to the proper l Maintain the air conditioner properly.

kind of outlet with the correct electrical

supply and ground. (See the Installation Also, remove the Energy Label. Use a damp

cloth to take off any glue residue. DO NOT

Instructions.)

l Make sure the air conditioner is the correct use sharp instruments, flammable fluids, or

abrasive cleaners. These can damage the

size for the area you want to cool. material.

Parts And Features

This section contains captioned illustrations of your air conditioner. Use them to become

familiar with where all parts and features are located and what they look like. To help you find

information on specific parts or features quickly, page references are included.

Removable

air filter

(behind panel)

Model and serial

number plate

ind air louvers)

Removable

front panel

(P- 14)

Control Panel

EXHAUST CONTROL FAN CONTROL 1HERMOSTAT

-ii cjg@L Q)

“&

Exhaust vent

control

Fan

control Thermostat

control

Electrical Requirements

Electrical receptacle variations are shown on page 6; choose the one which matches the

ampere rating of your air conditioner. Your model’s ampere rating is printed on the model

and serial number label, located behind the front panel. (See diagram on page 4.)

Electrical Shock Hazard

Plug into a grounded 3 prong

outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Observe all local codes and

ordinances.

Do not, under any circumstances,

remove the power supply cord ground

prong.

NOTE: If codes permit and a separate

ground wire is used, it is recommended

that a qualified electrician determine that

the ground path is adequate and not

interrupted by plastic, non-metallic

gaskets or other insulating materials.

Check with a qualified electrician if you

are in doubt as to whether the air

conditioner is properly grounded.

ELECTRICAL REQUIREMENTS PLUG TYPE

115-volt models with amperes

up through 7.5

115-volt models with amperes

from 7.6 to 12.0

Receptacle wiring

Receptacle wiring should be a minimum

of 14 gauge. Use copper wire only. It is

the responsibility of the consumer to

provide proper and adequate receptacle

wiring, installed by a qualified electrician.

Observe national electrical codes and all

local governing codes and ordinances.

Electrical requirements

A 115~volt (103.5 min., 126.5 max.),

60-H& AC-only, 15-ampere fused

electrical supply is required. A time-delay

fuse or circuit breaker required. It is

required that a separate circuit, serving

only this air conditioner, be provided.

Electrical connection

Electrical ground is required on this air

conditioner.

Recommended ground method

For your personal safety, this air

conditioner

must

be grounded. This air

conditioner is equipped with a power

supply cord having a 3-prong ground

plug. To minimize possible shock hazard,

the cord must be plugged into a mating

3-prong ground-type wall receptacle,

grounded in accordance with the National

Electrical Code ANSVNFPA 70 - latest

edition and local codes and ordinances.

If a mating wall receptacle is not

available, it is the responsibility of the

customer to have a properly grounded

3-prong wall receptacle installed by a

qualified electrician.

Installing Your Air

Conditioner

Preparing for installation

Excessive Weight Hazard

Use 2 or more people to move and

install air conditioner.

Failure to do so can result in back

or other injury.

Tools required

l Flat-head screwdriver

l Carpenter’s level

l Tape measure

l Electric or hand drill

l M-inch drill bit

l Pencil

l Awl

l Knife

Installation tips

1. Choose a proper size window.

l 15-W inches minimum width

l 22 inches minimum height

l 42 inches maximum height

NOTE: The height measurement must

be of an unobstructed opening above

the mounting platform. In some cases,

due to a variety of stop and track

arrangements, the above dimensions

may vary slightly.

2. Choose the installation site. The

window frame and side of the structure

must be able to support at least

110 Ibs. of weight.

3. Choose the proper window location.

Choose a window that will allow the

cooled air to flow freely and directly

into the room(s) you want to cool.

Remember, it is difficult to move air

around corners. Also, choose a

window that is within 6 feet of an

electrical outlet. (See “Electrical

Requirements” on pages 5-6 for

receptacle and wiring requirements.)

Do not use an extension cord.

15-W

inches

minimum

width

22 inches

minimum

height

42 inches

maximum

Installing in a sliding window

NOTE:

This air conditioner must be

installed according to all applicable codes

and ordinances.

Slide open or remove one sliding

window sash from the window frame.

2. Attach support platform to sill plate

with three 3/a”-long self-tapping

screws.

3. Thread locknut to about the middle of

the leveling bolt.

Thread leveling bolt into support angle.

The leveling bolt will be adjusted later.

Loosely attach the support angle to the

bottom

Of the SUDDOrt DkItfOrrt7 USinCl

two 7/l 6”-long &&hi& screws, flat-

washers, and nuts.

3/E”-long

self-tapping

7A 6”~long screws

Self-tapping screw

Place the support platform assembly

against the lower window track and

firmly against the vertical edge of the

window trame.

Attach the support platform assembly

to the window stool using two self-

tapping screws. Tighten screws

securely.

8. Pull the support angle toward the

outside of wall. Tighten 7/l6”-long

machine screws on top of the support

platform.

platform

/ I

assembly

Lower window

track

continued on next page

9. Adjust the leveling bolt until support

angle is level. Tighten the leveling bolt

locknut. This allows air conditioner to

tilt back slightly for proper condensate

disposal.

NOTE:

Be sure the window track is

securely attached to the building

construction. Use longer screws into

the subframing if necessary.

Do not drill a hole in the bottom pan.

The air conditioner is designed to

operate with approximately W’ of

water in the bottom pan.

window frame.

Top retainer Filler panel

10.

Cut two pieces of adhesive back foam (Step

17) (Step 17)

seal

equal to the height of the

Foam seal

window opening. Remove backing

and apply to the vertical inside edges

of the window frame and sliding sash

Foam

that will rest against the air

seal

conditioner.

11.

Replace the sliding sash in the

Channel

12. Slide the air conditioner onto the support

platform assembly. Be sure the air

conditioner side channel butts against the

vertical edge of the window frame. Watch

out for the sharp metal fins on the front and

rear coils.

NOTE:

If air conditioner side channel does

not fit securely, remove air conditioner and

readjust leveling bolt.

Air

13.

Using the existing clearance holes in the air

conditioner bottom flange as guides, drill

two V8” holes through the window channel

frame. Install two self-threading screws

through the clearance holes and into these

holes. Tighten the screws securely. The air

conditioner should be firmly anchored to

the window channel frame-

NOTE:

Be sure your air conditioner

does not fall out during installation.

14. Slide the inside window sash closed. Make

gottom

Window flange

channel frame

15.

16.

17.

18.

19.

sure the vertical edge of the inside window

sash is pressed firmly against the side of

the air conditioner cabinet. Cut remaining

adhesive back foam seal equal to the width

of the window opening. Remove the backing

and apply to the top inside edge of the

window frame.

Install the speed clips on the top and

bottom inside edges of the window to

provide locking.

Insert the appropriate plastic foam seal

between the inside window sash and the

outside window.

Place the top retainer on the top edge

of the filler panel. Then place the bottom

edge of the filler panel into the groove of

the bottom retainer which is mounted on the

air conditioner. The filler panel may be

trimmed with a knife or scissors to fit the

window height.

Slide the sliders upward making sure the

filler panel aligns in the sliders.

With the sliders up against the top retainer,

drill $8” hole through the window frame

using the existing clearance hole in the

slider as a guide. Install the self-threading

screw and tighten securely. Repeat for the

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
