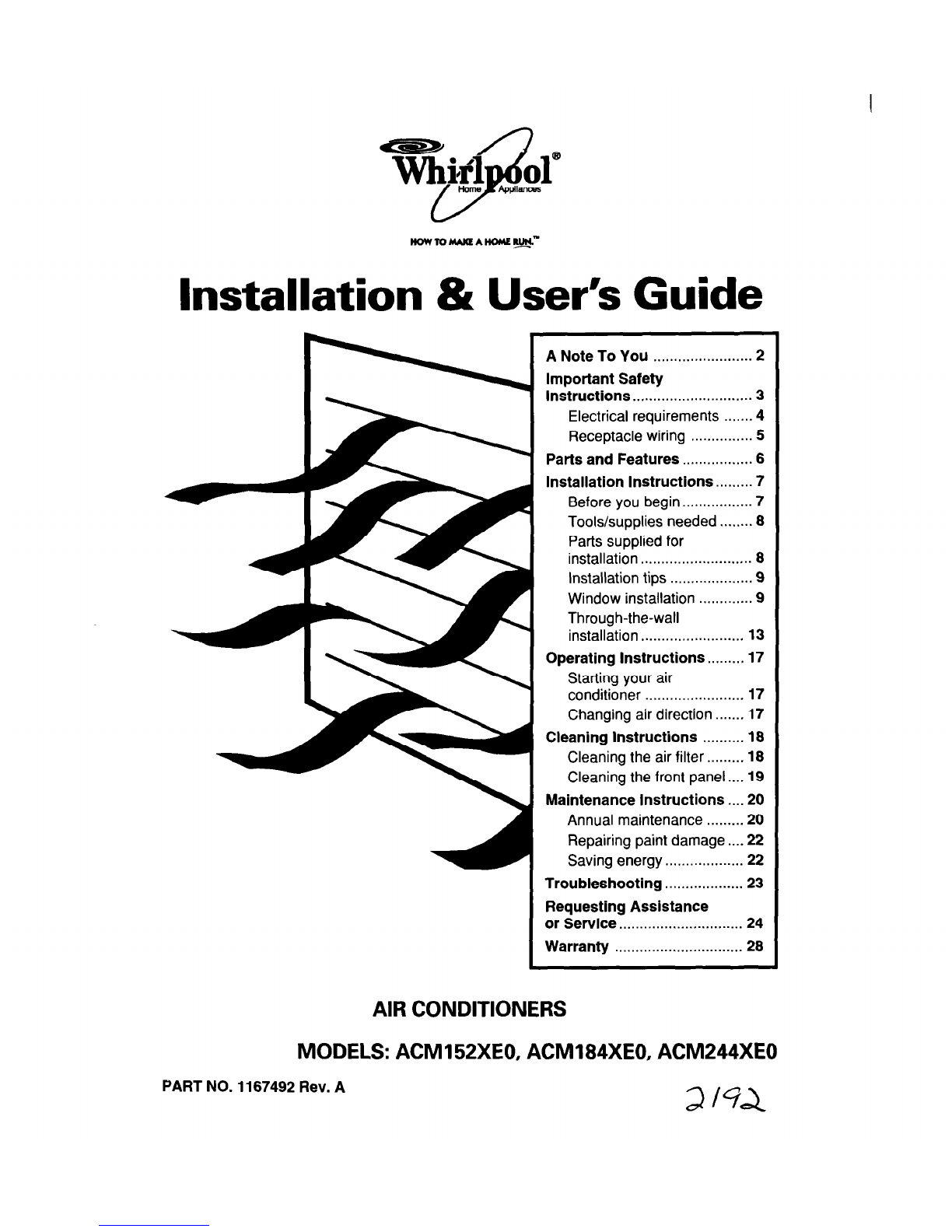

AIR CONDITIONERS

MODELS: ACM 152XE0, ACM184XE0, ACM244XEO

PART NO. 1167492 Rev. A

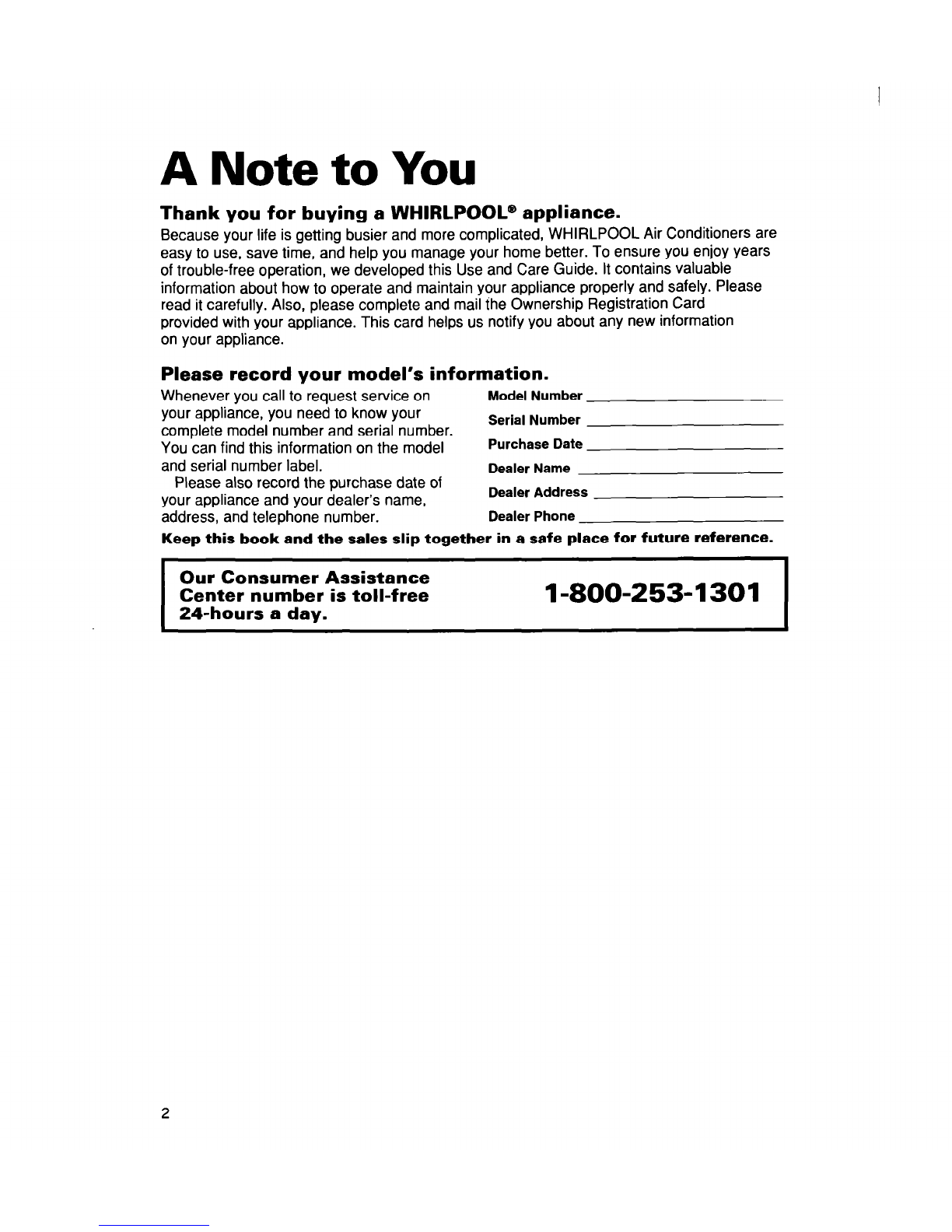

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL Air Conditioners are

easy to use, save time, and help you manage your home better. To ensure you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully. Also, please complete and mail the Ownership Registration Card

provided with your appliance. This card helps us notify you about any new information

on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label.

Dealer Name

Please also record the purchase date of

your appliance and your dealer’s name,

Dealer Address

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance

Center number is toll-free

24-hours a day.

l-800-253-1301

Important Safbty Instructions

Your safety is important to us.

This guide contains safety symbols and

statements. Please pay special attention to

the symbols and follow any instructions

given. Here is a brief explanation of the use

of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, cuts, and personal injury.

To reduce the risk of fire, electrical shock, or

personal injury when using your air conditioner,

follow these basic precautions:

l Read all instructions before using . Never clean air conditioner parts with

your air conditioner. flammable fluids. The fumes can create

*Complete the Installation Instructions a fire hazard or explosion.

as described in this manual. . FOR YOUR SAFETY.

l Never allow children to operate or DO NOT STORE OR USE GASOLINE

play with the air conditioner. OR OTHER FLAMMABLE VAPORS AND

l DO NOT operate the air conditioner LIQUIDS IN THE VICINITY OF THIS OR

with the front panel removed. ANY OTHER APPLIANCE. THE FUMES

l Disconnect power supply cord from CAN CREATE A FIRE HAZARD OR

receptacle before servicing. Refer to EXPLOSION.

model and serial number label for

BTU capacity, amperage, voltage,

and refrigerant charge specifications.

- SAVE THESE INSTRUCTIONS -

It is your responsibility to be

sure your air conditioner:

l is installed in a window or wall that will

support the weight of the unit.

l is installed and secured according to

the Installation Instructions described

in this manual.

l is connected only to the proper kind of

outlet, with the correct electrical supply

and grounding. (See “Electrical

requirements” on page 4.)

l is the proper size for the area you want

to cool.

l is used only for the job it is designed to do.

l is not used by children or anyone unable

to operate it properly.

l is properly maintained.

Also, remove the Energy Label and Buy

Guide. Use a damp cloth to take off any

glue residue. Do not use sharp instruments,

flammable fluids, or abrasive cleaner. These

can damage the material.

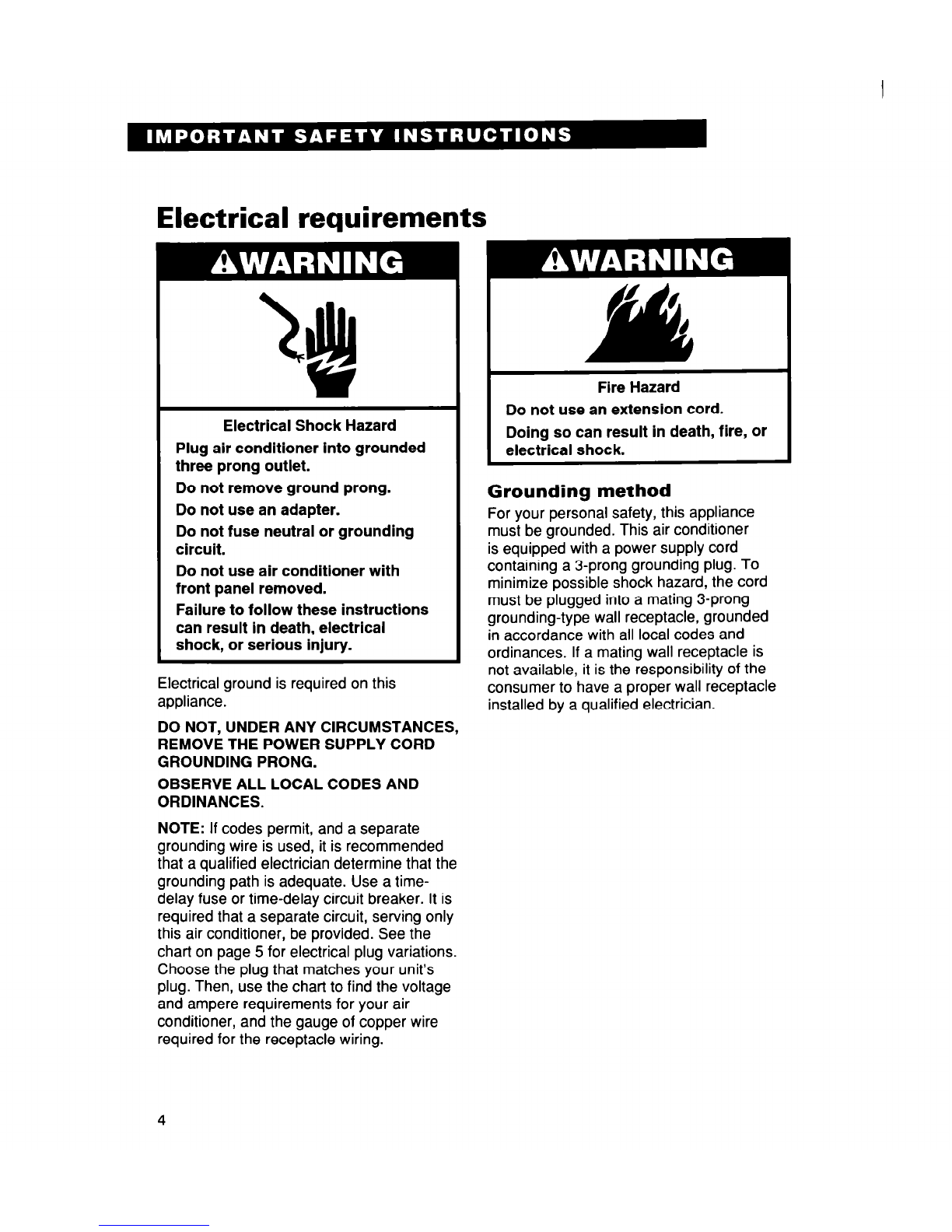

Electrical requirements

Electrical Shock Hazard

Plug air conditioner into grounded

three prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not fuse neutral or grounding

circuit.

Do not use air conditioner with

front panel removed.

Failure to follow these instructions

can result in death, electrical

shock, or serious injury.

Electrical ground is required on this

appliance.

DO NOT, UNDER ANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD

GROUNDING PRONG.

OBSERVE ALL LOCAL CODES AND

ORDINANCES.

NOTE: If codes permit, and a separate

grounding wire is used, it is recommended

that a qualified electrician determine that the

grounding path is adequate. Use a time-

delay fuse or time-delay circuit breaker. It is

required that a separate circuit, serving only

this air conditioner, be provided. See the

chart on page 5 for electrical plug variations.

Choose the plug that matches your unit’s

plug. Then, use the chart to find the voltage

and ampere requirements for your air

conditioner, and the gauge of copper wire

required for the receptacle wiring.

Fire Hazard

Do not use an extension cord.

Doing so can result in death, fire, or

electrical shock.

Grounding method

For your personal safety, this appliance

must be grounded. This air conditioner

is equipped with a power supply cord

containing a 3-prong grounding plug. To

minimize possible shock hazard, the cord

must be plugged into a mating 3-prong

grounding-type wall receptacle, grounded

in accordance with all local codes and

ordinances. If a mating wall receptacle is

not available, it is the responsibility of the

consumer to have a proper wall receptacle

installed by a qualified electrician.

Receptacle wiring

See the chart below for minimum gauge for

receptacle wiring. Use copper wire only. It is

the responsibility of the consumer to provide

proper and adequate receptacle wiring,

installed by a qualified electrician. Observe

the National Electrical Code and all local

governing codes and ordinances.

REQUIREMENTS

l 115 volt (103.5 min.-

126.5 max.)

l O-l 2 amperes

l 15 amp time-delay fuse or

circuit breaker

COPPER WIRE

14 gauge

PLUG

‘.I

Bl !’

l 230 volt (207 min.-253 max.)

or 14 gauge

l 230/208 volt (197.6 min.-

253 max.)

l O-l 2 amperes

l 15 amp time-delay fuse or

circuit breaker

l 230 volt (207 min.-253 max.)

or 12 gauge

l 230/208 volt (197.6 min.-

253 max.)

l O-l 6 amperes

l 20 amp time-delay fuse or

circuit breaker

l 230 volt (207 min.-253 max.)

or 10 gauge

l 230/208 volt (197.6 min.-

253 max.)

l O-24 amperes

l 30 amp time-delay fuse or

circuit breaker

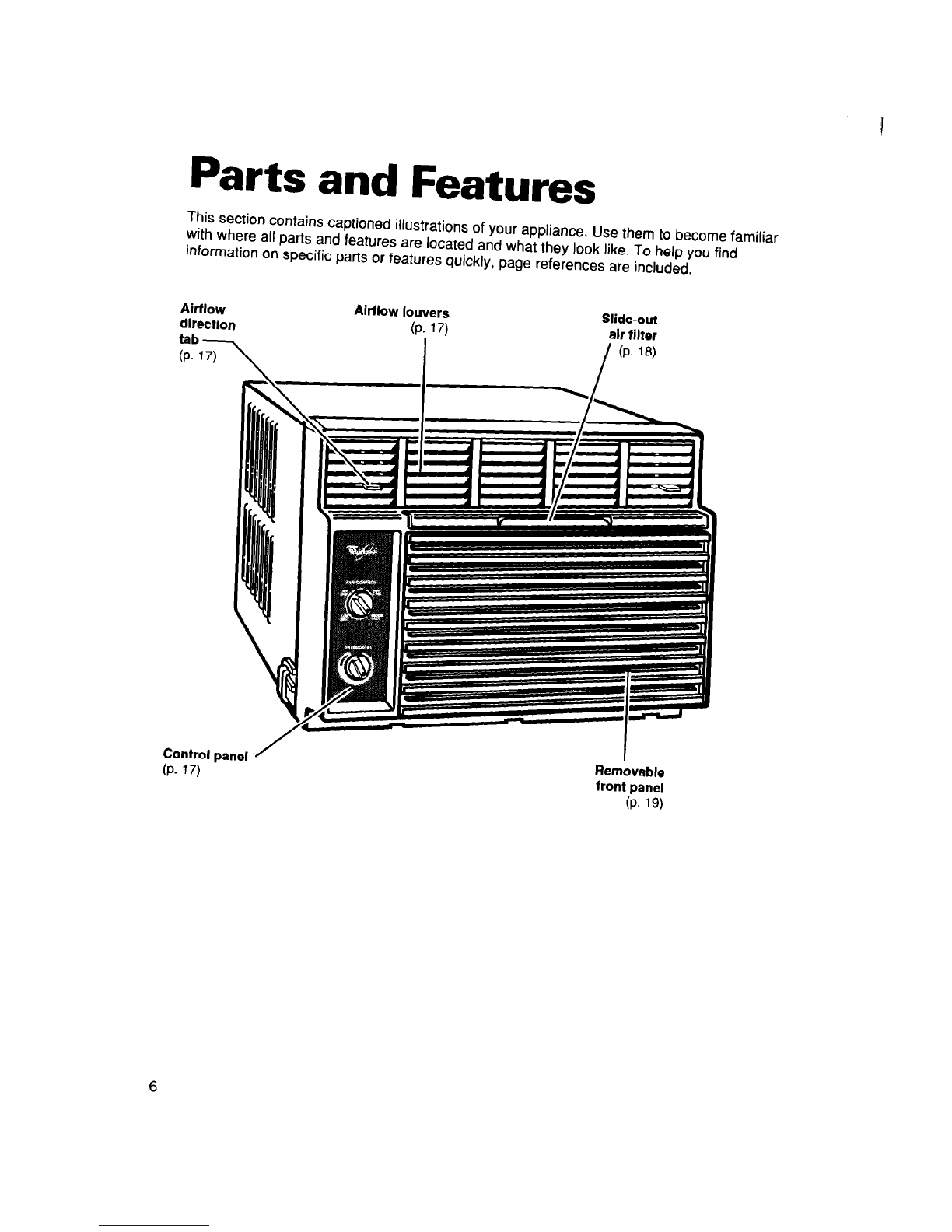

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like

help you find

information on

SPeCifk

parts or features quickly, page references are included.

Airflow

direction

tab

(P. 17)\

Airflow louvers

(P. 17)

Control panel /

(P. 17)

Slide-out

air filter

I b18)

Removable

front panel

(P. 19)

Installation Instructions

Proper installation of your air conditioner is important for proper operation and best cooling

results. To avoid any installation problems and to ensure trouble-free performance of your

new air conditioner, please read these Installation Instructions, as well as the operating

instructions and electrical requirements before installing your unit.

IMPORTANT: Observe all governing codes and ordinances.

Excessive Weight Hazard

Use two or more people to move and

install air conditioner.

Failure

to do so can result in back or

other injury.

Before you begin

Check the window/wall location where

the air conditioner will be installed for

the following:

l The opening/window is large enough.

Remember to add twice the thickness of

the wood to be used to build the frame.

l The wall/window is sturdy enough to

support the weight of the air conditioner -

145 to 200 pounds (65 to 90 kg).

l An electrical supply is within reach of the

power supply cord.

l Air will move freely into rooms to

be cooled.

Window opening measurements

Wall opening measurements

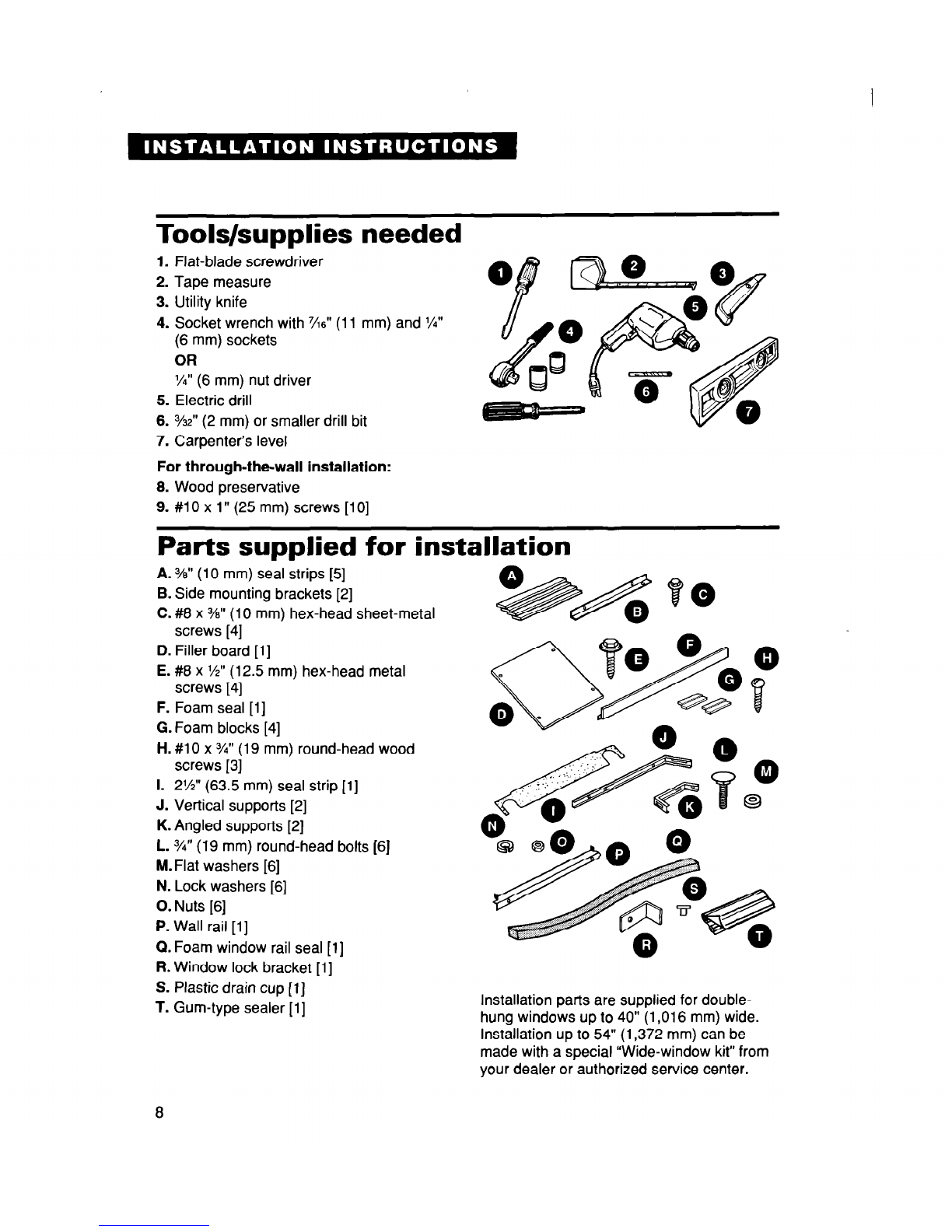

Tools/supplies needed

1. Flat-blade screwdriver

2. Tape measure

3. Utility knife

4. Socket wrench with

%6”

(11 mm) and %I”

(6 mm) sockets

%I” (6 mm) nut driver

5. Electric drill

6. YY (2 mm) or smaller drill bit

7. Carpenter’s level

For through-the-wall installation:

8. Wood preservative

8. #l 0 x 1” (25 mm) screws [lo]

Parts supplied for installation

A. %” (10 mm) seal strips [5]

B. Side mounting brackets [2]

C. #8 x 3/B”(10 mm) hex-head sheet-metal

screws [4]

D. Filler board [l]

E. #8 x 1/2”(12.5 mm) hex-head metal

screws [4]

F. Foam seal [l]

G. Foam blocks [4]

H. #lO x %” (19 mm) round-head wood

screws [3]

I. 2%” (63.5 mm) seal strip [l]

J. Vertical supports [2]

K. Angled supports [2]

L. 3/4”(19 mm) round-head bolts [6]

M. Flat washers [6]

N. Lock washers [6]

0. Nuts [6]

P. Wall rail [l]

Q. Foam window rail seal [l]

R. Window lock bracket [l]

S. Plastic drain cup [l]

T. Gum-type sealer [l] Installation parts are supplied for double-

hung windows up to 40” (1,016 mm) wide.

Installation up to 54” (1,372 mm) can be

made with a special “Wide-window kit” from

your dealer or authorized service center.

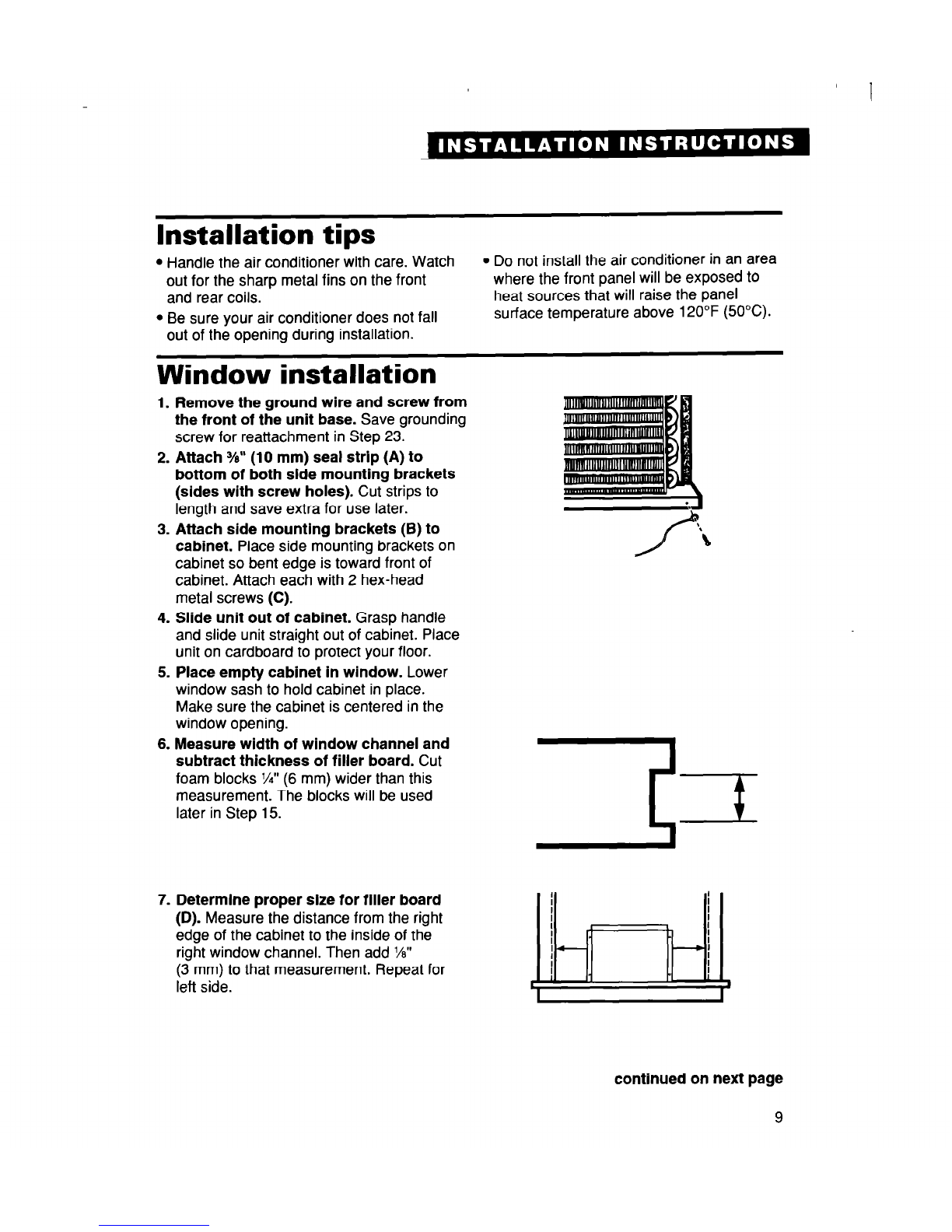

Installation tips

l Handle the air conditioner with care. Watch l Do not install the air conditioner in an area

out for the sharp metal fins on the front where the front panel will be exposed to

and rear coils. heat sources that will raise the panel

l Be sure your air conditioner does not fall surface temperature above 120°F (50°C).

out of the opening during installation.

Window installation

1. Remove the ground wire and screw from

the front of the unit base. Save grounding

screw for reattachment in Step 23.

2. Attach 3/g”(10 mm) seal strip (A) to

bottom of both side mounting brackets

(sides with screw holes). Cut strips to

length and save extra for use later.

3. Attach side mounting brackets (B) to

cabinet. Place side mounting brackets on

cabinet so bent edge is toward front of

cabinet. Attach each with 2 hex-head

metal screws (C).

4. Slide unit out of cabinet. Grasp handle

and slide unit straight out of cabinet. Place

unit on cardboard to protect your floor.

5. Place empty cabinet in window. Lower

window sash to hold cabinet in place.

Make sure the cabinet is centered in the

window opening.

6. Measure width of window channel and

subtract thickness of filler board. Cut

foam blocks 1/4”(6 mm) wider than this

measurement. The blocks will be used

later in Step 15.

7. Determine proper size for filler board

(D). Measure the distance from the right

edge of the cabinet to the inside of the

right window channel. Then add KY”

(3 mm) to that measurement. Repeat for

left side.

H I

continued on next page

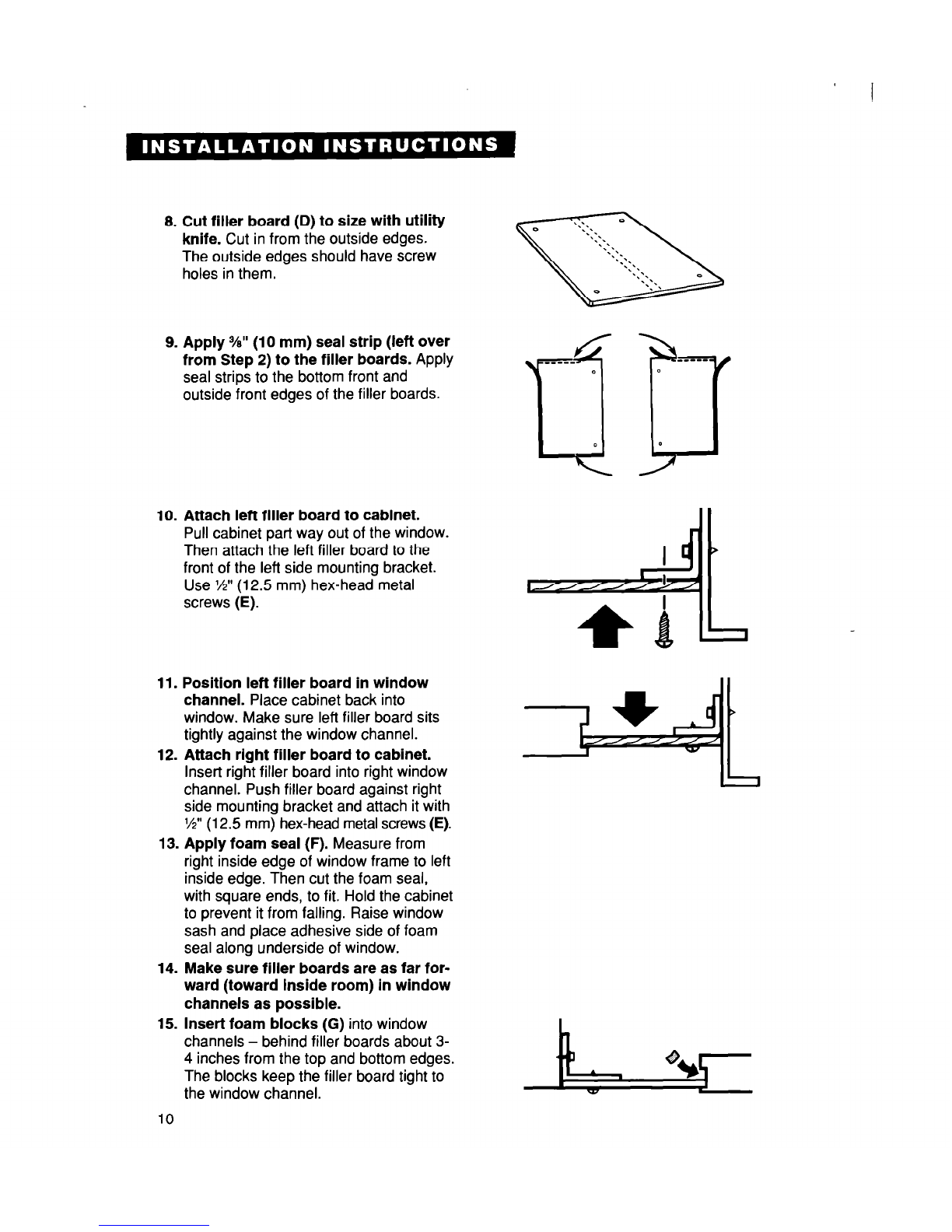

8. Cut filler board (D) to size with utility

knife. Cut in from the outside edges.

The outside edges should have screw

holes in them.

9. Apply %” (10 mm) seal strip (left over

from Step 2) to the filler boards. Apply

seal strips to the bottom front and

outside front edges of the filler boards.

10. Attach left filler board to cabinet.

Pull cabinet part way out of the window.

Then attach the left filler board to the

front of the left side mounting bracket.

Use W’ (12.5 mm) hex-head metal

screws (E).

11. Position left filler board in window

channel. Place cabinet back into

window. Make sure left filler board sits

tightly against the window channel.

12. Attach right filler board to cabinet.

Insert right filler board into right window

channel. Push filler board against right

side mounting bracket and attach it with

W’ (12.5 mm) hex-head metal screws (E).

13. Apply foam seal (F). Measure from

right inside edge of window frame to left

inside edge. Then cut the foam seal,

with square ends, to fit. Hold the cabinet

to prevent it from falling. Raise window

sash and place adhesive side of foam

seal along underside of window.

14. Make sure filler boards are as far for-

ward (toward inside room) in window

channels as possible.

15. insert foam blocks (G) into window

channels - behind filler boards about 3-

4 inches from the top and bottom edges.

The blocks keep the filler board tight to

the window channel.

This manual suits for next models

Table of contents

Other Whirlpool Air Conditioner manuals

Whirlpool

Whirlpool SPOW 407 User manual

Whirlpool

Whirlpool AR0500XA User manual

Whirlpool

Whirlpool 947596 B User manual

Whirlpool

Whirlpool ACP102PS User manual

Whirlpool

Whirlpool AC1888 User manual

Whirlpool

Whirlpool ROOM AIR CONDITIONER User manual

Whirlpool

Whirlpool ACQ082 User manual

Whirlpool

Whirlpool ACC602 User manual

Whirlpool

Whirlpool AR1230XA0 User manual

Whirlpool

Whirlpool ACE082XR0 User manual

Whirlpool

Whirlpool 63851339 Assembly instructions

Whirlpool

Whirlpool ACU088PR0 User manual

Whirlpool

Whirlpool AMD 385 User manual

Whirlpool

Whirlpool Comfore-aire RA51K0 User manual

Whirlpool

Whirlpool WA5059Q User manual

Whirlpool

Whirlpool AMC 992 User manual

Whirlpool

Whirlpool ACC082XR0 User manual

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER User manual

Whirlpool

Whirlpool PACF29COW User manual

Whirlpool

Whirlpool ACU124XD0 User manual

Whirlpool

Whirlpool AWA07520N Installation guide

Whirlpool

Whirlpool ACU072XE Product information sheet

Whirlpool

Whirlpool SC009 User manual

Whirlpool

Whirlpool AC0062XM0 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
