Wharfedale Pro Titan 8 Passive User manual

SPECIFICATIONS

Titan 8

QUICK START GUIDE

Note : Speciﬁcations may be subject to change without notice.

Your full user manual can also be downloaded from

www.wharfedalepro.com

Model Name TITAN 8

System Type Passive

Conﬁguration 8" 2-way

Frequency Response (+/-3 dB) 70 - 20 kHz

Frequency Range (-10 dB) 65 - 20 kHz

Sensitivity (2.83 v / 1 m) 96 dB

Calculated Maximum SPL @1 m 124 dB

System Rated Impedance 8 Ω

Low Frequency Transducer

Size 203 mm / 8"

Voice Coil Size 38.86 mm / 1.53"

Rated Impedance 8 Ω

LF Power (re:AES2-2012) 150 W

High Frequency Transducer

HF Driver Type Compression Driver

Voice Coil Size 25 mm / 1"

Exit Size 30 mm / 1.2"

Diaphragm Material Mylar

Rated Impedance 8 Ω

HF Power (re:AES2-2012) 20 W

Nominal Coverage (H x V) Elliptical waveguide 90° x 60°

Power

System Continuous Power 150 W

System Programme Power 300 W

System Peak Power 600 W

Crossover frequency 2-way 2.4 kHz / Linkwitz-Riley

Input Connector

2 x NL2 (speakON compatible)

2 x 1/4" Jack

Hardware

Pole Mount 35 mm with lock screw

Handles 1 on side

Mounting points M6 * 8

Enclosure

Enclosure Material Trapezoidal / Polypropylene

Finish Grey, Black, White

Grille Material & Finish 1.2 steel

Dimensions - Unpacked

Height 396 mm / 15.59"

Width Front 266 mm / 10.47"

Width Rear 266 mm / 10.47"

Depth 221 mm / 8.7"

Dimensions - Packed

Height 463 mm / 18.2"

Width Front 325 mm / 12.8"

Width Rear 325 mm / 12.8"

Depth 282 mm / 11.1”

Weight

Net Weight (kg / lbs) 5.5 kg / 12.1 lbs

Gross Weight (kg / lbs) 7.5 kg / 16.5 lbs

OVERVIEW

266

221 396.0

PRODUCT FEATURES

• 8″ passive

• 1.0″ HF compression driver

• 150 Watts AES (RMS)

• 300 Watts Programme

• 600 Watts Peak

• 124 dB Max SPL @ 1 meter

May 2023

WHARFEDALE PROFESSIONAL

IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK

www.wharfedalepro.com

Wharfedale Professional reserves the right to alter or improve speciﬁcations without notice.

Wharfedale Pro products are warranted of manufacturing or material defects for a period of

three years from the original date of purchase. In the event of malfunction, contact your

authorised Wharfedale Pro dealer or distributor for information.

Please be aware that the warranty details may diﬀer from country to country. Contact your dealer or distributor for

information (available at www.wharfedalepro.com). These terms do not infringe your statutory rights.

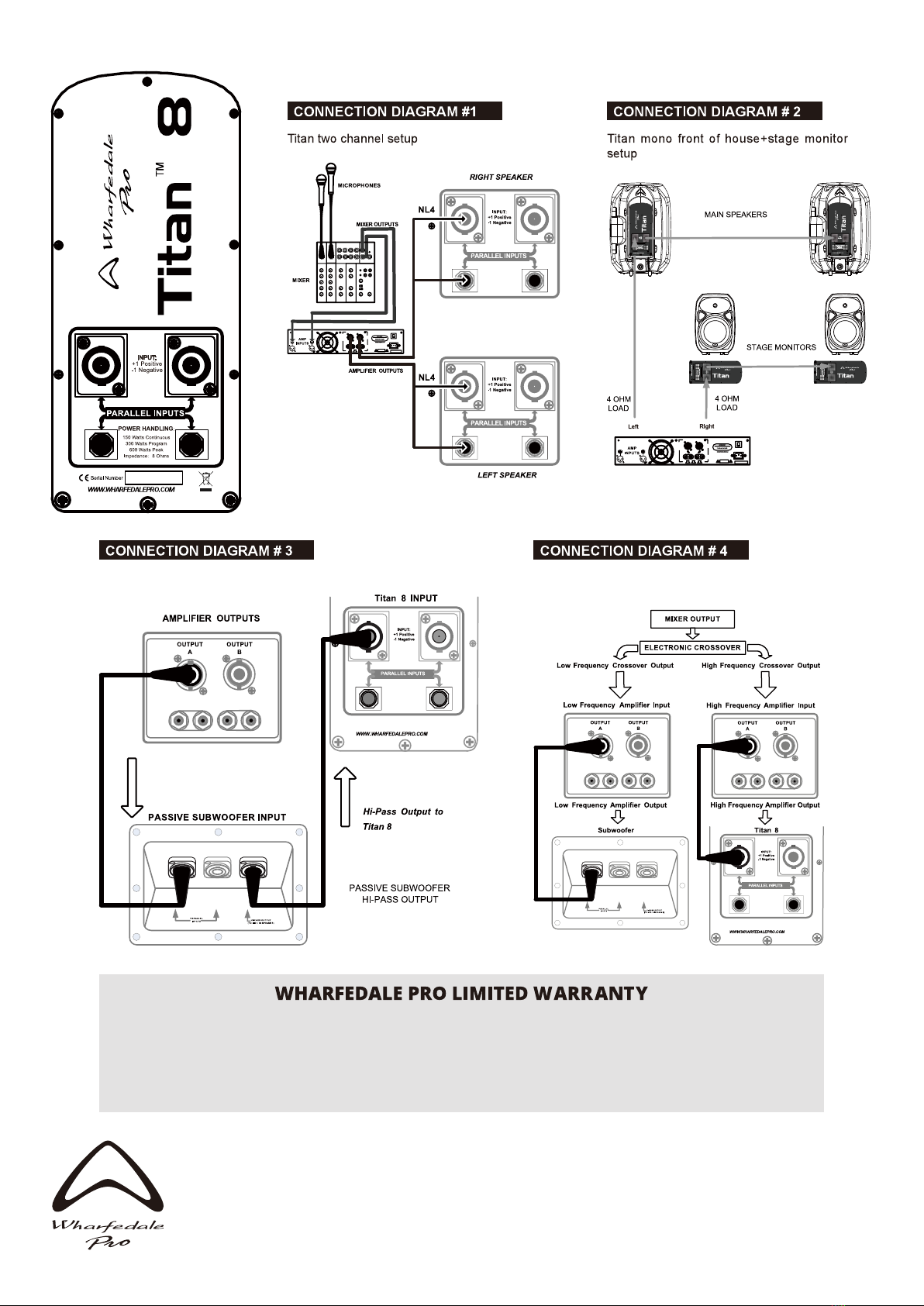

NOTE: This configuration represents a 4 ohm

load to each output channel of the amplifier

Using the Titan with a passive subwoofer Using the Titan 8 in a BI-amp system
