Wharfedale Pro Titan 12D User manual

TITAN 12D

Titan 12D

VERSION HISTORY

Rev

V01

Date Update Content

2011.04.01 First Release

CONTENT

Introduction

Specification

Assembly Sketch

Schematic Diagram

Wiring Diagram

Silkscreen of Top/Bottom

Maintenance Alignment Procedure

Assembly Parts List

Electronic Parts List

Country Bom Deviation

2-3

4-5

6-10

12-17

19-20

21-25

26-27

10.

Titan 12D

INTRODUCTION

No part of this document may be reproduced or transmitted in any form or by any means,electronic or

mechanical, for any purpose, without the express written permission of International Audio Group

Limited (IAG)

This manual is for the exclusive use of IAG, its approved distributors and approved UK service agents.

No part of this manual shall be transferred to any other party without the express written permission of

IAG.

It is the responsibility of the user to ensure that all the information contained in this manual is current.

Notification for new issues of this manual and minor updates will be given via the IAG web-site or on

request.

This manual has been prepared with the greatest care, it is intended for information only and no liability

shall be accepted for errors or changes to specification.

For further service information, parts lists and updates, please contact our web-site at

www.international audio group.com .

Titan 12D

SPECIFICATION

Titan 12D

System Type Active 12” 2-way Bi-Amplified system

Frequency Response (+/-3dB) 55-20kHz

Low Frequency Transducer

Size (mm / inches) 305mm / 12”

Coil Size (mm / inches) 64.26mm / 2.5”

Impedance 4 Ω

High Frequency Transducer

Type Compression Driver

Coil Size (mm / inches) 51mm / 2”

Exit Size (mm / inches) 25mm / 1”

Diaphragm Material Titanium

Impedance 8 Ω

High Frequency Coverage (H x V) 90° x 60°

Amplifiers

Low-Frequency Power Amplifier (Class D) 170W (@1% THD 4Ω) 200W (@ 10% THD 4Ω)

354W(@Peak power4Ω)

High- Frequency Power Amplifier (Class D) 48W (@1% THD 8Ω) 58W(@10% THD8Ω) 172W

(@Peak power 8Ω)

Electronic Crossover:

Crossover Frequency HI PASS 2.5KHz LOW PASS 2.5KHz

Controls

bass gain +/-10dBv

treble gain +/-10dBv

Bass Response Optimizer ("BRO”™) circuit +6dBv @ 60Hz

Subsonic Filter 30Hz

Amplifier Protection YES

Power On Protection YES

Thermal Protection YES

Low Line Voltage Shut Down YES

Driver Protection YES

DC Protection YES

Short Protection YES

Clip Limiter: YES

Limiter Indicator LED

Power Indicator LED

Inputs Balanced XRL and unbalanced RAC

Input A – type Switchable balanced mic or line level input

Input Sensitivity Mic: -36dBu (-38.2dBv or 12.28mVrms)

Line: +4dBu (1.78dBv or 1.228Vrms)

Maximum Input Level +22dBu

Equalization:

SPECIFICATION

Titan 12D

Input Connector XLR - 1/4” Combo jack

Input Impedance Balanced: 20k ohms Unbalanced:10k ohms

Maximum Input Level +22dBu

Input B – type Line level input

Input Sensitivity XLR - 1/4” Combo jack: 1.78dBv or 1.228Vrms

RCA: 0dBu (-2.2dBv or 0.775Vrms)

Maximum Input Level +22dBu

Input Connectors Combo jack: 1/4" - XLR / Summed dual RCA jacks

Line Output XLR

Line Output Connector Switchable LOOP / MIX Balanced Male XLR

Impedance Balanced: Balanced: 1k ohm Unbalanced: 500 ohM

Sensitivity +4dBu(1.78dBv or 1.228Vrms)

AC Power details

Power Supply 100V-120V/220V-240V50Hz/60Hz

AC Power Options

Power On Indicator LED

10 M8 threaded inserts including 4 M8 threaded

inserts on bottom in OmniMount 60.0-type footprint

Pole-mount receptacle with lock screw

2 carry handles (one on each side)

Optional wall-mount bracket

Enclosure

Enclosure Material Injection Moulded Polypropylene

Colour Black or white

Dimensions (mm / inches):

H 556mm / 21.88”

W 384mm / 15.11”

D 312mm / 12.28”

Weight

Net Weight (kg / lbs) 12.4kg / 27.28lbs

Gross Weight (kg / lbs) 15.5kg / 34.1lbs

Rigging / Bracket / Mounting Options

ASSEMBLY SKETCH

Titan 12D

ASSEMBLY SKETCH

Titan 12D

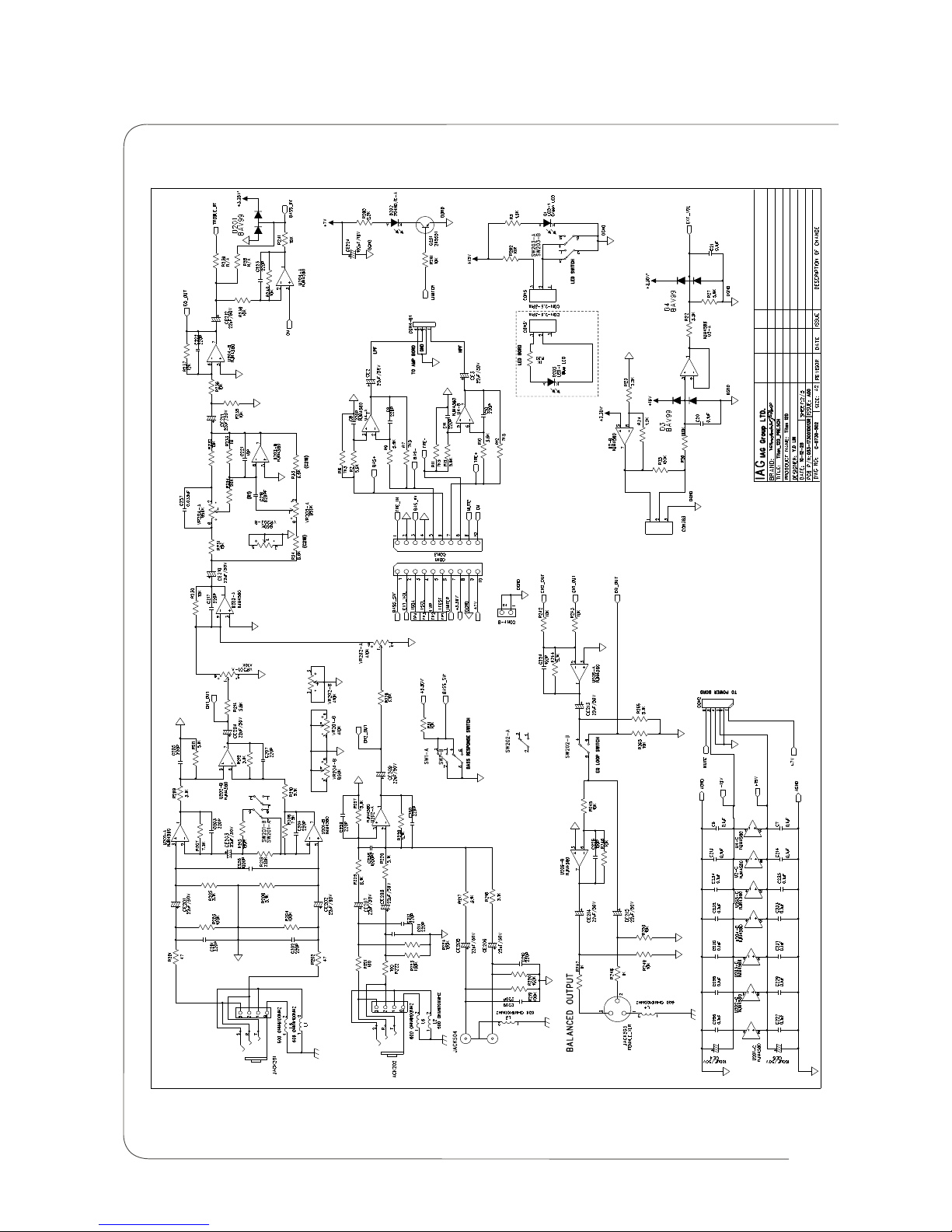

SCHEMATIC DIAGRAM

Titan 12D

SCHEMATIC DIAGRAM

Titan 12D
