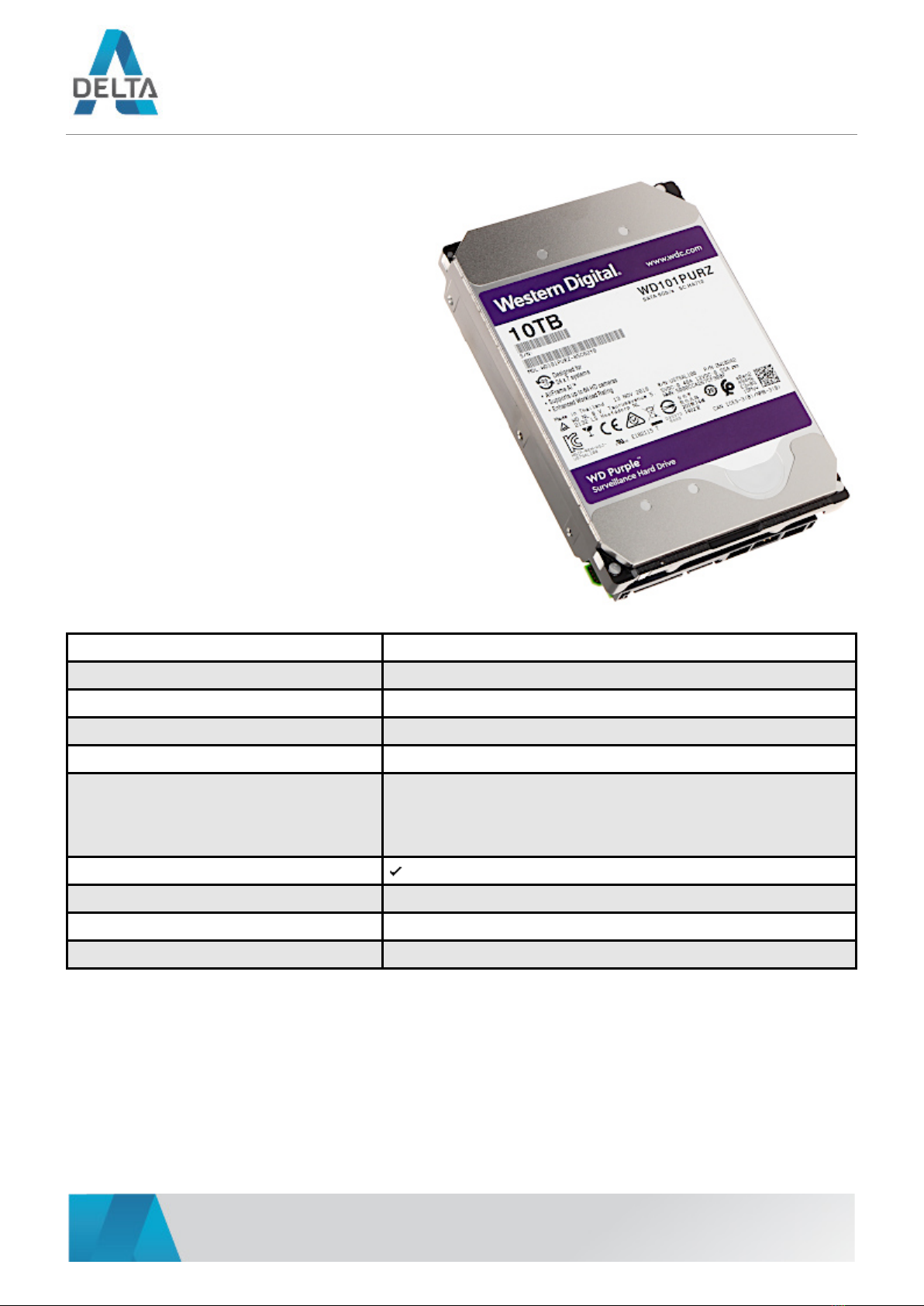

All WD Purple surveillance-class drives are equipped with

AllFrame AI technology, which improves ATA streaming to help

reduce frame loss, improve overall video playback, and increase

the number of hard drives bays supported within a NVR. These

drives are dedicated to HD video recording continuously in 24/7

mode and have reduced energy consumption. Serial ATA interface

connection.

Attention! From 01.06.2020 we do not provide disk mounting

services in recorders.

Capacity: 10 TB

Interface: SATA III - 6 Gb/s

Spindle speed: 7200 RPM

Size format: 3.5 "

Cache memory: 256 MB

Technology:

• NCQ - Native Command Queuing

• AllFrame AI - Reducing video frame "loss" phenomenon

• IntelliSeek - reduce damaging ambient noise and vibrations

• Enhanced Workload Rating Increased hard drive workload rate - even up to 360 TB

per year

Designed to continuous operation 24/7:

Weight: 0.646 kg

Manufacturer / Brand: WESTERN DIGITAL

Guarantee: 2 years

User Manual

Code: HDD-WD101PURZ

HDD FOR DVR HDD-WD101PURZ 10TB 24/7 WESTERN DIGITAL

DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl

POL; 60-713 Poznań; Graniczna 10

e-mail: [email protected]; tel: +(48) 61 864 69 60

2022-02-26 HDD-WD101PURZ 3/4

The Western Digital drives marked PURZ are designed to work in video surveillance systems. Its design allows for error-free recording of several

Full HD streams in 24/7 mode.

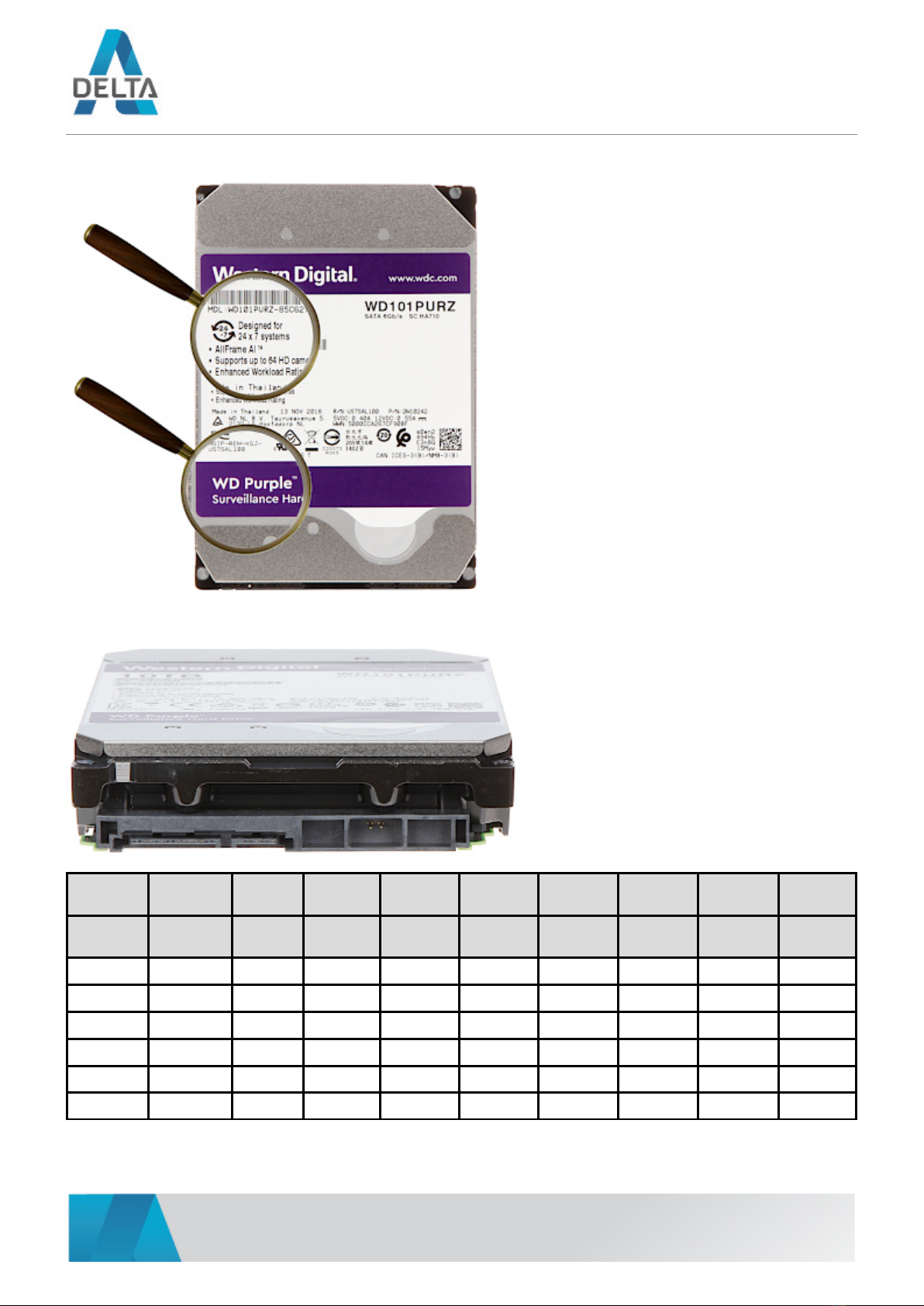

Connectors view:

Memory storage for video recording:

Cameras

amount

Main

stream

Disk

usage

Disk

usage 1TB 2TB 3TB 4TB 8TB 10TB

pcs kb/s MB/h GB/24h Number of

days

Number of

days

Number of

days

Number of

days

Number of

days

Number of

days

1 750 329,6 7,7 120,5 241,0 361,6 482,2 964,4 1205

1 1000 439,5 10,3 90,4 180,8 271,2 361,7 723,4 904

1 2000 878,9 20,6 45,2 90,4 135,6 180,8 361,6 452

1 2500 1098 25,7 36,2 72,3 108,5 144,7 289,4 362

1 3000 1318 30,9 30,1 60,3 90,4 120,6 241,2 309

1 4000 1757 41,2 22,6 45,2 67,8 90,4 180,8 226

User Manual

Code: HDD-WD101PURZ

HDD FOR DVR HDD-WD101PURZ 10TB 24/7 WESTERN DIGITAL

DELTA-OPTI Monika Matysiak; https://www.delta.poznan.pl

POL; 60-713 Poznań; Graniczna 10

e-mail: [email protected]; tel: +(48) 61 864 69 60

2022-02-26 HDD-WD101PURZ 4/4

1 5000 2197 51,5 18,1 36,2 54,2 72,3 144,6 181

1 6000 2636 61,8 15,1 30,1 45,2 60,3 120,6 151

1 8000 3515 82,4 11,3 22,6 33,9 45,2 90,4 113

1 3000 1318 30,9 30,1 60,3 90,4 120,6 241,2 301

2 3000 x 2 2636 61,8 15,1 30,1 45,2 60,3 120,6 151

3 3000 x 3 3955 92,7 10,0 20,1 30,1 40,2 80,4 100

4 3000 x 4 5273 123,6 7,5 15,1 22,6 30,1 60,2 75

6 3000 x 6 7910 185,4 5,0 10,0 15,1 20,1 40,2 50

8 3000 x 8 10546 247,2 3,8 7,5 11,3 15,1 30,2 38

10 3000 x 10 13183 309,0 3,0 6,0 9,0 12,1 24,2 30

12 3000 x 12 15820 370,8 2,5 5,0 7,5 10 20 25

16 3000 x 16 21093 494,4 1,9 3,8 5,6 7,5 15 19

20 3000 x 20 26367 618,0 1,5 3,0 4,5 6,0 12 15

25 3000 x 25 32959 772,5 1,2 2,4 3,6 4,8 9,6 12

32 3000 x 32 42187 988,8 0,94 1,88 2,82 3,77 7,54 9,4

64 3000 x 64 84375 1977 0,47 0,94 1,41 1,88 3,76 4,7
