weBoost Office 100 User manual
ENGLISH
FRANÇAIS
Installation Guide
Cell Signal Booster
Oce 100
Oce 100
A WILSON ELECTRONICS BRAND
NEED HELP? weboost.ca 866.294.1660
Package Contents 1
Preparation 2
STEP 1: Inside Antenna & Booster Placement 4
STEP 2: Mount Outside Antenna 5
STEP 3: Route & Connect Outside Antenna To Booster 6
STEP 4: Route & Connect Inside Antenna To Booster 7
STEP 5: Power Up The Booster 8
Measuring Booster Performance 9
Light Patterns 11
Troubleshooting 12
Safety Guidelines 13
Specifications 15
Warranty 16
______
Index
1
OFFICE 100 CELL PHONE SIGNAL BOOSTER
ENGLISH
ENGLISH
______

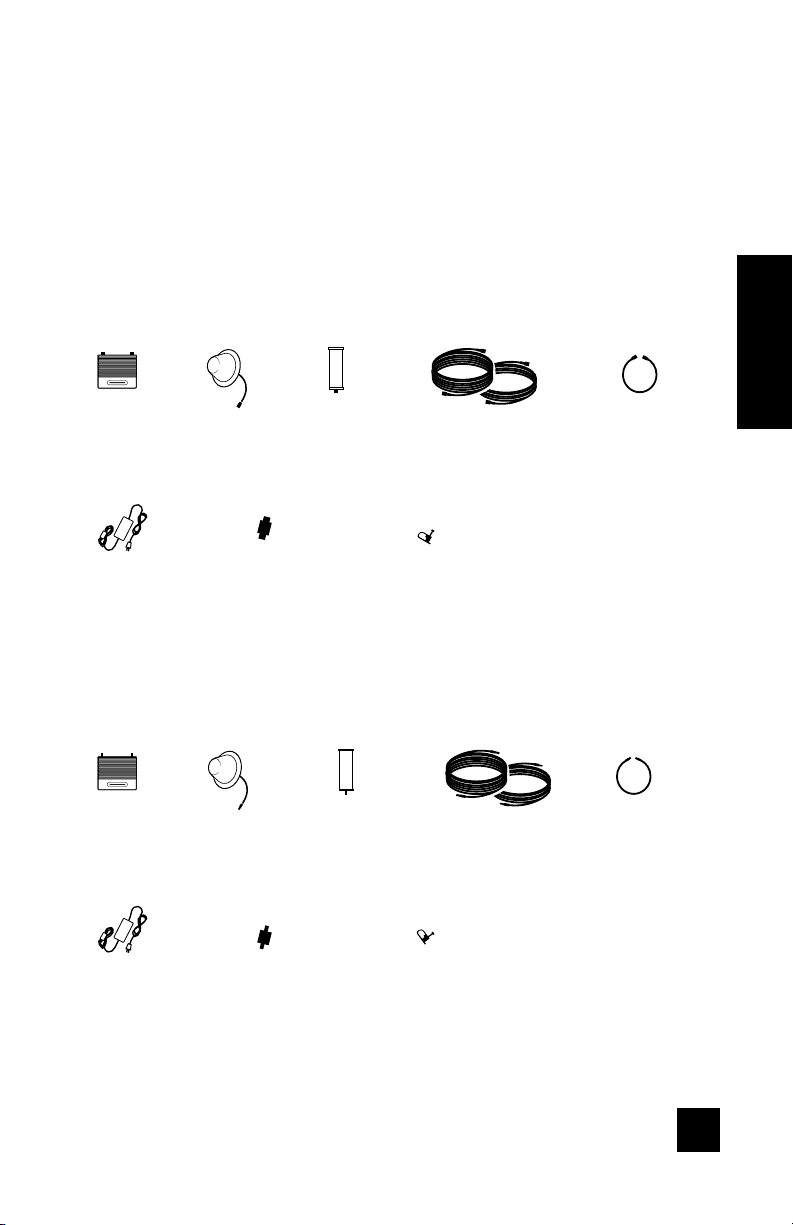

Package
Contents
Office 100
Booster
Office 100
Booster
Power
Supply
(850030)
Power
Supply
(850030)
Lightning Surge
Protector
(859902)
Lightning Surge
Protector
(859992)
Cable Mounting
Clips
Cable Mounting
Clips
Inside
Antenna
(304412)
Inside
Antenna
(304419)
Outside
Antenna
(314422)
Outside
Antenna
(314423)
23 m & 18 m
Wilson 400 Cables
(952360 & 952375)
23 m & 18 m
RG-11 Cables
(951160 & 951175)
.5 m Wilson
400 Cable
(952302)
.5 m RG-11
Cable
(951127)
Oce 100 50 Ohm Kit
Oce 100 75 Ohm Kit
2CELL PHONE SIGNAL BOOSTER OFFICE 100
ENGLISH
______
Preparation
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your installation.
o Ladder
o Drill
o 2.5 - 5 cm diameter existing pole for mounting
Outside Antenna (#901117 Pole Mount can be
purchased separately if needed)
o Recommended: Power Strip with surge protection
1 to 2 hours
3
OFFICE 100 CELL PHONE SIGNAL BOOSTER
ENGLISH
ENGLISH
______

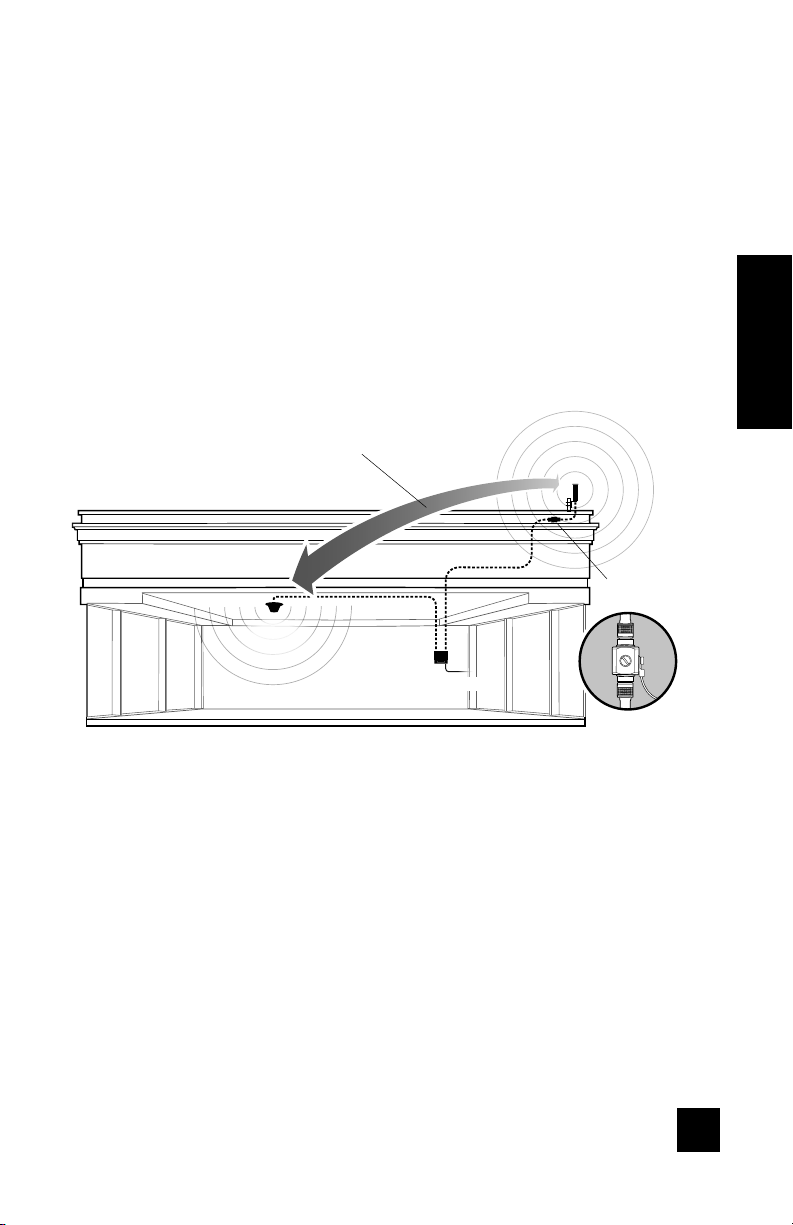

Installation Diagram
Outside
Antenna
Booster
23 m Coax Cable
Troubleshooting section recommends increasing distance
further if needed.
18 m Coax Cable
to power
Lightning Surge
Protector
Inside
Antenna
18 METER HORIZONTAL OR 7.5 METER VERTICAL DISTANCE
G
r
o
u
n
d
4CELL PHONE SIGNAL BOOSTER OFFICE 100
ENGLISH
AT LEAST 60 cm APART
fastened
nut snug
ceiling
19 mm drilled hole
NOTE: Do not connect booster to power until the system is fully installed.
______

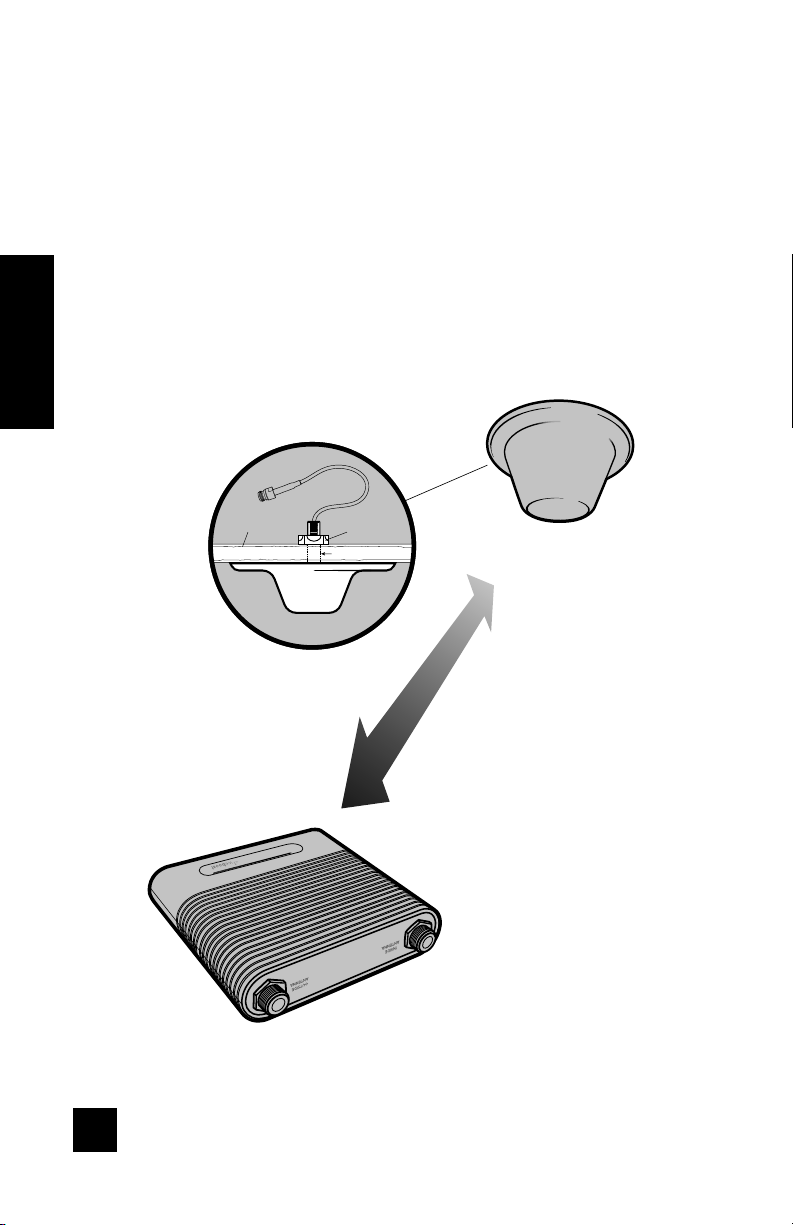

Step 1: Inside Antenna &
Booster Placement
Place the inside antenna in the ceiling over where you need the greatest signal
boost and place booster in your desired location at least 60 cm away from
inside antenna.
5
OFFICE 100 CELL PHONE SIGNAL BOOSTER
ENGLISH
ENGLISH
______

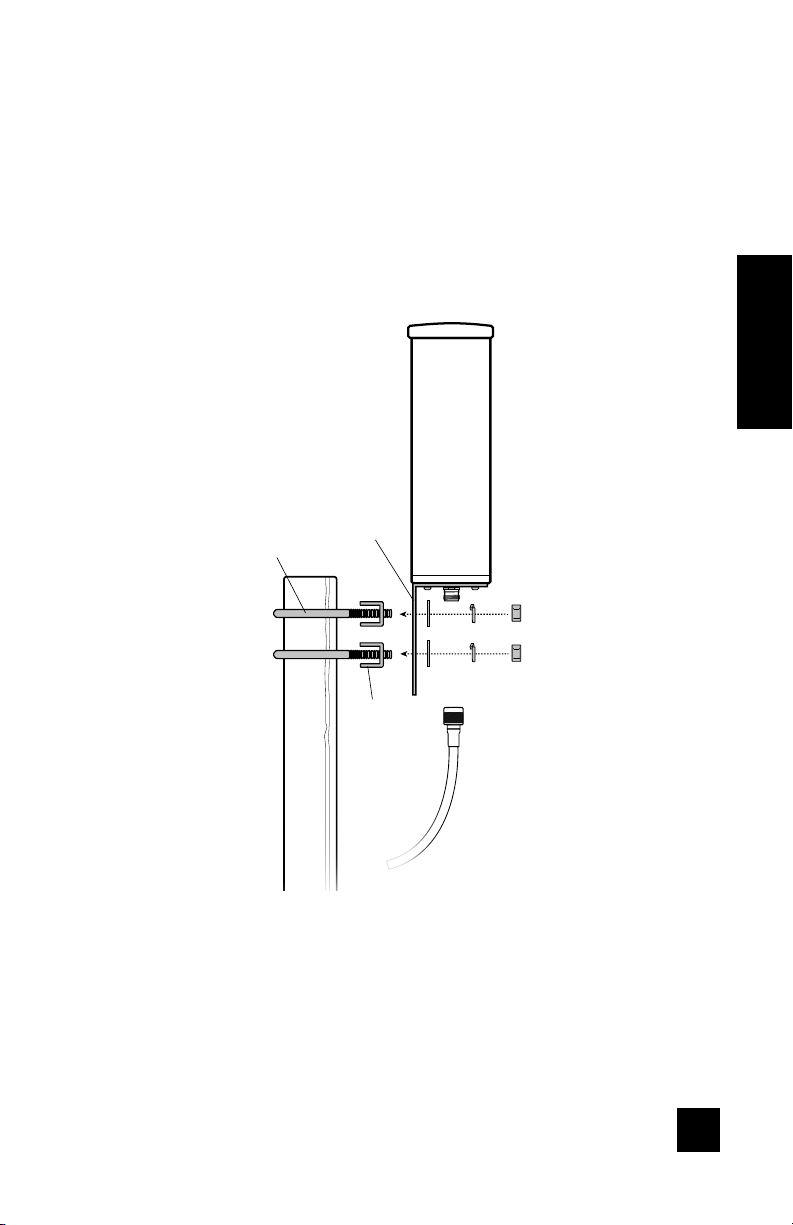

Step 2: Mount Outside Antenna
NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch
out for power lines.
Pole mounting and wall mounting options are included.
Attach the mount to the outside antenna and use the bracket clamp to attach
the antenna to a pole or exhaust pipe.
Outside
Antenna
U-Bolt
existing
pole
Pole
Bracket
6CELL PHONE SIGNAL BOOSTER OFFICE 100
ENGLISH
______

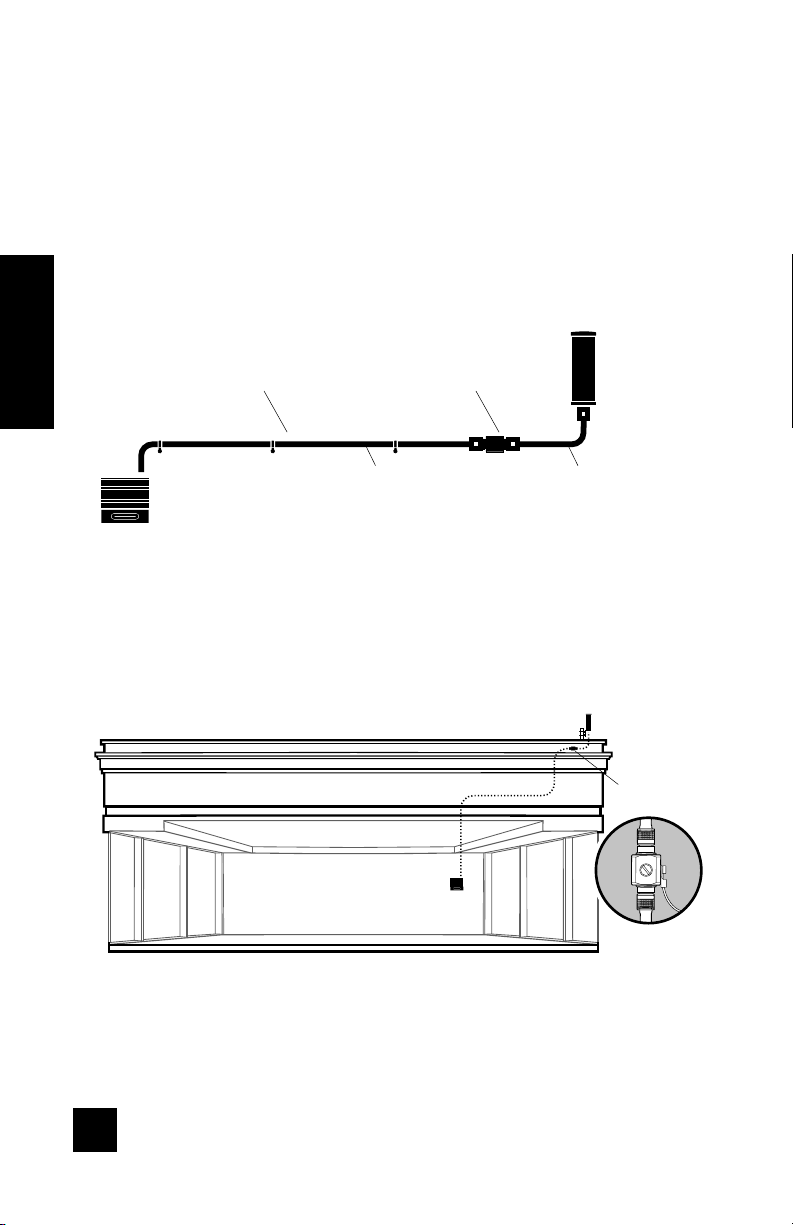

Step 3: Route & Connect
Outside Antenna To Booster
Route cable to the Oce 100 booster and connect to the port labeled
‘OUTSIDE ANTENNA’.
Outside
Antenna
23 m Coax Cable .5 m Coax Cable
Outside
Antenna
Lightning Surge
Protector
Booster
Booster
Cable Mounting Clips
provided
Lightning Surge
Protector
Connect .5 m coax cable to outside antenna, attach the lightning surge
protector, then connect the black 23 m coax cable and route into building.
G
r
o
u
n
d
7
OFFICE 100 CELL PHONE SIGNAL BOOSTER
ENGLISH
ENGLISH
______

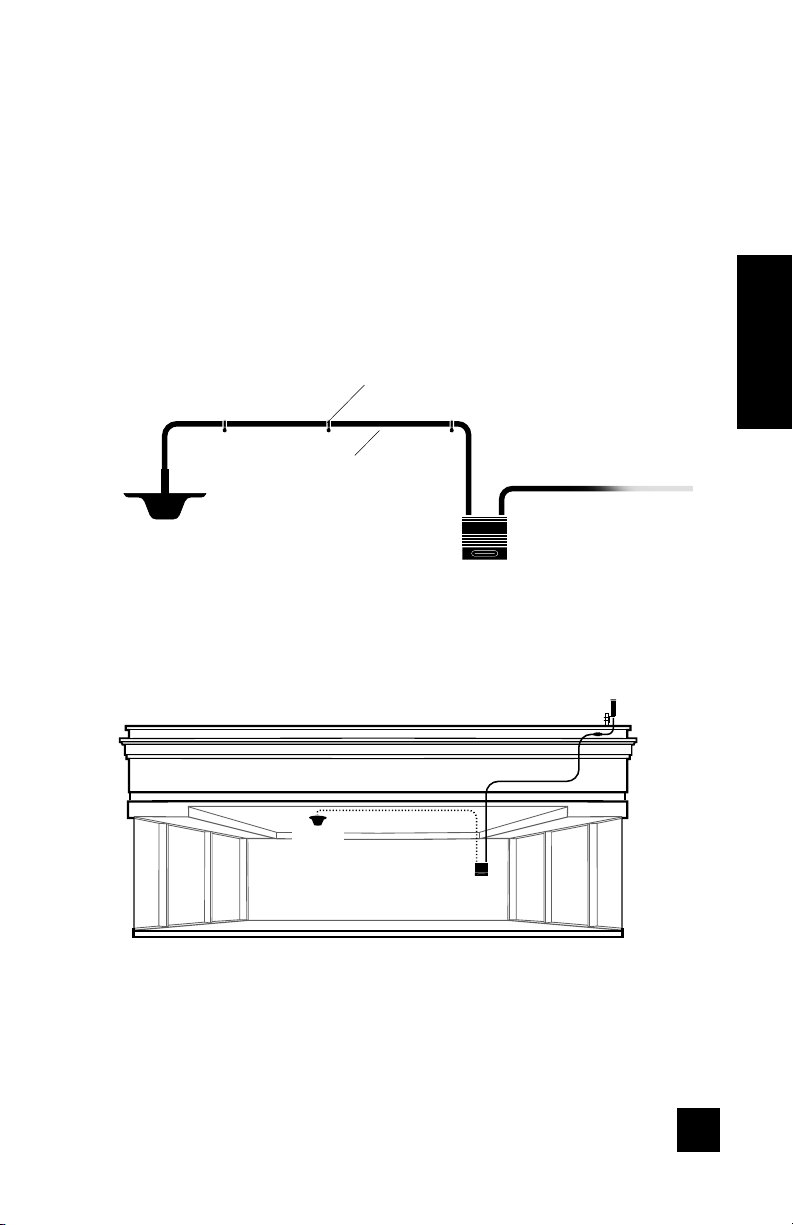

Step 4: Route & Connect
Inside Antenna To Booster
Inside
Antenna
18 m Coax Cable
Booster
Connect the black 18 m coax cable to inside antenna and route to the Oce
100 booster and connect to the port labeled ‘INSIDE ANTENNA’.
Outside
Antenna
Booster
Cable Mounting Clips
provided
Inside
Antenna
8CELL PHONE SIGNAL BOOSTER OFFICE 100
ENGLISH
______

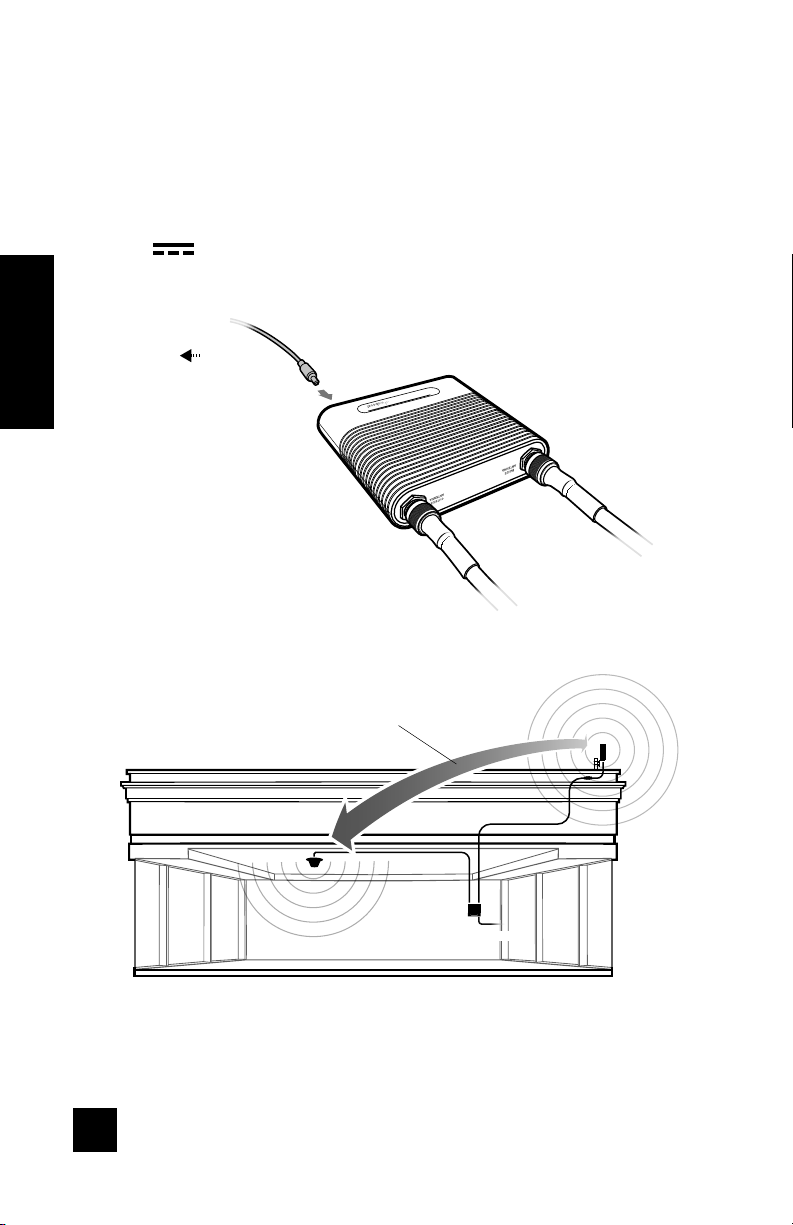

Step 5: Power Up The Booster
Plug the power supply into wall outlet then connect to end of booster
labeled “ ” and enjoy your boosted signal.
Booster
to power
to power
NOTE: We strongly recommend using a power strip with surge protection.
Inside
Antenna
Outside
Antenna
Troubleshooting section recommends increasing distance
further if needed.
18 METER HORIZONTAL OR 7.5 METER VERTICAL DISTANCE
