Walker Edison AF35LIB User manual

P.1

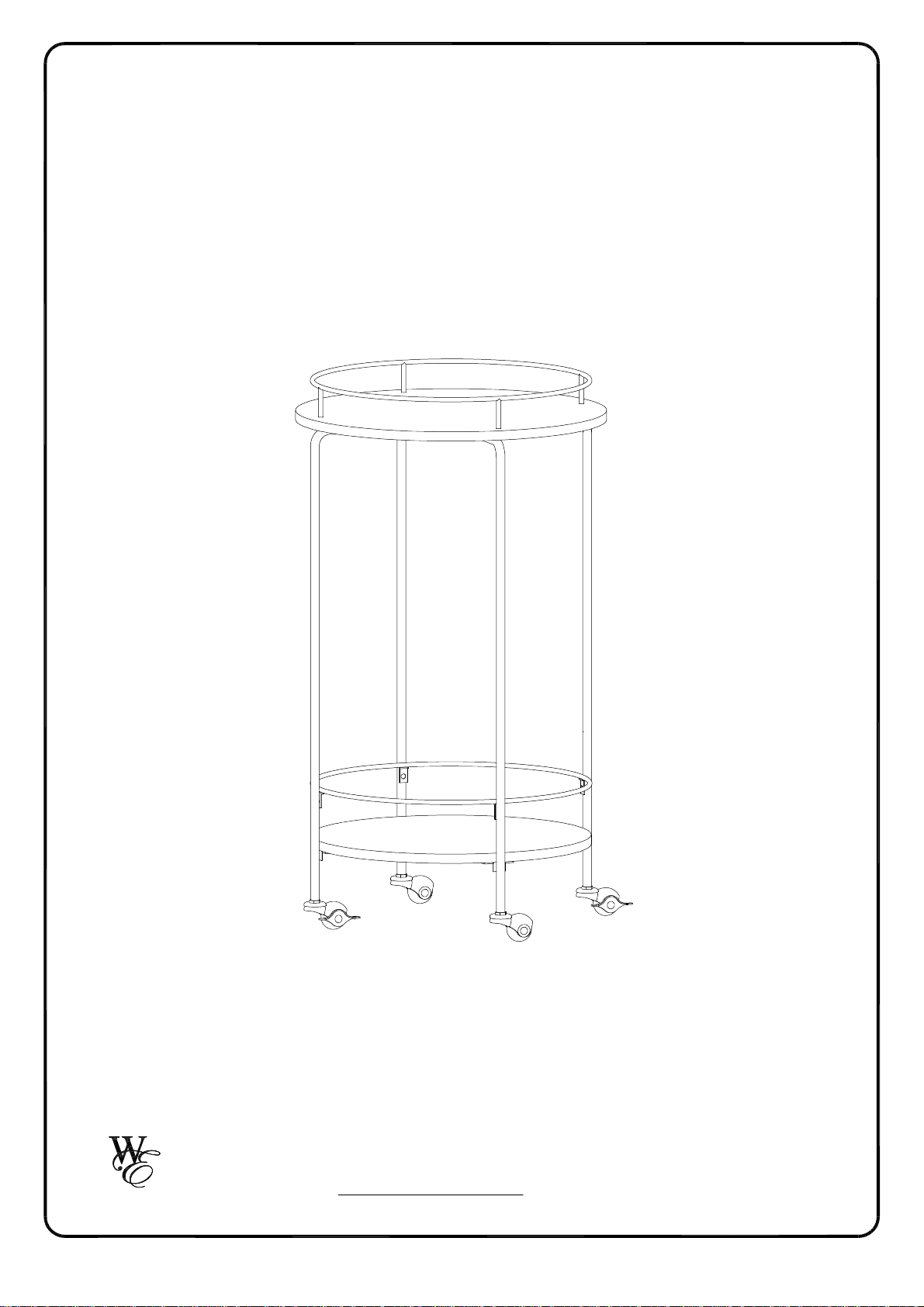

AssemblyInstructions

Item#:AF35LIB

Revised 04/03/2019 (E)

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

lease visit our website for the most current instructions, assembly tips, report damage,

or request parts. . alkeredison.com

Walker Edison

TM

P.2

GeneralAssemblyGuidelines

. Ensure that all partsand hardware are available before beginning assembly.

. Followeach step carefully to ensure the properassembly of this product.

. Two people are recommended forease in the assembly of this product.

V. The main type of hardware used to assemble this product are: boltsand screws.

Copyright 2019, byWalker Edison FurnitureCo., LLC. All rightsreserved.

V. Powertools should not be used to assemble thisproduct .

P.3

Copyright 2019, byWalker Edison FurnitureCo., LLC. All rightsreserved.

arts List

1

3

2

4

5

6

7

6

7

A

B

C

HardwareList

The hardwarequantitieslisted abovearerequired for proper assembly.

Someextrahardwaremayalsohavebeen included.

Philipsheadscrewdriverrequiredforassembly

(notincluded)

P.4

Copyright 2019, byWalker Edison FurnitureCo., LLC. All rightsreserved.

4pcs

pcs

M6x25mm 4

Bolt

D

1pc

M4 HexKey

E

pcs

M6x12mm 9

Bolt

1pc

Wrench

M4x10mm Bolt

P.5

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

Step 1

x2

C

E

1

2

Attach part (2) to part (1) using bolt (C) with hex key (E) as per diagram.

P.6

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

Step 2

x2

A

E

C

E

1

2

3

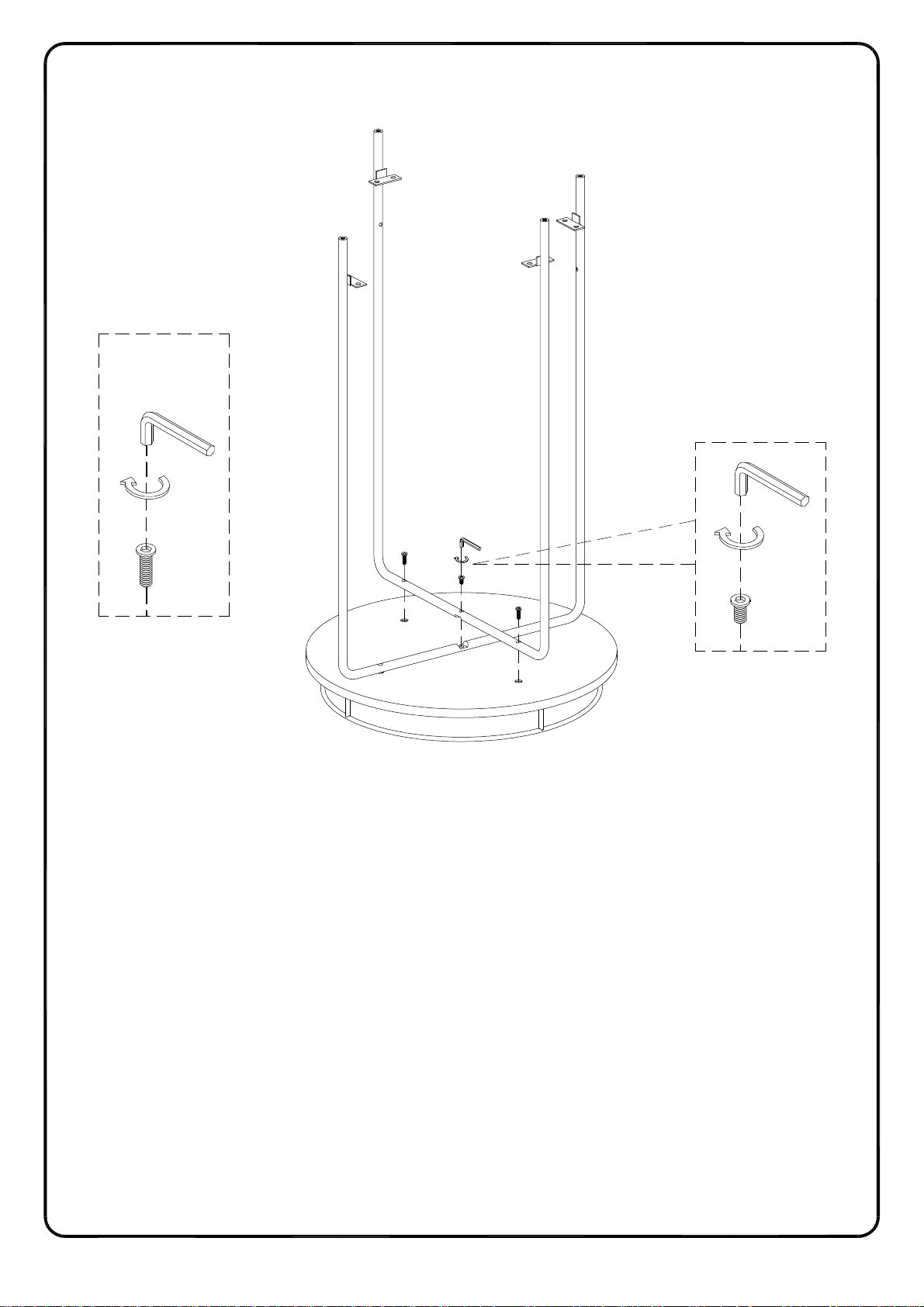

Attach part (3) to part (1, 2) using bolt (C, A) with hex key (E) as per diagram

Step 3

P.7

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

x8

A

E

2

3

5

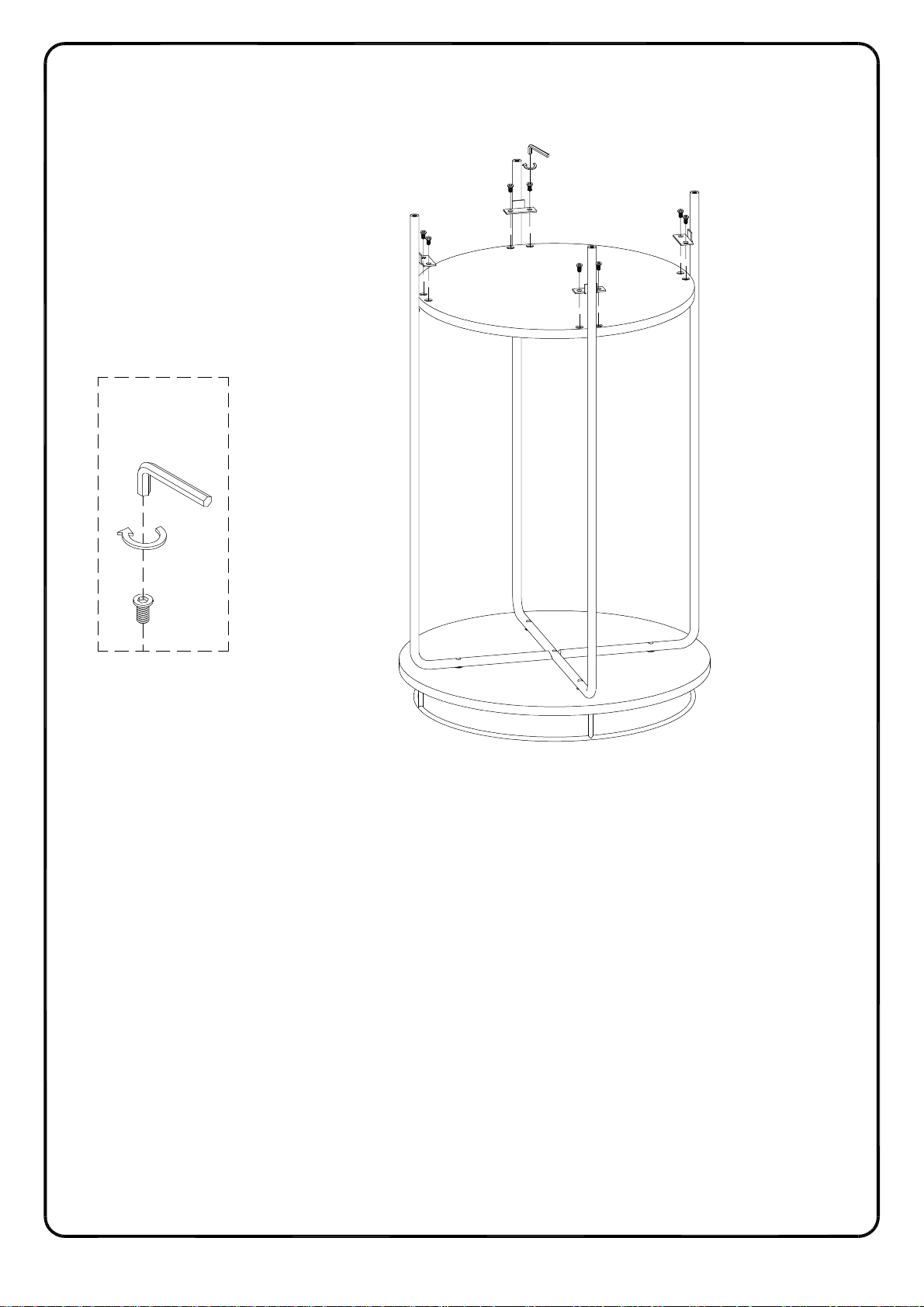

Attach part (5) to part (2, 3) using bolt (A) with hex key (E) as per diagram.

Step 4

P.8

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

2

3

6

6

7

7

B

Attach part (6, 7) to part (2, 3) with wrench (B) as per diagram

P.9

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

Step 5

x4

D

2

3

4

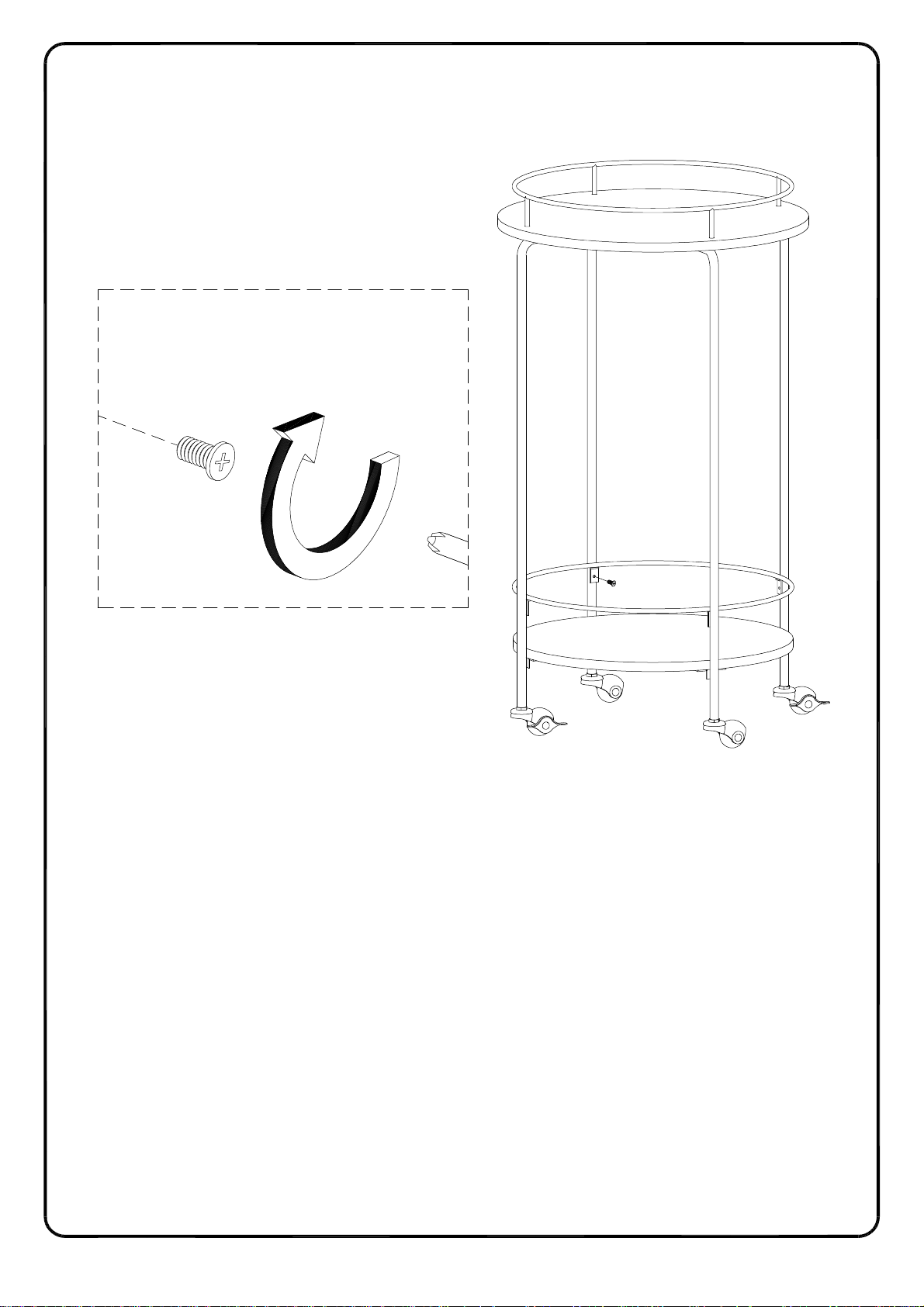

Attach part (4) to part (2, 3) using screw (D) with Philips head screwdriver as per diagram.

P.10

Copyright 2019 byWalker Edison FurnitureCo., LLC. All rightsreserved.

Step 6

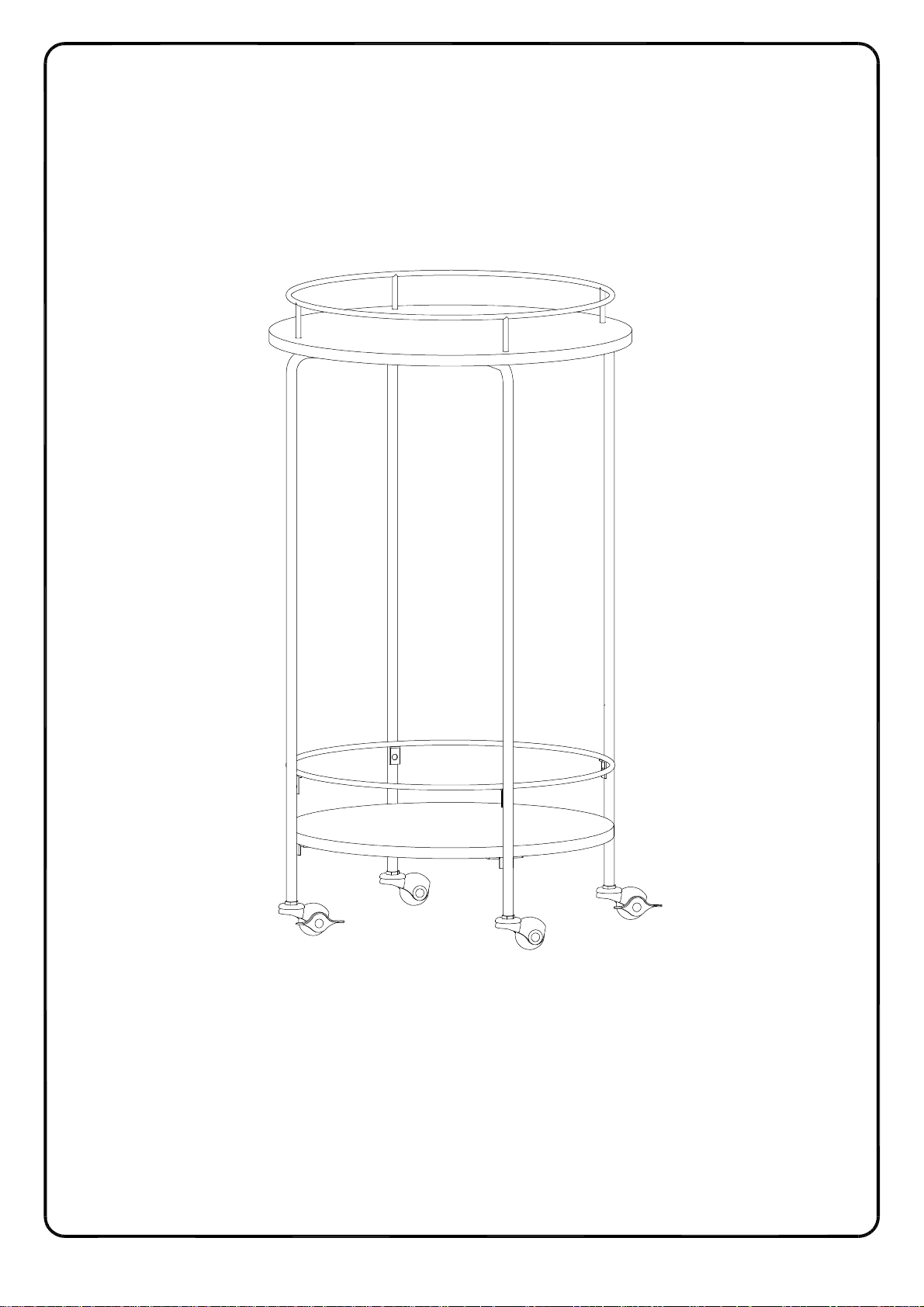

FinalAssembly

Other manuals for AF35LIB

1

Table of contents

Other Walker Edison Indoor Furnishing manuals

Walker Edison

Walker Edison LEEBD User manual

Walker Edison

Walker Edison BR3DBENNS User manual

Walker Edison

Walker Edison BU48RAD3D User manual

Walker Edison

Walker Edison W52NORGS User manual

Walker Edison

Walker Edison W48CGCT User manual

Walker Edison

Walker Edison REEM9E User manual

Walker Edison

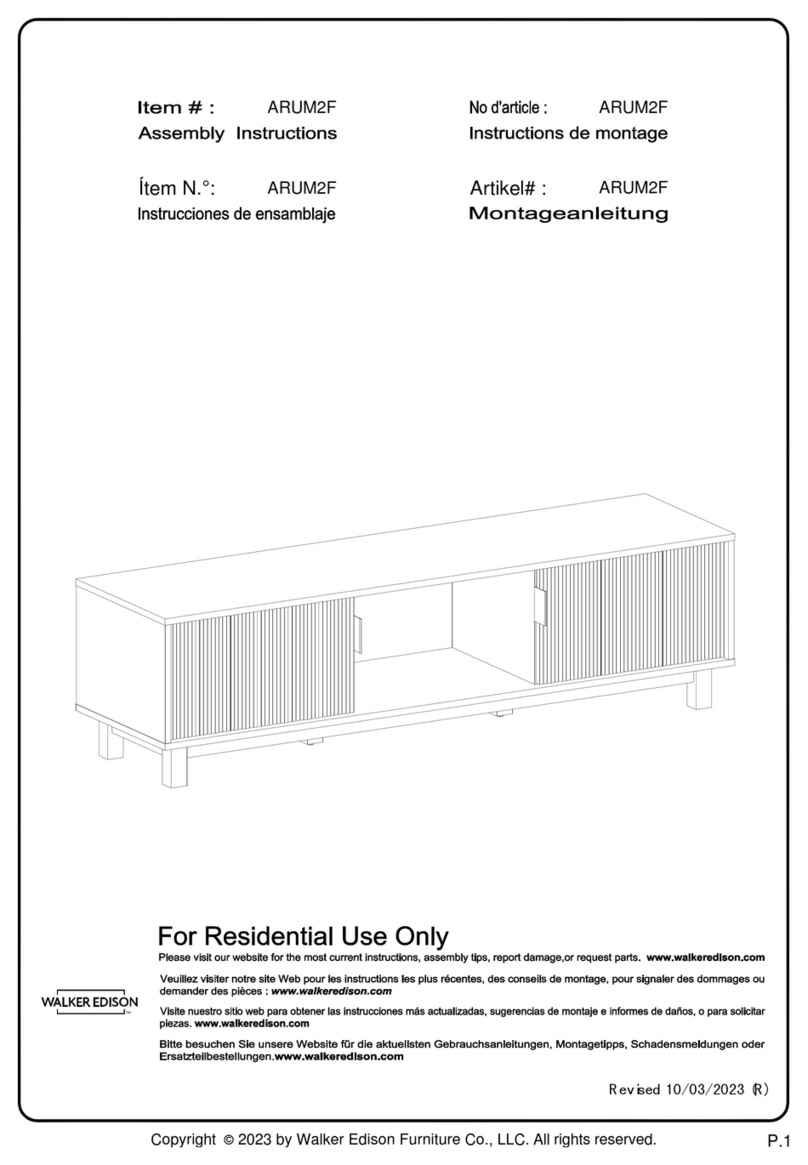

Walker Edison ARUM2F User manual
