Waeco Easy Cool EC-2500 User manual

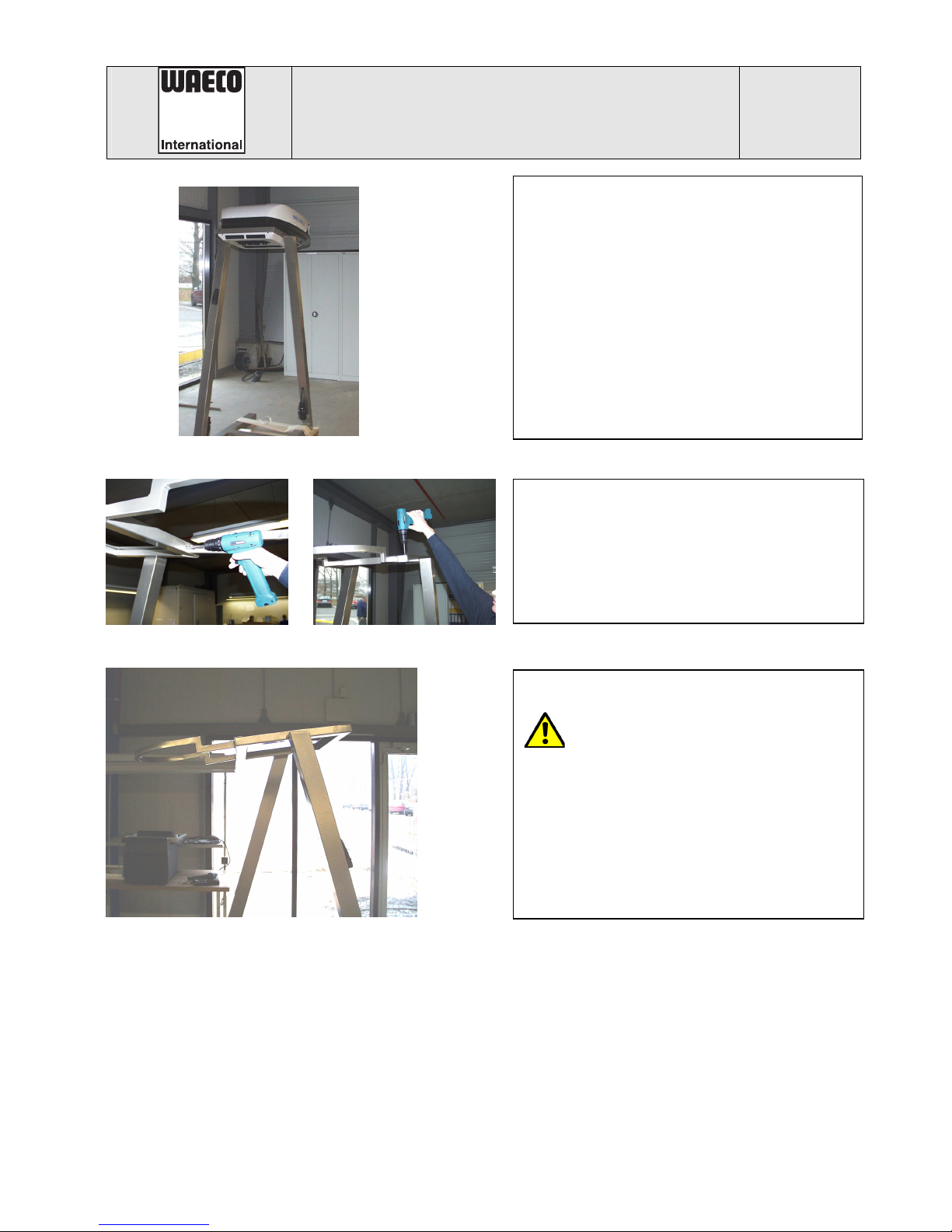

Installation of roof air conditioning

system Easy Cool EC-2500 or EC-3000

on display stand

PB4

Pom/Fh

Page 1/4

22.10.03 Display EC2500/3000 4445100103

Illustration 1:

¾The installated roof air conditioning

system on display stand contains:

•a display stand with support holder

•a roof air conditioning system EC-

2500 or EC-3000 with fixing frame

•an air outlet unit

•a remote control with holder

Illustration 2:

¾Attach the support holder to the display

stand.

¾Fasten the holder on the side and on top

with the supplied round head bolts (4xM8).

Illustration 3:

Caution!

Danger of finger clamping!

¾Put the system fittingly on the stand!

Installation of roof air conditioning

system Easy Cool EC-2500 or EC-3000

on display stand

PB4

Pom/Fh

Page 2/4

22.10.03 Display EC2500/3000 4445100103

Illustration 4:

¾Fasten the fixing frame with key screws

(4xM8) from below.

Illustration 5:

¾Insert the mains cable (230V) into the

borings from above.

¾Pull the mains cable out below the stand.

Illustration 6:

The condenser outlets are both on the left

and the right side!

¾Drill the condener outlets to a diameter of

8 mm.

¾Stick in the corrugated hoses. There are 2

hoses on each side.

Installation of roof air conditioning

system Easy Cool EC-2500 or EC-3000

on display stand

PB4

Pom/Fh

Page 3/4

22.10.03 Display EC2500/3000 4445100103

Illustration 7:

¾Insert the long condenser hose (one on

each side) into the boring of the stand from

below and push through to the top.

¾Attach the lower end to the condensator

container.

Illustration 8:

¾Connect the other end of the long

corrugated hose to the two short

corrugated hoses with T-fitting.

This must be made on both sides!

Illustration 9:

¾Shorten the connection connection shaft

for about 70 mm!

Caution!

Do not shorten the side of the connection

shaft which is pushed on the suction opening

of the roof air conditioning system.

Installation of roof air conditioning

system Easy Cool EC-2500 or EC-3000

on display stand

PB4

Pom/Fh

Page 4/4

22.10.03 Display EC2500/3000 4445100103

Illustration 10:

¾Connect the 8-pole connector of the

connecting line from the system to the air

outlet socket.

Illustration 11:

¾Fasten the air outlet unit with the suppllied

self-tapping screws (8 screws) to the fixing

frame.

Illustration 12:

¾Fasten the holder of the remote control to

the intended borings on the display stand.
