Volt VWL-500-4-PBK User manual

VOLT®Low Voltage Landscape Lighting

VOLT® Ground Hog PVC PAR36 In-Ground Well Light

VWL-500-4-PBK

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Ground Hog PVC PAR 36 Well Light

VWL-500-4-PBK

Important: Please Read Before Installation

Important Safety Instructions

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with wire connectors that is suitable for

outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm)

7. If additional lengths of low voltage cable is required, please contact www.

voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage

lamp.

6. Do not operate the luminaire tting with a missing or damage shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com

Package Contents

Parts Required

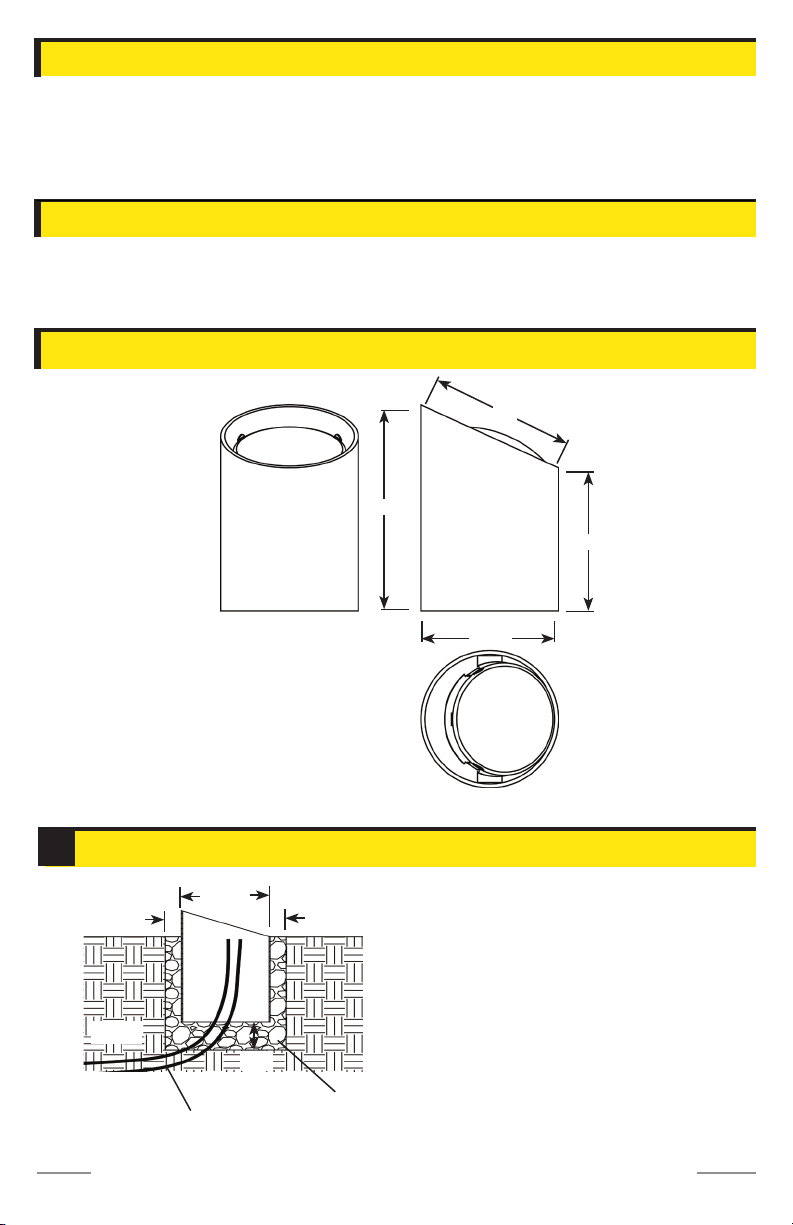

Product Dimensions

A. (1) Tube

B. (1) Lamp Holder

C. (1) “U” bracket

A. (1) PAR36 Lamp (sold

separately)

[email protected] • 813.978.3700

6”

5.5”

1” 1”

2”

8.27”

5.75”

D. (2) Screws

E. (2) Nuts

B. (1) Debris Cover (glass + louvers)

(sold separately, optional)

Install Tube

Dig a 6.5” diameter, 8” deep hole in

the ground. Run the main low voltage

supply wires to the hole.

Place 2” of gravel in the bottom of

the hole for proper drainage. Place

the tube inside of the hole and add

the additional gravel around the tube

sides.

Main Low Voltage

Supply Wire

Tube

Gravel

Soil

INSTALLATION INSTRUCTIONS

www.voltlighting.com

VOLT®Ground Hog PAR 36 Well Light

VWL-500-4-PBK

Attach the lamp holder onto the

“U” bracket by lining up the holes,

then pass the screws through the

holes and secure with the provided

nuts.

Install Lamp Holder

“U” Bracket

Lamp Holder

Screw

Nut

Use the PAR36 lamp with the

correct wattage and type marked

on the xture label.

Pass the supply wires through the

center of the lamp holder. Connect

the supply wires to the bottom of

the lamp. Snap the lamp onto the

lamp holder and then push the “U”

bracket with the lamp into the

tube.

CAUTION: Do not exceed maximum

wattage marked on luminaire

label.

NOTE: DO NOT touch lamp with

bare hands. Use soft cloth to

handle lamp.

Install Lamp

Tube

Supply Wire

Lamp

“U” Bracket

Lamp Holder

[email protected] • 813.978.3700

Strip both leads from the luminaire

pigtail. Using two wire connectors

(sold separately), connect the

leads from the luminaire to the

main supply cable leads.

Wire Connection

Pigtail

Wire Connector

Main Supply Cable

Attach the debris cover onto the

top end of the tube if necessary.

NOTE: Debris cover is not for use

with 50 watt halogen lamps.

Install Debris Cover (optional)

Debris Cover

Tube

Install/Replace Lamp

Please reverse Step 3 - Step 4 to expose the lamp and replace it with the

correct wattage and type marked on the xture label. Reinstall the debris

cover if necessary.

is-vwl-500-ver2.pdf

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
