Vivo STAND-TV03N User manual

Black TV Floor Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-tv03n

SKU: STAND-TV03N

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF TV OR TV CART.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

T-A (x1)

Tool Kit

Phillips

M2.5

B (x1)

Le Base

C(x1)

Right Base

A(x1)

Base

Connector

K (x2)

Plate Connector

and Plastic Shim

G(x2)

Front Rubber

Foot

D (x2)

Base Pole

E(x2)

Top Pole

F (x2)

Pole Connector

N (x4)

Pole

Cover

M (x2)

Shelf Support

J (x1)

VESA Bracket

Set

I x1)

Mounting

Plate

S-C (x4)

M4x12

M4x30

Screws

S-D (x4)

M6x20

M6x35

Screws

S-F (x4)

M4 Washer

S-G (x12)

M6 Washer

S-H (x4)

M8 Washer

S-J (x8)

M6/8 Spacer

(5mm)

S-E (x4)

M8x20

M8x35

M8x45

Screws

S-I (x4)

M4 Spacer

M6/8 Spacer

(20mm)

S-A x18)

M6x10

Screws

S-B x4)

M4x6

Screws

H x2)

Rear Support

Feet

L(x1)

Shelf

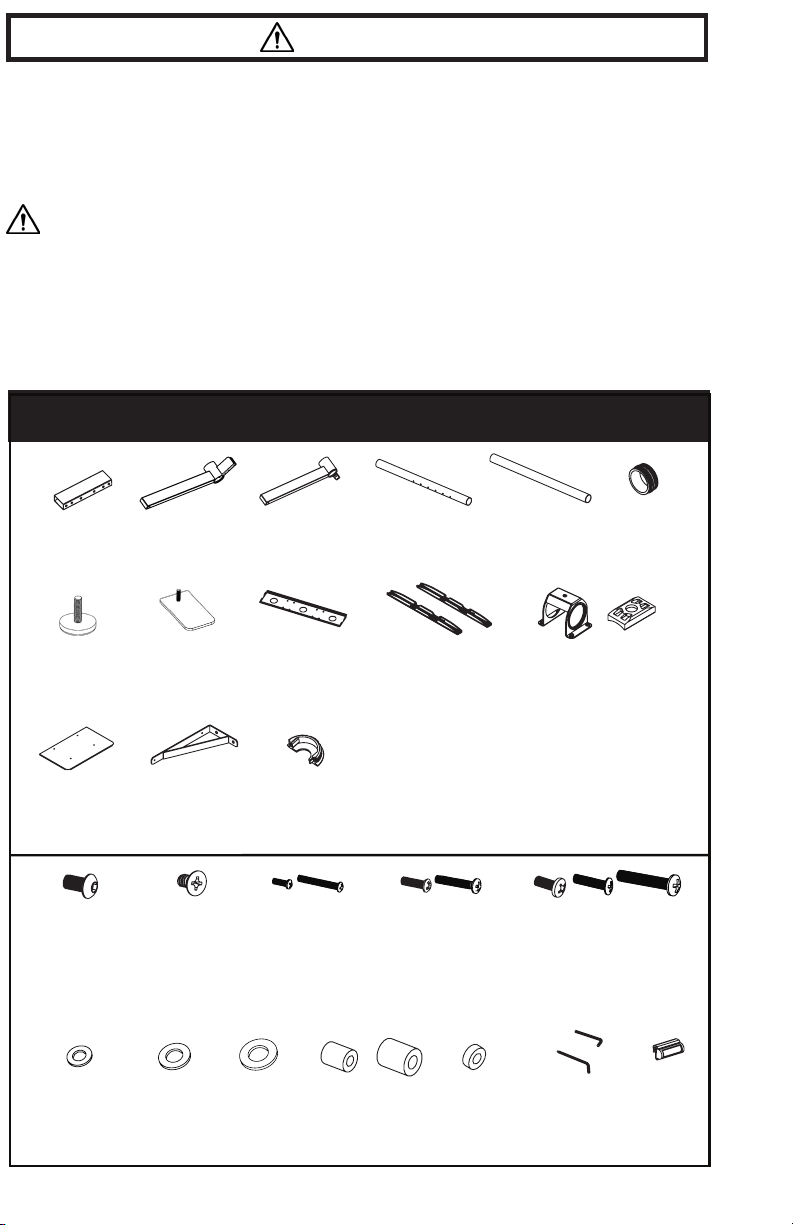

PACKAGE CONTENTS

T-B (x1)

Bubble

Level

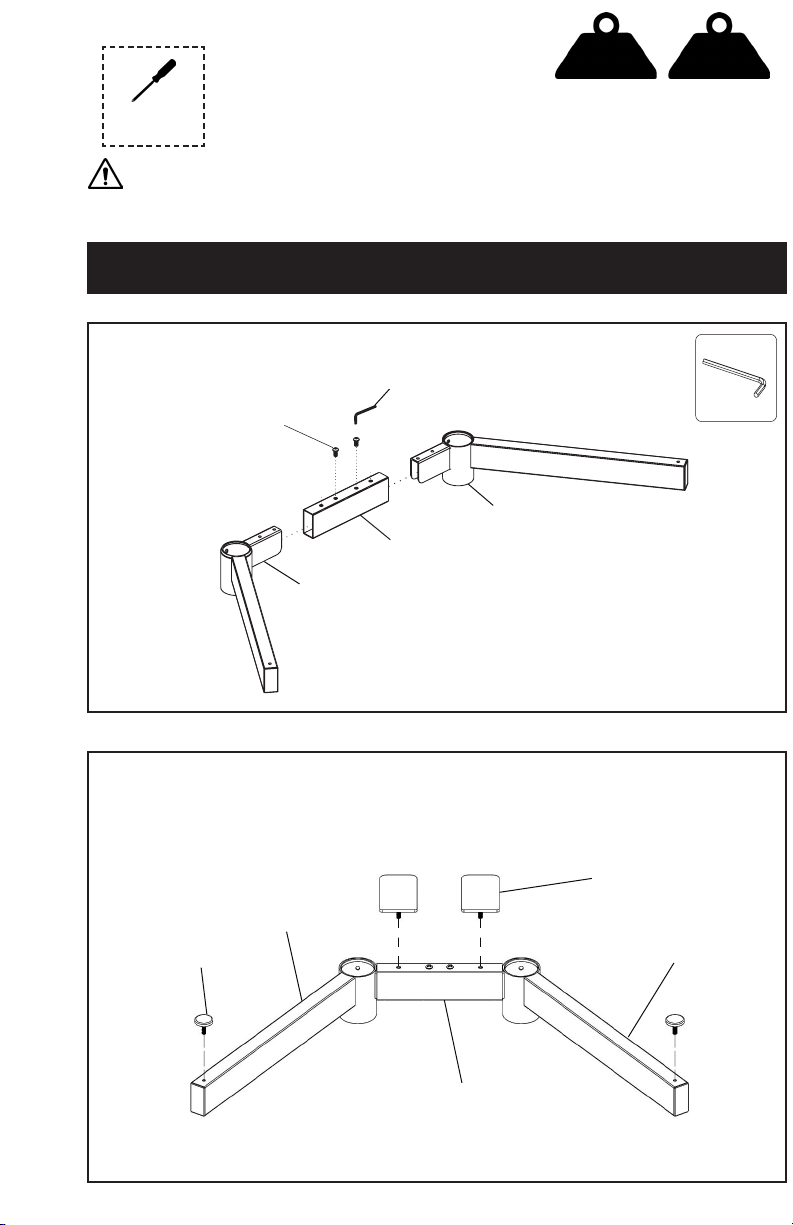

ASSEMBLY STEPS

STEP 1

TOOLS NEEDED

Phillips

Screwdriver

Attach le and right base (B, C) to the base connector (A) using M6x10 bolts (S-A).

Tighten with the 4mm Allen wrench (T-A).

STEP 2

Install the Front Rubber Feet (G) onto the Right and Le Base (B,C). Install both Rear

Support Feet (H) onto the Base Connector (A) about three quarters of the way down.

Position them so they face backwards as shown below.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

110 lbs

(49.9 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 10 lbs

(4.54 kg)

CART SHELF

x1M4

M2.5

T-A

S-A

T-A

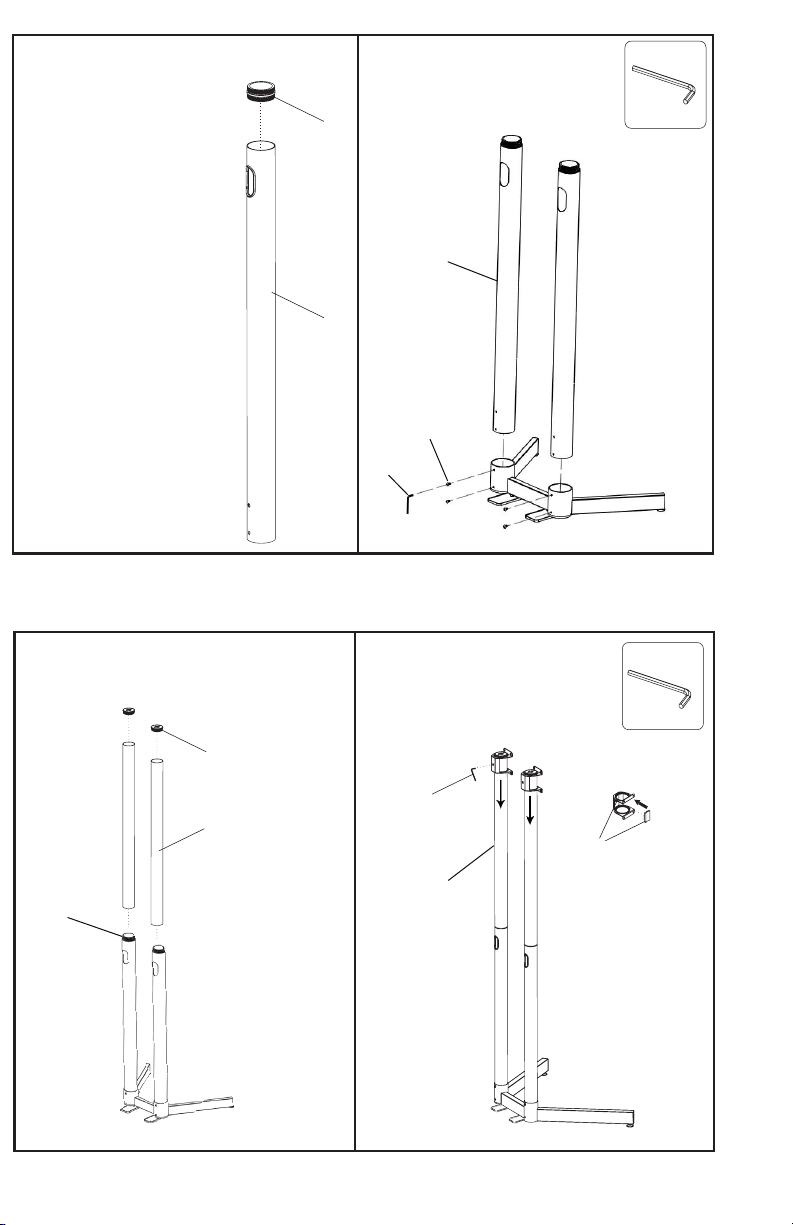

STEP 3

Thread the pole connectors (F)

onto the base poles (D), making

sure the connectors thread

in straight to avoid cross-

threading. Use caution when

threading pole connectors.

Threads are very fine and may

have sharp edges.

STEP 5

Thread the Top Poles (E) to the Pole Connectors

(F) and insert the Pole Covers (N) into the top.

Slide the Plate Connector and Plastic

Shims (K) over the Top Poles (E)

and tighten the set screw in each

connector using the 4mm Allen

wrench (T-A).

STEP 4

Attach the base poles (D) to the

assembled base using M6x10 bolts

(S-A) and 4mm Allen wrench (T-A).

x1M4

STEP 6

S-A

T-A

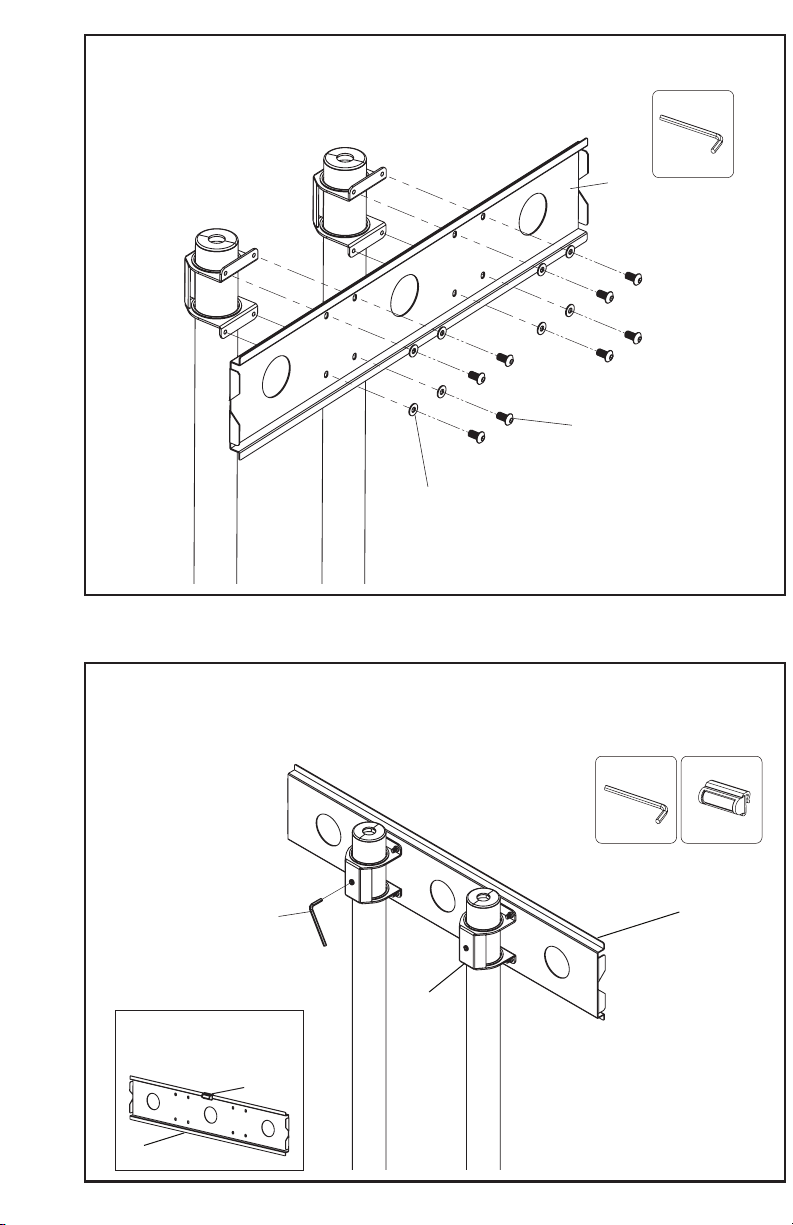

STEP 7

Attach the Mounting plate (I) to the Plate Connectors (K) with M6x10 bolts (S-A) and M6 washers (S-G)

using the 4mm Allen wrench (T-A).

Note: Loosly insert all bolts before fully tightening.

Clip the bubble level (T-B) onto the Mounting Plate (I). Adjust the level of the Mounting Plate (I) by

loosening the set screw in the back of the Plate Connector (K) using the 4mm Allen wrench (T-A).

Tighten set screws again once you’ve reached desired height and level.

STEP 8

x1M4

x1x1M4 Bubble Level

Attach bubble level

o the wal l plate

S-A

S-G

T-B

Attach bubble level to

Mounting Plate

T-A

T-A T-B

T-A

STEP 11

Tighten the safety bolts on the

bottom of the VESA brackets (J) to

secure the TV to the stand.

If the stand is not steady, adjust the Rubber Feet

(G) by tightening and loosening them. The Back

Support Feet (H) can also be adjusted but always

make sure that they are facing backwards.

STEP 12

Safety Bolt

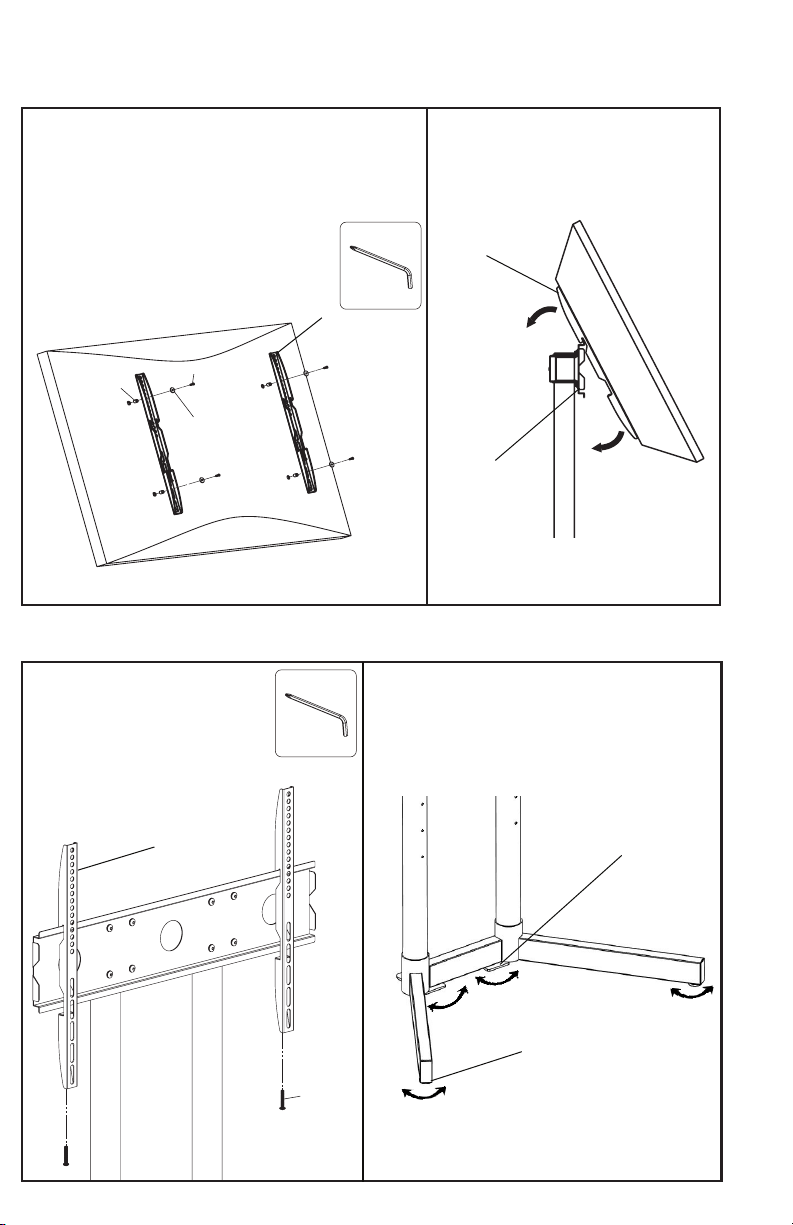

STEP 9

Secure VESA Bracket Set (J) to the back of your television

using bolts (S-C through S-E) and washers (S-F through

S-H), depending on the size of the mounting holes on the

television. For curved or recessed TVs, Spacers (S-I, S-J)

may be required. Tighten using the Phillips end Wrench

(T-A).

Attach the VESA brackets (J) with

TV to the Mounting Plate (I).

STEP 10

S-I, S-J

(if necessary)

S-C through S-E

S-F through S-H

Phillips

T-A

Phillips

T-A

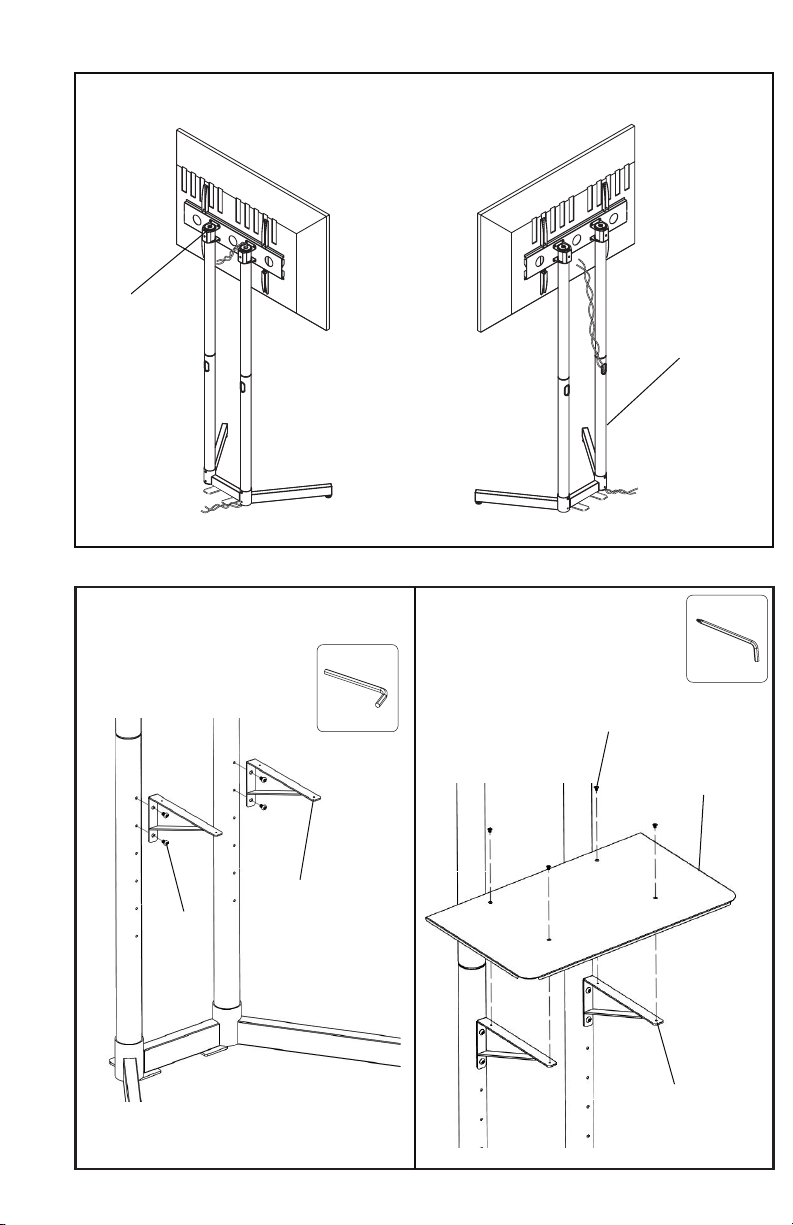

STEP 13

For cable management, cables can be run through the top of the Pole Covers (N) and down through

the poles. Cables may also be inserted through the grommets in back of Base Pole (D).

OPTION A OPTION B

STEP 14

Attach the Shelf Supports (M) to the Base Poles

(D) using M6x10 bolts (S-A) and the 4mm Allen

wrench (T-A).

S-A

STEP 15

Phillips

T-A

x1M4

T-A

Attach the Shelf (L) to the Shelf

Supports (M) using M4x6 bolts (S-B)

and tighten with the Phillips End

Wrench (T-A).

S-B

LAST UPDATED: 03/18/2021

REV2.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
