Premium Microphone Boom Arm Desk Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-mic02

SKU: STAND-MIC02

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

PACKAGE CONTENTS

.22-2.2lbs

(.1-1kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

TOOLS NEEDED

Phillips

Screwdriver

A (x1)

Arm

B(x1)

Clamp

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

C (x1)

Ball Joint

E (x1)

Grommet Plate

D (x1)

Plastic CoverD)

F (x1)

So Pad

T-A (x1)

3mm Allen

Wrench

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR

STAND.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

3

ASSEMBLY STEPS

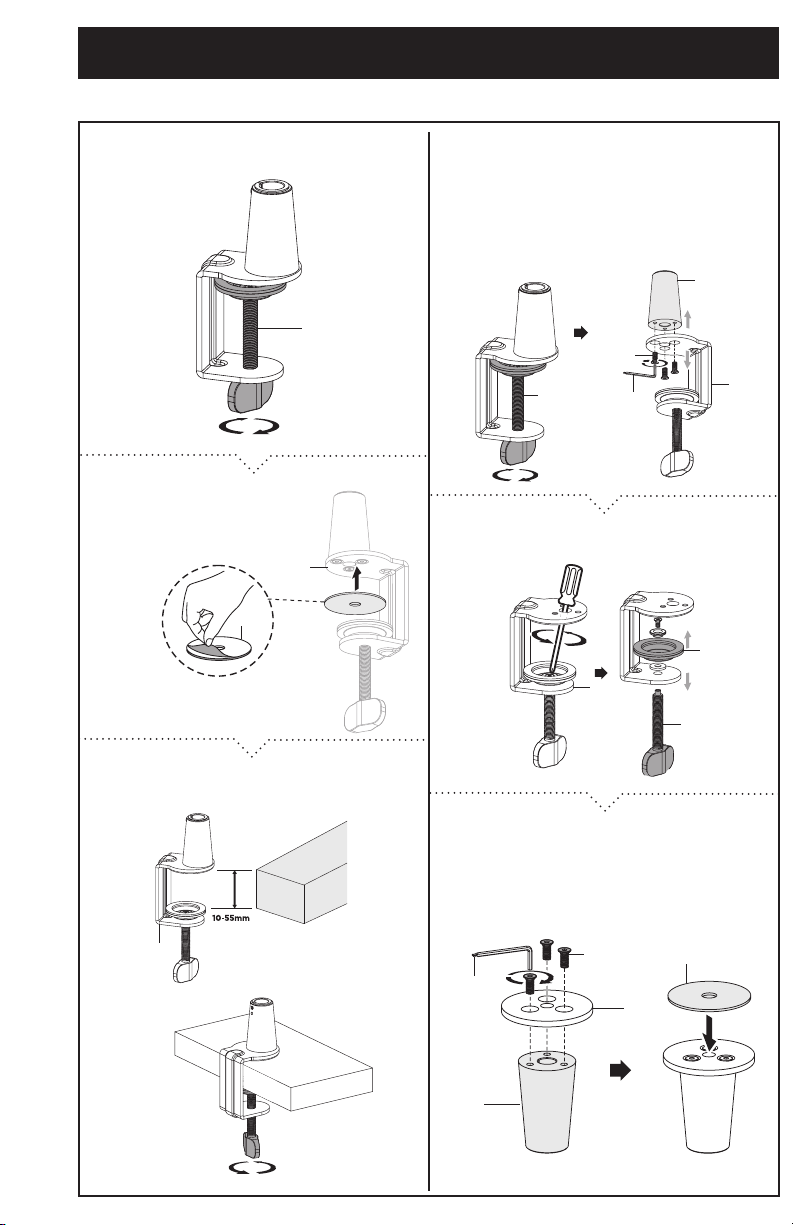

STEP 1

Clamp Installation

Loosen the knob on Clamp (B).

Remove adhesive backing from

So Pad (F) on place on the under-

side of Clamp (B).

B

B

B2

B

B1

T-A

F

B

Secure Clamp (B) to desktop by tightening

the knob.

B

Grommet Installation

Loosen the knob on Clamp (B). Disassemble

Clamp (B) by removing Clamp Screws (B1),

separating Pole Base (B2) from Clamp (B) using

3mm Allen Wrench (T-A).

Use a Phillips screwdriver to separate Hand Bolt

(B3) and Clamp Plate (B4) from Clamp (B).

B

B4

B3

B1

T-A

F

Connect Grommet Plate (E) to Pole Base (B2)

using Clamp Screws (B1) and 3mm Allen

Wrench (T-A). Remove adhesive backing

from So Pad (F) on place on the underside of

Grommet Plate (E).

B2

E

4

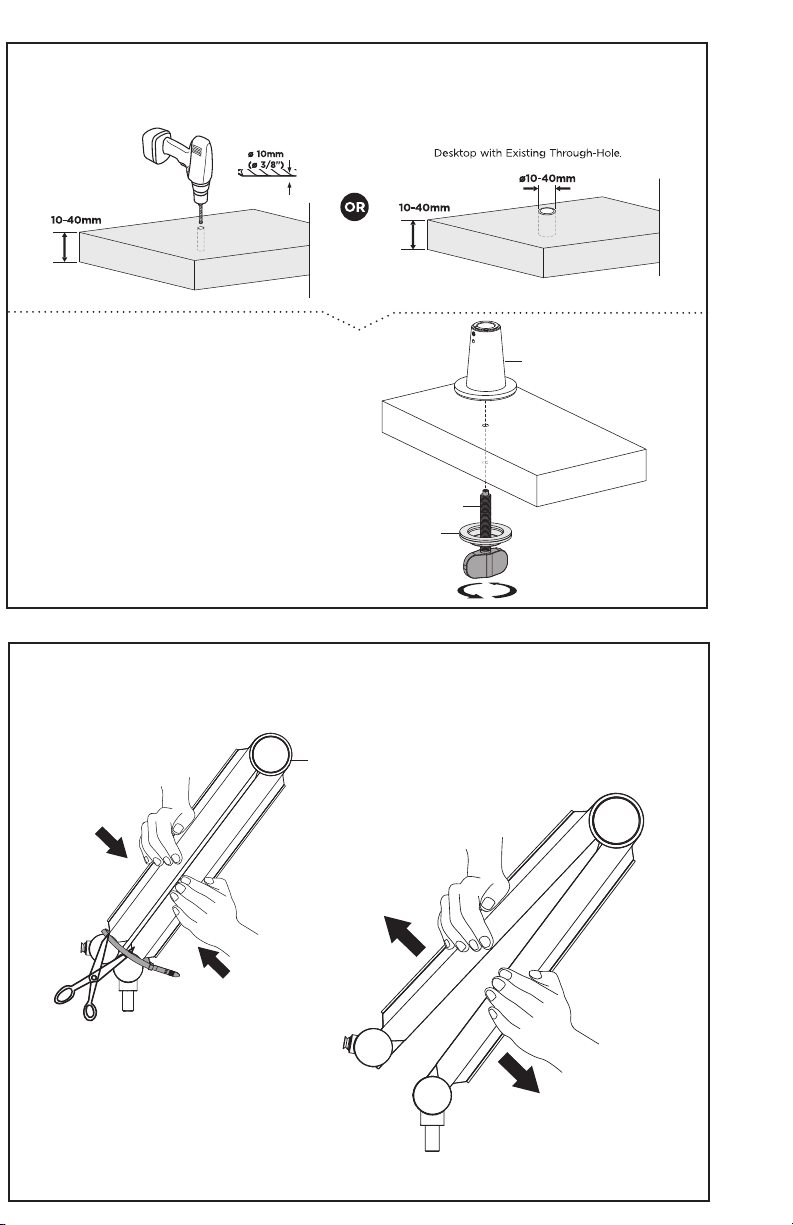

STEP 1 - Continued

STEP 2

Grommet Installation - Continued

If your desktop does not have an existing grommet hole, pre-drill a hole using a drill and a 3/8”

(10mm) drill bit.

Clasp both sides of Arm (A) and squeeze tightly together. Have a second person cut the zip tie. Slowly

release the pressure and unfold Arm.

Insert Hand Bolt (B3) with Plate (B4) through

grommet hole and secure to Pole Base (B1) by

tightening Hand Bolt. B2

A

B4

B3

5

AT-A B

STEP 3

Loosen set screw on Clamp (B) using 3mm Allen Wrench (T-A) and insert Arm (A). Tighten set screw

on Clamp (B) to secure and increase the rotation resistance.

#1

#2

STEP 4

Separate Ball Joint (C) by loosening Knob (C1). Remove Screw (C2) and Ball (C3) from Outer Casing

(C4).

Reassemble Ball Joint (C) onto Arm (A) by securing Ball (C3) and Outer Casing (C4) using Screw (C2)

and Knob (C1).

C1

C1

C2

C2

C3

C3

C4

C4

C4

C4

6

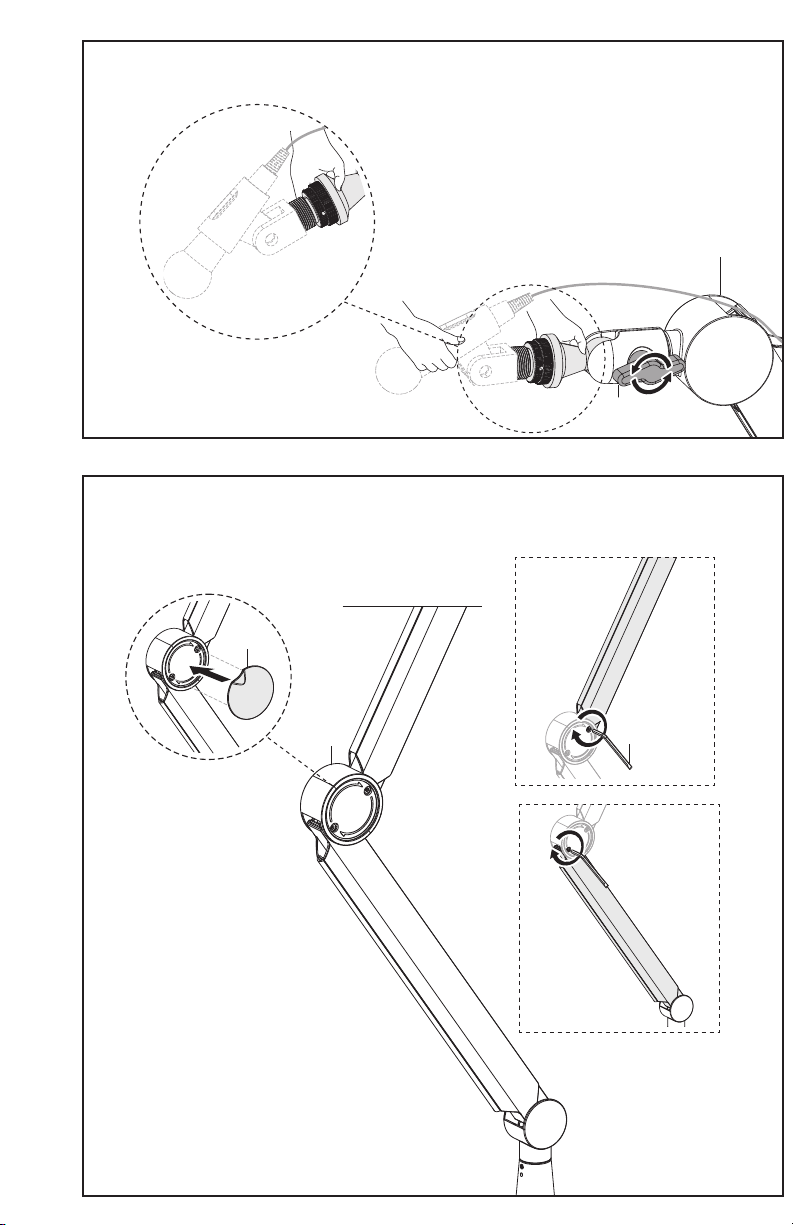

STEP 5

Secure microphone to Ball Joint (C). Slide cable management tabs o Arm (A) to neatly route cable.

Reattach by sliding back into place. NOTE: Please do note attempt to pry tabs o; tabs may snap

or break if too much force is applied.

A

C

7

STEP 6

STEP 6

To adjust microphone position, loosen Knob (C1) on Ball Joint (C) and adjust positioning. Retighten

Knob (C1) to secure.

Adjust tension of Arm (A) using 3mm Allen Wrench (T-A). Place Plastic Cover (D) over joint in Arm (A).

C1

D

AT-A

C

LAST UPDATED: 10/10/2022

REV2

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M
