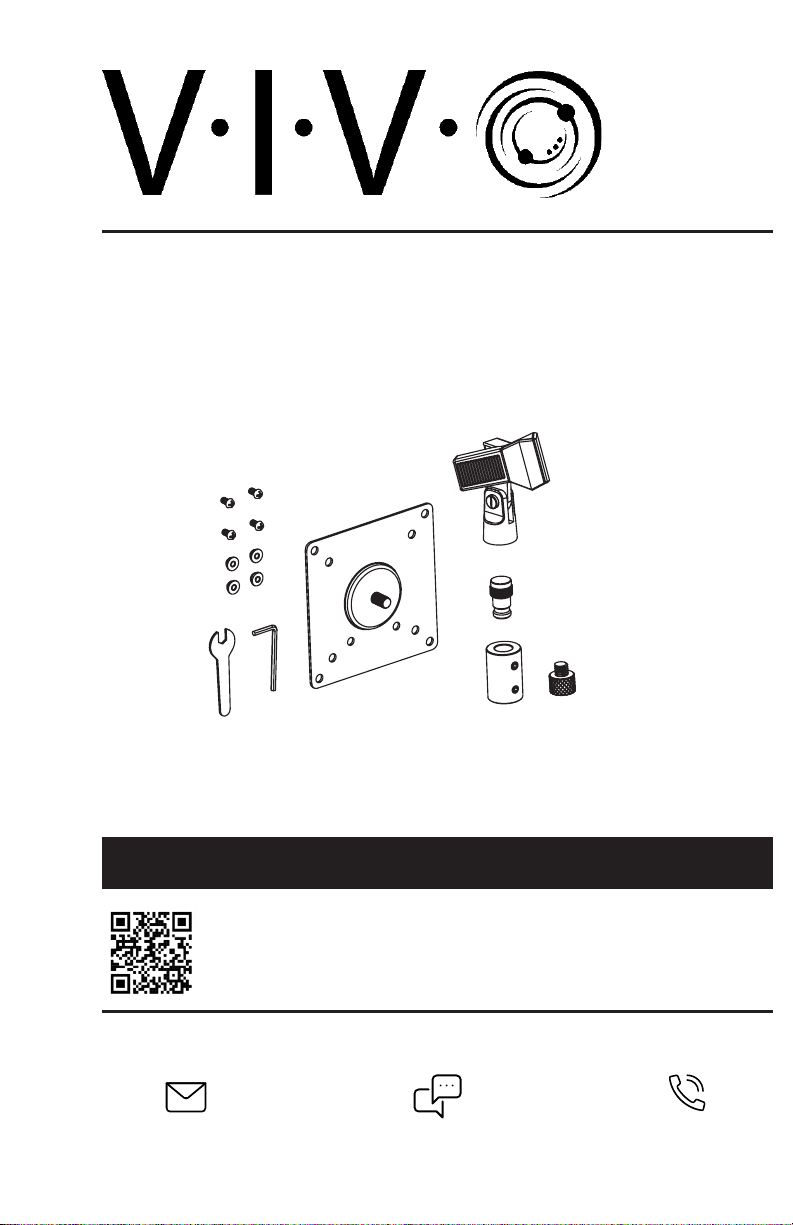

Vivo MOUNT-V00MIC User manual

Universal Microphone VESA Adapter Kit

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-v00mic

SKU: MOUNT-V00MIC

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2

ASSEMBLY STEPS

STEP 1

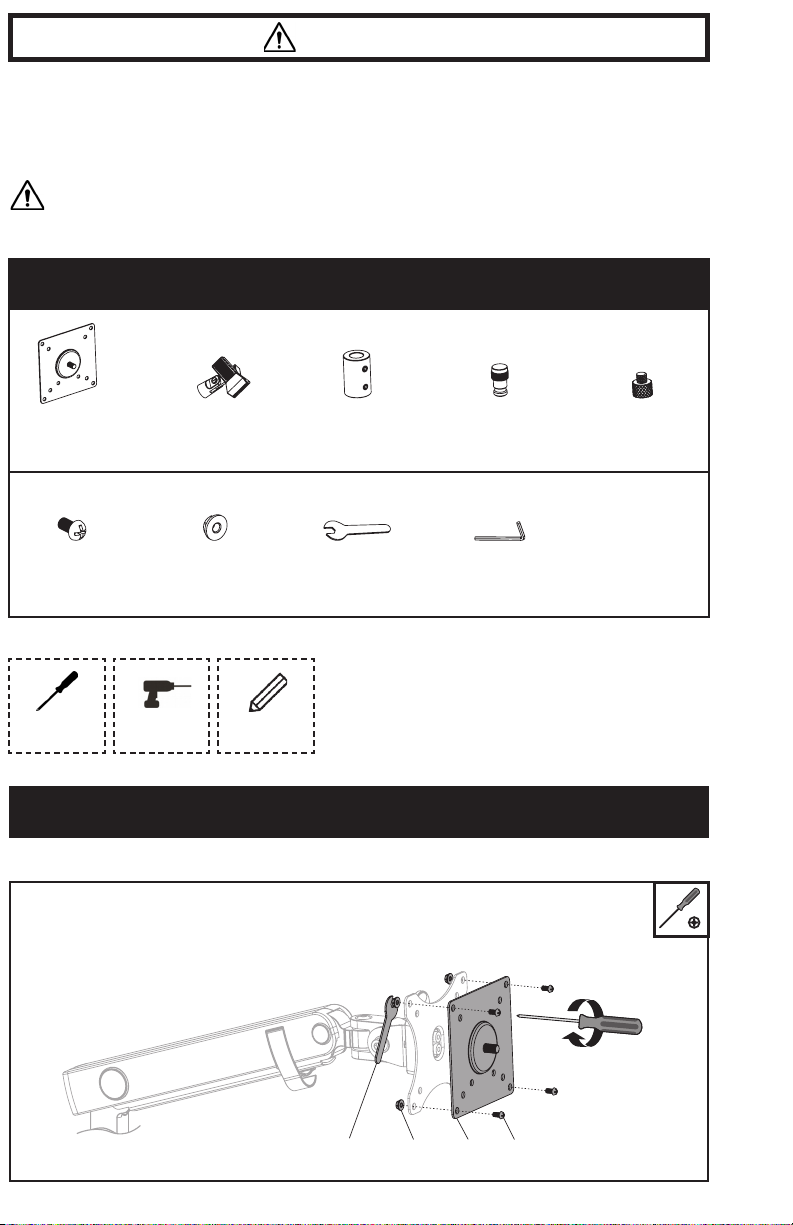

Mount VESA Adapter (A) to monitor mount using M4x8 Screws (S-A) and Nuts (S-B). Tighten

using Phillips screwdriver and Wrench (T-A).

PACKAGE CONTENTS

WARNING!

Phillips

Screwdriver

A (x1)

VESA Adapter

B(x1)

Mic Clamp

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

Drill

C(x1)

Mounting Post

D(x1)

5/8” Threaded

Mount

S-A (x4)

M4x8 Screw

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

Pencil

TOOLS NEEDED NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED.

E(x1)

3/8” Adapter

S-B (x4)

M4 Nut

T-A (x1)

Wrench

T-B (x1)

3mm Allen Wrench

S-AS-B

T-A A

3

STEP 2

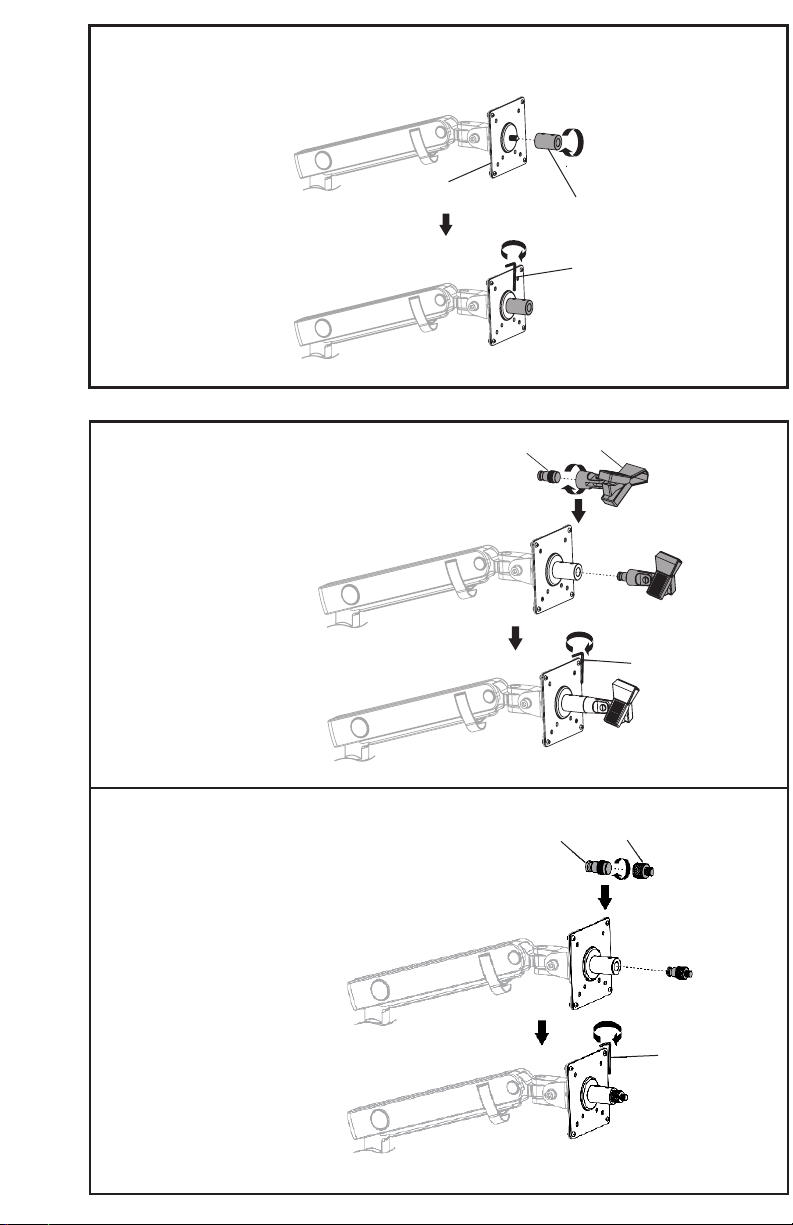

Thread Mounting Post (C) onto VESA Adapter (A). Tighten set screw in Mounting Post (C) closest to

VESA Adapter (A) using 3mm Allen Wrench (T-B).

STEP 3

OPTION A:

Thread Mic Clamp (B) onto 5/8” Threaded

Mount (D). Insert into Mounting Post (C) and

secure by tightening set screw using 3mm

Allen Wrench (T-B)

T-B

C

A

T-B

DB

T-B

T-B

DE

OPTION B:

Thread 3/8” Adapter (E) onto 5/8” Threaded

Mount (D). Insert into Mounting Post (C) and

secure by tightening set screw using 3mm

Allen Wrench (T-B)
