Vitek VTC-TTAB42R2F User manual
VITEK
VITEK
FEATURES
• 1/3” 2.1 MegaPixel CMOS Sensor
• HD-TVI & AHD/CVBS Video Output
• 3.6mm Fixed Lens (VTC-TTAB42R2F) / 2.8~12mm
Varifocal Lens (VTC-TTAB36R2V)
• 42 Infrared LED’s with 150’ IR Range (VTC-TTAB42R2F)
/ 36 Infrared LED’s with 120’ IR Range (VTC-TTAB36R2V)
• Digital Wide Dynamic Range (D-WDR)
• True Mechanical Day/Night function by ICR
• 3D-DNR Noise Reduction
• IP66 Weather Resistance
• Supports Up The COAX Control
• Over 1500’ HD Video Transmission (Depending on cable
characteristics and integrity)
• Optional Junction Box Mount Available (VT-TJB01)
• 12VDC Operation
VTC-TTAB42R2F
VTC-TTAB36R2V
2.1 Megapixel Outdoor HD-TVI/
AHD/CVBS IR Bullet Cameras
2 3
Safety Precaution
CAUTION: TO REDUCE THE RISK OF ELECTICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
To prevent electrical shock and risk of fire hazards, do not expose this unit
to rain or moisture and only use specified power source..
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Main power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power interruptions, it is
recommended that the device be powered from an uninterruptible power supply
(UPS).
The symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electrical shock.
3

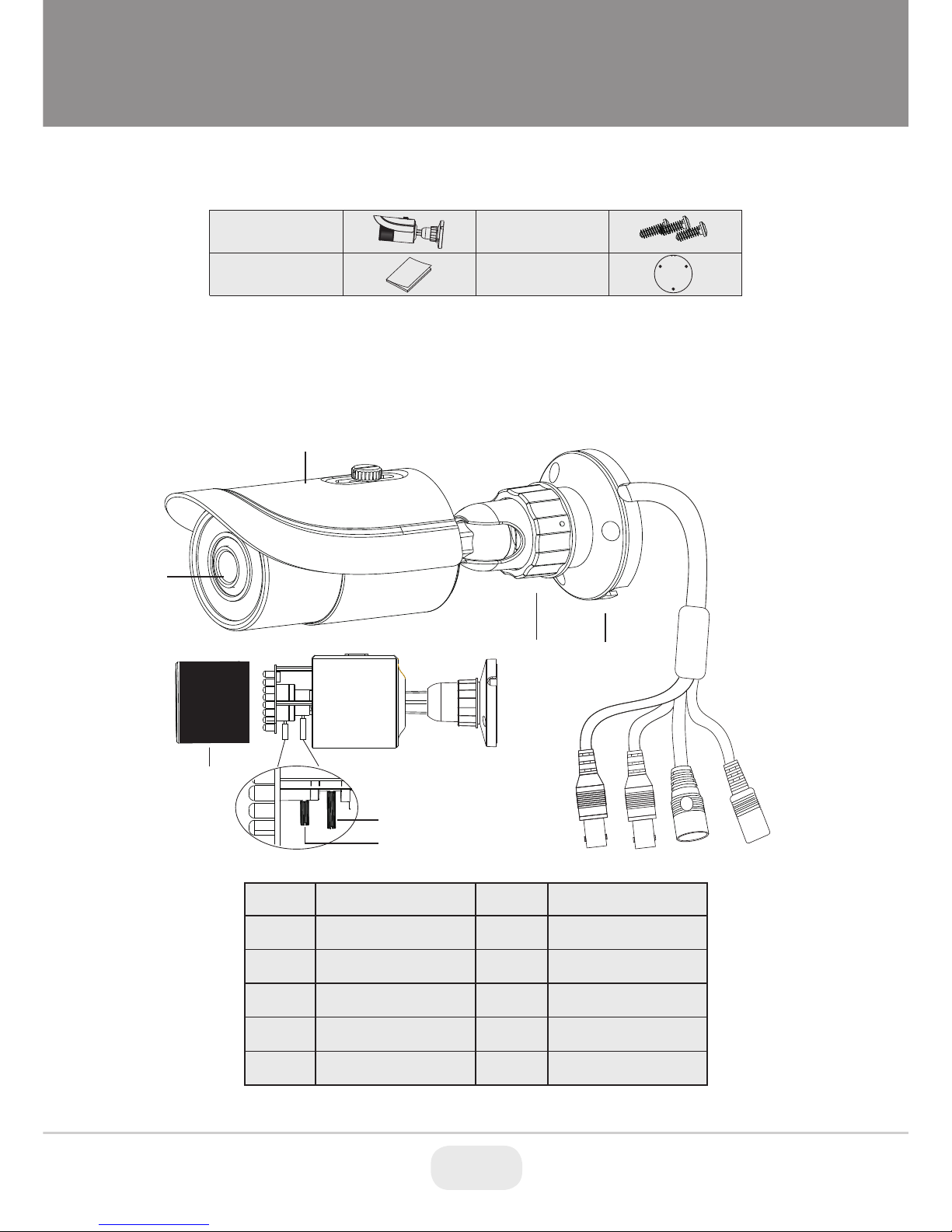

Components and Accessories
Overview
This camera series supports both fixed and varifocal lenses. Please note
that the zoom and focus features mentioned below are only available on
the varifocal lens version.
Lens
Sun Shield
Mount Lock
Mount Base
Lens Cover
Zoom*
Focus*
HD-TVI Output
AHD/CVBS Output
AHD/CVBS Switch
Power Cable
1
2
3
4
5
6
7
8
9
10
11
Screws
Drill Template
Camera
User Manual
3 4
1
2
911
5
6
710
8
*VTC-TTAB36R2V Only
4 5
Video Connection
Monitor
Video
AHD/CVBS Switch:
Switch to CVBS Mode: Press & Hold the Switch for 5 seconds
Switch to AHD Mode: Press & Release the Switch quickly
Connect the HD-TVI Video or AHD/CVBS video connector to a BNC
patch cable, then to DVR.
Power 12VDC
Power Connection
Connect the power connector to a 12 VDC power adaptor.
5
Installation
Before you begin, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. The mounting
steps are as follows:
1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
2. Route the cables and connect the power & video cables, then secure
the mounting base to the ceiling or wall with screws.
Ceiling Mounted Wall Mounted
6 7
Installation
3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then
tighten the mount lock to secure the viewing angle adjustments.
4. To adjust the lens, start by removing the Lens Cover, then adjust
the Focus and Zoom levers to achieve a clear image. Replace
the Lens Cover. (if your camera is Fixed lens, please skip this
step)
5. Carefully remove the protective film from the lens to complete the
installation.
90° Tilt
360° Pan
Zoom
Focus
Lens Cover
7
Camera OSD Menu
The following menu toolbar will pop up by right-clicking the mouse
when using VITEK Transcendent Series HD-TVI DVRs.
The Transcendent HD-TVI/AHD camera series must be connected to a
DVR which supports HD-TVI/AHD video signal input and COC protocol
to access the OSD setup menu. Different DVRs manufacturers may
have different modes of menu operation.
You will see the following interface by clicking the button.
Click “Iris +” to go to the main menu. You can also select preset NO.
95, then click the button（call preset NO.95）to go to the follow-
ing main menu.
8 9
You can select the menu by clicking (U) or (D) key on the
direction area. Click (L) or (R) key to select the menu on the
left. The menu with arrow icon which means it has sub-menu. You
can select the menu and click “Iris +” or call preset NO.95 to enter
the sub-menu. To return to the previous menu or exit the main
menu, please select “RET” or “Save & END” by clicking U or D key
and then click “Iris +” or call preset NO.95.
9
Detailed Specifications VTC-TTAB42R2F VTC-TTAB36R2V
Image Sensor
Resolution
Effective Pixels
Signal System
Video Output
Lens
Day/Night
S/N Ratio
Auto Gain Control
Min Illumination
IR LEDs
IR Distance
Color-B/W Auto Switch
Electronic Shutter
White Balance
WB Range
BLC
WDR
Transmission Distance
Up the COAX Control
Noise Reduction
Weather Resistance
Power Supply
Working Environment
Weight
Dimensions
1/3” 2.1 MegaPixel CMOS Sensor
1080p (2.1 MegaPixel)
1920(H) x 1080(V)
PAL/NTSC
1x HD-TVI (BNC) & 1 AHD/CVBS (BNC)
True Day/Night by ICR
>52dB (AGC OFF)
OFF ~44.8dB
0 Lux (LED ON)
Yes
1/50s~ 1/67500s
AWB
2300~9600K
Yes
Digtial WDR
Up to 1500’ (Depending on cable characteristics & integrity)
YES
Yes
IP66
12VDC
-4~122 / 10%~90% Humidity
3.43 x 8.62” (87mm x 219mm) Dia x L
3.6mm Fixed
42
150’
20.81 oz. / 1.30 lbs. / 590g
2.8~12mm (Vari-Focal)
36
120’
21.16 oz. / 1.32 lbs. / 600g
10 11
