Vitek VT-PIRC2H User manual

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

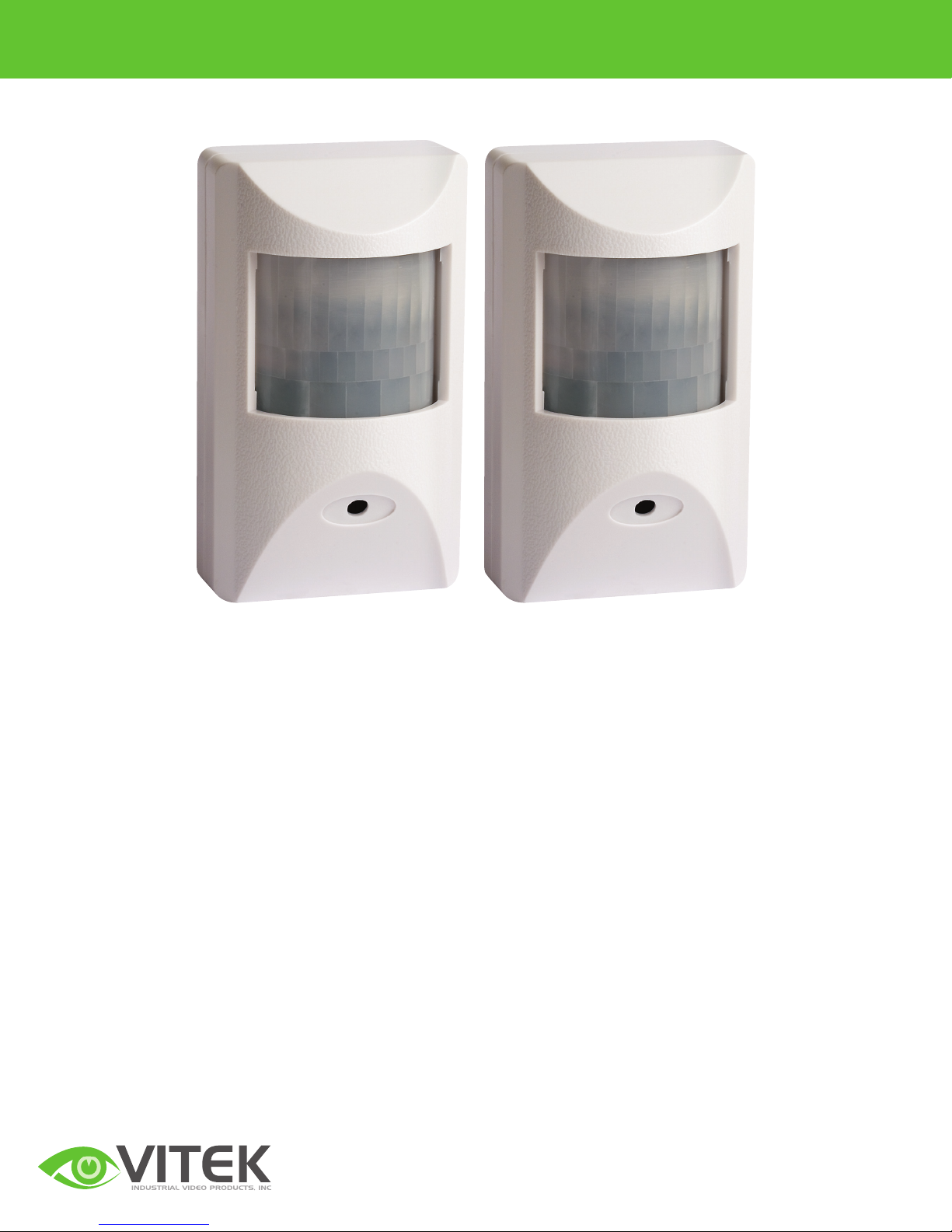

VT-PIRC2 / VT-PIRC2H Color PIR Cameras with Working

Motion Detection

The VT-PIRC2 & VT-PIRC2H are motion activated or

continuous imaging cameras that incorporate a Color

CCD camera with a PIR motion sensor. They can be used

as an accessory to an alarm system or as a stand-alone

monitoring device. Vitek PIR cameras are an excellent

choice for use in covert or hidden camera applications.

• 1/3” Color CCD Image Sensor

• 420 TV Lines (VT-PIRC2) , 550 TV Lines

(VT-PIRC2H)

• 0.2 Lux Sensitivity (VT-PIRC2) , 0.5 Lux

Sensitivity (VT-PIRC2H)

• Pinhole 3.8mm/f2.0 Lens Included

• NC/C/NO Alarm Output

• Working 100° Motion Using 58 Beams Within 3

layers (35’ x 35’ Coverage Area)

FEATURES

BLACKYELLOWMAGENTACYAN

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

VT-PIRC2 / VT-PIRC2H Color PIR Cameras with Working

Motion Detection

Detailed Specifications VT-PIRC2 VT-PIRC2H

Image Device

Effective Pixels

Resolution

Minimum Illumination

PIR Detection Range

PIR Alarm Output

AGC

S/N Ratio

Video Output

Auto Electronic Shutter

Standard Pinhole Lens

Power Source

Power Consumption

Operation Temperature

Humidity

Dimensions (WxHxD)

1/3” Color CCD

510 x 492 811 x 508

420 TV Lines 550 TV Lines

0.2 Lux 0.5 Lux

100° / 35’ x 35’ Coverage Area

NC/N/NO

>18db

More Than 48dB

Composite: 1.0 Vp-p / 75 Ohm

1/60 to 1/100,000 sec.

3.8mm / F2.0

12VDC (300mA Regulated)

150mA

14°F ~ 140°F (-10°C ~ 60°C)

0-95%

2.75” x 4.72” x 1.69” / 70mm x 120mm x 43mm
