Vicon I-ONYX VND-970IP User manual
Configuring the VND-970IP
When the dome has been connected to the network check that the dome is in the same IP range as being used by ViconNet,
the default IP address for the VND-970IP is 192.168.0.100. if the IP that is to be used is different then this IP address will
need to be changed to the same range. To change this setup, use a PC on the same IP range as the camera and then use
internet explorer, enter the camera address into the address bar and press go. The dome is set to get IP address automatically.
Go to the nucleus machine and log on.
Once logged in click on setup this will then bring up setup site selection
Select the nucleus setup (this will be the top selection in the list) and press the select, you will now enter the nucleus settings

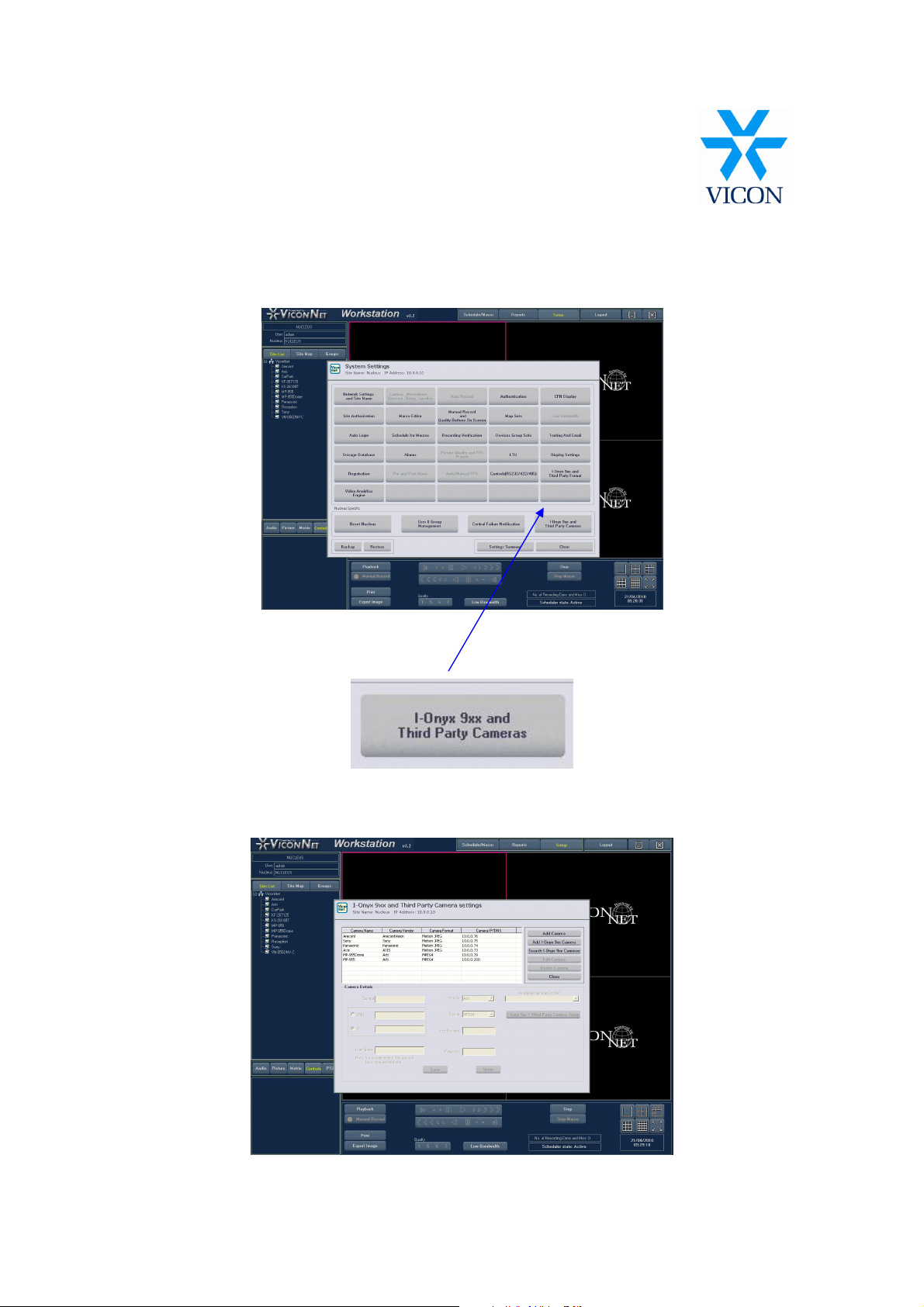

From here click on the I-Onyx 9xx and third party camera button.
This will now enter into I-onyx and third party camera settings for adding I-onyx and third party cameras
When using ViconNet 5.2 then add camera needs to be pressed and the settings added manually
Add all the details camera name, IP address, username, password and Vendor name this must be set to VND-970
Once these details have been entered click on the save and the details will now be shown in the camera list.
Now close this screen and exit out of the setup back to the main screen, the camera will now be shown in
the ViconNet tree on the left of the screen.
Click on the camera this will now show 1 Camera 1 click this and the camera will now appear on the screen
This is the camera now setup through the ViconNet.
When using Viconnet 5.6b adding the camera to the ViconNet instead of add camera you should add I-
onyx 9xx camera
On the screen there is a drop down box that says available I-onyx cameras on net find your camera this will
insert the camera name and IP address into the boxes, save the settings the camera information will now be
shown in the camera list
Close the window until back to main window, select the camera it will then display 1 Camera 1 select this
and the picture will now be on the screen.
This is the camera setup onto the ViconNet system.
The next step will be to set the cameras for record. Before you do this you need to check that the clock
settings of the camera are set correctly for your location. Please check the camera manual for the clock
configuration. Next go into the setup for the NVR that you are recording to and click the macro editor
button
In the macro editor click on add macro this will then open up the editor for setting up the macro
Enter a name for your macro e.g. VND-970IP and select record
At the bottom you will now have a list of cameras that are available select the VND-970IP and the
1 Camera 1 this will go bold text then select the duration tick the unlimited box select the quality and then
apply.
This will now show the macro that has been setup now press the save and close the macro window that will
take you back to the NVR setup
Now you will need to setup the schedule for the macro to record click the schedule for macro button this
will take you into the schedule for macro window
Click on the Add button and select the created macro in the drop down box
Once the macro has been selected click save and close the scheduler and exit the NVR setup back to the
main screen.
This will now be recording the camera and this can be seen at the bottom of the screen
This shows that the camera is recording and the schedule is active getting the system to record the VND-
970IP
