Vents VKP PS 125 User manual

IN-LINE CENTRIFUGAL FAN

VENTS VKP PS 125

User`s

manual

www.vents-us.com

READ AND SAVE THESE INSTRUCTIONS

WARNING!

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY, READ AND UNDERSTAND

THE INSTRUCTIONS CAREFULLY

1. Use the product only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.

2. Before servicing or cleaning the unit, switch off the power at the main service panel and lock it to prevent the power

from accidentally being turned on. If the panel cannot be locked securely, fasten a prominent warning device, such as

tag, to it. If the unit is not hard-wired but rather plugged into a 120 volt outlet, simply unplug the cord from the

receptacle.

3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes

and standards, include fire-rated construction codes and standards.

4. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

5. The fans must always be vented to the outdoors.

6. The fan may have sharp edges. Use caution to avoid being cut when installing and cleaning.

7. This fan must be grounded.

CAUTION!

1. For general ventilation use only. Not for use in fire rated installations. Do not use the fan to exhaust hazardous or

explosive materials and vapors.

2. For interior use only. Mount with the lowest moving parts at least 8 feet (2.5 meters) above the floor or grade level.

3. To avoid the motor damage and noisy and/or unbalanced impeller, keep drywall spray, construction duct, etc.

off power unit.

4. Prior to installation operations make sure there is no visible damage to the impeller and housing.

Also make sure there are no foreign objects that may have accidentally gotten into the fan.

5. Please read specification label on product for further information and requirements.

6. To be installed by qualified personnel.

7. Connect the fan through breaker box.

8. Both the inlet and outlet must have no obstructions for the VKP / VKPF to work properly and be covered by the warranty.

9. When storing the fan keep it in a dry, weather-protected environment in the original packaging.

If the fan has been stored or set in a cold environment, wait 2 hours before connecting it to the power source.

WARRANTY

Production meets standard operating requirements in the USA and Canada.

VENTS US warrants to the original purchaser of the VKP and VKPF that it will be free from defects in materials or workmanship for a period

of 60 months from the date of original purchase.

THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During the stated warranty period, VENTS US will, at its option, repair or

replace, without charge, any product or part which is found to be defective under normal use and service. This warranty does not cover

(a) normal maintenance and normal service or (b) any products or parts which have been subject to misuse, negligence, accident,

improper maintenance or repair (other than by VENTS US), faulty installation or installation contrary to recommended installation

instructions. Labor to remove and replace products is not covered. The duration of any implied warranty is limited to the time period

specified for the express warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation

may not apply to you.

VENTS US OBLIGATION TO REPAIR OR REPLACE, AT VENTS US OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY

UNDER THIS WARRANTY. VENTS US SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT

OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE.

Some states do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may

not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This

warranty supersedes all prior warranties.

If proof of sales date is absent, warranty period is calculated from the production date.

The unit can be exchanged at the following address:

Bodor Vents, LLC

1013 Kenwood Road Cincinnati, Ohio 45242

Phone: (513) 348-3853

e-mail: [email protected]

Please follow guidelines in this manual for product problem-free operation.

The VENTS VKP PS Series dryer booster fan has been

specially designed to solve dryer vent problems where

more airflow is needed.

The VENTS VKP PS dryer booster fans assure efficient and

reliable operation. The pre-installed pressure switch

allows the VKP PS fan to run only when it senses that the

dryer is on. The controller cycles the fan until the dryer has

stopped. The fans are fitted with backward curved

centrifugal impeller, which allows lint not to get stuck in

the fan. The VENTS VKP PS fans are driven by powerful

sealed external rotor motor with lifelong bearings and

thermal protection. This powerful combination enables

the VENTS VKP PS fans to deliver exceptional airflow

performances even in long duct runs. The fan’s housing is

made of galvanized steel. The external rotor motor on ball

bearings and the backward curved, balanced impeller is

suitable for high pressure application, prevent vibration

and assure quiet operation.

Each set contains:

1. Fan - 1 pc;

2. Manual;

3. Packing box.

Specification:

Voltage: 120 V, 60 Hz

Motor: Single-phase external rotor motor with

backward curvedcentrifugal impellers

Duct compatibility: Ø 5” (125 mm)

Airflow capacity: up to 212 CFM

Power consumption: 67 W

Suitable for working airstreams up to 149 °F

IPX4 protection

Thermal overload protection

Pressure switch, mounting bracket and power cord

included

Fan reference scheme

VKP PS 125

Outlet diameter pipe

Fan type

Examples of identification:

A rectangular shaped in-line fan enclosed in a galvanized

steel case, designed for mounting in ventilation stacks

with diameter of 5" (125 mm), supplied with one inlet pipe

with diameter of 5" (125 mm) VKP PS 125.

Fan construction is constantly being improved, that is

why some models can differ slightly from those described

in this manual models.

Dimensions

12 ⁄"

7 ⁄"

Ø 5"

Typical installation

Different variants of wall and ceiling mounting of vertical and horizontal fans are shown on Pic. 1-2.

Lint Trap

VKP PS

Install a lint trap between the clothes dryer and the fan to increase the service life and maintenance periodicity of VKP PS. Clean the lint

trap as required.

Typical installation

Fan installation

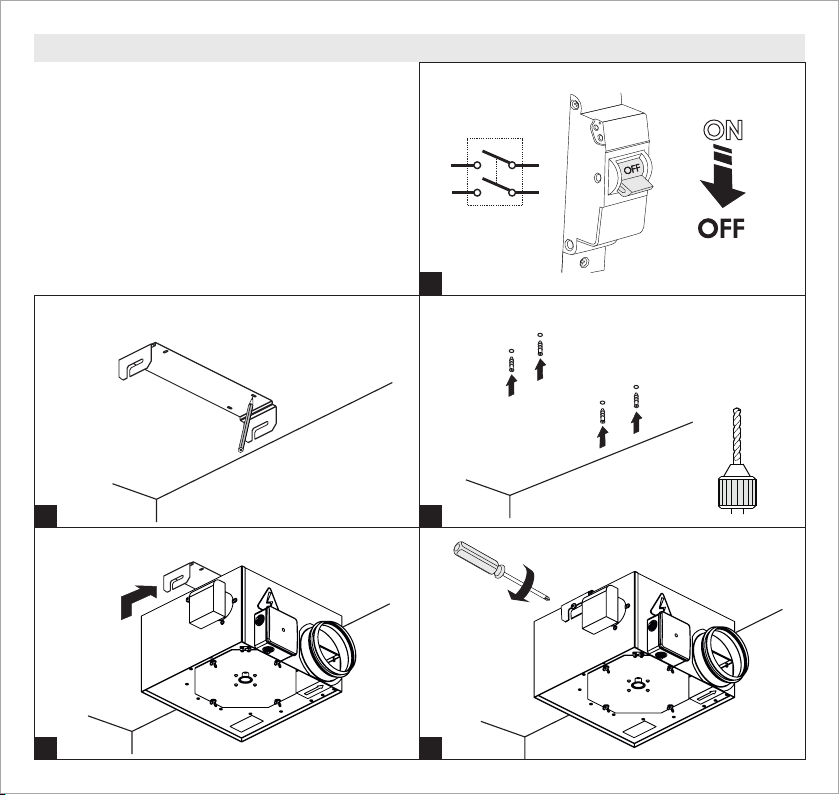

The process of fan mounting with the use of a bracket

together with four screws and dowels is shown on Pic. 4-8.

Fan installation

The process of ventilation stack attachment is shown on Pic. 9-10.

Air flow direction should match the direction of an arrowhead placed on the fan case.

To ensure quiet operation of ENERGY STAR qualified in-line fans, each fan shall be installed using sound attenuation techniques

appropriate for the installation. Insulated flexible type duct work (recommended for all bathroom exhaust applications) will result in

quieter operation. We recommend minimum 8" of insulated flexible duct between any exhaust grill and fan for low noise level. Flexible

duct should be connected to the fan with hose clamps (VENTS C series is recommended), Aluminum Foil Tape or both. All connections

should be as airtight as possible to maximize system performance and eliminate air leakage. When using flexible type duct work, duct

should as tight and straight as possible. In case you intend to use non-flexible ducts we recommend to install flexible connectors (VENTS

VVG series is highly recommended) which are designed to exclude the vibration transmission from fans to air duct. Remove any

insulation from the area where you will be mounting the fan. Insulation should never be installed over any part of an exhaust fan. Keep

the insulation at least 3" away from the fan casing.

120 VAC, 60 Hz

BREAKER

GREEN

GROUND

SCREW

BREAKER BOX

EARTH

FAN

WALL SOCKET

Fan connection

White

Ì1

LRed

Green

ÐE

ÕP1

BlueBlack

ÐÅ

Black

120V

60HzPressure switch

Green

Black

White

Yellow-Green
