Vents MPA 300 E EC A30 User manual
USER’S MANUAL
Single-block air supply unit
MPA 300 E EC A30/31/32
MPA 400 E EC A30/31/32
MPA 700 E EC A30/31/32
MPA 1000 E EC A30/31/32
MPA 1500 E EC A30/31/32
MPA 2000 E EC A30/31/32
MPA 3000 E EC A30/31/32
MPA 4000 E EC A30/31/32
2
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32
www.ventilation-system.com
Safety requirements..................................................................................................................................................................... 3
Purpose................................................................................................................................................................................................ 5
Delivery set........................................................................................................................................................................................ 5
Designation key.............................................................................................................................................................................. 5
Technical data.................................................................................................................................................................................. 6
Design and operating principle ........................................................................................................................................... 9
Mounting and set-up.................................................................................................................................................................. 13
Connection to power mains .................................................................................................................................................. 15
Technical maintenance.............................................................................................................................................................. 21
Troubleshooting............................................................................................................................................................................. 22
Storage and transportation regulations.......................................................................................................................... 22
Manufacturer’s warranty........................................................................................................................................................... 23
Certificate of acceptance.......................................................................................................................................................... 27
Seller information.......................................................................................................................................................................... 27
Installation certificate.................................................................................................................................................................. 27
Warranty card................................................................................................................................................................................... 27
CONTENTS
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32 unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
3
www.ventilation-system.com
SAFETY REQUIREMENTS
Connection to the mains must be made through a disconnecting device, which is integrated
into the fixed wiring system in accordance with the wiring rules for design of electrical units,
and has a contact separation in all poles that allows for full disconnection under overvoltage
category III conditions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
Ensure that the unit is switched off from the supply mains before removing the guard.
WARNING: If there are any unusual oscillating movements, immediately stop using the unit and
contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
CAUTION: In order to avoid a safety hazard due to inadvertent resetting of the thermal cut-
out, this unit must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
The appliance may adversely affect the safe operation of appliances burning gas or other
fuels (including those in other rooms) due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After installation of the unit the operation
of flued gas appliances should be tested by a competent person to ensure that back flow of
combustion gases does not occur.
This unit is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the unit by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the unit.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Cleaning and user maintenance shall not be made by children without supervision.
Children shall not play with the appliance.
This appliance incorporates an earth connection for functional purposes.
4
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32
www.ventilation-system.com
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE
All operations described in this manual must be performed by qualified personnel only, properly
trained and qualified to install, make electrical connections and maintain ventilation units.
Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
This is unsafe and impossible without special knowledge.
Disconnect the power supply prior to any operations with the unit.
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.
BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS.
5
www.ventilation-system.com
PURPOSE
MPA 1000 E-15 EC LA31
Automatic control system
A30 — kVent controller with th-Tune control panel
A31 — kVent controller without the control panel
A32 — kVent controller with pGDE control panel
Connection side
L – left
R – right
Motor type
EC – electronically commutated
Electric heater power [kW]
Heater type
E - electric
Maximum air ow [m/h]
Unit type
MPA — single-block air supply unit
DESIGNATION KEY
DELIVERY SET
The unit is intended for filtering, supplying and heating purified intake air in offices, hotels, cafés, conference halls, manufacturing
facilities, retail establishments and other residential and public spaces.
The unit is a component part and is not designed for stand-alone operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
The unit must not be used for purposes other than those specified in this manual or outside the ambient conditions specified herein.
The unit is rated for continuous operation.
Name MPA 300/400/700/1000/1500/2000/3000/4000 E EC A31 MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/32
MPA unit 1 pc. 1 pc.
Remote controller – 1 pc.
Outdoor temperature sensor 1 pc. 1 pc.
User’s manual 1 pc. 1 pc.
Packing box 1 pc. 1 pc.
6
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32
www.ventilation-system.com
The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to
80 % without condensation. The transported air temperature should be from -30 °C to +40 °C with a relative humidity no more than 90%.
The unit is rated as a class I electric appliance.
Hazardous parts access and water ingress protection rating:
• IP22 for the unit connected to the air ducts
• IP44 for the unit motors
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
TECHNICAL DATA
Overall and connection dimensions of the models
MPA 300 E EC A30/31/32, MPA 400 E EC A30/31/32, MPA 700 E EC A30/31/32
L
B
B1
B2
H
H1
L1
L4
L3
øD
L2
Model LL1 L2 L3 L4 HH1 BB1 B2 øD
MPA 300 E EC A30/31/32 950 850 903 129 200 310 290 400 313 514 160
MPA 400 E EC A30/31/32 972 850 903 160 200 370 351 400 313 514 200
MPA 700 E EC A30/31/32 972 850 903 160 225 370 351 460 353 565 250
7
www.ventilation-system.com

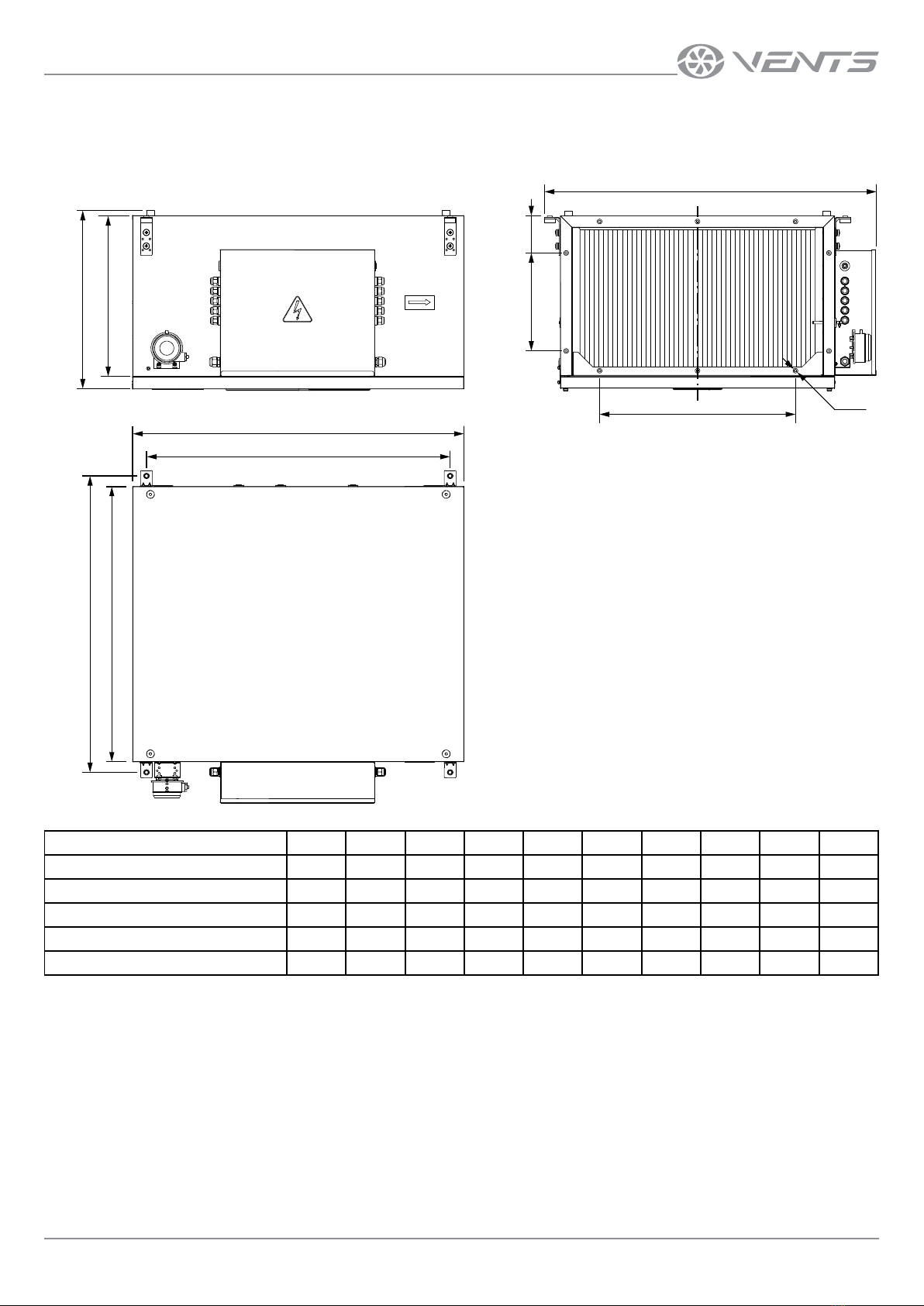

Overall and connection dimensions of the models
MPA 1000 E EC A30/31/32, MPA 1500 E EC A30/31/32, MPA 2000 E EC A30/31/32, MPA 3000 E EC A30/31/32,
MPA 4000 E EC A30/31/32 (without side panels)
H
H
H1
H2H3
B
M6
B1
B2
L
L1
L2
Model LL1 L2 HH1 H2 H3 BB1 B2
MPA 1000 E EC A30/31/32 840 770 500 393 348 95 160 746 653 600
MPA 1500 E EC A30/31/32 840 770 500 453 408 95 250 847 754 700
MPA 2000 E EC A30/31/32 840 770 500 453 408 95 250 847 754 700
MPA 3000 E EC A30/31/32 1140 1070 600 513 468 95 310 944 853 800
MPA 4000 E EC A30/31/32 1140 1070 600 563 518 95 360 1087 993 940
8
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32
www.ventilation-system.com
Overall and connection dimensions of the models
MPA 1000 E EC A30/31/32, MPA 1500 E EC A30/31/32, MPA 2000 E EC A30/31/32, MPA 3000 E EC A30/31/32,
MPA 4000 E EC A30/31/32 (with optional side panels)
B1
L
B2
H
H1
B
L1
L2
L3
H3
H2
B3
B4
4xM6
Model LL1 L2 L3 HH1 H2 H3 BB1 B2 B3 B4
MPA 1000 E EC A30/31/32 900 770 300 190 393 380 220 200 746 653 600 400 420
MPA 1500 E EC A30/31/32 900 770 350 220 453 440 270 250 847 754 700 500 520
MPA 2000 E EC A30/31/32 900 770 350 220 453 440 320 300 847 754 700 500 520
MPA 3000 E EC A30/31/32 1200 1070 400 250 513 500 320 300 944 853 800 600 620
MPA 4000 E EC A30/31/32 1200 1070 470 275 563 550 420 400 1087 993 940 700 720
9
www.ventilation-system.com
DESIGN AND OPERATING PRINCIPLE
Technical specifications of the particular model are indicated on the unit casing.
The unit is housed in a sound-insulated galvanized steel casing (item 1). The unit casing has 4 mounting brackets with anti-
vibration connectors for ceiling or wall mounting (item 5).
The air flow direction is indicated by the arrow on the fan casing.
The bottom side of the casing is covered with a removable cover (item 2), which is secured with 4 screws (item 4).
A control unit (item 3) is installed on the casing. The power and control cables are pulled through cable glands (item 6). There is also a
pressure drop relay on the unit casing that activates when the pressure drop at the filter increases (item 8).
Models MPA 1000 E EC A30/31/32, MPA 1500 E EC A30/31/32, MPA 2000 E EC A30/31/32,
MPA 3000 E EC A30/31/32, MPA 4000 E EC A30/31/32 are supplied without the side panels (item 7) and are intended for installation
directly into a rectangular air duct. Side panels (ordered separately) allow connecting the unit to air ducts through flexible inserts.
For ease of electrical connection, the units can be ordered with the control unit located either on right or left side of the casing (right- and
left-side versions, respectively, as indicated in the «Designation key» section).
If necessary, the control unit can be moved to the other side of the unit casing before being installed in the ventilation system.
1
6
2
5
4
3
1
2
5
7
8
8
4
6
3
7
10
MPA 300/400/700/1000/1500/2000/3000/4000 E EC A30/31/32
www.ventilation-system.com
The figure below shows the internals of the left and right version of the units with the removable cover removed.
The air flow direction is indicated by the arrows.
• The inlet and outlet spigots for duct connections (item 1 and 2 respectively);
• air filter with G4 filtration class (item 3);
• block of triacs on the cooling radiator (item 4);
• block of heaters (item 5);
• bracket with two thermostats mounted on it with low threshold and automatic return (item 6) and with high threshold and manual
return (item 7);
• fan unit (item 8).
13 4 5 6 7 8 2
TOP VIEW
MPA ... L MPA ... R
VIEW FROM THE MAINTENANCE SIDE
MPA ... L
MPA ... R
TOP VIEW
MPA ... L MPA ... R
This manual suits for next models
33
Table of contents
Other Vents Fan manuals
Vents
Vents Frigate HRV 120 SR User manual
Vents
Vents VOX-M User manual
Vents
Vents HW-600x350-2 User manual
Vents
Vents TwinFresh Expert RW-30 V.2 User manual
Vents
Vents TwinFresh R-50 User manual
Vents
Vents VSK 315 2D User manual
Vents
Vents Simple User manual
Vents
Vents Solo RA1-35 R User manual
Vents
Vents TwinFresh Atmo Wi-Fi User manual
Vents
Vents TwinFresh Expert RW1-50 User manual
Vents
Vents P2-1-300 Owner's manual
Vents
Vents RO Series User manual
Vents
Vents TwinFresh Easy User manual
Vents
Vents Boost-I 150 User manual
Vents
Vents VKM Series User manual
Vents
Vents KSK Series User manual
Vents
Vents Brig HRV 120 User manual
Vents
Vents Fan User manual
Vents
Vents TwinFresh Comfo RB-50 User manual
Vents
Vents KSB 100 User manual
Popular Fan manuals by other brands
ELTA FANS
ELTA FANS H03VV-F installation guide
Hunter
Hunter 20714 Owner's guide and installation manual
Emerson
Emerson CARRERA VERANDA CF542ORB00 owner's manual
Hunter
Hunter Caraway Owner's guide and installation manual
Panasonic
Panasonic FV-15NLFS1 Service manual
Kompernass
Kompernass KH 1150 operating instructions
