Vello BG-C10-2 User manual

USER’S MANUAL

BG-C10-2

BAT TERY GRIP

Designed for the Canon

EOS 70D, 80D, and 90D

DSLR Cameras

Thank you

for choosing Vello

The Vello BG-C10-2 battery grip offers extended

shooting time and comfort when shooting in a vertical

(portrait) orientation. The grip is compatible with the

Canon 90D, 80D, and 70D DSLR Cameras and accepts

up to two Canon LP-E6/E6N(H) rechargeable batteries.

It offers an alternate shutter release button, main dial,

and access to AF-ON and autofocus and autoexposure

selection buttons, making the grip ideal for shooting

portrait photography. The control-lock switch disables

all the grip’s controls to prevent unwanted triggering.

Please read through this entire

manual before using the B G - C10 -2

battery grip.

2

Precautions

1. The BG-C10-2 should be used only with the

compatible devices specified in this manual.

2. Use only with the batteries and battery holders

recommended in this manual.

3. If you notice smoke, noise, or an unusual smell from

the battery pack, discontinue use immediately.

Remove the batteries, and take the device to a

Vello authorized reseller.

4. The battery level may not display properly if

batteries are installed before mounting the grip.

5. Remove batteries from the grip when not in use.

6. Do not attempt to disassemble.

7. Avoid exposing this product to water or extreme

humidity, and keep it in a cool, dry place.

8. Keep out of reach of children.

9. All images are for illustrative purposes only.

3

OVERVIEW INTRODUCTION

ASSEMBLY

Overview

11

1

7

6

10

8

12

18

19

20 21

13

15

14

22

17

16

9

3

2

4

5

4

1Shutter release button

2Camera battery door holder

3AF area/AF method

4Main dial

5Hand-strap mount

6Tripod socket

7Nonslip grip

8Battery compartment

9Battery compartment lock

10 Thumbwheel

11 Mounting screw

12 AF-ON selection and magnify

button

13 AE/FE lock and Index/reduce

button

14 AF-ON button

15 Control lock switch

16 Power contacts

17 Contact cap

18 Battery slot 1

19 Slot 1 contacts

20 Slot 2 contacts

21 Battery slot 2

22 6-bay AA battery tray

5

OVERVIEW INTRODUCTION

ASSEMBLY

1. Ensure that the camera is

turned off.

2. Remove the camera’s

battery chamber door. Pull

gently at a 45° angle until

the door detaches.

3. Slide the chamber door

into the BG-C10-2’s

camera battery door

holder for safekeeping.

Attaching the Battery Grip

6

4. Insert the battery grip’s power contacts into

the camera’s battery chamber and attach the

grip to the camera.

5. Rotate the thumbwheel counterclockwise until

the grip is secured to the camera.

7

OVERVIEW INTRODUCTION

ASSEMBLY

Inserting Batteries

1. Turn off the camera’s

power, and make sure the

grip’s control lock switch is

in the Off position.

2. Twist the battery tray’s

lock, and remove the

battery tray from the grip.

3. Canon LP-E6 / E6N(H)

batteries: Insert the first

battery into slot 1 as

shown, and push down to

lock the battery in place.

Repeat for slot 2.

A

B

B

A

A

B

C

8

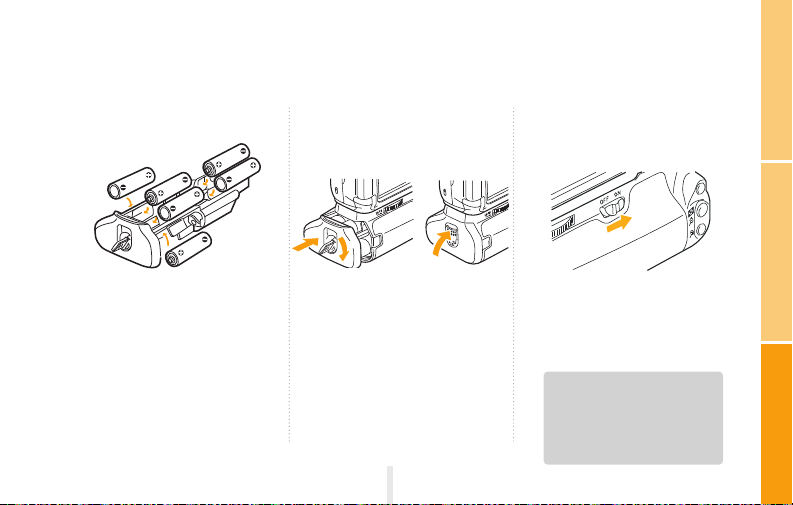

4. AA Batteries: Place six

identical AA batteries into

the AA battery tray as

indicated.

5. Insert and lock the battery

tray inside the battery grip.

6. Turn on the camera power,

and switch the grip’s

control lock to the On

position.

Note: When removing the grip,

turn off the camera’s power,

switch the grip’s control lock

to off, and then remove the

batteries.

9

OVERVIEW INTRODUCTION

ASSEMBLY

Specifications

Power source 1. Up to two Canon LP-E6/E6N(H) type rechargeable Li-ion batteries

2. Six AA/LR6 Alkaline, Ni-MH, Lithium or Nickel-Manganese batteries

Operating temperature 32°F to 104°F (0°C to 40°C)

Dimensions (H × W × D) 4.5 × 5.7 × 3.3 in. (11.4 × 14.5 × 8.5 cm)

Weight 9 oz. (254 g) without batteries

Speciﬁcations and design are subject to change without notice.

When using the AA battery tray, the battery indicator will work with only NiMH batteries.

Please note: It’s not recommended to use Duracell® brand alkaline batteries.

10
