Vari QuickFlex Walls User manual
QuickFlex Walls®
Patent and trademark informaon: vari.com/patents | ©2020 Varidesk, LLC All rights reserved.
2 People Required
Standard System Assembly
Standard Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
End Panel Set Assembly (Against Exisng Wall) . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing a Doorway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing Stability Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Oponal Enhancements
Adding Power Strip Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adding Stability Brace Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Removing Stability Brace Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Anchoring to Exisng Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Anchoring to Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1.
Standard Panel Assembly
NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE
x1
UPPER STRETCHER
LOWER STRETCHER
STRETCHER COVER
BASE PLATE
UPPER PANEL
LOWER PANEL POST
2 People Required
x1
x4
x2
x1
x1
x2
2.
Posts come in one box. Make sure the top cap of the post is aached, as these can come
loose in transit.
1
2
Secure the post onto the base plate. Use the included Allen key to ghten both sides of the
post into the base. If the post will go up against a wall, make sure to use a small base plate.
Refer to page 12 for the installaon of an end panel.
3.
Similar to the lower stretcher, insert the upper stretcher into the anchor points at the top of
each post. Once in place, pull down unl it clicks.
3
4
LOWER STRETCHER
UPPER STRETCHER
Before connuing and building wall secons, please read the following instrucons
thoroughly. It’s important to start building walls at the highest oor point, and you must
insert and secure all upper and lower stretchers before pung in any panels. Once the rst
2 posts are assembled, place them where you want to assemble the rst wall secon. Begin
wall assembly with the lower stretcher.
For stability, have one person hold the post while the stretchers are being installed. To
install the lower stretcher, insert one side into one post and then the other side into the
next post. Push down unl it clicks. Make sure it’s level and seated correctly.
4.
Use a level to check alignment and connecon of the stretchers, making sure all stretchers
are fully seated and secure before installing any panels. Base plates can be adjusted to
level if necessary.
If you’re creang a corner with your panels, you will need to change the posion of the side
caps to ensure that you can seat and secure your stretchers. For an easier me moving the
frame before compleon, ensure the whole wall frame for the enre conguraon is built
and leveled before installing panels.
5
6
All panels should be installed with one person on each side of the wall. For walls with
upper and lower panels, align the channel on the lower panel with the lower stretcher and
then push the panel in unl it clicks in place. We recommend pung all lower panels in rst
before moving to upper panels.
5.
7
8

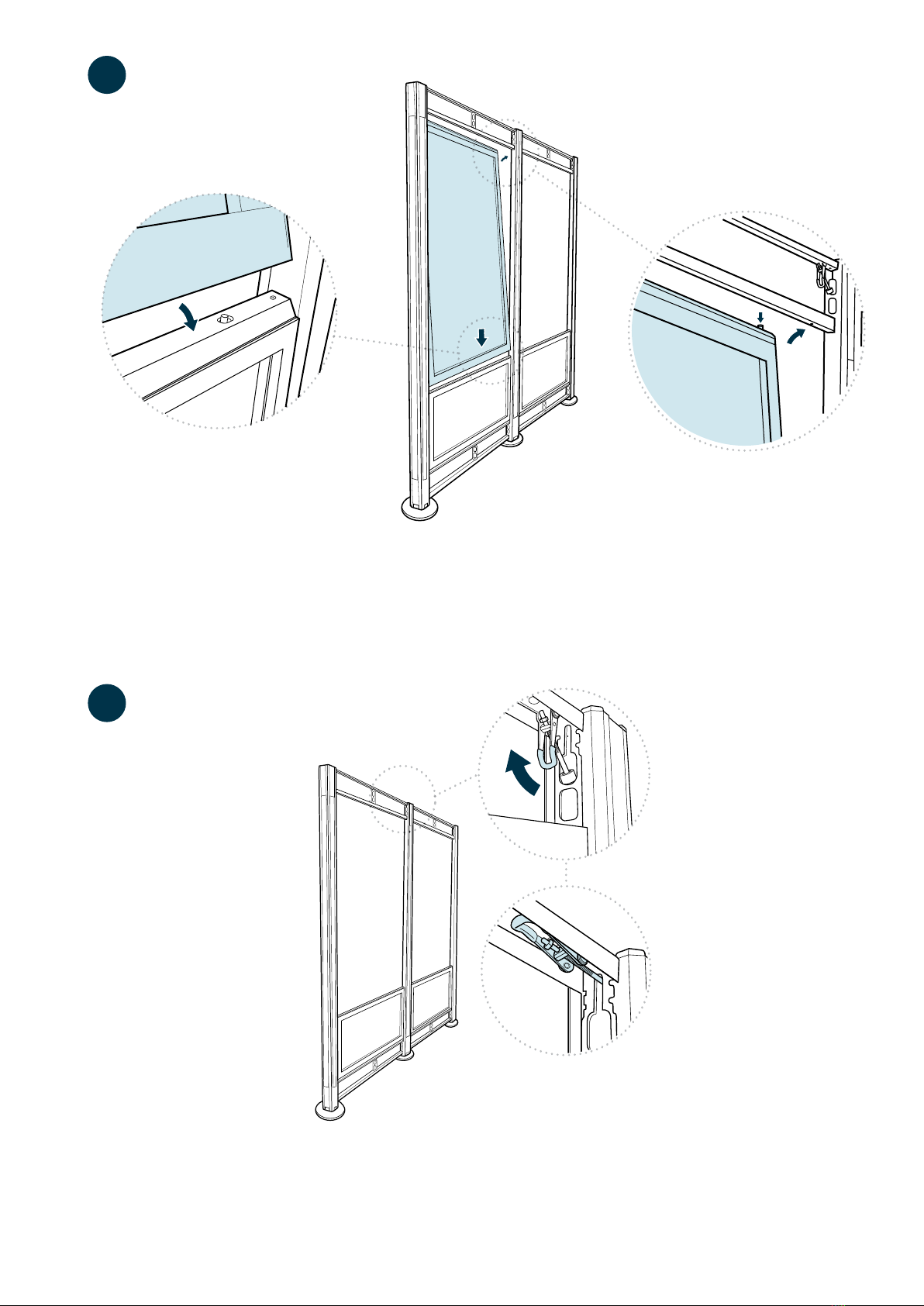

To install the upper panel, ensure there is one person on each side of the panel. Similar to
the lower panel, align the boom channel of the upper panel with the lower panel and push
in while pressing the top spring unl it latches in.
Once the panel has securely clicked into the boom of the upper stretcher, push up on the
draw latches to lock the connecon in place. If the upper panel isn’t ng properly or the
draw latches aren’t locking in place, check the seang and alignment of both the stretchers
and the panels.
6.
9

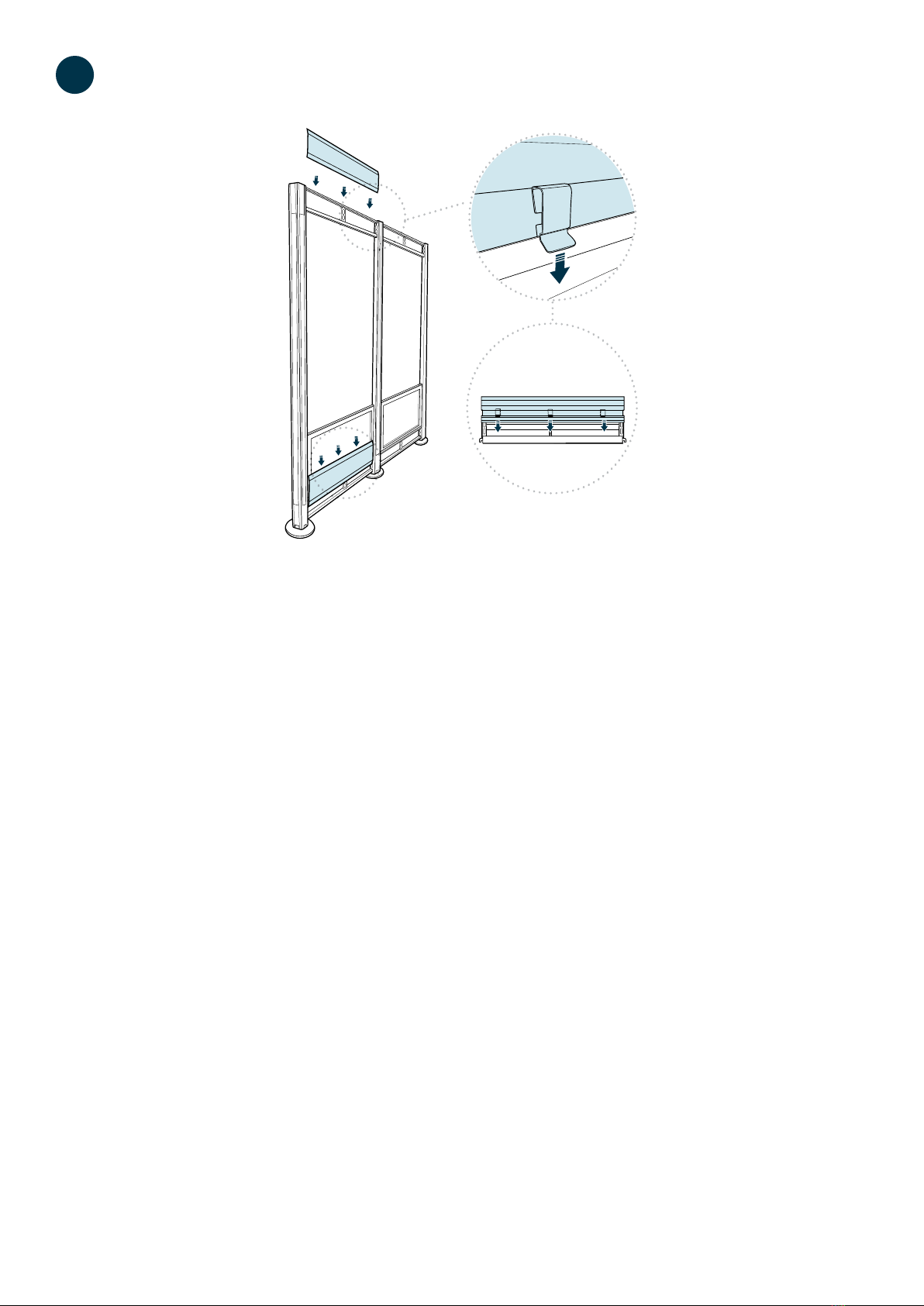

Once all panels are installed, install the stretcher covers on both sides of the upper and
lower stretchers. Align the cover with the stretcher and slide down to clip in place.
7.
End Panel Set Assembly
NOTE: READ ALL INSTRUCTIONS AND PLAN LAYOUT BEFORE BEGINNING TO ASSEMBLE
x1
UPPER STRETCHER
2 People Required
UPPER PANEL
LOWER PANEL
POST
x1
x1
x2
x1
LOWER STRETCHER
x4
STRETCHER COVER
SMALL BASE PLATE
x1
BASE PLATE
x1
x2
POST BRACE
8.

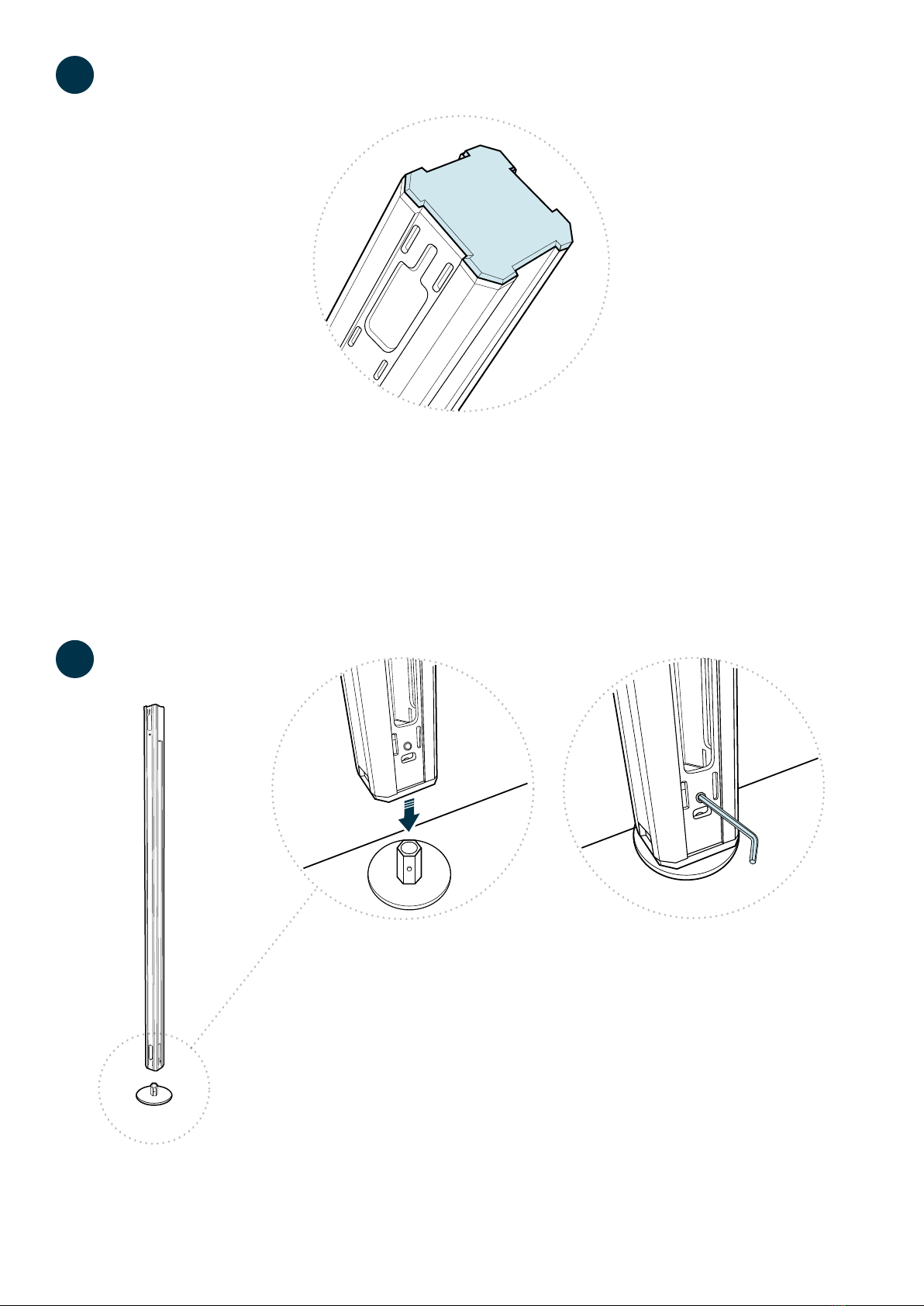

Posts come in one box. Make sure the top cap of the post is aached, as these can come
loose in transit.
Secure the post onto the small base plate as close to the wall as possible. Use the included
Allen key to ghten both sides of the post into the base.
1
2
