VABCHES D3M563BS0M User manual
D3M563BS0M
1-38
As this item contains many parts, please read the installation
instruction carefully before installation . Please use tools
properly and carefully. If you have any questions about the
product and installation, please contact us.
Our professional after-sales team will serve you online all
service@vabchesofficial.com
day.

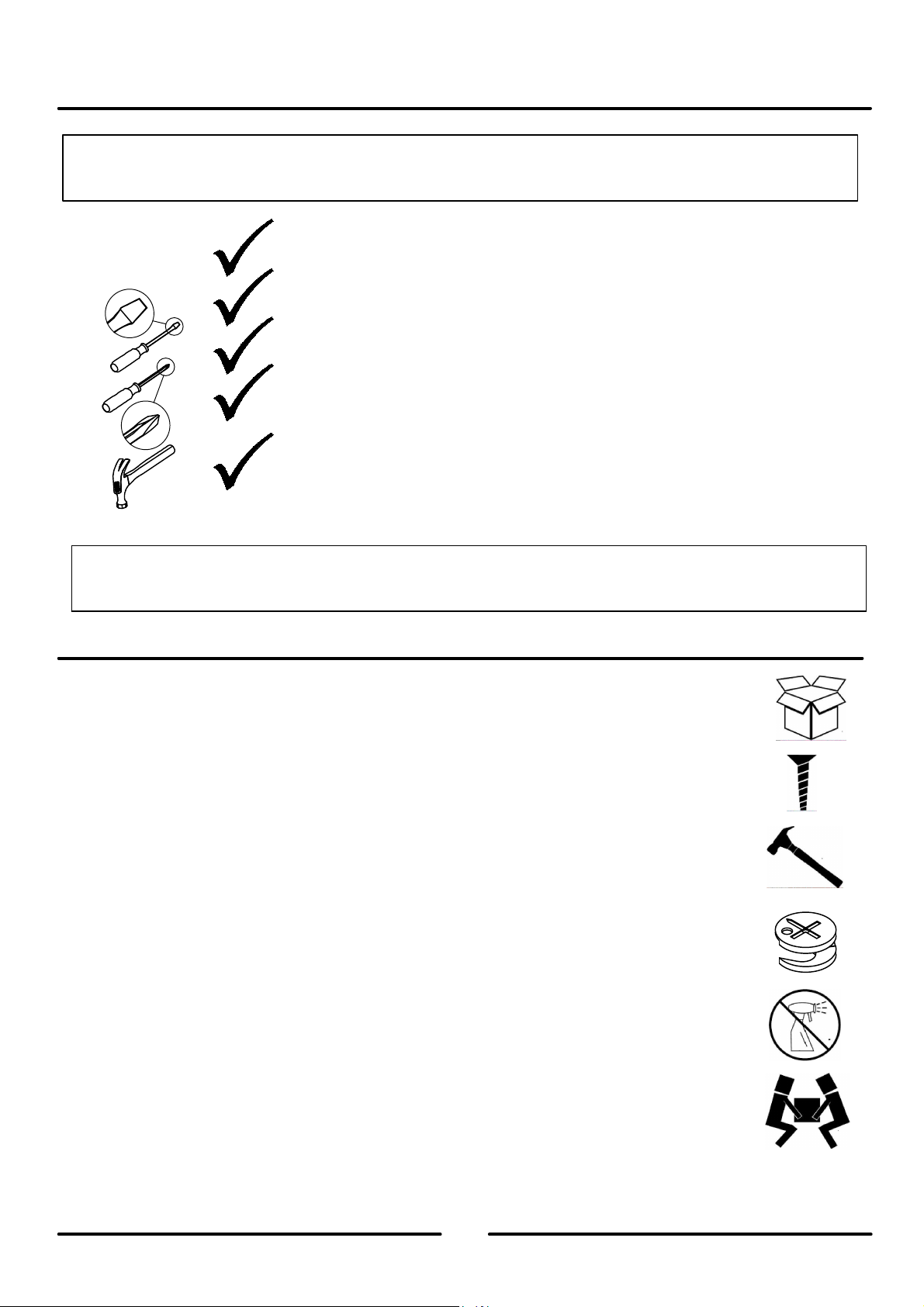

Before You Start
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware of to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw. （Assembly
speed can be increased by using electric screwdriver）
Helpful Hints
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with an R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- If there is a back panel in the package, please install it to make sure your unit is
complete and sturdy.
-Please fix all the screws provided for the back panel which can enhance product
stability. If it is difficult to fix it when tightening, it can be fixed with the help of a
hammer and then tightened.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
PEOPLE NEEDED FOR ASSEMBLY: 1-2
2-38

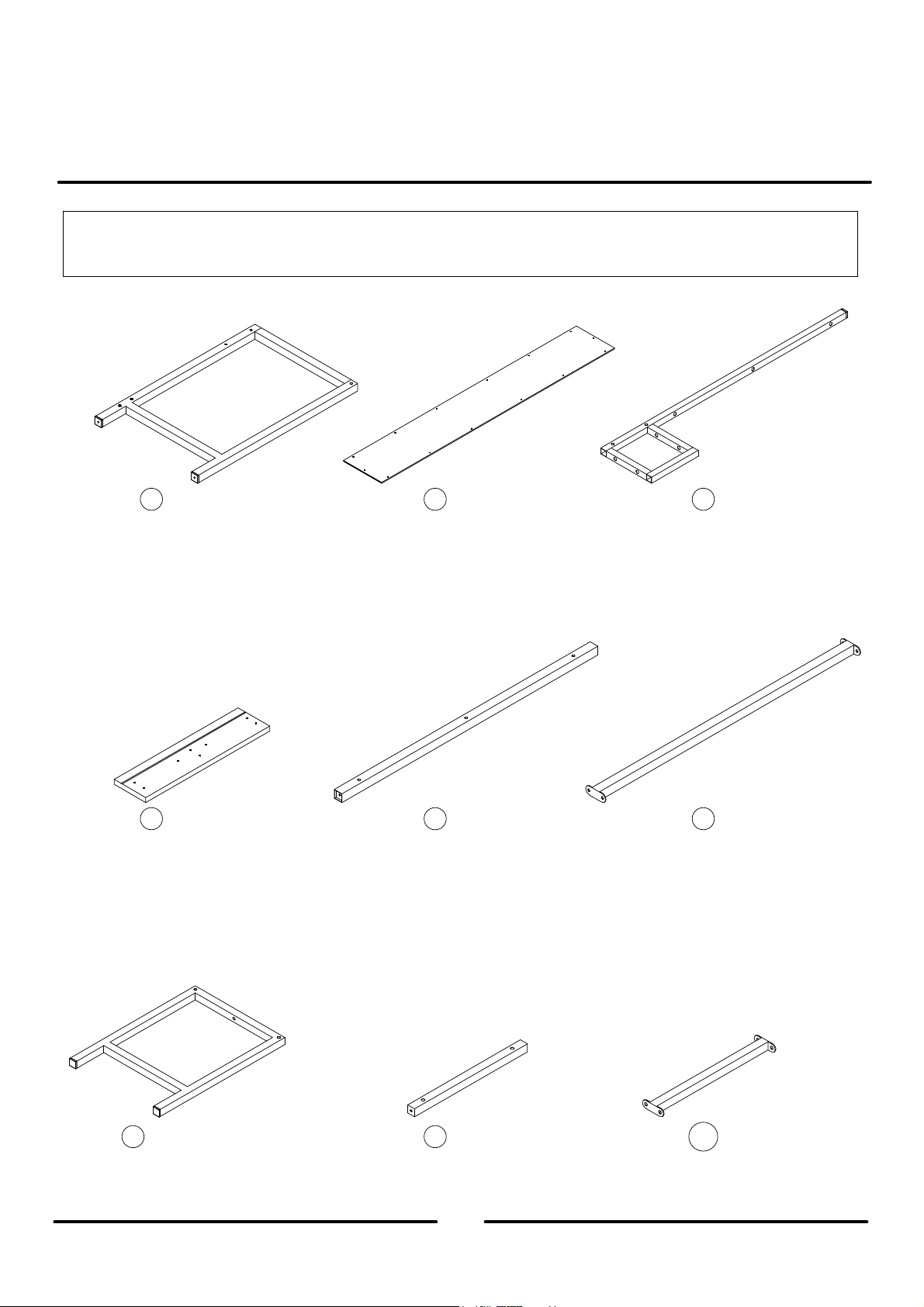

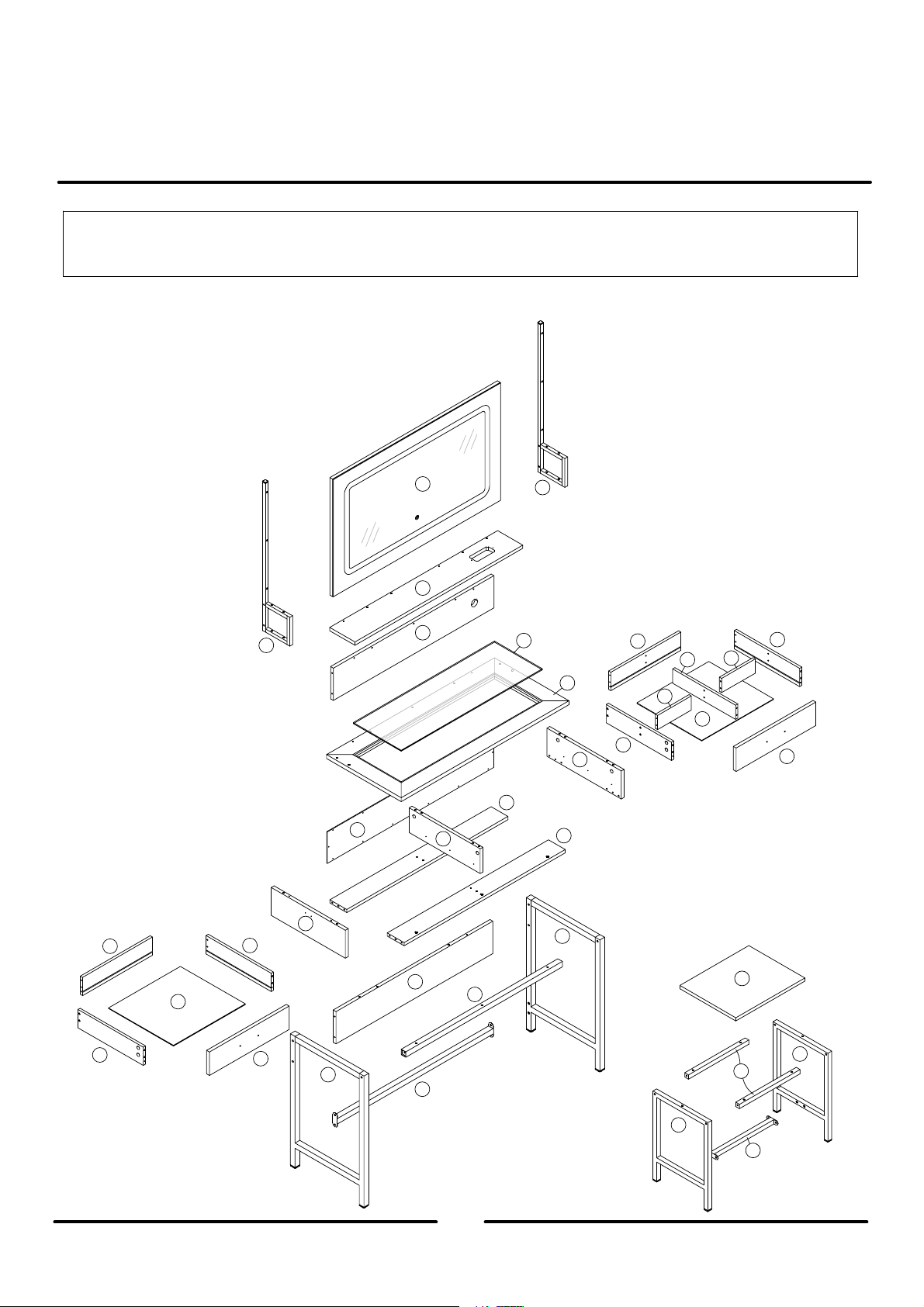

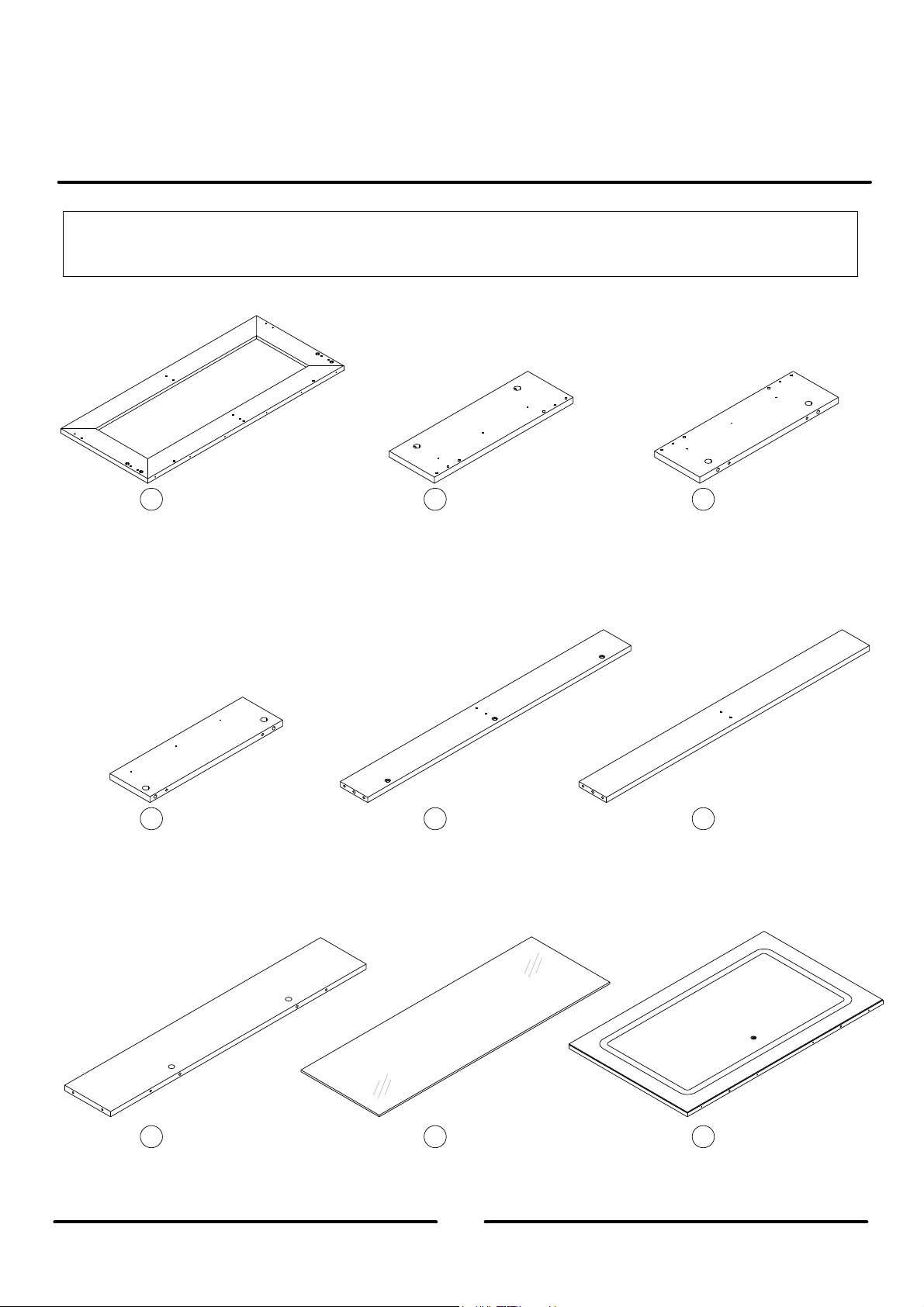

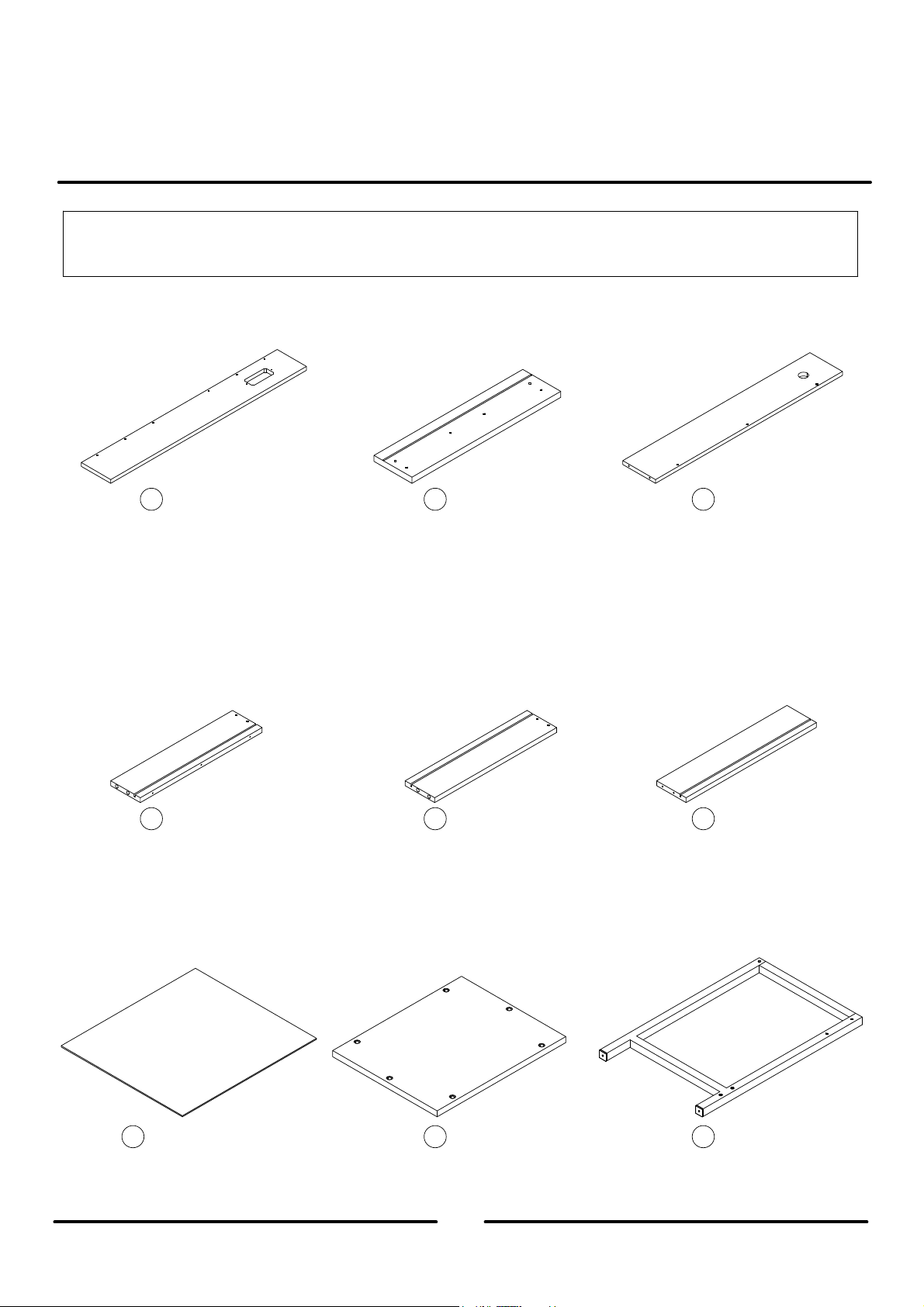

Board Identification
Not actual size
DESK TOP
Qty:1
A
RIGHT SIDE PANEL
Qty:1
C
LEFT SIDE PANEL
Qty:1
3-38
B
PARTITION
Qty:1
D
REAR CROSS MEMBER
Qty:1
F
FRONT CROSS MEMBER
Qty:1
E
REAR LOWER PANEL
Qty:1
G
DRESSING MIRROR
Qty:1
I
TEMPERED GLASS
Qty:1
H
Board Identification
Not actual size
FIXED SHELF
Qty:1
J
UPPER BACK PANEL
Qty:1
L
LEFT DRAWER FRONT
Qty:1
4-38
K
LEFT DRAWER SIDE
Qty:1
M
DRAWER BACK
Qty:1
O
RIGHT DRAWER SIDE
Qty:1
N
LEFT DRAWER BOTTOM
Qty:1
P
LOWER LEFT FRAME
Qty:1
R
STOOL PANEL
Qty:1
Q
Board Identification
Not actual size
LOWER RIGHT FRAME
Qty:1
S
UPPER FRAME
Qty:2
U
BACK PANEL
Qty:1
5-38
T
RIGHT DRAWER FRONT
Qty:1
V
RAIL
Qty:1
X
RAIL
Qty:1
W
SIDE FRAME OF STOOL
Qty:2
Y
RAIL
Qty:1
AA
RAIL
Qty:2
Z

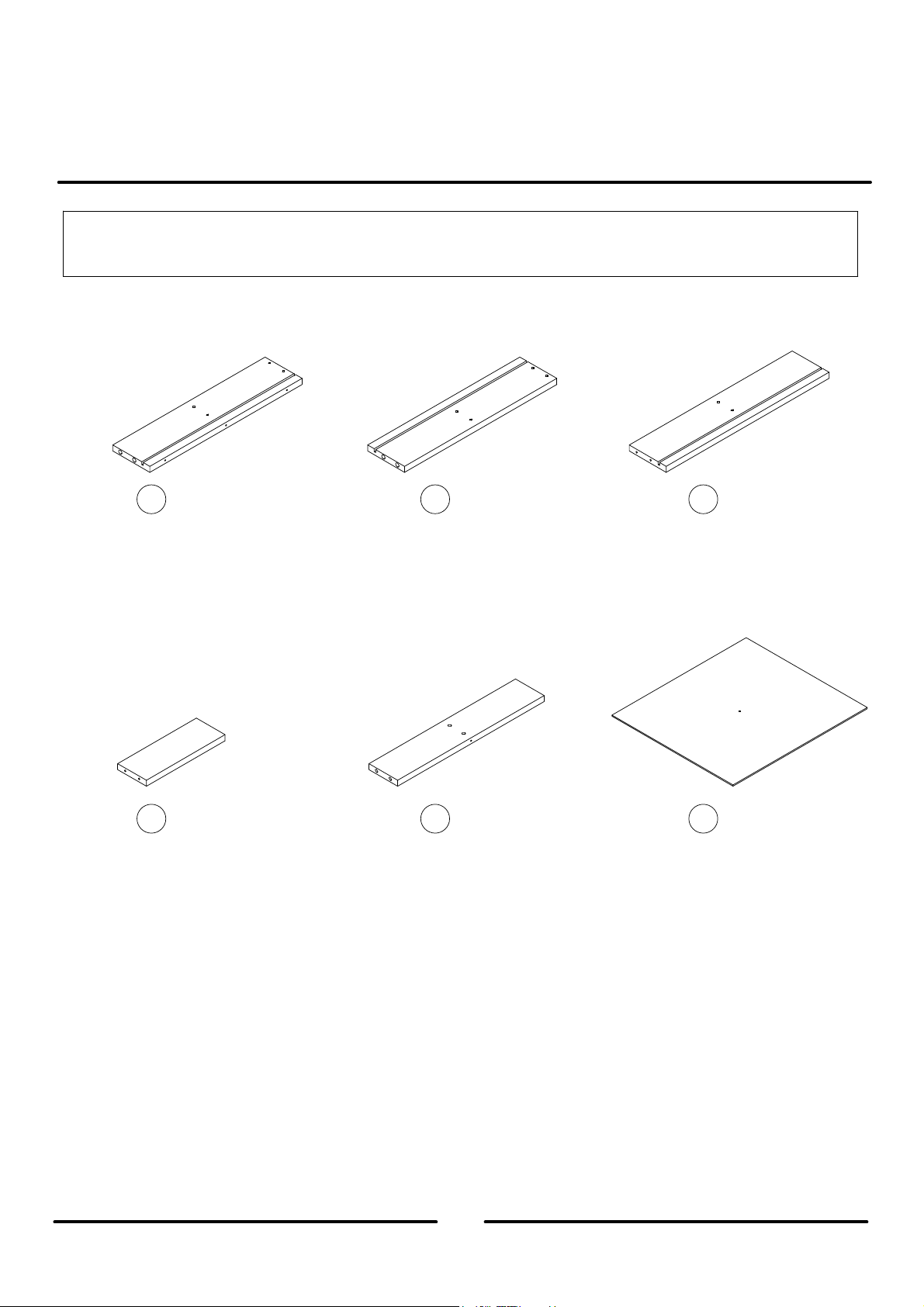

Board Identification
LEFT DRAWER SIDE
Qty:1
BB
DRAWER BACK
Qty:1
RIGHT DRAWER SIDE
Qty:1
6-38
DRAWER PARTITION
Qty:2
DRAWER PARTITION
Qty:1
CC DD
EE FF
RIGHT DRAWER BOTTOM
Qty:1
GG
Board Identification
Not actual size
7-38
I
J
LH
A
TD
F
E
B
N
P
O
K
M
G
S
R
X
W
Q
Z
Y
Y
AA
V
DD
BB
CC
EE
EE
FF
U
U
C
GG

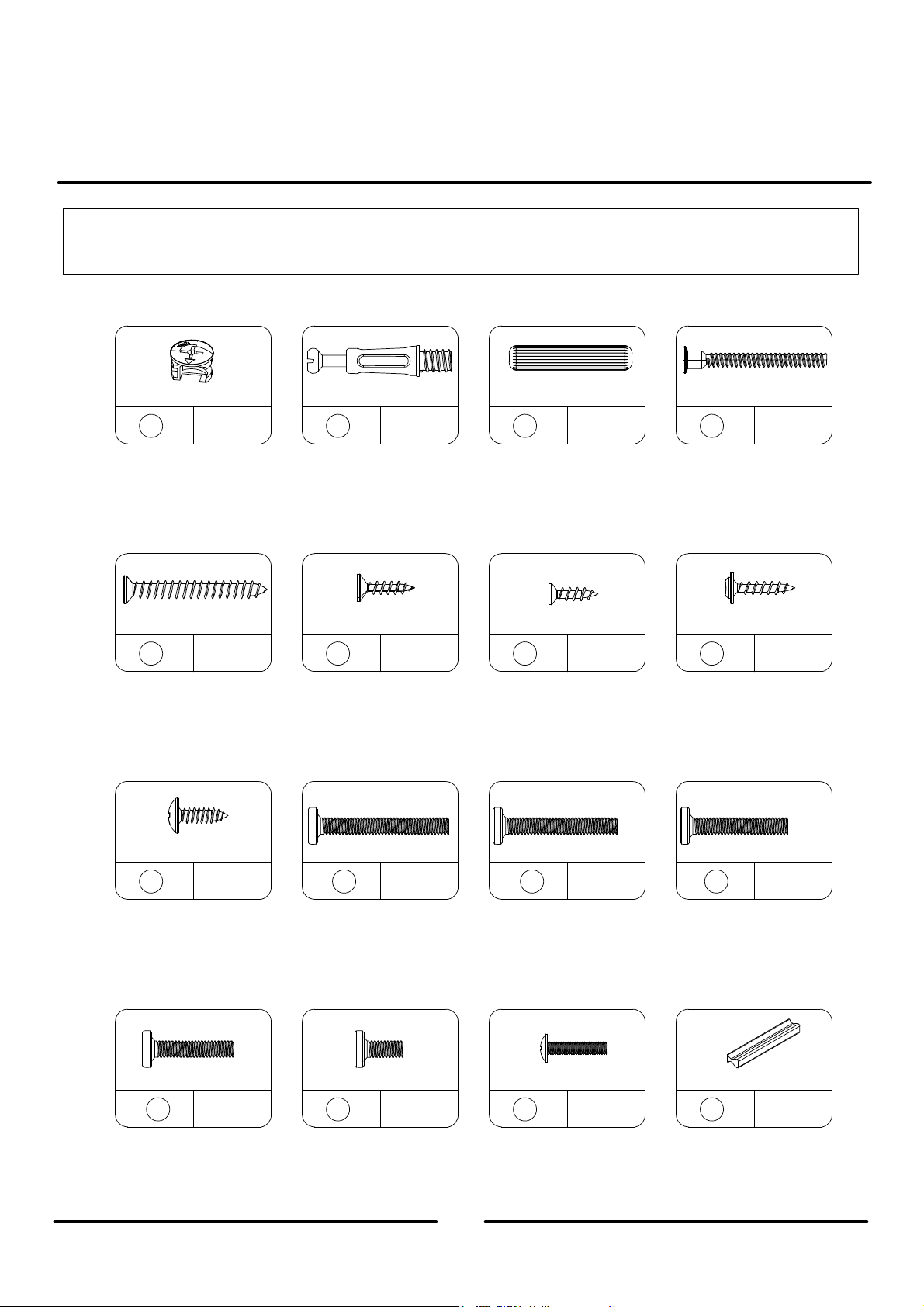

Part List
Ø15X9.5mm
1
CAM LOCK
spare:2
X20
8-38
Ø6.5X35mm
2
CAM BOLT
spare:2
X20
Ø6X30mm
3
WOODEN DOWEL
spare:3
X26
Ø6.3X50mm
4
SCREW
spare:1
X8
Ø4X40mm
5
SCREW
spare:3
X26
Ø3.5X14mm
6
SCREW
spare:2
X24
Ø3X12mm
7
SCREW
spare:1
X2
Ø3X14mm
8
SCREW
spare:2
X15
Ø4X12mm
9
SCREW
spare:1
X2
M6X40mm
X2
M6X35mm
X7
BOLT
spare:1
X10
BOLT
spare:1
BOLT
spare:1
14
BOLT
spare:1
X8
BOLT
spare:1
X4
BOLT
spare:1
X10
M6X30mm
M6X25mm
HANDLE
X2
110X10X16mm
10 11 12
13
M4X18mmM6X12mm
15 16
9-38

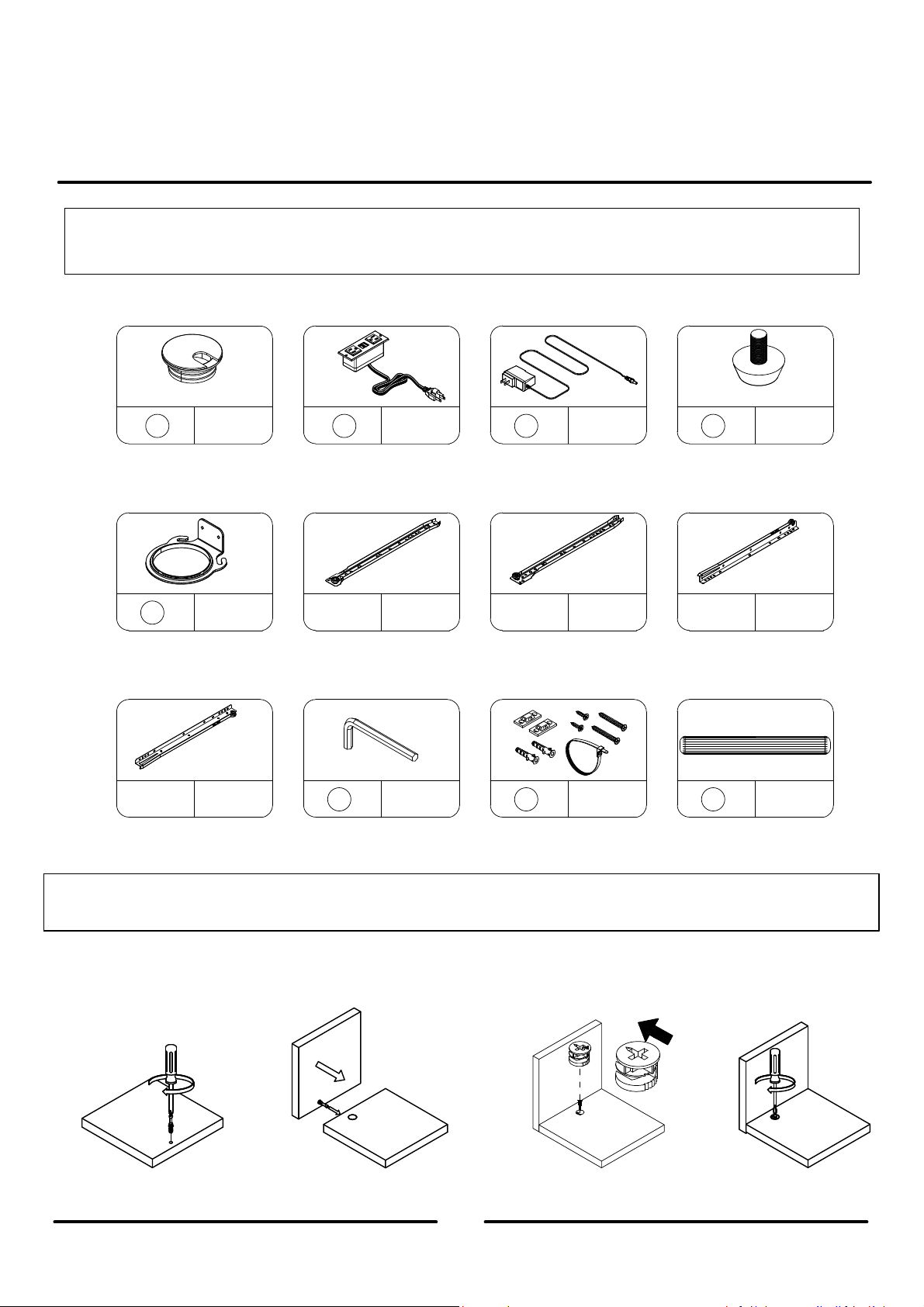

Part List
Ø35mm
GROMMET
X1
PLUG BOARD
X1 19
THE POWER PLUG
X1 20
LEVELER
21
HAIR DRYER RACK
X1 22CL
LEFT CABINET MEMBER
X2 22CR
RIGHT CABINET MEMBER
X2
350mm
14"14"
350mm 350mm
22DL
LEFT DRAWER RUNNER
X2
350mm
22DR
RIGHT DRAWER RUNNER
X2
14"
14"
1817
24 X1 set
X4
(Ø25)M6X25mm
23
HEX KEY
X1
Insert the cam bolt into the hole first, then insert the cam lock and lock it.
13
24
Cam Lock Fastening System
The opening must point toward the
edge of the board
ANTI-TIPPING HARDWARE
25 X2
WOODEN DOWEL
spare:1
4X65mm
X4

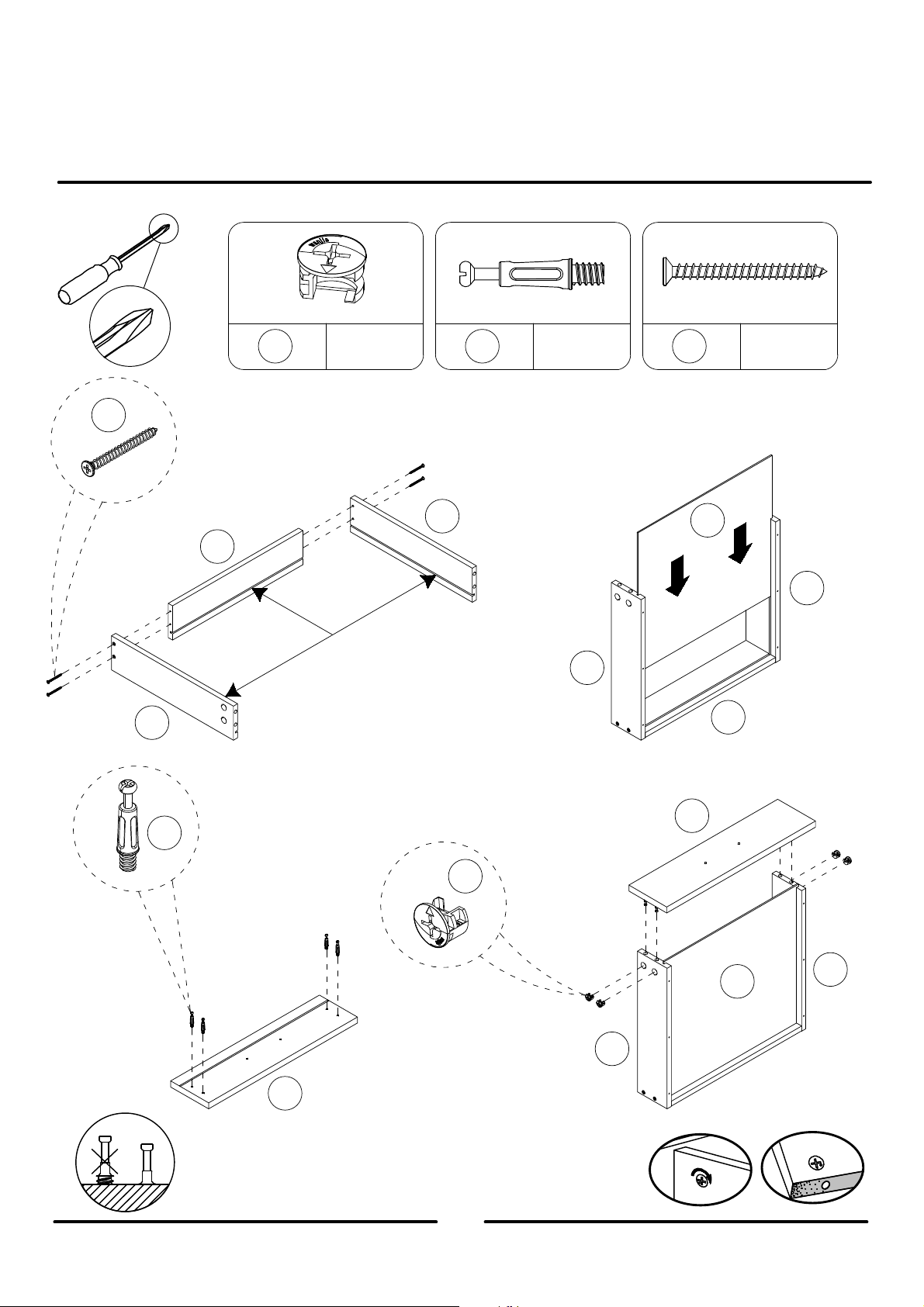

STEP1
10-38
1X4
Ø15X9.5mm
2
Proper orientation of CAM LOCK
UNLOCK
LOCK
Ø6.5X35mm
GROOVE
O
M
N
N
M
O
P
K
K
P
M
N
5
X4
5
Ø4X40mm
2
1
