V-tech DJ Jazz 'n Jam User manual

USER’S MANUAL

LITTLE SMART

91-01326-000

Printed in China

Dear Parent:

At VTech®we know that a child has the ability to do great

things. That’s why all of our electronic learning products

are uniquely designed to develop a child’s mind and allow

them to learn to the best of their ability. Whether it’s learning

about letters, numbers, geography or algebra, all VTech®

learning products incorporate advanced technologies and

extensive curriculum to encourage children of all ages to

reach their potential.

When it comes to providing interactive products that

enlighten, entertain, and develop minds, at VTech®we see

the potential in every child.

INTRODUCTION

ThankyouforpurchasingtheLITTLE SMART DJ Jazz 'n Jam™learning

toy! We at VTECH®are committed to providing the best possible

products to entertain and educate your child. Should you have any

questions or concerns, please call our Consumer Services Department

at 1-800-521-2010 in the U.S. or 1-800-267-7377 in Canada.

The LITTLE SMART DJ Jazz 'n Jam™learning toy is an electronic

keyboardthatencourages children to sing along, create their own music,

enjoy fun instruments, and add exciting sound effects with the turntable,

joystick and drum pads.

JOYSTICK MICROPHONE PIANO LESSON

BUTTONS

TURNTABLE

PLAY

BUTTON

RECORD

BUTTON OFF

BUTTON

ON BUTTON

SPEAKER

DRUM

PADS

DEMO

BUTTON

VOLUME

CONTROL

SWITCH

INSTRUMENT/

MELODY KEYS

LIGHT-UP

PIANO KEYS

INCLUDED IN THIS PACKAGE

• One VTECH®LITTLE SMART DJ Jazz 'n Jam™learning toy.

• One instruction manual.

WARNING: All packing materials such as tape, plastic sheets,

wire ties and tags are not part of this toy, and should

be discarded for your child's safety.

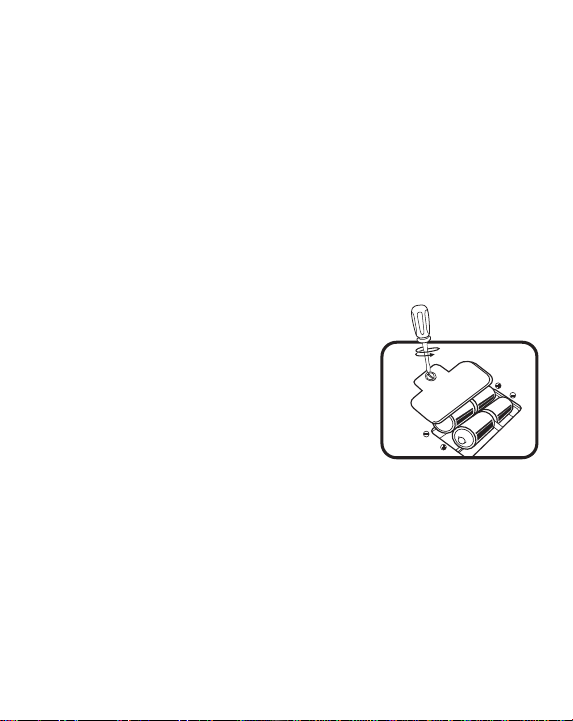

BATTERY INSTALLATION

1. Make sure the unit is turned off.

2. Locate the battery cover on the bottom of

theunit. Use a coin or screwdriver to loosen

the screw.

3. Install 4 new "C" (UM-2/LR14) batteries

followingthediagraminsidethebatterybox.

(The use of new alkaline batteries is

recommended for maximum performance.)

4. Replace the battery cover and tighten the

screw to secure the battery cover.

BATTERY NOTICE

• Install batteries correctly observing the polarity (+, -) signs to avoid

leakage.

• Do not mix old and new batteries.

• Do not use batteries of different types.

• Remove exhausted or new batteries from the equipment when the

unit will not be used for an extended period of time.

• Do not dispose of batteries in fire.

• Do not attempt to recharge ordinary batteries.

• The supply terminals are not to be short-circuited.

WE DO NOT RECOMMENDTHE USE OF RECHARGEABLE BATTERIES.

NOTE: If for some reason the program/activity stops working, then

please follow these steps:

1. Please turn the unit OFF.

2. Interrupt the power supply by removing the batteries.

3.Lettheunitstandforafewminutes,thenreplacethebatteries.

4.Turn the unit ON.The unit should now be ready to play again.

If the problem persists, please call our Consumer Services Department

at 1-800-521-2010 in the U.S. or 1-800-267-7377 in Canada, and a

service representative will be happy to help you.

TO BEGIN PLAY

1. To begin play, press the ON BUTTON. You

will hear "Get ready to rock!" followed by

an introductory melody.

Get ready to rock!

2. Press the DEMO BUTTON to hear a sample of

the product's features.

3. Slide the VOLUME CONTROL SWITCH to

adjust the volume of the unit. Slide the

switch up to increase the volume or slide

the switch down to decrease the volume.

4. Slide the MICROPHONE VOLUME SWITCH

to adjust the microphone volume. The

microphone will turn off when the switch

is at its lowest position. The microphone

can turn on only when it is in the upright

position.

5. Press the OFF BUTTON. You will hear a

closing melody and the unit will turn off.

AUTOMATIC SHUT-OFF

To preserve battery life, the VTECH®LITTLE SMART DJ Jazz 'n Jam™

learning toy will automatically turn off after a few minutes without input.

It can be turned on again by pressing the ON button.

ACTIVITIES

EXPLORING ACTIVITY

1. After the unit is turned on, it automatically

enters the Exploring Activity.

2. In the Exploring Activity, press any piano

key to play music.

3. Press any of the INSTRUMENT KEYS to

change the sound of the piano keys to the

instrument selected.

4. Press any DRUM PAD to hear sound

effects.

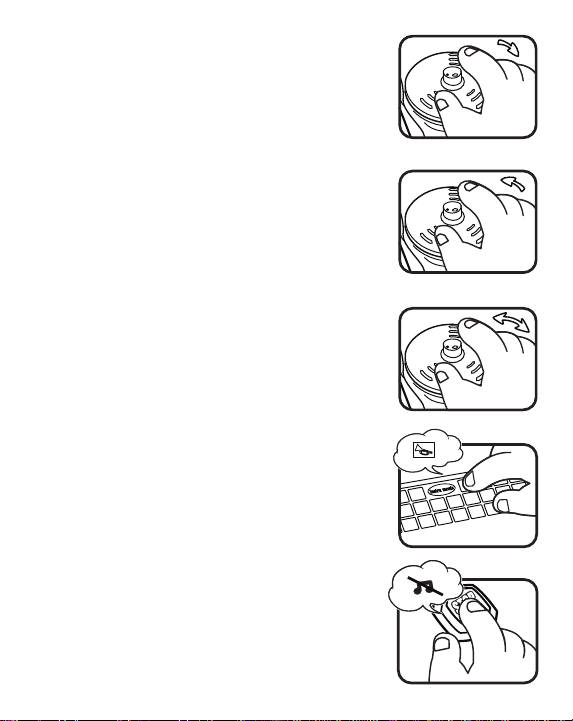

5. Rotate the TURNTABLE clockwisetoplay the

background music at a faster pace.

6. Rotate the TURNTABLE counter-clockwise

to play the music at a slower speed.

7. Rub the TURNTABLE back and forth quickly

to hear a "record scratching" sound effect.

8. Press the STOP BUTTON to stop all audio

output.

9. Move the JOYSTICK to the left or right to

hear the sound effects move from the left or

right speaker. Hold it to change the scale of

the keyboard.

10.Move the JOYSTICK backward or forward to

hear ascending or descending sound effects

move closer to you or away from you. Hold it

to change the scale of the keyboard.

EASY JAMMING ACTIVITY

1. Press a STYLE KEY to hear a phrase that

invites you to begin the Easy Jamming

Activity.The background music will start to

play.

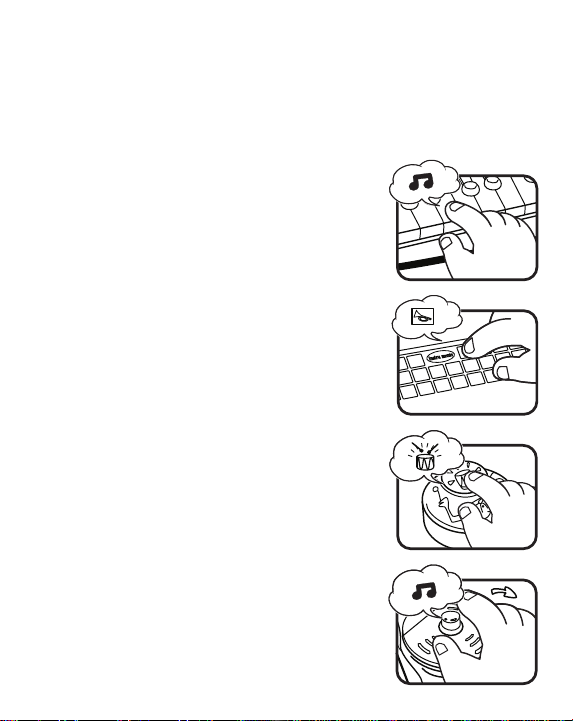

2. Press a WHITE PIANO KEY to jam in a

music loop. The key being pressed will

light up. Up to 4 music loops can be jammed

in at the same time.

3. Press the WHITE PIANO KEY to turn

off the light and stop the corresponding

music loop.

4. Press a PURPLE PIANO KEY to jam in an

additional music tune.

5. Press a DRUM PAD to jam in a drum sound

effect.

6. Slide the TURNTABLE clockwise to increase

the tempo of the music.

7. Slide the TURNTABLE counter-clockwise to

decrease the tempo of the music.

8. Rub the TURNTABLE back and forth quickly

to hear a "record scratching" sound effect.

9. Press an INSTRUMENT KEY to change the

instrument sound of the background music.

10.Press the STOP BUTTON to stop the

music.
