Urmet domus Nexo2 1708/2 Instruction manual

DS1708-007 LBT21159

Mod.

1708

KIT BIFAMILIARE 5 FILI NEXO2

NEXO2 TWO-HOUSEHOLD KIT 5-WIRE

Sch./Ref. 1708/602

V5.007 Sezione dei conduttori (Mod. 956)

Dall’unità di ripresa ai videocitofoni

Le distanze si intendono tra l’unità di ripresa

ed il videocitofono. Fino a 100 m si possono

utilizzare conduttori normali.

 Per distanze superiori, no a 200 m, i

conduttori A e B devono essere binati tra di

loro.

 Dall’alimentatoreall’unitàdiripresa

Dall’alimentatore all’unità di ripresa la massima

distanza è di 100 m.

V5.011 Collegare il conduttore per la funzione di

Autoinserzione. Eseguire in tale caso il ponticello

tra i morsetti X2 e G.

Funzione Conduttori m 50 100 200

Alim. video R1 S/mm20,5 0,75 1,5

Alim. video R2 S/mm20,5 0,75 1,5

Segnale video A S/mm20,35 0,35 0,35

binati

Segnale video B S/mm20,35 0,35 0,35

Chiamata C1 - C2 S/mm20,35 0,5 0,75

Autoinserzione AI S/mm20,35 0,35 0,35

Funzione Conduttori m 50 100 -

Alim. 12V~ ~12 S/mm20,75 1,50 -

Alim. 12V~ ~0 S/mm20,75 1,50 -

Alim. 18V +18 S/mm21,50 2,50 -

Alim. 18V R1 S/mm21,50 2,50 -

V5.007 Wire sections (Mod. 956)

 Fromtvcameraunittomonitors

Function Wires m 50 100 200

Video power supply

R1 S/mm20,5 0,75 1,5

Video power supply

R2 S/mm20,5 0,75 1,5

Video signal A S/mm20,35 0,35 0,35

twisted

Video signal B S/mm20,35 0,35 0,35

Call C1 - C2 S/mm20,35 0,5 0,75

Self-insertion call

AI S/mm20,35 0,35 0,35

Distances are between the TV camera unit and

the last monitor.

Up to 100 m it is possible to use normal

wires;forlongerdistances,upto200m,twist

the wires A and B.

Frompowersupplytotvcameraunit

Function Wires m 50 100 -

Power supply 12V~

~12 S/mm20,75 1,50 -

Power supply

12V~

~0 S/mm20,75 1,50 -

Power supply

18V +18 S/mm21,50 2,50 -

Power supply

18V R1 S/mm21,50 2,50 -

The maximum distance from power unit to

camera is 100 m.

V5.011 Connect the wire for Self-insert function.

In this case make a jumper between terminals X2

and G.

NOTE LEGATE AGLI SCHEMI NOTES ON DIAGRAMS

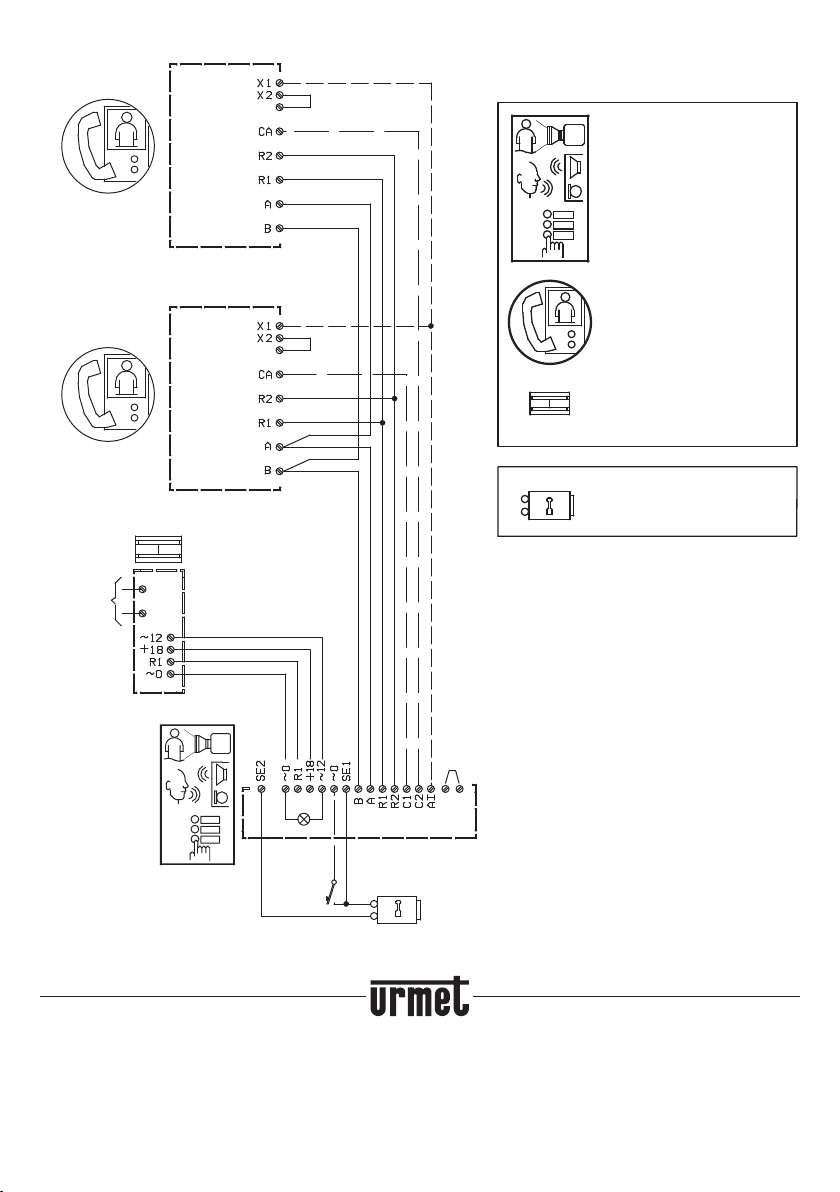

SCHEMADICOLLEGAMENTO-CONNECTION DIAGRAM

V5.006- Ladistanzamassimafraidue 

 dispositiviè50metri.

V5.006- Themaximumdistancebetween 

 devicesis50metres.

DS1708-007 LBT21159

Area tecnica

servizio clienti +39 011.23.39.810

http://www.urmet.com

e-mail: [email protected]

1708/2 - MADE IN CHINA

1708/955 - MADE IN CHINA

956/125 - MADE IN ITALY

956/110 - MADE IN ITALY

URMET S.p.A.

10154 TORINO (ITALY)

VIA BOLOGNA 188/C

Telef. +39 011.24.00.000 (RIC. AUT.)

Fax +39 011.24.00.300 - 323

(V5.011)

(V5.006)

(V5.011)

4 F

~230

MAINS~

RETE ~

Azionamento

Serratura

Release

Door

POWER SUPPLY INCLUDED

VIDEO OUTDOOR

STATION

VIDEO DOOR PHONE 1 - 2

DISPOSITIVI / DEVICES

VIDEOCITOFONO 1 - 2

VIDEOPORTIERE

ELETTRICO

Mod. Nexo2

Mod.Smyle

ALIMENTATORE A CORREDO

ELECTRIC LOCK

SERRATURA ELETTRICA

12 Vca/15 VA
