Ubiquiti UniFi UAS-XG User manual
10G Rack-Mountable
Application Server
Model: UAS-XG
Introduction
Thank you for purchasing the Ubiquiti® UniFi® Application
Server. This Quick Start Guide is designed to guide you
through installation and also includes warrantyterms.
Package Contents
UniFi Application Server
Rack-Mount Brackets
(Qty. 2)
Bracket Screws
(Qty. 8)
Mounting Screws
(Qty. 4)
10GRack-Mountable
ApplicationServer
Model:UAS-XG
Cage Nuts
(Qty. 4)
Power Cord U Logo Stickers
(Qty. 2)
Quick Start Guide
System Requirement
Web Browser: Google Chrome (Other browsers may have
limited functionality.)
Network Topology Example
The UniFi Server requires a DHCP-enabled network to obtain
an IP address. Here is a sample network diagram using
thesedevices:
• UAS-XG The UniFi Application Server hosts the UniFi
Network Controller and UniFi Video software applications.
• US-16-XG Connect the 10G Ethernet ports from the
UAS-XG to the US-16-XG or other 10G-capable switches for
maximum throughput. Note that the UAS-XG’s Ethernet
ports are backwards-compatible with standard 1G ports if
10G is not available.
• USG-PRO-4 The UniFi Security Gateway Pro acts as the
DHCP server and connects to the internet.
US-16-XG
USG-PRO-4
Internet
LAN
UAS-XG
WAN
Hardware Overview

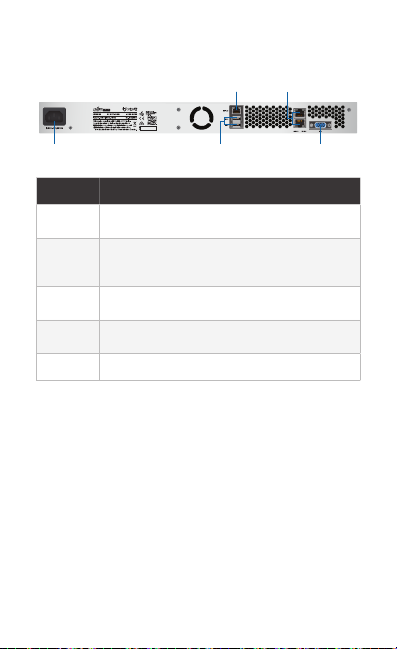

Back Panel Ports
LAN1-2
Power USB1-2 VGA
IPMI LAN
Port Description
Power Connect the included Power Cord to the Power
port.
IPMI LAN
(Optional) The dedicated RJ45 port supports
IPMI (Intelligent Platform Management
Interface) for monitoring and control.
USB1-2 (Optional) Connect USB 3.0 devices. Maximum
power per port is 5W (5V, 1A).
LAN1-2 RJ45 ports support 1/10 Gbps Ethernet
connections.
VGA (Optional) Connect a monitor for console access.
Back Panel LEDs
LAN2
Activity
LAN2
Speed
IPMI
Link
IPMI
Activity
LAN1
Activity
LAN1
Speed
IPMI LAN LEDs
LED State Status
Link
Off No Link
Amber Link Established
Activity
Off No Activity
Red Activity
LAN1/2 LEDs
LED State Status
Activity
Off No Link
Amber Flashing Indicates Activity
Speed
Off No Connection or
Link Established at 10/100Mbps
Amber Link Established at 1 Gbps
Green Link Established at 10Gbps
Front Panel LEDs
HDD1/2
LAN1/2
System
System LED
Color State Status
White Flashing Initializing
Blue Steady Functioning Properly
LAN1/2 LEDs
Color State Status
Green
Steady Link Established at 1/10 Gbps
Flashing Indicates Activity
HDD1/2 LEDs
Color State Status
Green Flashing Indicates Read/Write Activity
Amber Steady Indicates HDD Error
Front Panel Ports
USB3/4
USB3-4 (Optional) Connect USB 2.0 devices. Maximum power
per port is 5W (5V, 1A).
Front Panel Buttons
ResetPower
Button Description
Power Press to turn the UniFi Server on or off.
Reset
The UniFiServer should be running after bootup
is complete, and the System LED is blue. Press
the Reset button for a softreboot.
Front Panel HDD Bays
One 8 TB HDD is pre-installed. If you want to replace the HDD,
follow these instructions:
1. Before replacing the HDD, ensure that the UniFi Server is
powered off to prevent any software disruption.
2. To replace the HDD, press the HDD bay door.
3. Once the door is released, rotate the door and pull the
HDD bay out.
4. Replace the pre-installed HDD with another HDD (optional)
and then close the HDD bay door.
Before You Begin
Remove the labels that secure the HDD bay doors.
1. Before removing the labels, ensure that the UniFi Server is
powered off to avoid disconnecting the hard drives while
the UniFi Server is powered on.
2. Pull the white part of the label.
3. Press the HDD bay door.
4. Once the door is released, rotate the door and pull the
HDD bay out.
5. Remove the rest of the label.
6. Push the HDD bay back in and close the HDD bay door.
7. Repeat steps 2-6 for the other label.
