Ubiquiti PowerBridge M3 User manual

Carrier Class

AirMax BaseStation

Models: M3/M365/M5

Introduction

Thank you for purchasing a PowerBridge M series product. This is

a point-to-point CPE wireless device. This Quick Start Guide is for

use with the following models:

Model Operating Frequency

PowerBridge M3 3300 MHz-3700 MHz

PowerBridge M365 3650 MHz-3675 MHz

PowerBridge M5 5170-5875 MHz*

* Only 5745-5850 MHz is supported in the USA and Canada

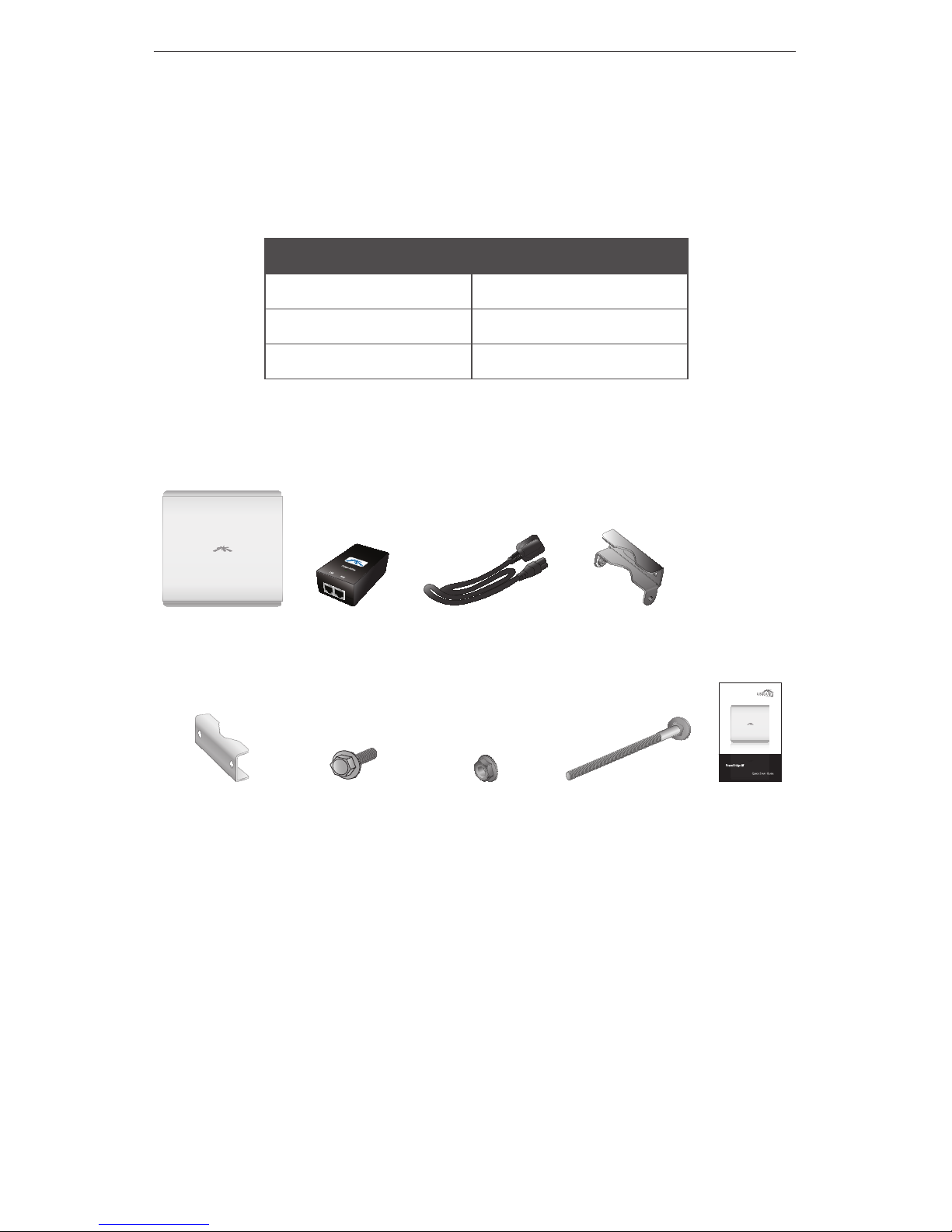

Package Contents

PowerBridge 24V PoE

Adapter

Power Cord Antenna Bracket

Clamps (Qty. 2)

Carrier Class

AirMax BaseStation

Models: M3/M365/M5

Pole Bracket

Clamps (Qty. 2)

Serrated

Flange Bolts

(Qty. 4)

Serrated Flange

Lock Nuts

(Qty. 4)

M8X135

Carriage Bolts

(Qty. 4)

Quick

Start

Guide

Installation Requirements

• Adjustable wrench or one 16 mm and one 24 mm wrench

• Flathead screwdriver

• Shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through

the AC ground of the PoE.

We recommend that you protect your networks from the

most brutal environments and devastating ESD attacks

with industrial-grade shielded Ethernet cable from Ubiquiti

Networks. For more details, visit www.ubnt.com/toughcable

PowerBridge

Hardware Installation

To install the PowerBridge, perform the following steps:

1. Use a flathead screwdriver to unlock the PowerBridge case.

Turn the screw counter-clockwise until it is loose. The screw

remains attached to the compartment.

Complia nt

RoHS

2. Lift the cover on the PowerBridge by pressing down and raising

it up. Connect an Ethernet cable. There is an opening for the

Ethernet cable. Slide the cover over the cable and secure it with

the screw.

Hardware Installation

3. Insert the M8X135 Carriage Bolts into the Antenna Bracket

Clamps.

4. Connect the Antenna Bracket Clamps to the PowerBridge using

the four Serrated Flange Bolts.

Compliant

RoHS

PowerBridge

5. Mount the PowerBridge to the pole by performing the

following steps:

a. Position the PowerBridge in the desired mounting location

on the pole.

b. Slide the Pole Bracket Clamps on to the Carriage Bolts.

c. Use the four Serrated Flange Lock Nuts to secure the

PowerBridge to the pole.

Compliant

RoHS

Hardware Installation

6. Adjust the operating angle of the PowerBridge by adjusting the

Serrated Flange Bolts on the top Antenna Bracket Clamp.

Compliant

RoHS

PowerBridge

7. Connect the other end of the Ethernet cable from the

PowerBridge to the Ethernet port labeled POE on the PoE

Adapter.

Compliant

RoHS

Hardware Installation

8. Connect an Ethernet cable from your LAN to the Ethernet port

labeled LAN on the PoE Adapter.

9. Connect the power cord to the power port on the PoE Adapter.

Connect the other end of the power cord to a power outlet.

PowerBridge

Accessing the AirOS Utility

1. Make sure that your host machine is connected to the LAN that

is connected to the PowerBridge.

2. Configure the Ethernet adapter on your host system with a

static IP address on the 192.168.1.x subnet (e.g. 192.168.1.100).

3. Launch your Web browser and type http://192.168.1.20 in the

address field and press enter (PC) or return (Mac).

4. The login screen will appear. Enter ubnt in the Username and

Password fields. Select your Country and Language. You must

agree to the Terms of Use to use the product. Click Login.

Note: U.S. product versions are locked to the U.S. Country

Code to ensure compliance with FCC regulations.

The AirOS Interface will appear allowing you to customize your

settings as needed.

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional

installer's responsibility to make sure the device is operated within

local country regulatory requirements.
