Ubiquiti LTU LR User manual

5 GHz Subscriber Station

Model: LTU-LR

Introduction

Thank you for purchasing the Ubiquiti®LTU™5 GHz Subscriber

Station. This Quick Start Guide is designed to guide you through

installation and also includes warranty terms.

Package Contents

LTU-LR Mount Bracket Pole Clamp

U-Bolt Flange Nuts

(Qty. 2)

Washers

(Qty. 2)

Gigabit PoE (24V, 0.5A)

with Mounting Bracket

Power Cord

Installation Requirements

• 13 mm wrench

• (Recommended) 2 Outdoor Gigabit PoE surge protectors

Note: For guidelines about grounding and lightning

protection, follow your local electrical regulatory

codes.

• Outdoor, shielded Category 6 (or above) cabling and

shielded RJ45 connectors are required for all wired Ethernet

connections.

Hardware Overview

Back Panel

LEDs

Reset Button

USB-C Port

Reset Button

To reset to factory defaults, press and hold the Reset button for

more than 10 seconds while the device is poweredon.

USB-C Port

Reserved for future use.

LEDs

5 GHz 5 GHz The LED will light blue when the 5GHz link

is active.

GPS GPS The LED will light blue when the GPS signal

strength is sufficient. This requires a minimum of

three satellite connections.

UNMS The center LED will light when there is a

connection to the Ubiquiti® Network Management

System (UNMS™) server.

LAN The LED will light steady blue when an active

Ethernet connection is made to the Ethernet port

and flash when there is activity.

Power The LED will light blue when the device is

connected to a power source.

Bottom Panel

Ethernet Port

Ethernet Port Gigabit PoE port for handling all user traffic

and powering the device. Default IP address: 192.168.1.20

Pole Mounting

1. Remove the lock nut.

2. Attach the Mount Bracket.

3. Replace the lock nut.

4. Insert the U-Bolt into the Pole Clamp.

25 - 60 mm

5. Insert the U-Bolt into the Mount Bracket. Secure the U-Bolt

with the Washers and Flange Nuts.

6. Aim the device, and then lock the aim by tightening the

Flange Nuts to a torque of 25 N ∙ m.

25 N∙m

Connecting Power

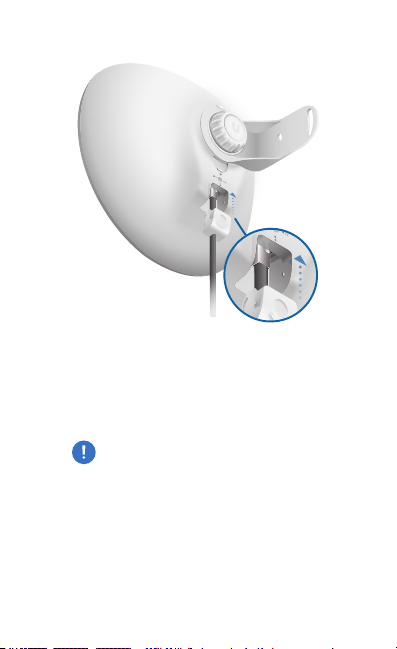

1. Remove the port cover by pressing down the center of the

cover and sliding the cover out.

2. Connect an Ethernet cable to the Ethernet port.

3. Replace the port cover.

4. Connect the power using one of the following options:

• Using the included Gigabit PoE Adapter: Go to

Connecting to the PoE Adapter.

• Using a separate PoE switch: Connect the Ethernet

cable from the device’s Ethernet port to a 24V Passive

PoE-enabled Ethernet port on the switch.

WARNING: The switch port must comply with the

power specifications listed in the Specifications

section of this Quick Start Guide.
