Ubiquiti Nano G User manual

High-Performance GPON CPE

Model: UF-Nano

Introduction

Thank you for purchasing the Ubiquiti Networks® Nano™G

High-Performance GPON CPE. This Quick Start Guide is

designed to guide you through the installation and also

includes the warranty terms.

Package Contents

NanoG Wall Mount Bracket

Screws

(Qty. 4)

Screw Anchors

(Qty. 4)

High-Performance GPON CPE

Model: UF-Nano

Gigabit PoE (24V, 0.3A)

with Mount Bracket

Power Cord Quick Start

Guide

responsibility to follow local country regulations, including operation within legal frequency

channels, output power, and indoor cabling requirements.

System Requirements

• Linux, MacOSX, or Microsoft Windows 7/8/10

• Web Browser: Google Chrome (Other browsers may have

limited functionality)

Hardware Overview

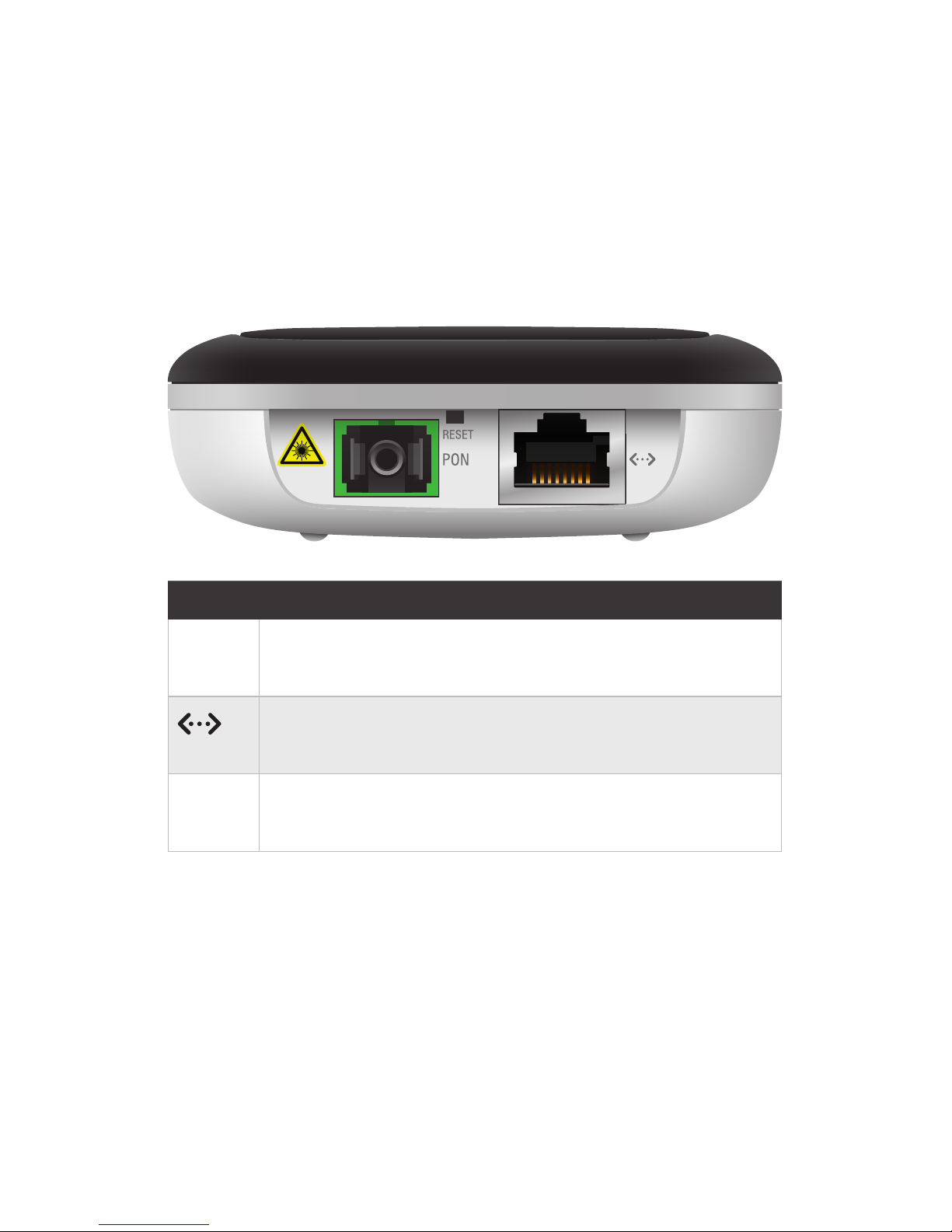

Ports

Port Description

PON SC/APC GPON port supports WAN connections of

2.488 Gbps downstream and 1.244 Gbps upstream.

RJ45 Ethernet port supports 10/100/1000 Mbps

connections and passive PoE to power the device.

RESET Press and release the Reset button to restore the

device to factory default settings.

LED Display

GPON Ethernet

Digital

Display

Power

LED State Status

Green

GPON connected and device is

integrated into a network and

working properly

Red No GPON connection. Error code is

shown on the Digital Display.

Flashing Red Device is discovered by OLT and

waiting to be integrated

Off No power, device is off

White Power on, device is on

Off No Ethernet connection

Green Ethernet is connected

Flashing Ethernet activity

Digital Display

The Digital Display shows device status and RX/TX details

of the PON connection. The Digital Display is also a physical

button. Press the display to cycle through the information.

• Mbps Displays the active download (RX) and upload (TX)

speeds of the PON connection.

• dBm Displays the RX and TX power of the PON connection.

Note: If the GPON LED lights red, a malfunction or

error with the PON connection exists. Check and test

the fiber optic cable to ensure proper operation.

• GB Displays the total aggregate data sent downstream and

upstream through the PON connection. The counter can be

reset using the UFiber Configuration Interface.

• IP Displays the PON (LAN) IP address.

• Time Only shown when the time is synced correctly from

the servers. Enable or disable the time display using the

UFiber Configuration Interface.

*640-00254-04*

640-00254-04

Hardware Installation

The NanoG can be mounted on a wall or placed on a desktop.

WARNING: To reduce the risk of fire or electric shock, do

not expose the NanoG to rain or moisture.

Wall Mounting

1. Use the Wall Mount Bracket as a template and drill four

6mm holes as shown below.

40 mm

2. Insert a Screw Anchor into each hole, and then fasten the

Wall Mount Bracket using four Screws.

3. Mount the NanoG by inserting the top of the NanoG into

the Mount Bracket and then pivot the bottom into the

bracket until it locks into place.

Connecting Fiber

Connect the fiber optic cable from the Passive Optical Network

to the PON port.

Connecting Power

1. Connect an Ethernet cable to the LAN port.

2. Connect the power using one of the following options:

• Using the included Gigabit PoE Adapter: Go to

“Connecting to the PoE Adapter”.

• Using a separate PoE switch: Connect the Ethernet

cable from the Nano G to a PoE-enabled Ethernet port

on the switch.

WARNING: The PoE switch must comply with the

power specifications listed in the Specifications

section of this Quick Start Guide.
