Ubiquiti AirVision-C User manual

Network Video Recorder

Model: airVision-C

Introduction

Thank you for purchasing the Ubiquiti Networks™airVision™NVR,

model airVision-C. This Quick Start Guide is designed to guide you

through the installation of the airVisionNVR and show you how

to configure airVision Controller using the airVision Setup Wizard.

This Quick Start Guide also includes the warranty terms.

Package Contents

airVision NVR Vertical Support Stand

Power Adapter

(19V, 3.42A)

Power Cord

Network Video Recorder

Model: airVision-C

Magnetic Rubber Feet

(Qty. 4)

Quick Start Guide

follow local country regulations, including operation within legal frequency channels, output power,

indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.

airVision™NVR Quick Start Guide

Hardware Overview

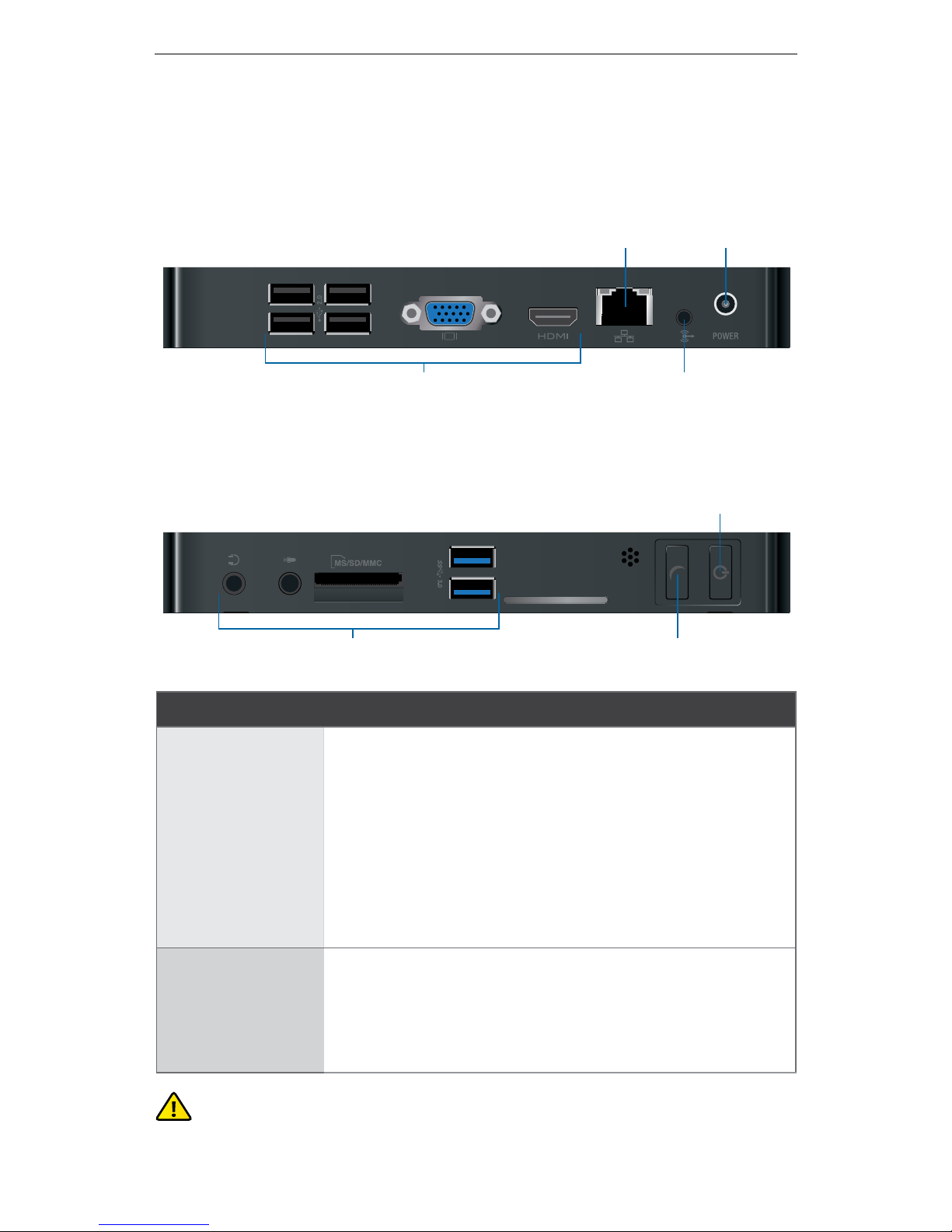

Back Panel

10/100/1000

Ethernet

Not used

Power

Not used by airVision

Front Panel

Reset Button

Power Button

Not used by airVision

Interface Description

Power Button

Powers ON or OFF the airVision NVR

• Power ON Press the Power button to turn on the

airVision NVR and start all services.

• Soft Power OFF Briefly press the Power button

to stop all services and safely shut down the

airVision NVR.

• Hard Power OFF Press and hold the Power

button to immediately turn off the airVision NVR.

Reset Button

Resets the airVision NVR to factory defaults. The

airVision NVR must be fully booted and running.

Press and hold the Reset button for about 10

seconds. The airVision NVR will automatically reboot

with default settings.

WARNING: Resetting the airVision NVR erases all recordings and

configuration settings.

Hardware Overview

Hardware Installation

The small form factor of the airVision NVR allows it to be placed

vertically or horizontally on any flat surface.

Vertical Placement

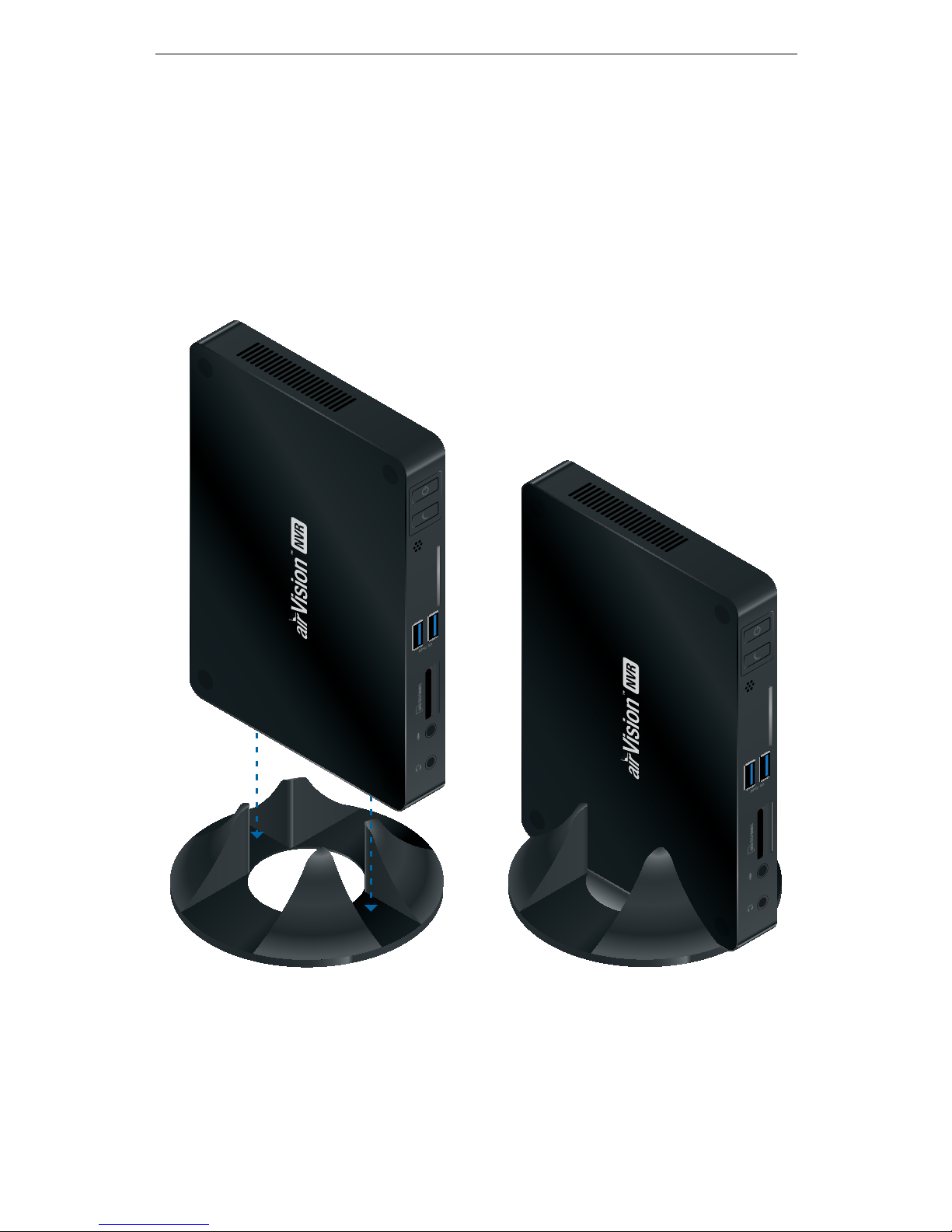

Place the airVision NVR in the narrow opening of the Vertical

Support Stand.

airVision™NVR Quick Start Guide

Horizontal Placement

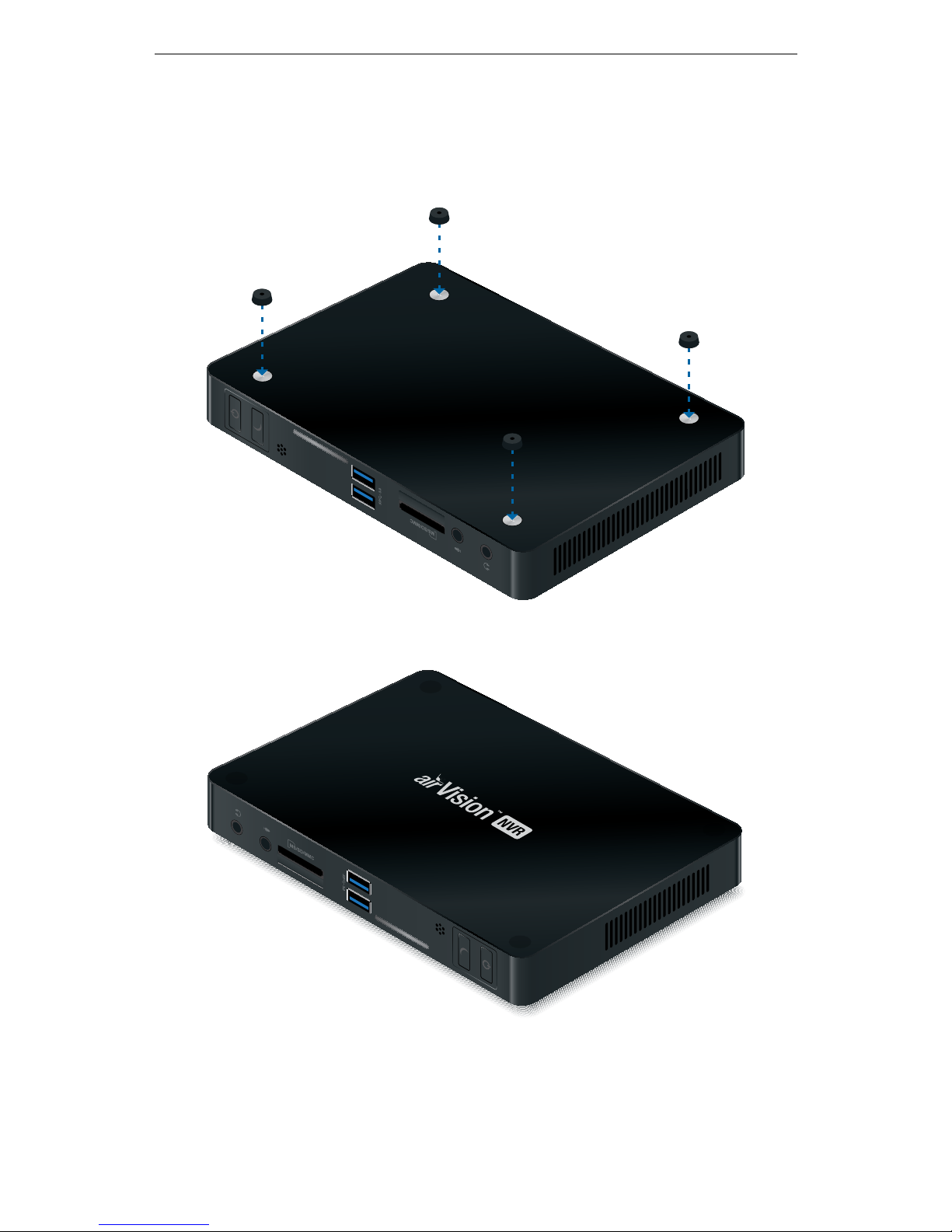

Place the four Magnetic Rubber Feet on the bottom of the

airVisionNVR case.

Connecting the airVision NVR

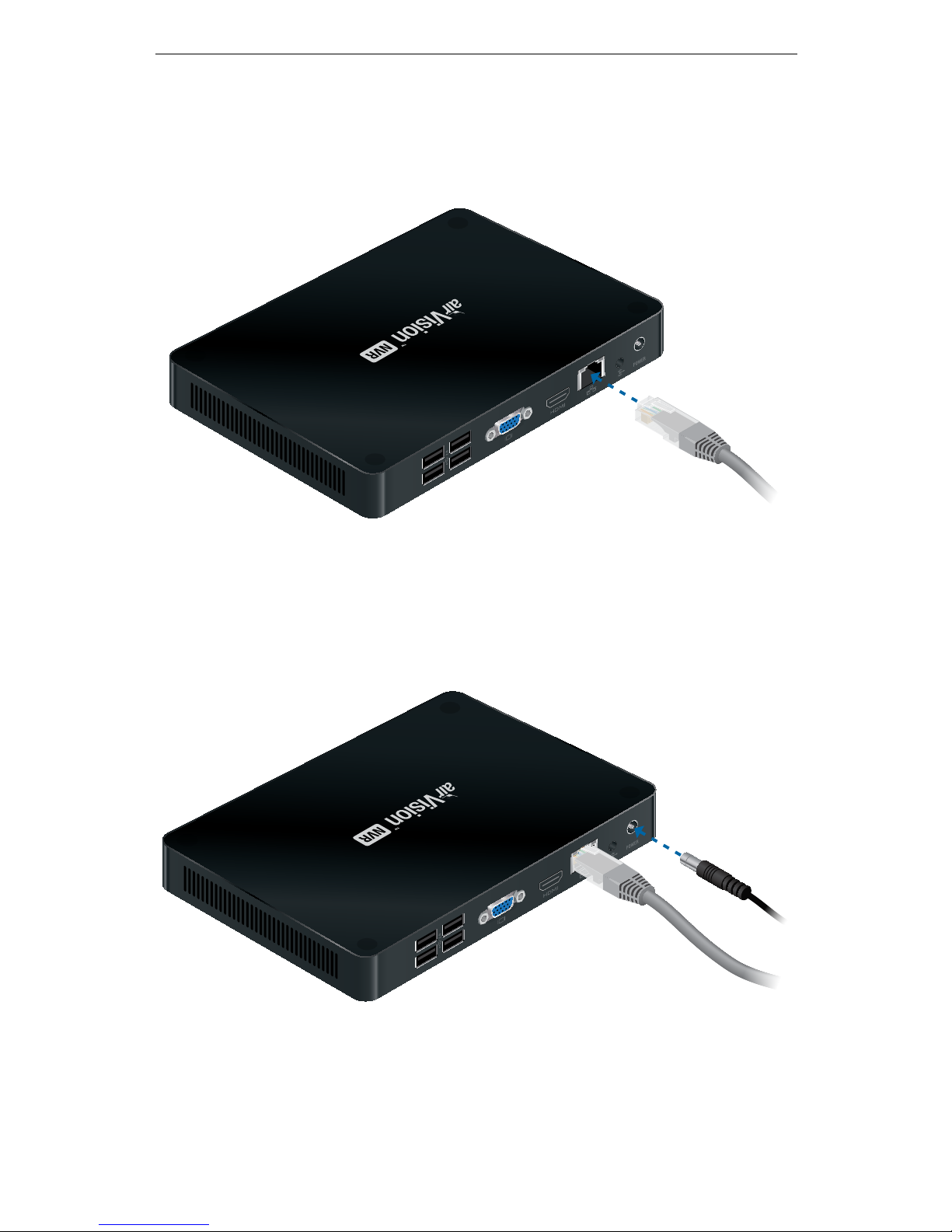

1. Connect an Ethernet cable from your LAN to the Ethernet port.

2. Connect the Power Adapter to the Power port.

airVision™NVR Quick Start Guide

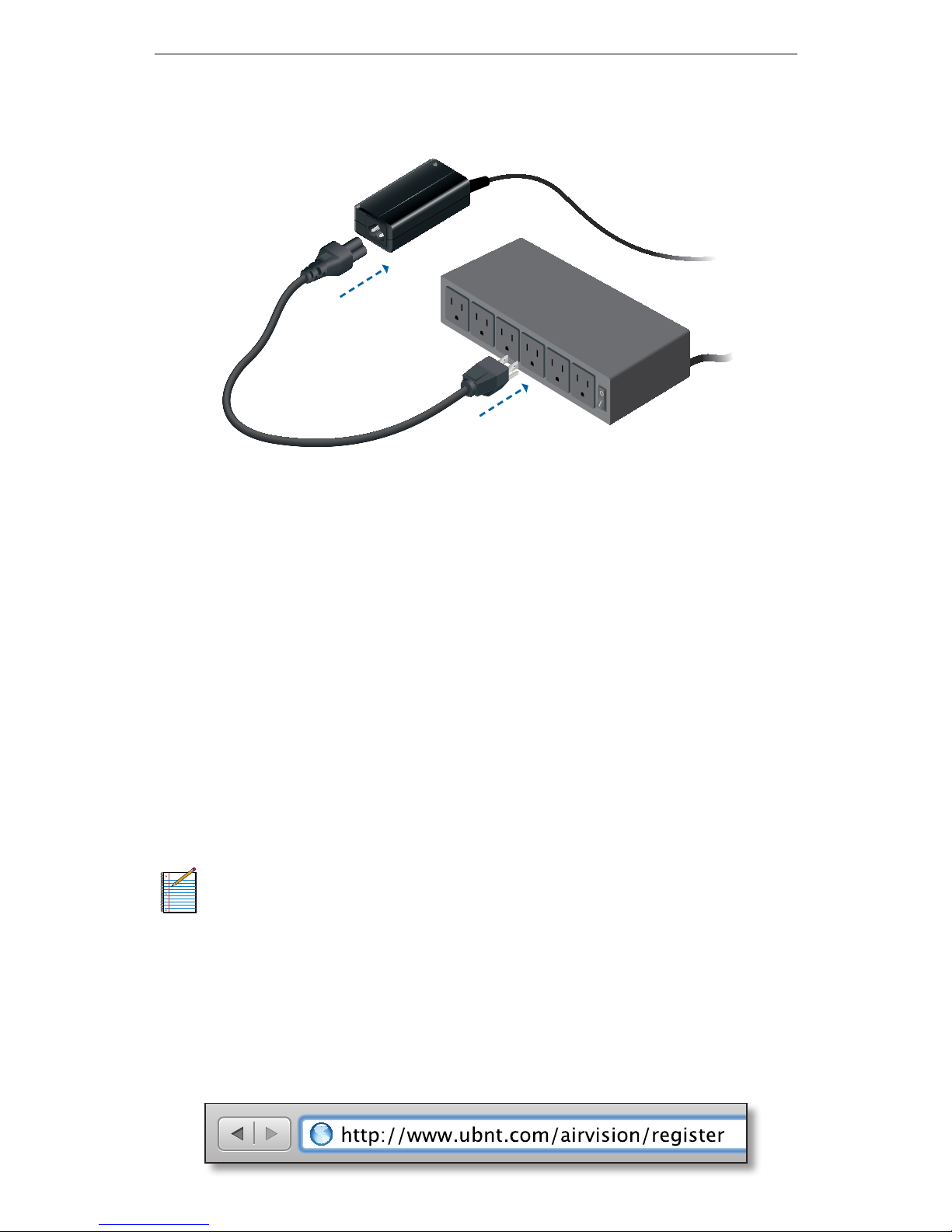

3. Connect the Power Cord to the Power Adapter. Connect the

other end of the Power Cord to a power outlet.

Accessing the airVision Configuration Portal

The airVision Configuration Portal is accessed by using a web

browser. There are three different ways to access the portal:

• airVision Online Registration The simplest method for airVision

NVRs connected to a DHCP-enabled LAN with Internet access.

• Ubiquiti Device Discovery Tool For users with a DHCP-enabled

LAN that do not wish to register or do not have Internet access.

• Direct Connection to airVision NVR Allows you to configure

the airVision NVR by connecting it directly to your computer via

Ethernet.

airVision Online Registration

Note: The airVision NVR must be connected to a

DHCP-enabled LAN that has Internet access.

1. Press the Power button on the airVision NVR, and wait about

one minute for it to fully boot up and start all services.

2. Launch a web browser from a computer connected to the

same LAN. Type http://www.ubnt.com/airvision/register in

the address field. Press enter (PC) or return (Mac).

Accessing the airVision Configuration Portal

3. After registering the airVision NVR, the web browser will be

automatically redirected to the Configuration Portal.

4. Go to Configuring the airVision Controller on page 9.

Ubiquiti Device Discovery Tool

If it is not already installed, download the Ubiquiti Device

Discovery Tool (v2.3.1) at www.ubnt.com/download#app

1. Press the Power button on the airVision NVR, and wait about

one minute for it to fully boot up and start all services.

2. Launch the Ubiquiti Device Discovery Tool.

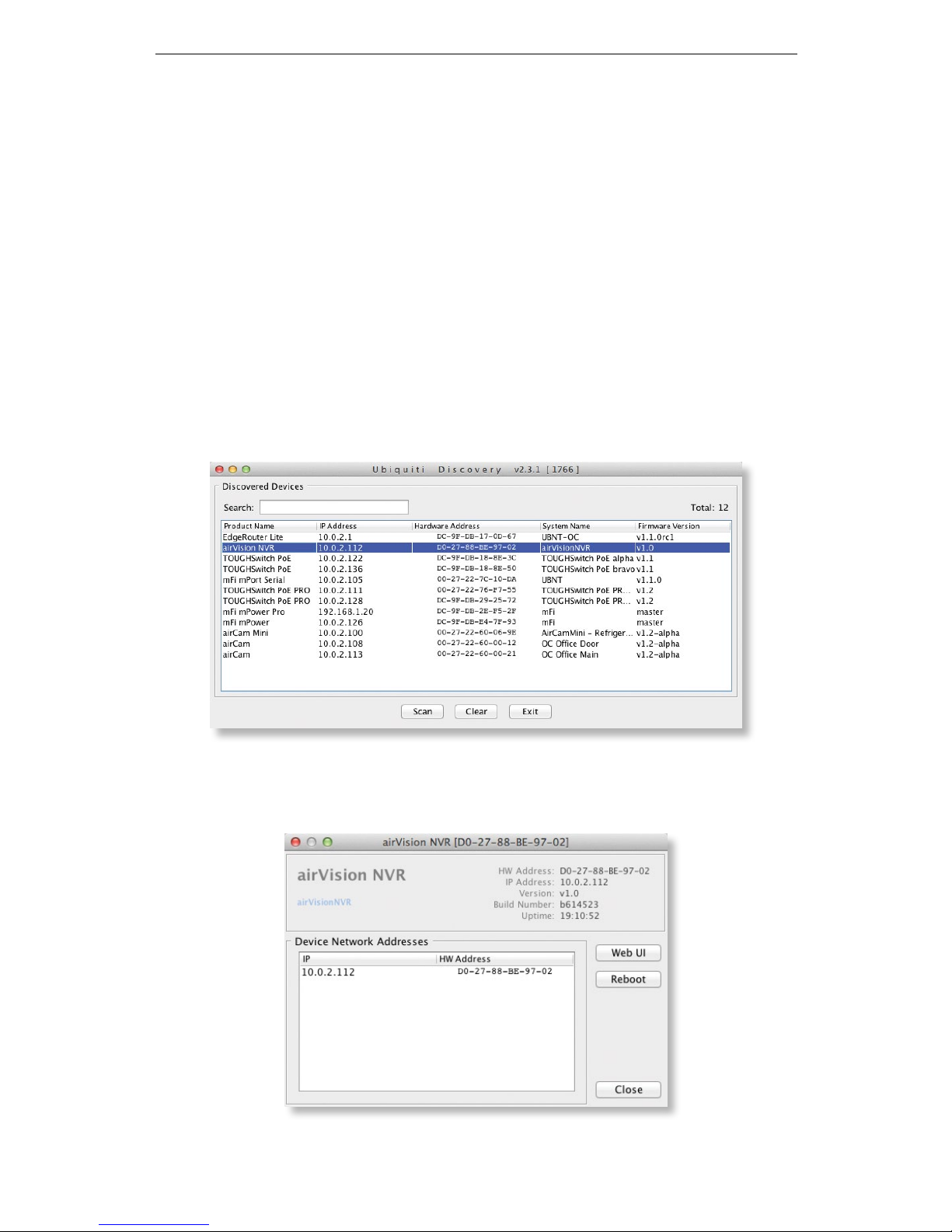

3. A list of Ubiquiti devices on the network will appear. Locate

airVision NVR under Product Name and double-click it.

4. Click Web UI on the right.

5. Go to Configuring the airVision Controller on page 9.

airVision™NVR Quick Start Guide

Direct Connection to airVision NVR

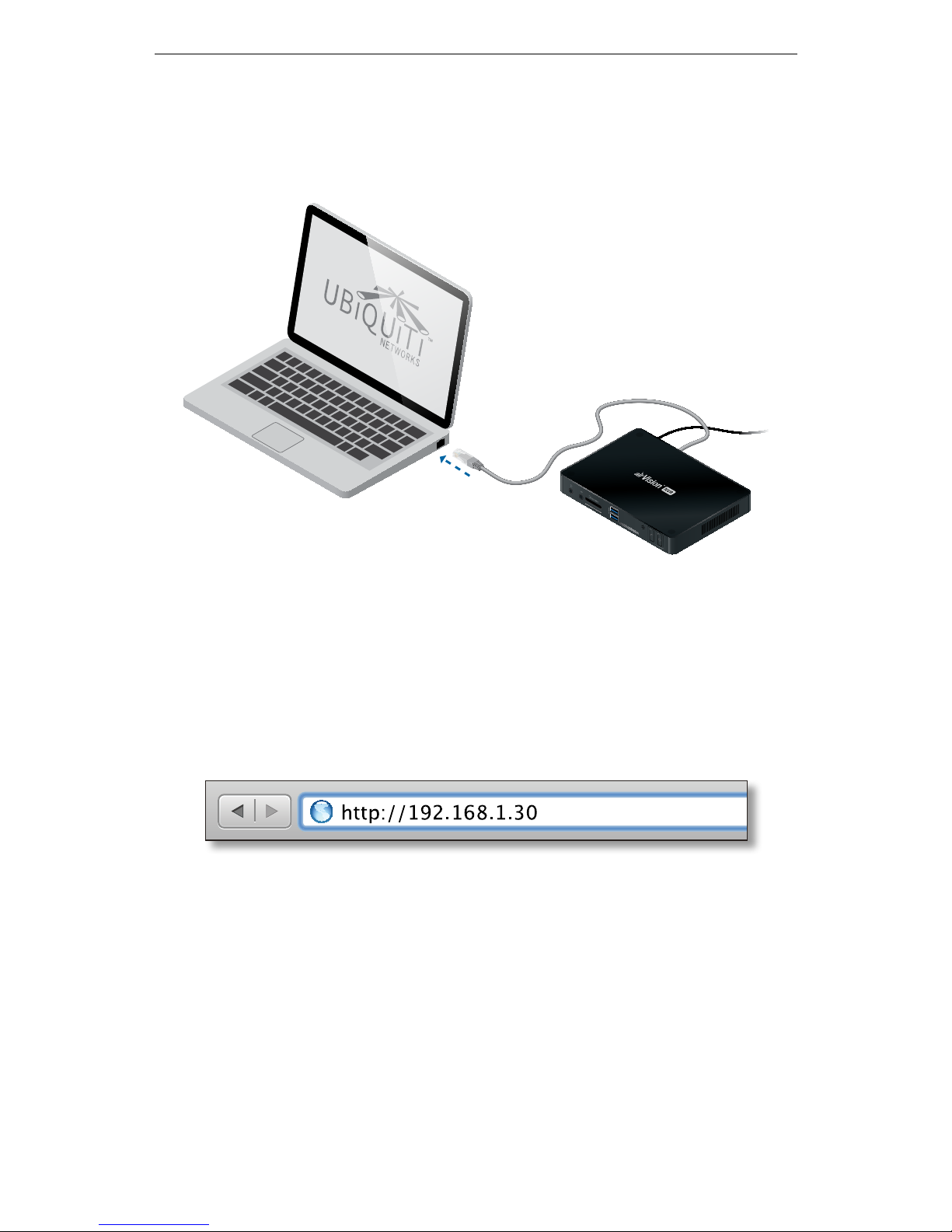

1. Connect the Ethernet cable from the airVision NVR directly to

your computer.

2. Press the Power button on the airVision NVR, and wait about

one minute for it to fully boot up and start all services.

3. Configure the Ethernet adapter on your computer with a static

IP address on the 192.168.1.x subnet.

4. Launch a web browser and type http:// 192.168.1.30 in the

address field. Press enter (PC) or return (Mac).
