Instruction Sheet

PRO- CRIMPER* III Hand

Crimping Tool Assembly 58593- 1 408--4351

LOC B

1of 6

E2010 Tyco Electronics Corporation, Harrisburg, PA

All International Rights Reserved

TE logo and Tyco Electronics are trademarks.

*Trademark. Other products, logos, and company names used are the property of their respective owners.

TOOLING ASSISTANCE CENTER 1--800--722--1111

PRODUCT INFORMATION 1--800--522--6752

This controlled document is subject to change.

For latest revision and Regional Customer Service,

visit our website at www.tycoelectronics.com

05 JAN 10 Rev Awith Die Assembly 58593- 2

PROPER USE GUIDELINES

Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume

applications. A wide selection of powered application equipment for extended--use, production operations is available.

Stationary Jaw

Back of Tool

(Wire Side)

Pivot Pin

PRO--CRIMPER III Hand

Crimping Tool Frame

354940--1 (408--9930)

Stationary Handle

Moving Handle

Locator Assembly

(Supplied with

Die Assembly)

Front of Tool

(Locator Side)

Die Assembly

Moving Jaw

Ratchet Adjustment Wheel

The PRO--CRIMPER III Hand Crimping Tool is a “Commercial” grade hand

tool and is designed primarily for field installation, repair, maintenance work, or

prototyping in industrial, commercial, or institutional applications. Product

crimped with this tool will meet the crimp height requirement for hand tools in

the appropriate 114 series specification, but may not comply with other feature

parameters of the specification. Tyco Electronics offers a variety of tools to

satisfy your performance requirements. For additional information, contact the

Tooling Assistance Center at 1--800 --722--1111.

Wire

Die Assembly Locator Assembly{Contact

Family}Size

(mm2)

Insul Dia

(mm [in.])

Strip Length

(mm [in.])

Power

1.5 1.88

[.074] 3.91 -- 4.70

58593--2 58515--4

Quadlok 2.5 3.00

[.118]

[.154 -- .185]

{Supplied with die assembly, also available separately.

}Contact the Tooling Assistance Center or Product Information (see below) for specific contact part numbers.

Figure 1

1. INTRODUCTION

PRO--CRIMPER III Hand Crimping Tool Assembly

58593--1 consists of Die Assembly 58593--2 and

PRO--CRIMPER III Hand Crimping Tool Frame

354940--1. The die assembly consists of crimping

dies and a locator assembly.

Reasons for revision can be found in Section 11,

REVISION SUMMARY.

Read these instructions thoroughly before crimping

any contacts.

Dimensions on this sheet are in millimeters [with

inch equivalents provided in brackets]. Figures

and illustrations are for identification only and are

not drawn to scale.

2. DESCRIPTION (Figures 1 and 2)

The tool features a tool frame with a stationary jaw

and handle, a moving jaw, a moving handle, and an

adjustable ratchet that ensures full contact crimping.

The tool frame holds a die assembly with two

crimping sections.

NOTE

408- 4351

PRO- CRIMPER III Hand Crimping Tool Assembly 58593- 1

Rev A2 of 6 Tyco Electronics Corporation

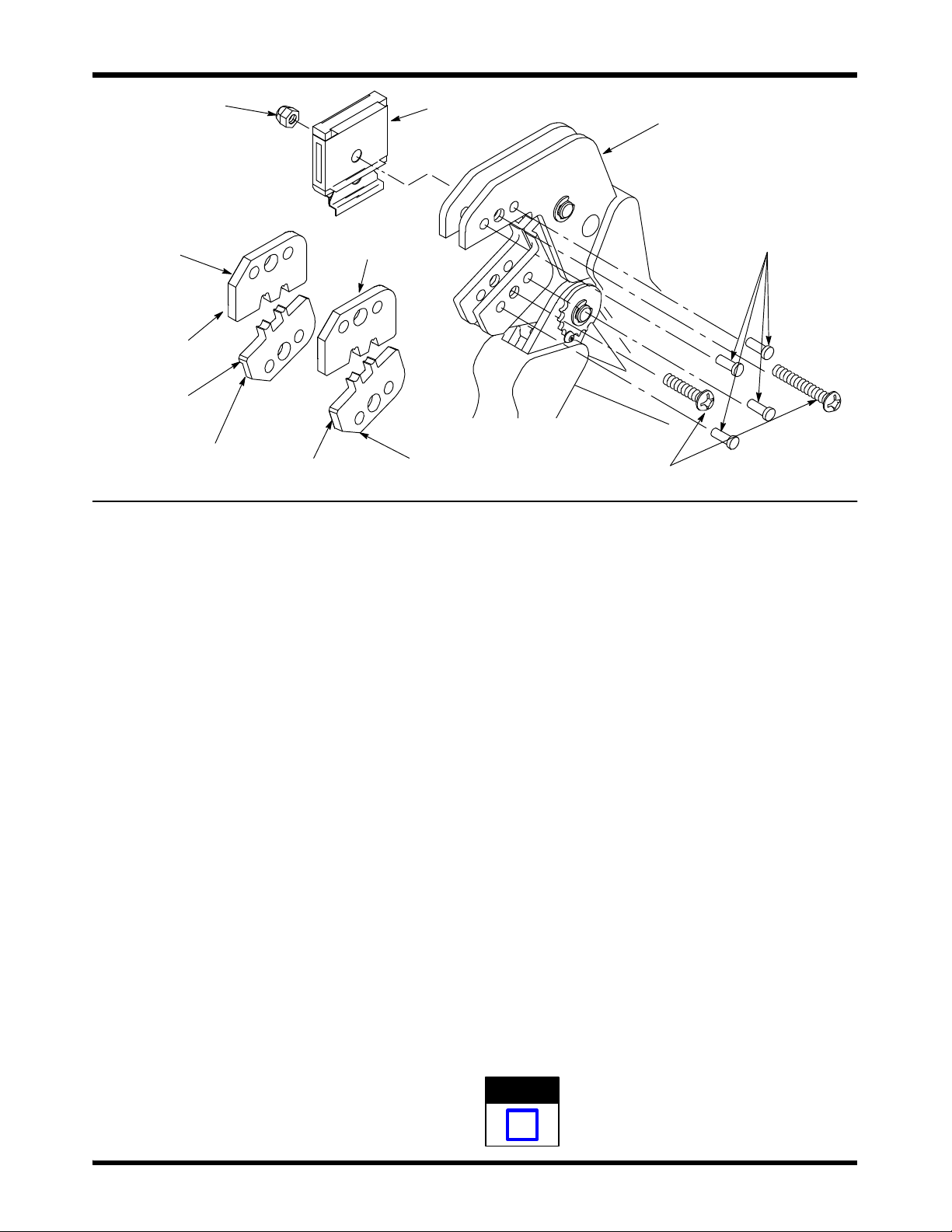

Figure 2

Nut Locator

Assembly Tool Frame

Die Retaining Pins

Die Retaining Screws

Chamfer

Insulation Anvil

Wire Anvil

Offset

Wire Crimper

Chamfer

Insulation

Crimper

The die assembly features a wire anvil, an insulation

anvil, a wire crimper, and an insulation crimper.

Attached to the outside of the frame is a locator

assembly, which contains a locator, a spring retainer,

and a contact support.

Die retaining pins and die retaining screws are used

to position and secure the dies in the tool frame. A

nut is used on the upper die retaining screw to hold

the locator assembly in place.

3. INSTALLATION AND REMOVAL OF DIE SET

AND LOCATOR ASSEMBLY (Figure 2)

1. Open the tool handles and remove the two die

retaining screws from the tool jaws.

2. Place the wire anvil and insulation anvil so that

their chamfered sides and their marked surfaces

face outward, when mounted in the moving jaw of

the tool frame.

3. Insert the two die retaining pins.

4. Insert the short die retaining screw through the

jaw and through both anvil dies, and tighten the

screw just enough to hold the dies in place. Do not

tighten the screw completely at this time.

5. Place the wire crimper and insulation crimper so

that their chamfered sides and their marked

surfaces face outward, when mounted in the

stationary jaw of the tool frame.

6. Insert the two die retaining pins.

7. Insert the long die retaining screw through the

jaw and through both crimper dies, and tighten the

screw just enough to hold the dies in place. Do not

tighten the screw completely at this time.

8. Carefully close the tool handles, making sure

that the anvils and crimpers align properly.

Continue closing the tool handles until the ratchet

in the tool frame has engaged sufficiently to hold

the anvils and crimpers in place, then tighten both

die retaining screws.

9. Place the locator assembly over the end of the

long screw, and position the locator assembly

against the side of the tool jaw.

10. Place the nut onto the end of the long screw

and tighten the nut enough to hold the locator

assembly in place, while still allowing the locator to

slide up and down.

11. To disassemble, close the tool handles until the

ratchet releases, remove the nut, the locator

assembly, the two die retaining screws, and the

four die retaining pins, and slide the anvils and

crimpers out of the tool jaws.

4. CONTACT SUPPORT ADJUSTMENT (Figure 3)

The contact support is preset prior to shipment,

but minor adjustment may be necessary.

NOTE

408- 4351

PRO- CRIMPER III Hand Crimping Tool Assembly 58593- 1

3of 6Rev ATyco Electronics Corporation

1. Make a sample crimp and determine if the

contact is straight, bending upward, or bending

downward.

2. If adjustment is required, loosen the screw that

holds the contact support onto the locator

assembly.

The ratchet has detents that create audible clicks

as the tool handles are closed.

3. Place a contact with wire into the proper nest

and close the tool handles until the ratchet reaches

the sixth click, or until the contact support touches

the contact.

4. Slightly loosen the nut that holds the locator

assembly onto the tool frame.

5. Move the contact support as required to

eliminate the bending of the contact.

6. Tighten the nut and close the handles until the

ratchet releases.

7. Remove and inspect the contact.

8. Make another sample crimp. If the contact is

straight, tighten the contact support screw. If the

contact is still being bent during crimping, repeat

the adjustment procedure.

5. CRIMPING PROCEDURE

This tool is provided with a crimp adjustment

feature. Initially, the crimp height should be

verified as specified in Figure 4. Refer to Section

6, CRIMP HEIGHT INSPECTION, and Section 7,

RATCHET (Crimp Height) ADJUSTMENT, to

verify crimp height before using the tool to crimp

desired contacts and wire sizes.

Refer to the table in Figure 1 and select wire of the

specified size and insulation diameter. Strip the wire

to the length indicated in Figure 1, taking care not to

nick or cut wire strands. Select an applicable contact

and identify the appropriate crimp section according

to the wire size markings on the tool. Refer to

Figure 3 and proceed as follows:

1. Hold the tool so that the back (wire side) is

facing you. Squeeze tool handles together and

allow them to open fully.

2. Holding the contact by the mating end, insert the

contact — insulation barrel first — through the front

of the tool and into the appropriate crimp section.

3. Position the contact so that the mating end of

the contact is on the locator side of the tool, and so

that the open “U” of the wire and insulation barrels

must face the top of the tool. Place the contact up

into the nest so that the movable locator drops into

the slot in the contact. Refer to Figure 3. Butt the

front end of the wire barrel against the movable

locator.

Make sure that both sides of the insulation barrel

are started evenly into the crimping section. Do

NOT attempt to crimp an improperly positioned

contact.

Figure 3

Adjustment

Screw for

Contact

Support

Contact

Support Locator

Back of Tool

(Wire Side)

Wire

Contact

(Typ) Strip Length

Wire Inserted

to Stop

Locator in Wire

Stop Slot

NOTE

CAUTION

408- 4351

PRO- CRIMPER III Hand Crimping Tool Assembly 58593- 1

Rev A4 of 6 Tyco Electronics Corporation

4. Hold the contact in position and squeeze the

tool handles together until ratchet engages

sufficiently to hold the contact in position. Do NOT

deform insulation barrel or wire barrel.

5. Insert stripped wire into contact insulation and

wire barrels until it is butted against the wire stop,

as shown in Figure 3.

6. Holding the wire in place, squeeze tool handles

together until ratchet releases. Allow tool handles

to open and remove crimped contact.

The crimped contact may stick in the crimping

area, but the contact can be easily removed by

pushing downward on the top of the locator (see

Figure 3)

7. Check the contact’s crimp height as described in

Section 6, CRIMP HEIGHT INSPECTION. If

necessary, adjust the crimp height as described in

Section 7, RATCHET ADJUSTMENT.

6. CRIMP HEIGHT INSPECTION

Crimp height inspection is performed through the use

of a micrometer with a modified anvil, commonly

referred to as a crimp--height comparator. Tyco

Electronics does not manufacture or market

crimp--height comparators. Detailed information on

obtaining and using crimp--height comparators can be

found in instruction sheet 408--7424.

Proceed as follows:

1. Refer to Figure 4 and select a wire (maximum

size) for each crimp section listed.

2. Refer to Section 5, CRIMPING PROCEDURE,

and crimp the contact(s) accordingly.

3. Using a crimp--height comparator, measure the

wire barrel crimp height as shown in Figure 4. If the

crimp height conforms to that shown in the table,

the tool is considered dimensionally correct. If not,

the tool must be adjusted. Refer to Section 7,

RATCHET ADJUSTMENT.

Position Point

on Center of

Wire Barrel

Opposite

Seam

“A”

Modified Anvil

Wire Size Crim

Section

Crimp Height

Dim.

(

)

and

mm2(Max)

(Wire Size Marking)

(

)

Tolerance

+.05 [+.002]

1.5 1.5 1.69

[.0665]

2.5 2.5 1.99

[.0785]

Figure 4

7. RATCHET (Crimp Height) ADJUSTMENT (Figure 5)

1. Remove the lockscrew from the ratchet

adjustment wheel.

2. With a screwdriver, adjust the ratchet wheel

from the locator side of the tool.

Figure 5

Screwdriver

Ratchet

Adjustment

Wheel

Lockscrew

(Typ)

NOTE

408- 4351

PRO- CRIMPER III Hand Crimping Tool Assembly 58593- 1

5of 6Rev ATyco Electronics Corporation

3. Observe the ratchet adjustment wheel. If a

tighter crimp is required, rotate the adjustment

wheel COUNTERCLOCKWISE to a

higher--numbered setting. If a looser crimp is

required, rotate the adjustment wheel

CLOCKWISE to a lower--numbered setting.

4. Replace the lockscrew.

5. Make a sample crimp and measure the crimp

height. If the dimension is acceptable, replace and

secure the lockscrew. If the dimension is

unacceptable, continue to adjust the ratchet, and

again measure a sample crimp.

8. MAINTENANCE

Ensure that the tool and dies are clean by wiping

them with a clean, soft cloth. Remove any debris with

a clean, soft brush. Do not use objects that could

damage the tool. When not in use, keep handles

closed to prevent objects from becoming lodged in

the crimping dies, and store in a clean, dry area.

9. VISUAL INSPECTION

The crimping dies should be inspected on a regular

basis to ensure that they have not become worn or

damaged. Inspect the crimp sections for flattened,

chipped, worn, or broken areas. If damage or

abnormal wear is evident, the tool must be replaced.

See Section 10, REPLACEMENT.

10. REPLACEMENT

Customer--replaceable parts are shown in Figure 1.

Available separately, PRO--CRIMPER III Hand Tool

Repair Kit 679221--1 includes a replacement nut and

a variety of pins, rings, screws, and springs.

If the dies are damaged or worn excessively, they

must be replaced.

Order the repair kit and replaceable parts through

your Tyco Electronics representative, or call

1--800--526--5142, or send a facsimile of your

purchase order to 1--717--986--7605, or write to:

CUSTOMER SERVICE (38--35)

TYCO ELECTRONICS

PO BOX 3608

HARRISBURG PA 17105--3608

11.REVISION SUMMARY

Revisions to this instruction sheet include:

SPRO--CRIMPER II hand tool was changed to

the PRO--CRIMPER III hand tool;

SApplied the TE logo;

SChanged crimp--height comparator information;

SUpdated format to current corporate

requirements; and

SAdded back page to show tooling compatible

with Die Assembly 58593--2.

408- 4351

PRO- CRIMPER III Hand Crimping Tool Assembly 58593- 1

Rev A6 of 6 Tyco Electronics Corporation

PRO-CRIMPER III Hand Tool 354940- 1

(Instruction Sheet 408-9930)

SDE-SA Hand Tool 9-1478240- 0

(Instruction Sheet 408-8851)

SDE Bench Terminator 1490076- 2

(Customer Manual 409-10052)

626 Adapter 679304-1

(Instruction Sheet 408-4070)

Battery Tool (Shouldered Die) 1725837-1, -2

(Customer Manual 409-10053)

Battery Tool (Pin Die) 1213890- 1, - 2

(Customer Manual 409-10065)

Tooling Compatible with Die Assembly 58593-2

This manual suits for next models

Table of contents

Other Tyco Electronics Crimping Tools manuals

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics PIDG STRATO-THERM 1-576778-0 User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics SOLARLOK 1579004-9 User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics AUTOPRESS C120 Release Note

Tyco Electronics

Tyco Electronics 48858-1 User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics 69067 User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics AMP CERTI-CRIMP II User manual

Tyco Electronics

Tyco Electronics 45449 User manual

Tyco Electronics

Tyco Electronics 90301-2 User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics PRO-CRIMPER III User manual

Tyco Electronics

Tyco Electronics 0-0654174-1 User manual

Tyco Electronics

Tyco Electronics CERTI-CRIMP II User manual

Tyco Electronics

Tyco Electronics PIDG Series User manual

Tyco Electronics

Tyco Electronics 58443-1 User manual

Tyco Electronics

Tyco Electronics AMP SDE PEW 12 User manual

Tyco Electronics

Tyco Electronics 2-231652-1 User manual

Tyco Electronics

Tyco Electronics 1490748-1 User manual

Popular Crimping Tools manuals by other brands

Panduit

Panduit CT-1000 Operation & instruction manual

JST

JST CS 10 instruction manual

molex

molex 63811-5100 Specification sheet

Danfoss

Danfoss ET4200 Operator's manual

TE Connectivity

TE Connectivity 2063528-1 instruction sheet

molex

molex 63825-3000 Specification sheet

CRH

CRH CRL CBLHCT1 instruction manual

Emerson

Emerson Klauke ES 105CFM manual

KIMBALL MIDWEST

KIMBALL MIDWEST 27-798 Operating instructions manual

Danfoss

Danfoss ET4350 Operator's manual

Milwaukee

Milwaukee M18 Operator's manual

HOGERT

HOGERT HT1P169 user manual

Textron

Textron ESG105L instruction manual

Emerson

Emerson Klauke ES 20RMCCFB manual

Continental Refrigerator

Continental Refrigerator PC150HD quick start guide

TE Connectivity

TE Connectivity ERGOCRIMP 1-1579001-3 instruction sheet

Emerson

Emerson Klauke ES 105CFB manual

TE Connectivity

TE Connectivity 539 726-2 instruction sheet
