Turtle Beach Stealth 600 Gen 2 User manual

Stealth 600 Gen 2 MAX For Xbox - Pairing

The pairing process for the Stealth 600 Gen 2 MAX is similar no matter which Mode the

transmitter is set to, but for the best audio experience, it is important to make sure that the

transmitter is set to the correct Mode for your specific platform.

To pair your headset to the transmitter:

1. Put the transmitter into the correct Mode.

If you are using the headset with an Xbox console –either Xbox Series X|S or Xbox One —

move the transmitter’s switch to Xbox.

If you are using the headset with a different USB device –a PS5 or PS4 console, a Windows or

Mac PC, or a Nintendo Switch (in docked mode) –move that switch to USB.

2. Connect the transmitter to the USB port on your platform.

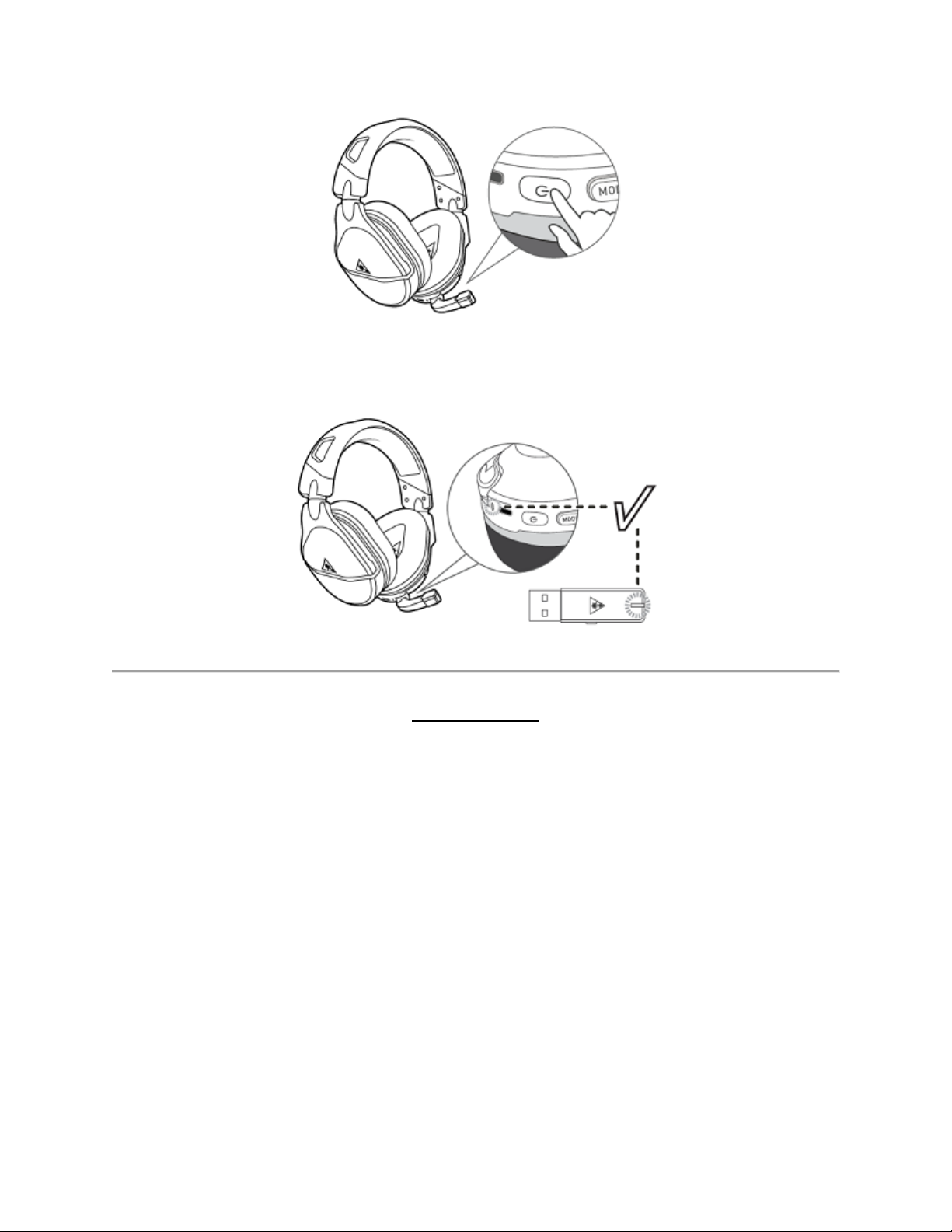

3. Power the headset on by pressing and holding the headset’s Power button.

4. Wait for headset and transmitter to pair. The LEDs on both headset and transmitter will turn

solid when the headset and transmitter pair successfully.

RE-PAIRING

You may -- very sparingly -- need to re-pair the headset. This would most likely happen

following a firmware update. Please note that you will need a paperclip or something similar for

this process.

To re-pair the headset and transmitter:

1. Start with the headset powered OFF. Make sure the transmitter is in the Xbox mode.

2. Press and hold the power button on the headset until the LED starts flashing rapidly.

3. Insert the transmitter into the console.

4. After a few moments, the headset and transmitter LEDs will become solid, indicating a

successful pairing.

Again, this process would need to be performed sparingly, most likely after a firmware update is

performed. Generally the headset and transmitter should be able to pair to each other on their

own.

Stealth 600 Gen 2 MAX For Xbox - Xbox

Setup

To set your headset up for use with an Xbox console –either an Xbox Series X|S or an Xbox

One –please do the following.

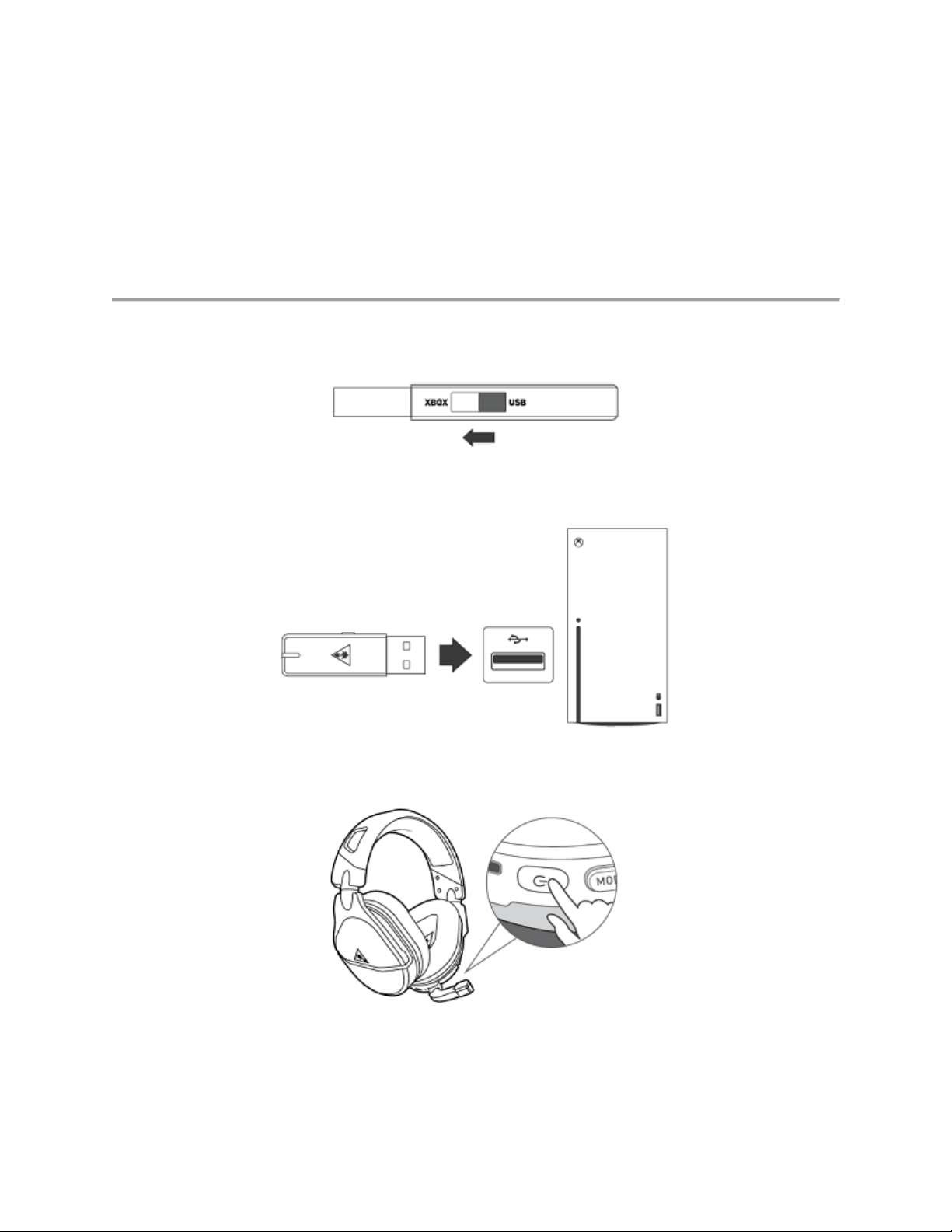

Put the transmitter into the Xbox Mode.

2. Connect the transmitter to the USB port on the console.

3. Power the headset on by pressing and holding the headset’s Power button.

4. Wait for headset and transmitter to pair.

SURROUND SOUND FOR XBOX (ONLY AVAILABLE ON XBOX)

1. Go to Settings >> General >> Volume & Audio Output

2. Set Headset Format to Windows Sonic for Headphones

Stealth 600 Gen 2 MAX For Xbox - USB

Setup (For PC, PS, Nintendo Switch In

Docked Mode)

The Stealth 600 Gen 2 MAX For Xbox headset can be used with either an Xbox console, or with

a different USB device, including PlayStation consoles, a Windows PC, or a Nintendo Switch

(while the Switch itself is in docked mode).

To set your headset up for use with one of these USB platforms (not with an Xbox console),

please do the following.

1. Put the transmitter into USB Mode.

2. Connect the transmitter to the USB port on your platform.

3. Power the headset on by pressing and holding the headset's Power button.

4. Wait for the headset and transmitter to pair.

Once the headset and transmitter are paired, you may need to configure the settings for your

specific platform, as detailed below.

Some games and programs have their own audio settings, independent of the computer’s

settings. Please be sure to double-check the audio settings for the game/program you are using

the headset with, to ensure that the audio settings for both the computer and the game are set

properly.

To set the headset as the default device, right-click the speaker icon in the Taskbar (at the

bottom-right of the screen), and then click "Open Sound Settings". You'll then be able to set the

Input and Output device to the headset, if needed.

The settings for the game itself would be found in within the game's menus. Make sure the

headset is the default input and output device, that voice chat is enabled, and that any Push-To-

Talk feature is disabled.

PLAYSTATION

PS4 SETUP

1. Go to Settings >> Devices >> Audio Devices

•Select Stealth 600 Gen 2 MAX for Input & Output Device

•Set Output to Headphones to All Audio

•Set Volume Control (headphones) level to maximum

2. Select Adjust Microphone Level and follow the on-screen instructions to calibrate your

microphone.

•Please Note: At this point, if desired, you can enable the 3D Audio function to enhance

the audio. Then, go to Adjust 3D Audio Profile to select the best profile option for your

game.

With the headset set as the default device in the console settings, please go into the audio settings

for the games/programs you will be using the headset with. Make sure the headset is set as the

default device in the game. You'll also want to confirm that voice chat is enabled within the

audio settings of the game, and that any Push-to-Talk features are disabled.

PS5 SETUP

1. Go to Settings >> Sound >> Audio Output >> Output Device

•Select Stealth 600 Gen 2 MAX for Output Device

•Set Output to Headphones to All Audio

•Set Volume Control (headphones) level to Maximum

2. Adjust your microphone levels by going to Settings >> Sound >> Microphone >> Adjust

Mic Level >> Microphone Level

•Please Note: At this point, if desired, you can enable the 3D Audio function to enhance

the audio. Then, go to Adjust 3D Audio Profile to select the best profile option for your

game.

With the headset set as the default device in the console settings, please go into the audio settings

for the games/programs you will be using the headset with. Make sure the headset is set as the

default device in the game. You'll also want to confirm that voice chat is enabled within the

audio settings of the game, and that any Push-to-Talk features are disabled.

NINTENDO SWITCH

For the Nintendo Switch, you'll need to set the headset as the default device only in the game

itself. You'll also want to make sure that the game you are using the headset with supports chat

capabilities. Again, you'll also want to confirm that voice chat is enabled within the audio

settings of the game, and that any Push-To-Talk features are disabled.

Stealth 600 Gen 2 MAX For Xbox - Turtle

Beach Audio Hub

With the desktop version of the Turtle Beach Audio Hub -- available for Windows and Mac here

-- you can adjust and control some of the headset's features.

**PLEASE NOTE: The headset MUST be powered on, and the headset and transmitter

MUST be paired, for the Turtle Beach Audio Hub to recognize the headset/transmitter. If the

headset is not powered on, or the headset and transmitter are not paired, the Turtle Beach Audio

Hub will NOT recognize your device, and you will see an error message. If this happens,

disconnect and reconnect the headset and transmitter, and power the headset on. The headset and

transmitter will pair, and the Audio Hub will then recognize your device.**

The home page will show an image of the headset on the left sidebar, as well as options to

Restore or Update the firmware. On the top-right of that page, you'll see the version of the Audio

Hub written in gray.

There will also be two slider settings. One will be labeled "Mic Monitor Level". The other will

be labeled "Tones Level".

Mic Monitor Level will control the volume of the Mic Monitor feature -- this is how loud you

hear yourself through the headset when you speak into the mic. The aim of this feature is to help

you avoid inadvertently yelling at other people and/or players.

•Please Note: The headset itself is not equipped with any sort of volume control for the

outbound volume level of its microphone -- therefore, the Mic Monitor volume control

will adjust only how loud you hear your own voice through the headset when you speak

into the mic, not how loud other people will hear your voice when you speak.

Tones Level will control the volume of indicator tones -- these are the tones that play when the

headset is powered on, the mic is muted or unmuted, or a feature (like Superhuman Hearing) is

engaged or disengaged. This also controls the volume of the tones that play when the EQ Preset

is switched via the Mode button.

The second page of the Turtle Beach Audio Hub is the Information page. This will provide the

following information:

•Headset Model

•Audio Hub Version Number

•Firmware Version Number (for both headset and transmitter)

•Links to FAQ and the Technical Support Site

Stealth 600 Gen 2 MAX For Xbox

Stealth 600 Gen 2 MAX For Xbox -

Multiplatform Compatibility

The USB-A transmitter is equipped with a switch that allows you to change compatibility modes,

and use the headset with a variety of different platforms and consoles. This switch is shown (set

to the Xbox mode) in the image below:

In the Xbox mode, the headset can be used with an Xbox Series X|S or Xbox One console.

In the USB mode, the headset can be used with a PS5 or PS4 console, a Windows PC or Mac

computer, or a Nintendo Switch that is in the docked mode. (Please note that this headset

cannot be used with a Nintendo Switch that is in the handheld mode –the Switch must be in the

dock.)

Here are the headset compatibilities listed by transmitter mode:

XBOX MODE

USB MODE

Xbox Series X|S

PlayStation (PS4, PS5)

Xbox One

Windows PC, Mac

Nintendo Switch**

**Nintendo Switch wireless compatibility is supported while the Switch is in the docked mode only. Chat is

available only for games that support in-game chat compatibilities.
