TRUlink 81657 User manual
1
QUICK START GUIDE
WIRELESS USB TO VGA ADAPTER KIT
Model: 81657
1
Thank you for purchasing the TruLink™ Wireless USB To VGA Adapter Kit. This Quick Start Guide will
assist you in setting up your unit properly. For instructions on adjusting settings and product
specification information, please refer to the User Guide which is included in the package. We
recommend that you read this Quick Start Guide thoroughly and retain for future reference.
INTRODUCTION
2
Supports high resolution UXGA video of 1600 x 1200 at distances up to 10 metres
Works in both extended desktop and mirror screen modes
Supports native mode for playback of high resolution video
Up to six computers can share one wireless display
Supports video streaming at up to 720p
Operates in WiMedia Band Group 1 frequency range (4.2 GHz to 4.8 GHz)
Certified Wireless USB 1.0 compliant
WiMedia 1.0 MAC & 1.1 PHY compliant
FEATURES
3
Microsoft® Windows® XP 32-bit with Service Pack 3 or higher
or Microsoft® Vista® 32-bit/64-bit
VGA cable to connect from the Wireless VGA Device Adapter to your display device
SYSTEM REQUIREMENTS
4
Wireless USB Host Adapter for your computer
Wireless VGA Device Adapter for your display
Two (2) Dipole Antennae (one for each adapter)
1 m USB A Male/Mini-B Male Cable
USB Extender with Cradle
One (1) Power Adapter (cord approx. 1.2 m)
Pin-Association Stickers
User Guide
Quick Start Guide
Driver CD w/Electronic User Guide
PACKAGE CONTENTS
5
1
2
WIRELESS USB HOST ADAPTER
1. Link: Data Connection Indicator
LED is solid when transfer device is connected.
LED blinks when data is being transferred.
2. PWR: Power
LED is solid when powered by the PC.
DEVICE OVERVIEW
6
1
2
3
4
6
8
5
7
WIRELESS VGA DEVICE ADAPTER
1. VGA : VGA Activity Indicator
LED is solid when display cable is connected.
LED blinks when data is being transferred.
2. PWR: Power Indicator
LED is solid when power is applied.
3. 1-2-3: Status Indicator
Illuminated number/s indicates the Wireless USB host
adapter that is currently synched with the Wireless
VGA Device Adapter.
4. PWR plug
Power adapter socket
5. RESET
Association history can be deleted by pressing and
holding this button for 10 seconds.
6. HOST
This button is used to select a different Wireless
USB host adapter.
7. USB connector
In wireless mode, this connector is used for cable association.
In wired mode, this connector is used for wired operation.
8. WIRELESS/WIRED switch
Choose from wired or wireless mode by using this switch.
DEVICE OVERVIEW
7
IMPORTANT NOTE:
If installing on Windows XP, Service Pack 3 (SP3) is required. Verify that this has been
installed before installing the Wireless USB To VGA Adapter Kit software.
Before installing the software, make sure that the Wireless USB Host Adapter and the
Wireless VGA Device Adapter are not connected to the computer and the Wireless VGA
Device Adapter is switched on.
STEP 1-INSTALLING THE SOFTWARE
Insert the CD provided and the software will run automatically. Please follow the instructions on the
InstallShield Wizard to proceed through the software installation.
SOFTWARE/DEVICE INSTALLATION
8
STEP 2-DRIVER INSTALLATION FOR THE WIRELESS USB HOST ADAPTER
Your Wireless USB to VGA Adapter Kit has been pre-associated for you, meaning the Wireless USB Host
Adapter will automatically recognise the Wireless VGA Device Adapter upon being switched on. After
software installation, you should see the Wireless USB Manager icon in your Windows icon tray. Double-
click on this icon to open the manager utility.
The Wireless USB Manager will open and instruct you on
what to do next. Screw on one of the supplied dipole
antennae to the Wireless USB Host Adapter and connect
the Wireless USB Host Adapter to an available USB port
on your computer. You also have the option of
connecting the Wireless USB Host Adapter to the USB
Cradle provided in the package if you need to make the
adapter more mobile.
SOFTWARE/DEVICE INSTALLATION
Figure: Wireless USB Manager
9

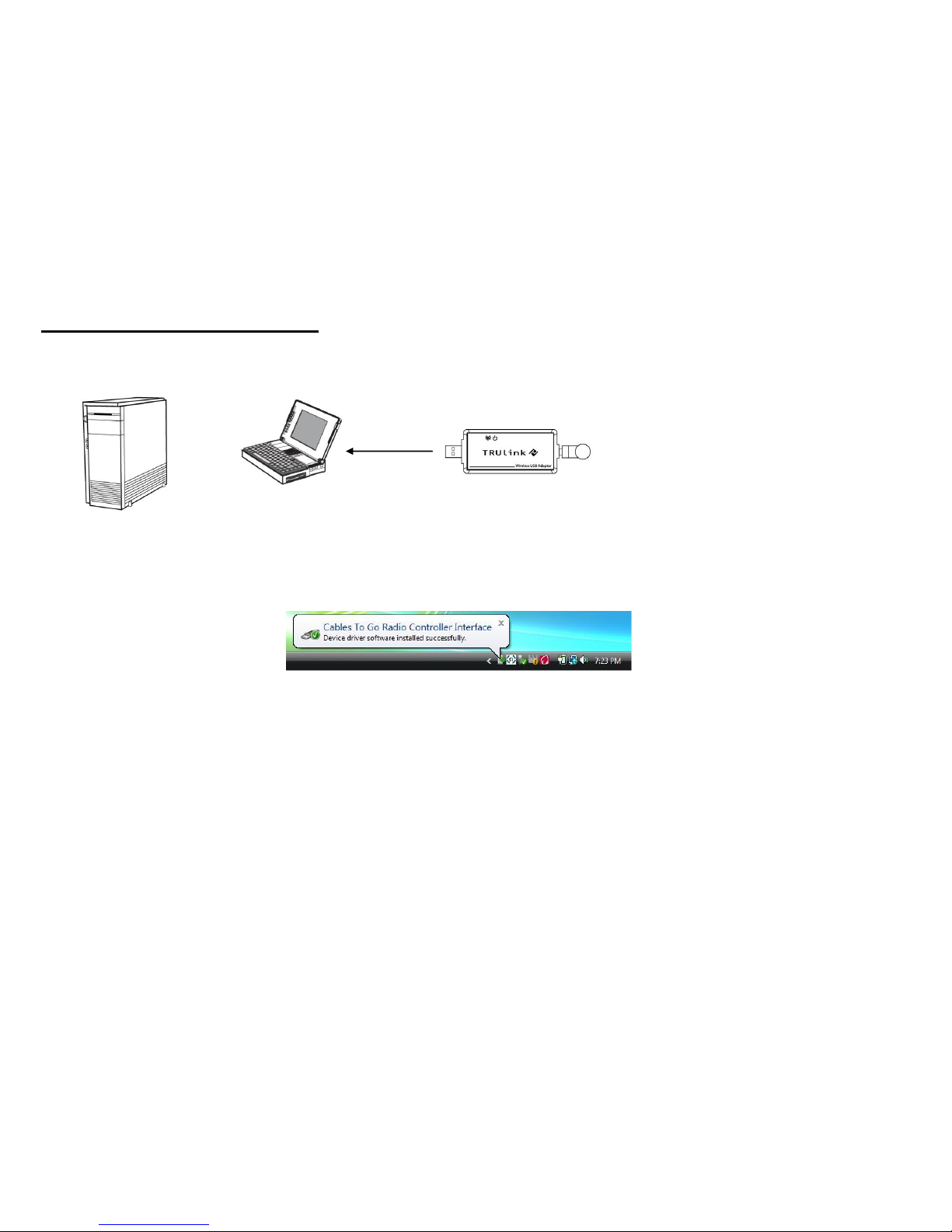

After you connect the Host Adapter to your computer, Windows will automatically install the Wireless USB
Host Adapter and you should get a successful install message in your icon tray as shown in the below
figure.
SOFTWARE/DEVICE INSTALLATION
Figure: Successful Install Message
or
