Triumph Adler FAX 970 Manual

INSTRUCTION HANDBOOK

FAX 970

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\2 COUV36xx.fm

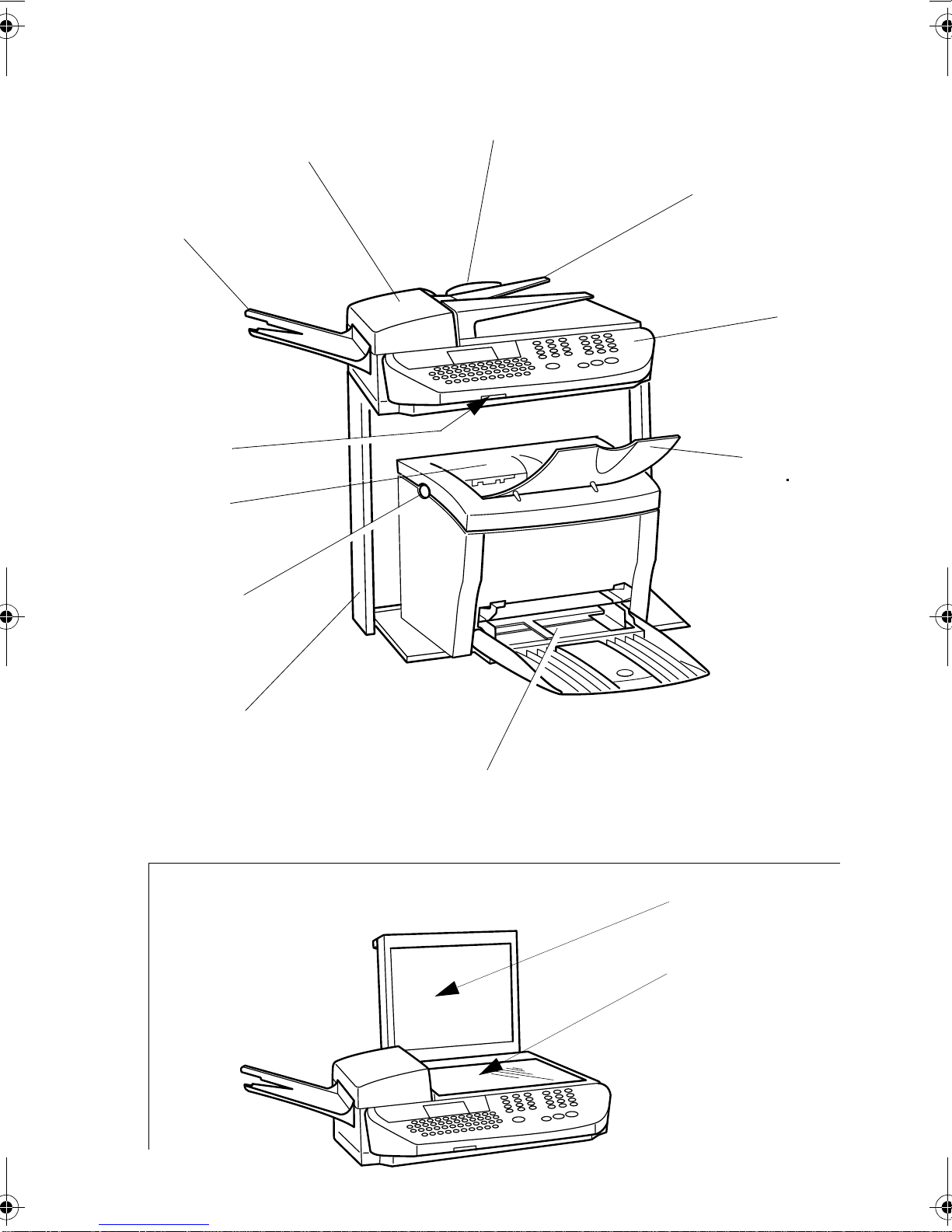

Printed sheet

output tray

Printer top cover

Document feeder

Adjustable paper guide

Printer top cover

release button

Printer paper tray

Control

panel

Scanning cover

Scanned document

tray

Chipcard reader

Support (option)

Flat scanner

window

Flat scanner flap

3620 Model only

0DFKLQHRYHUYLHZ

COUV 23260965-1.book Page 3 Mercredi, 6. décembre 2000 5:45 17

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\Légende COUV36xx.fm

1. 2. 3. 4. 5. 6. 7. 8.9. 10. 20.

13.

11. 12. 14. 15. 16. 17.

18. 19.

21.

22.

23.

24.

25.

29.

26.

27.

28.

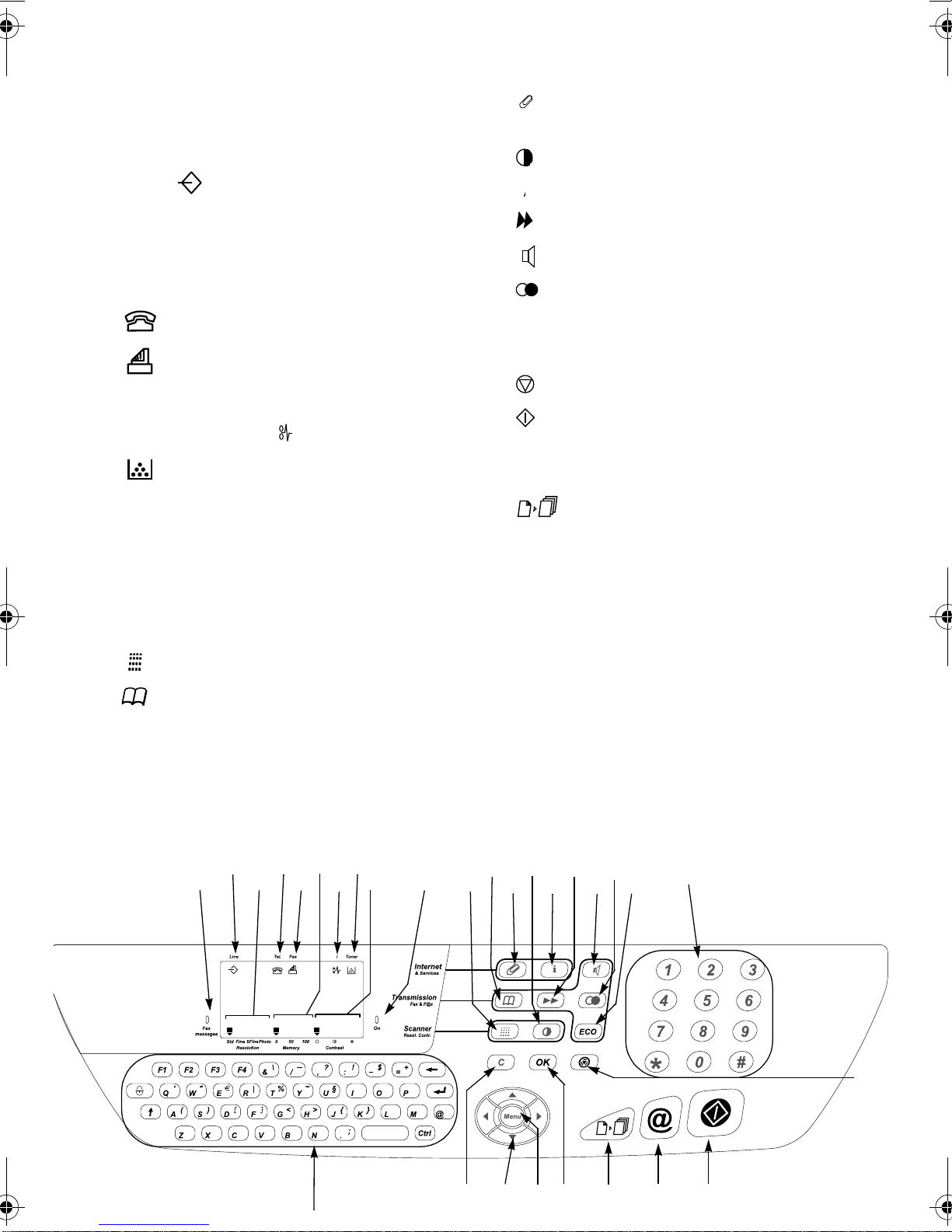

1. "Fax Messages" indicator:

On: the fax machine is set to fax-TAD mode

Blinking: message received in fax-TAD mode

2. "Line" icon:

On: communication in progress

Blinking: communication being established

3. Scanning resolution for fax transmission (Std,

Fine, SFine, Photo)

4. icon: manual reception mode

5. icon: automatic fax reception mode

6. Memory capacity (0 to 100%)

7. Printer "paper jam" icon

8. spare "Toner" icon:

On: No toner left

Blinking: toner near end

9. Contrast indicator

10."On" indicator:

Green: machine turned on

Red: problems

11. key: transmission scanning resolution

12. key: access to directory and quick-dial

numbers

13. key: attachment to a mail entered at the

keyboard.

14. key: contrast setting

15. key: print functions list

16. key: broadcast fax

17. key: Manual line taking

18. key: Redial

19.ECO key: low rate transmission

20.Numerical keypad

21. key: stop current operation

22. key: fax transmission or black & white

local copy

23.@key: Internet fax transmission

24. key: photocopy

25.OKkey: confirm displayed selection

26.MENU key: access to functions

27.Navigation keys

28.Ckey: return to previous menu and correct

data entry

29.Alphabetic keypad

&RQWUROSDQHO

LIAISSE 23260966-9.book Page 1 Mercredi, 6. décembre 2000 5:45 17

Contents

-1

Operation Settings Quick usageDirectoryMaintenanceSafety ContentsInstallation

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\LIAISSE 23260966-9TDM.fm

217(176

:(/&20( 

,167$//$7,21

3ULQWHU 1-1

Unpacking the printer 1-1

Description 1-4

Installing your terminal 1-5

Installation requirements 1-5

Operational Precautions 1-5

Loading paper 1-7

Installing options 1-8

Second paper cassette unit 1-8

Installing the second paper cassette unit 1-9

6&$11(5 1-11

Unpacking the scanner 1-11

Scanner installation 1-11

Setting the detachable items 1-11

&RQQHFWLRQ 1-12

Printer connection 1-12

Telephone connection 1-13

Power line connection and switch on 1-13

Updating the consumales 1-13

48,&.86$*(

1DYLJDWLRQPHWKRG 2-1

Presentation 2-1

The navigator 2-1

The display screen 2-3

Access to functions 2-3

Step by step function access 2-3

Direct access by number 2-4

)XQFWLRQ OL W 2-4

6(77,1*6

0DLQ HWWLQJ 3-1

Before transmission 3-1

Date/Time 3-1

Your fax number 3-1

Name 3-2

Type of network 3-2

Geographical settings (depending on model) 3-2

LIAISSE 23260966-9.book Page 1 Mercredi, 6. décembre 2000 5:45 17

-2

Contents

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\LIAISSE 23260966-9TDM.fm

Local prefix 3-3

Transmission report and deposit notice 3-3

Economy period 3-4

Document feed types 3-4

Before reception 3-5

Reception modes 3-5

Fax answering machine 3-5

Reception without paper 3-6

Number of copies 3-6

Relay broadcast 3-6

Technical parameters 3-7

/RFDOQHWZRUN HWWLQJ 3-9

Local network settings (Depending on model) 3-10

Automatic configuration 3-10

Manual configuration 3-10

IEEE address (or Ethernet address) 3-10

Netbios names 3-11

0DLO HUYLFHDQGWKHLQWHUQHW 3-11

Internet Registration 3-11

initialisation parameters 3-12

Access to connection and mailbox parameters 3-12

Access to servers parameters 3-12

Settings 3-13

Standard settings 3-13

Mail sorting 3-14

F@x™to Fax 3-15

Selecting the economical transmission mode (Eco key) 3-16

Internet Connection 3-17

Immediate connection to the Internet 3-17

Programmed connection 3-17

Deactivate the Internet function 3-18

',5(&725<

&UHDWLQJ XE FULEHUUHFRUG 4-1

Adding a record 4-2

&UHDWLQJ XE FULEHU OL W 4-2

Adding a list 4-3

Adding or deleting a number from the list 4-3

LIAISSE 23260966-9.book Page 2 Mercredi, 6. décembre 2000 5:45 17

Contents

-3

Operation Settings Quick usageDirectoryMaintenanceSafety ContentsInstallation

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\LIAISSE 23260966-9TDM.fm

&RQ XOWLQJDUHFRUGRUOL W 4-4

0RGLI\LQJDUHFRUGRUDOL W 4-4

'HOHWLQJDUHFRUGRUDOL W 4-4

3ULQWLQJWKHGLUHFWRU\ 4-5

23(5$7,21

6HQGLQJ 5-1

Positioning the document 5-1

Sheet feed scanner 5-2

Flat-bed scanner (On model 3620 only) 5-2

Choosing the resolution/the contrast 5-2

Resolution 5-2

Contrast 5-3

Dialling 5-3

From the directory 5-3

From the redial key 5-4

To multiple call numbers 5-4

Transmission via the Public Switched Telephone Network (PSTN) 5-4

Immediate transmission 5-4

Delayed transmission 5-5

Transmission with dialling follow-up 5-5

Transmission via the Internet 5-6

Sending a paper fax to E-Mail address 5-6

Sending a keyed-in message to an E-Mail address 5-6

Transmission of a document to a fax (F@x to Fax service) 5-7

Transmission waiting queues 5-7

Consult or modify the waiting queue 5-8

Immediately perform transmission from the waiting queue 5-8

Printing a document in waiting or in deposit 5-8

Print the waiting queue 5-8

Deleting a transmission on hold 5-9

Cancelling transmission in progress 5-9

5HFHSWLRQ 5-9

Reception via the Public Switched Telephone Network (PSTN) 5-9

Reception via the Internet 5-9

&RS\LQJ 5-10

Local copy 5-10

Standard copy 5-10

"Sophisticated" copy 5-10

Specific settings for the copy 5-11

Scanner settings 5-11

Printer settings 5-12

2WKHUIXQFWLRQ 5-13

Logs 5-13

Printing the functions list 5-14

Printing the machine settings 5-14

LIAISSE 23260966-9.book Page 3 Mercredi, 6. décembre 2000 5:45 17

-4

Contents

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\LIAISSE 23260966-9TDM.fm

Memorizing a sequence of keys 5-14

Counters 5-15

Deposit and polling 5-15

Place a document in deposit 5-16

Polling a deposited document 5-17

Interlock 5-17

Entering the interlock code 5-18

Keypad interlocking 5-18

Number interlocking 5-18

0DLOER[0%;)$; 5-19

MBX Management 5-19

Initialising a MBX 5-19

Modifying the features of an MBX 5-20

Print the contents of an MBX 5-20

Delete an MBX 5-20

Print the MBX list 5-20

MBX deposit in a remote fax 5-21

MBX polling from a remote fax 5-21

0$,17(1$1&(

0DLQWHQDQFH 6-1

General 6-1

Replacing the consumables 6-1

Replacing the cartridges 6-2

Cleaning 6-9

Cleaning the scanner’s reading devices 6-9

Cleaning the printer 6-9

Scanner calibration 6-11

,QFLGHQW 6-12

Communication errors 6-12

Transmission from the feeder 6-12

Transmission from the memory 6-12

Communication error codes 6-13

Printer incidents 6-15

Error messages 6-15

Printer paper jam 6-16

Scanner incidents 6-18

Sheet-feed scanner paper jam 6-18

Miscellaneous incidents 6-20

&KDUDFWHUL WLF 6-21

Unit characteristics 6-21

Consumable Characteristics 6-22

LIAISSE 23260966-9.book Page 4 Mercredi, 6. décembre 2000 5:45 17

Contents

-5

Operation Settings Quick usageDirectoryMaintenanceSafety ContentsInstallation

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\LIAISSE 23260966-9TDM.fm

6$)(7<

•This apparatus was designed in compliance with European Council decision N°98/482/EC relative to

pan-European connection in view to its connection on the Public Switched Telephone Network (PSTN).

It is in conformity with Standards TBR21, TBR38 1ETSI 201 121.

If problems arise, your supplier should be contacted first.

•The marking attests product conformity with the essential requirements in compliance with

Directives 73/23/EC for User safety, 89/336/EC for Electromagnetic perturbations and 98/13/EC for

Telecommunication network access.

•The manufacturer declares that the products have been manufactured in conformity with Annex III of

R&TTE Directive 99/05/EC.

1. Terminals integrating an analog handset function.

LIAISSE 23260966-9.book Page 5 Mercredi, 6. décembre 2000 5:45 17

Date en cours : 6 décembre 2000

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\DOC EN COURS\MFK 23260964-8 36xx Sagem GB\Bienvenue.fm

:(/&20(

Thank you for purchasing this new generation communication terminal. Both a laser fax machine and

a terminal with access to the Internet, your machine is the answer to all your most demanding

professional needs.

This User’s Manual presents the two models in the range:

It combines power, user-friendliness and simplicity thanks to its navigator, its multitask access and

direct access directory.

The laser printer lets you print all received documents.

Its two scanners (sheet-feed and flat-bed1), let you send a document and use your machine as a true

black & white.

The flat-bed scanner lets you send portions of bound documents with a better resolution.

Open to the Internet, you can send faxes to E-mails and also receive them thanks to the F@x-to-E-mail

feature.

You can send to traditional fax machines via the Internet at a reduced cost thanks to the F@x-to-Fax

service. This service even gives you the possibility of receiving E-mail attachments thanks to its

attachment conversion function.

0RGHO (TXLSPHQW

 •1 sheet-feed scanner (CIS type).

•1 flat-bed scanner (CCD type).

 •1 sheet-feed scanner (CIS type).

1. On model 3620 only

LIAISSE 23260966-9.book Page 3 Mercredi, 6. décembre 2000 5:45 17

1-1

Date en cours : 8 janvier 2001

\\Sct31nt3\doc 31nt3 mac\SAGEM FM\ARCHIVAGE DOC\MFK 23260964-8 36xx Sagem GB\Installation.fm

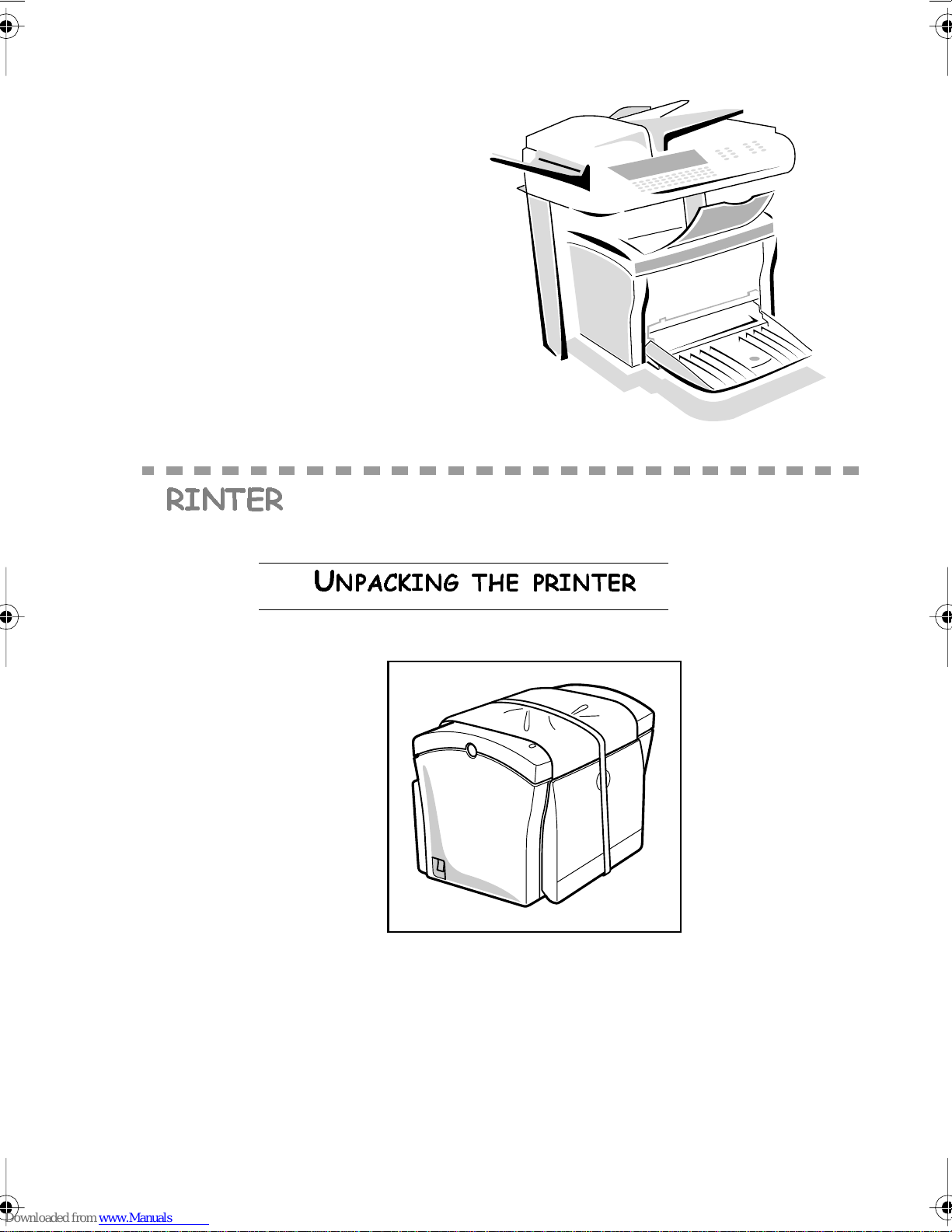

,167$//$7,21

5,17(5

13$&.,1*



7+(



35,17(5

Installation.fm Page 1 Lundi, 8. janvier 2001 11:54 11

Table of contents

Other Triumph Adler All In One Printer manuals

Triumph Adler

Triumph Adler P-6038if User manual

Triumph Adler

Triumph Adler DC 2035 Manual

Triumph Adler

Triumph Adler DC 2435 User manual

Triumph Adler

Triumph Adler CLP 4416 Manual

Triumph Adler

Triumph Adler 3262i User manual

Triumph Adler

Triumph Adler CLP 4532 Manual

Triumph Adler

Triumph Adler P-C2660 User manual

Triumph Adler

Triumph Adler DC 2440 Manual

Triumph Adler

Triumph Adler DC 2118 Manual

Triumph Adler

Triumph Adler DC 2035 Manual

Triumph Adler

Triumph Adler DC 2015 Manual

Triumph Adler

Triumph Adler 350ci User manual

Triumph Adler

Triumph Adler P-4035i User manual

Triumph Adler

Triumph Adler DC 2128 Manual

Triumph Adler

Triumph Adler CD 1435 User manual

Triumph Adler

Triumph Adler P-C2155w User manual

Triumph Adler

Triumph Adler 3061i User manual

Triumph Adler

Triumph Adler DC 6235 User manual

Triumph Adler

Triumph Adler 352ci User manual

Triumph Adler

Triumph Adler 4056i User manual

Triumph Adler

Triumph Adler DC 2035 Manual

Triumph Adler

Triumph Adler DC 2062 Manual

Triumph Adler

Triumph Adler DC 2020 Manual

Triumph Adler

Triumph Adler DC 2150 Manual

Popular All In One Printer manuals by other brands

Epson

Epson WorkForce WF-2510 Basic guide

Epson

Epson Stylus Scan 2000 Product information guide

Epson

Epson PictureMate Snap PM 240 Start here

Konica Minolta

Konica Minolta bizhub C35 user guide

Brother

Brother MFC-J430w user guide

Konica Minolta

Konica Minolta BIZHUB 558 Quick reference guide

Lexmark

Lexmark MX710 Series setup sheet

Brother

Brother MFC-9760 owner's manual

Lexmark

Lexmark XC8155 user guide

Lexmark

Lexmark X642E Service manual

Sharp

Sharp MX-2310U Start guide

Aficio

Aficio 200 manual

Canon

Canon ImageCLASS 2300 setup sheet

Ricoh

Ricoh Pro C900 Brochure & specs

Lexmark

Lexmark X925 Installation

Brother

Brother Business Smart MFC-J4510dw manual

Epson

Epson Stylus CX8400 Series Brochure & specs

Oce

Oce VarioLink 5022 user guide
