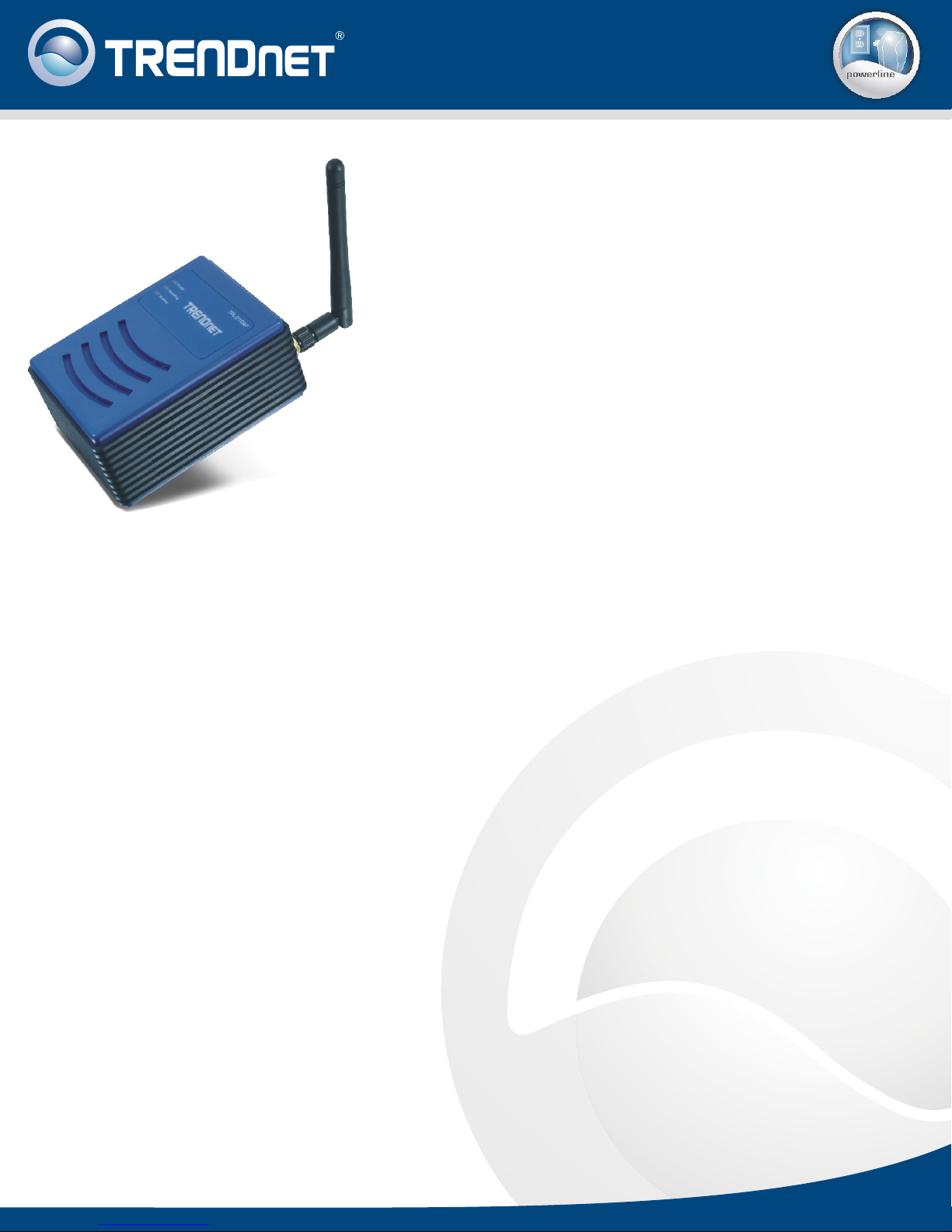

TRENDnet TPL-210AP User manual

The Wireless Powerline Access Point removes additional costs in

network cabling by using existing power lines in your home or small

office to network several wireless workstations. Secure file sharing,

an Internet connection, or other network resources by using 56-bit

DES for 85Mbps power line transmission and WPA security for

54Mbps wireless transmission.

TPL-210AP (v1.0R)

85Mbps Powerline Wireless Access Point

TPL-210AP

rev:02.02.2007

• Wi-Fi Compliant with 802.11b/g Standards

• Up to 54Mbps High Speed over Wireless Connection

• Up to 85Mbps High-Speed Data Transfer Rate over Power Lines

• Supports Access Point Mode

• Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g

• Dynamic Data Rate Scaling at 11, 5.5, 2 and 1Mbps for 802.11b

• Supports ESSID Enable/Disable and MAC address Filter (60 entries) Feature to Increase Security

• Supports 64/128-bit Wired Equivalent Privacy (WEP) and WPA/WPA2 (EAP/PSK) Encryptions

• Wireless Range of 30 ~ 50 meters Indoor (depending on the environment)

• Wireless Range of 50 ~ 100 meters Outdoor (depending on the environment)

• Connect to a Network using exiting Powerlines with Wall-Plugged Design

• 3-Year Warranty

FEATURES

LED Indicators

Weight

Network Protocols

Power Source

Data Rate

Frequency Range

Nodes

Antenna

Security

Data Rate (auto fallback)

Transmit Power

Channels

Temperature

Power Consumption

Certifications

• IEEE 802.11b (11Mbps), IEEE 802.11g (54Mbps) • HomePlug 1.0 Turbo

• Power, HomePlug, WLAN

• FCC, CE

• TCP/IP, UDP

• 100~240V AC, 50~60Hz

• 56-bit DES Encryption

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

• 13.5 ±1.5dBm (typical)

• 1~11 channels (US), 1~13 channels (EU)

• 3.8 watts(max.)

• 74 x 100 x 35 mm (2.9 x 4 x 1.3 inches)

• 200g (7oz.)

• Operating: 0° ~ 40° C (32° ~ 104° F); Storage: -10° ~ 70° C (14° ~ 158° F)

• Support up to 16 nodes per Network

• 2dBi Detachable Dipole Antenna

• 64/128-bit WEP (HEX/ASCII), WPA/WPA-PSK (AES/TKIP), WPA2/WPA2-PSK (AES/TKIP)

• Up to 85Mbps Transfer Rate

• 2.4 ~ 2.4835 GHz

• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• 2MHz ~ 30MHz

• OFDM, CCK, DQPSK, DBPSK

Frequency Band

Module Technique

Dimension (L x W X H)

Standards

Hardware

Powerline

Wireless

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

85Mbps Powerline Wireless Access Point

TPL-210AP (v1.0R)

RELATED PRODUCTS

PACKAGE CONTENTS

TPL-202E

TPL-102E

TPL-111BR

85Mbps Powerline Fast Ethernet Bridge

Powerline 10/100Mbps Ethernet Bridge

125Mbps 802.11g Wireless Powerline Router

• Utility CD-ROM

• TPL-210AP

• Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

SPECIFICATIONS

Outlet

85Mbps Powerline

Fast Ethernet Bridge

(TPL-202E)

Outlet

Workstation with

Wireless PCI Adapter

(TEW-423PI)

Notebook with

Wireless PC Card

(TEW-421PC)

10/100Mbps

Powerline

54Mbps Wireless

85Mbps Powerline

Wireless Access Point

(TPL-210AP)

Workstation with

Fast Ethernet PCI Adapter

(TE100-PCIWN)

4-Port Cable/DSL

Broadband Router

(TW100-S4W1CA)

85Mbps Powerline

Fast Ethernet Bridge

(TPL-202E)

Internet

Cable/DSL

Modem

Outlet

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
