Thank you for purchasing TRENDnet's TPE-S88 Power-over-Ethernet Smart

Switch. This guide will help you set up your Power-over-Ethernet Smart Switch.

Following the installation instructions should be quick and easy. If you run into

problems, please refer to the Troubleshooting section of this guide. If you need

further technical support, please visit www.TRENDNET.com or call technical

support by phone.

Verify Package Contents

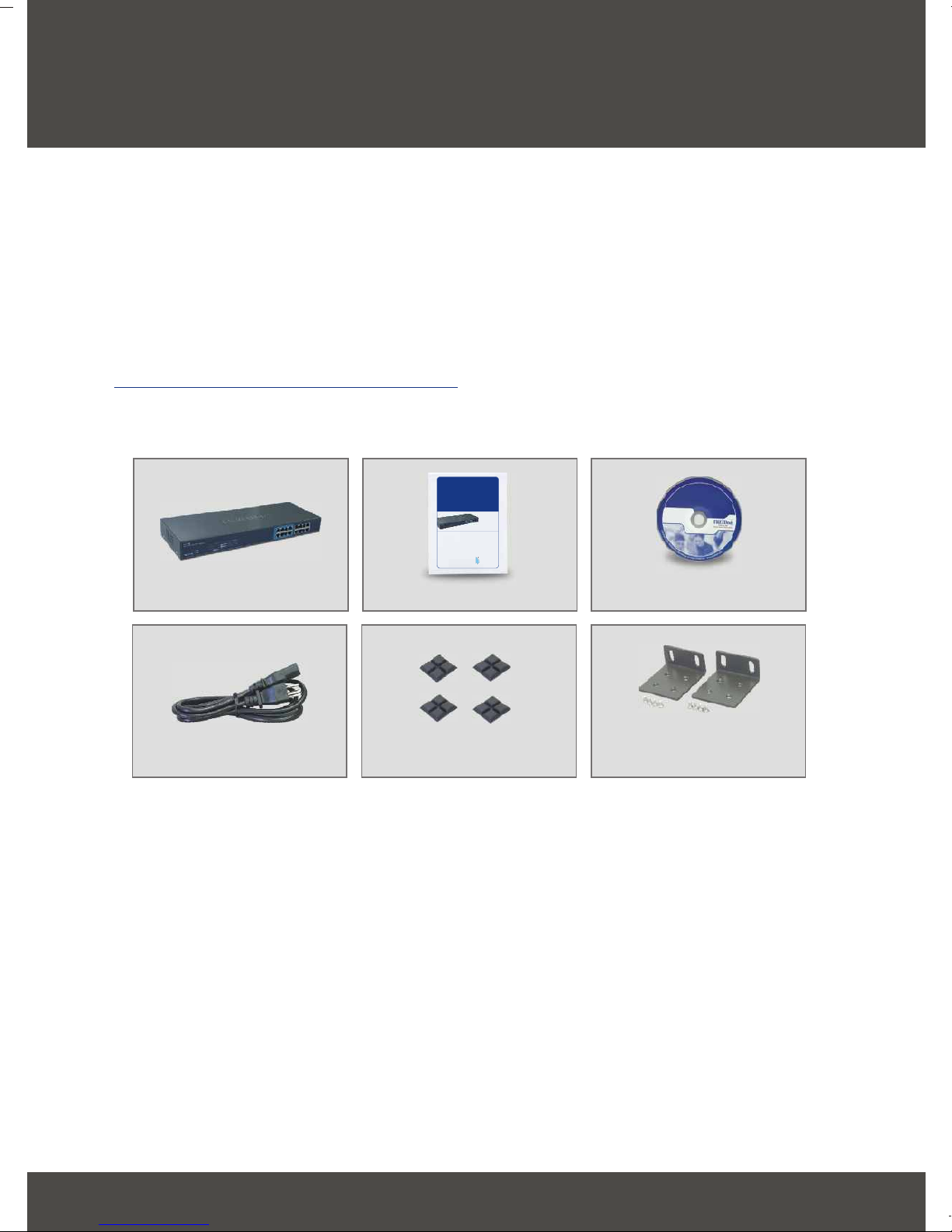

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

TPE-S88

AC Power Cord

Quick Installation Guide CD-ROM

4 rubber shock cushions

2 mounting brackets

with screws

TRENDnet

TRENDware, USA

What's Next in Networking

TPE-S88

Version 01.07.05

Power-over-Ethernet Smart Switch

Quick Installation Guide

Commutateur intelligent Power-over-Ethernet

Guide d'installation rapide

PoE-Smart-Switch

Kurzanleitung zur Installation

Guía de instalación rápida de

conmutador inteligente de Power-over-Ethernet (PoE)

2. Product Detail

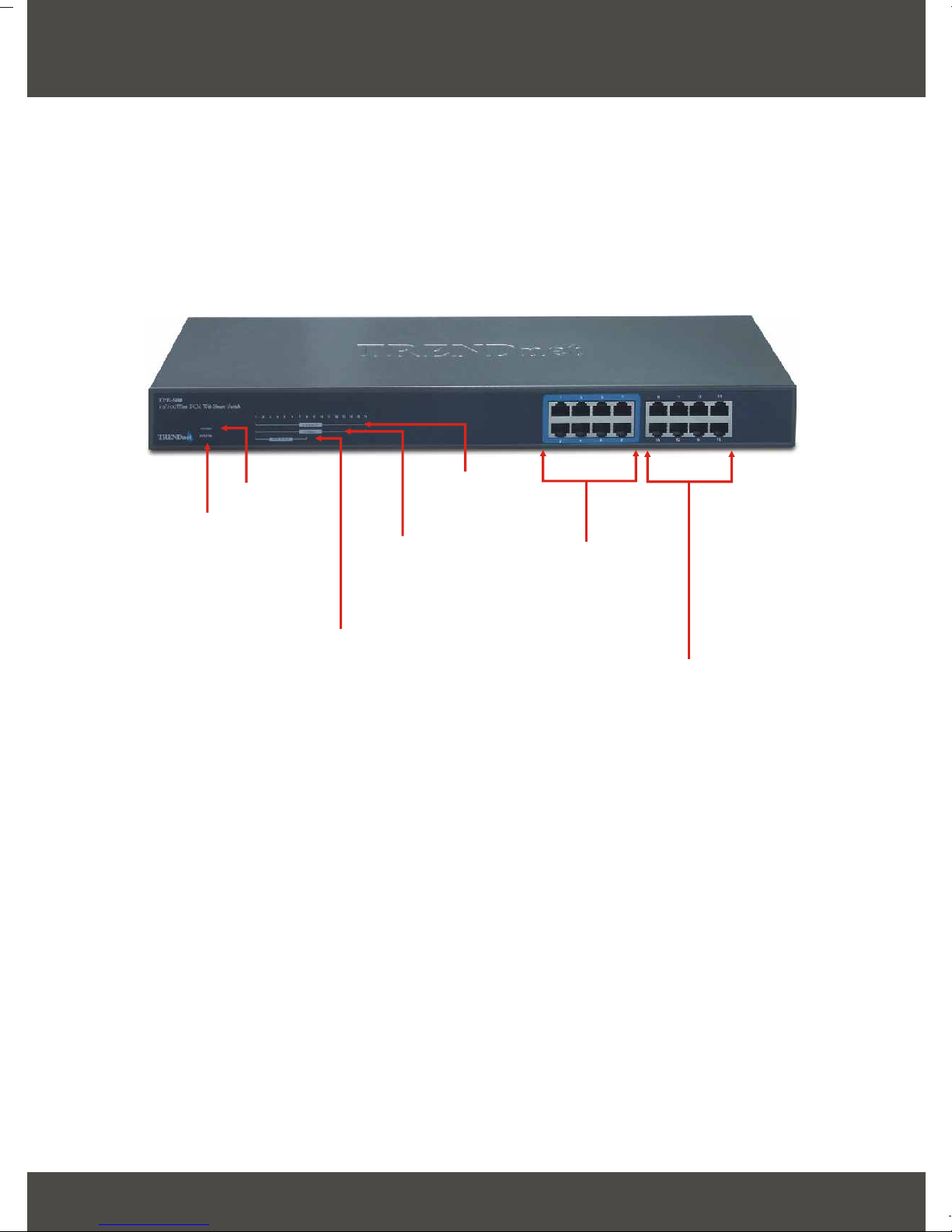

The TPE-S88 has eight 10/100Mbps Power-over-Ethernet ports and eight

10/100Mbps ports. It also has 5 types of LED that indicate power, CPU

operation, network activity, data transfer rate, and Power-over-Ethernet status.

English

CPU

Operation

Power

Data

Transfer

Rate

Network

Activity

Power-over-

Ethernet Status

10/100 Mbps

Power-over-

Ethernet Ports

10/100 Mbps

Ports

3English

Connect the power cord to the TPE-S88 and plug the power cord into an

available power outlet.

3. Hardware Installation

4English

4. Configure the Power-Over-Ethernet

Web Smart Switch

Note: For MAC Users, change your computers IP address to

192.168.0.X (where X is an available number from 1-253), and enter

192.168.0.1 in your web browser to access the Print Server's Web

Utility.

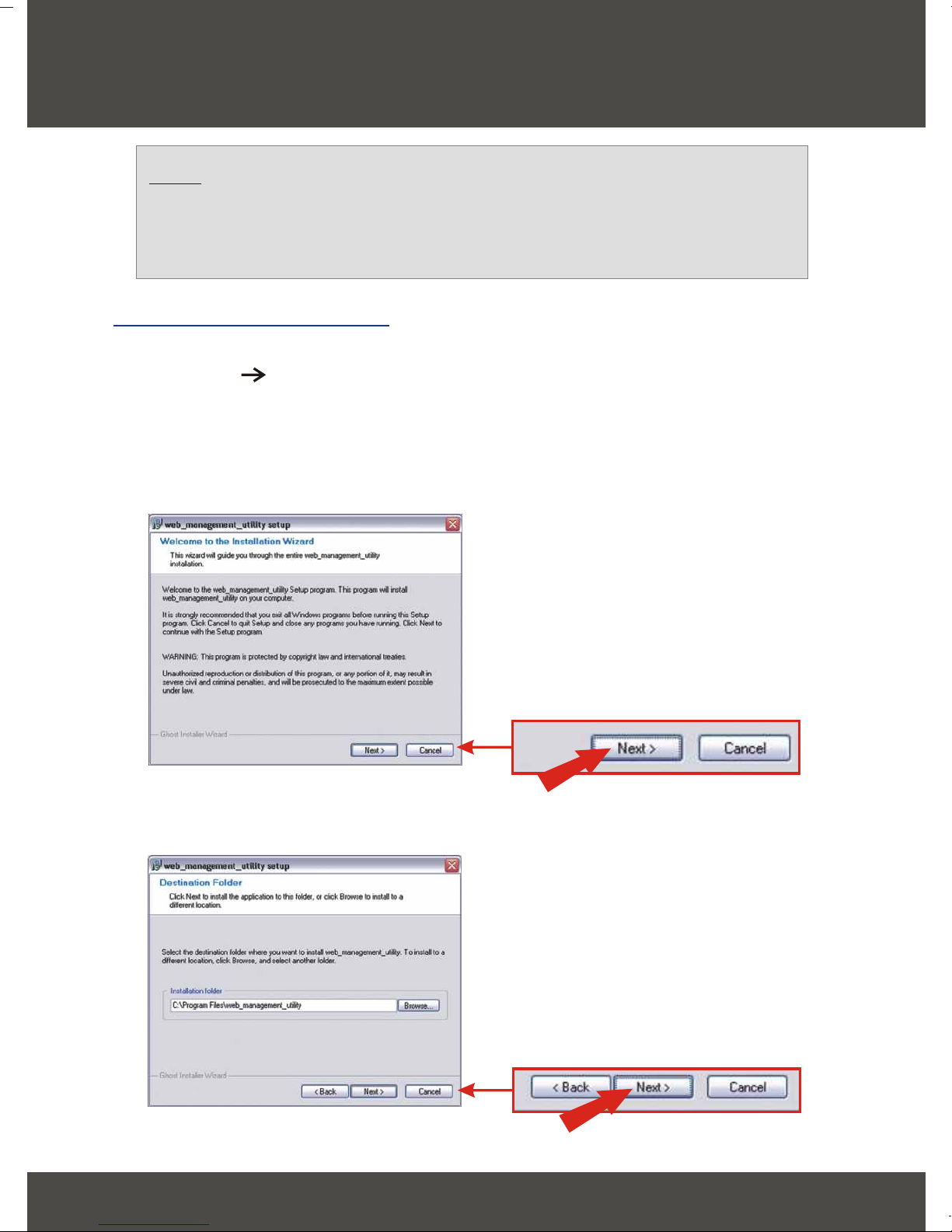

1. Insert the TPE-S88 CD-ROM into your computer's CD-ROM drive.

2. Click Start Run. Type d:\Web-Management Utility\setup.exe . If your

CD-ROM uses a different letter than d, then use a different letter

(i.e. e:\Web-Management Utility\setup.exe).

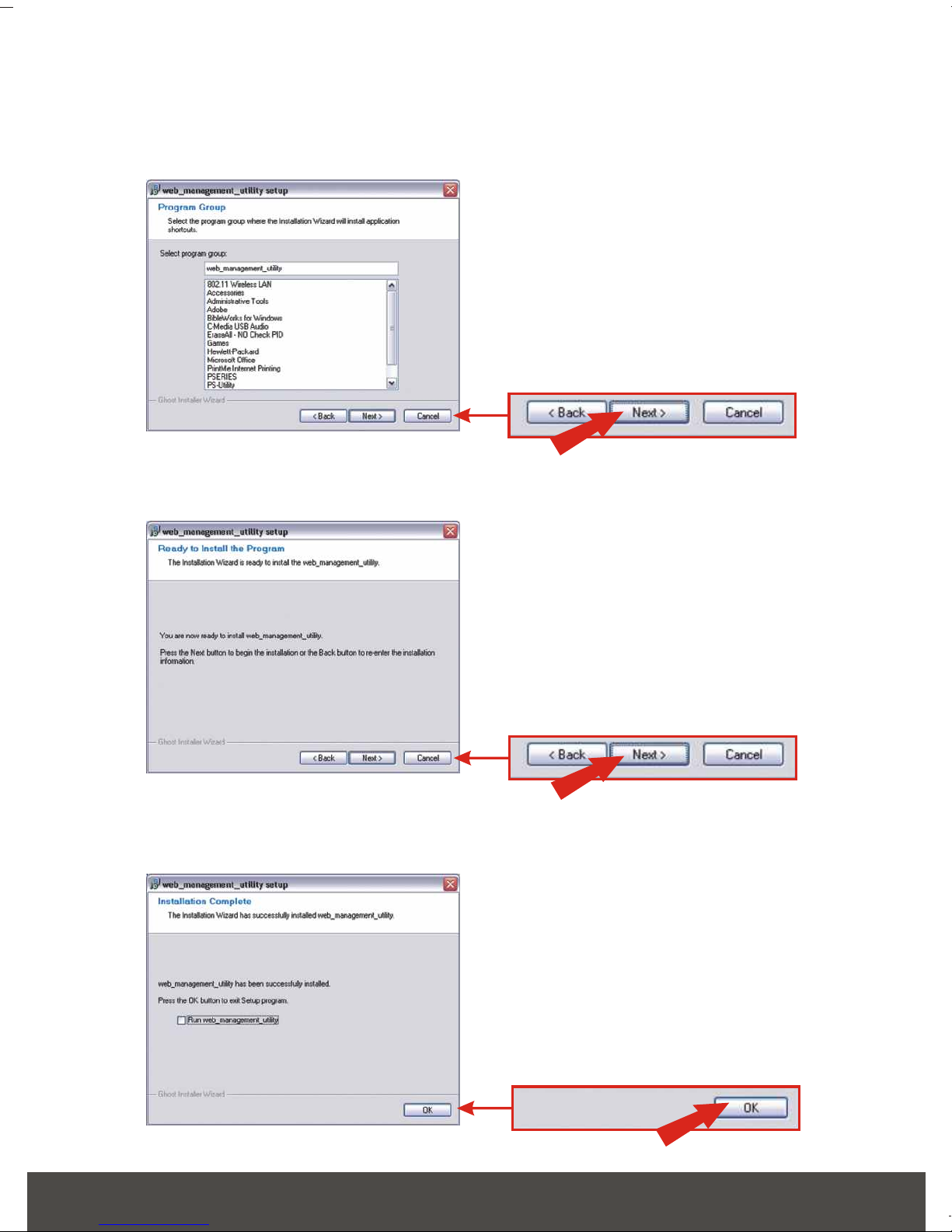

3. Click Next.

4. Click Next.

For Windows Users

5English

5. Click Next.

6. Click Next.

7. Click OK.

6English

8. Click Start All Programs web_management_utility. Click the

web_management_utility icon.

9. Click Discovery. Select the discovered switch and click Configuration

setting.

10. Type in the IP address that applies to your existing network. Type in the

Default Gateway (i.e. your router's local IP address). Type in a Password

and Click Set.

11. Double-click the selected switch.

12. On the Monitor List, double-click the selected switch.

English

13. Type in your password. Click Login.

For more information in using all the web smart features, please consult the

user's guide.

English
