TRENDnet TK-208K User manual

TK-208K

TK-408K

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. How to Connect .................................................................................

3. Operation ..........................................................................................

.................................................................................

Table of Contents

Version 03.19.2007

System Requirements

Application

TK-208/TK-408

Quick Installation Guide

PS/2 USB Keyboard

PS/2 USB Mouse

VGA or SVGA Compatible Monitor

Microphone and Speaker (optional)

Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux

Package Contents

1. Before You Start

English

2 Sets (TK-208) or 4 Sets (TK-408)

of Audio/Microphone Cables

2 Sets (TK-208) or 4 Sets (TK-408)

of KVM Cables

PC 1 PC 2

2/4 Ports PS/2

KVM Switch Kit

with Audio

(TK-208K/TK-408K)

CablesCables

Microphone

Monitor

Mouse

Speakers

Keyboard

PC 1

KVM Cable

Audio Cable

TK-208 TK-408

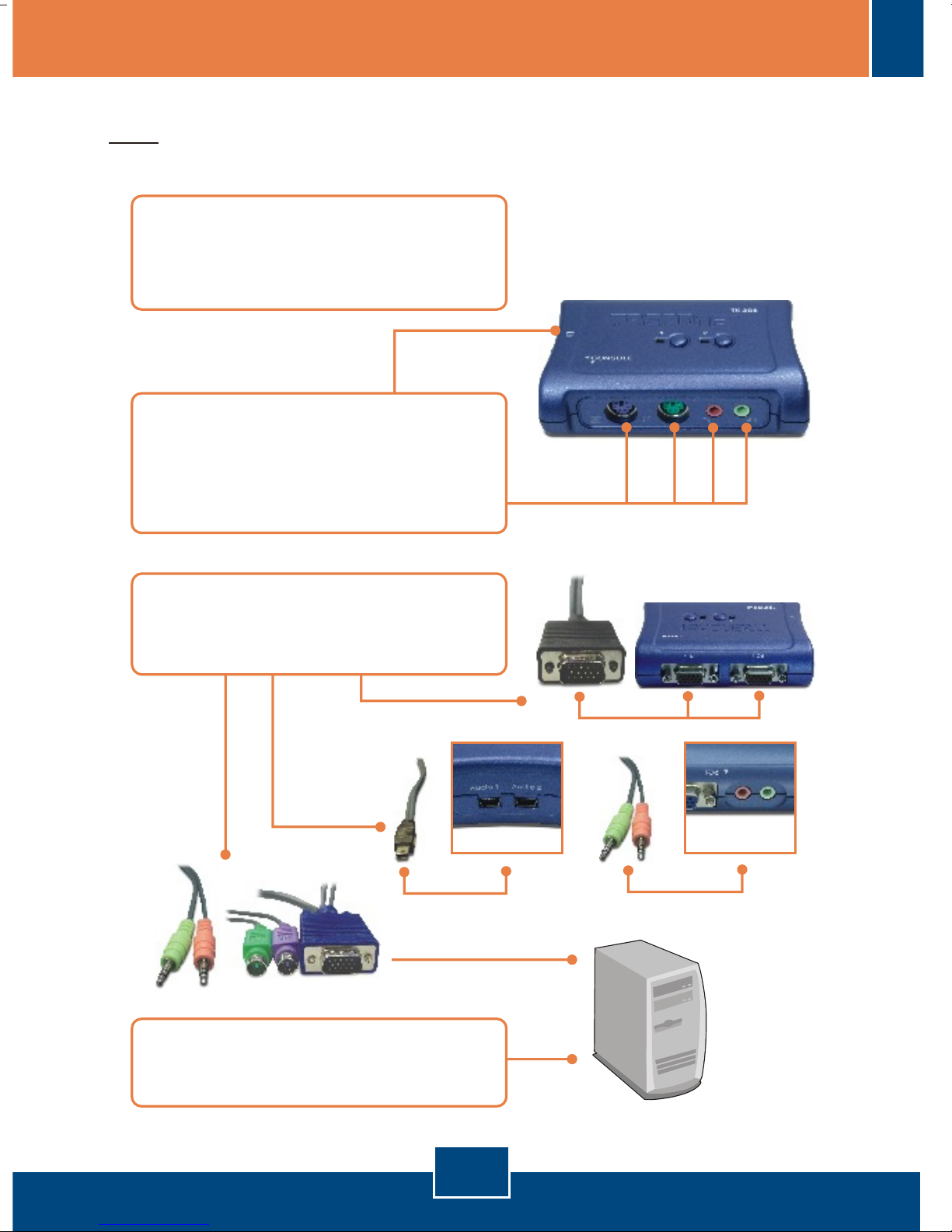

1. Turn off both computers and their

peripherals, and disconnect all

power cords.

3. Use the provided KVM and audio

cables to connect your PC to your

KVM switch.

2. How to Connect

English

Connect the shared keyboard,

monitor, mouse, microphone

(optional) and speaker (optional)

to the KVM Switch's console

Note: The TK-208/TK-408 KVM Switch does not require any drivers or

software.

4. Turn ON the first computer and

wait until startup completes.

PC 2 (TK-208)

PC2, PC 3, PC4 (TK-408)

5. Press the face panel button on the

KVM Switch to select the second

computer (Optional).

Your installation is now complete.

English

6. Turn ON the second computer and

wait until startup completes.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

Note: For PC switching, you can use the face-panel buttons of the KVM Switch,

or a Hot-Key command sequence via keyboard.

After pressing the ScrLk key, you have 2 seconds to press the ScrLk key

again. If you do not press the key within 2 seconds, the switch will exit Hot-Key

mode.

3. Operation

English

Face-Panel Buttons

Hot-Key Command Sequence

Press the corresponding face-panel

button to select your PC.

NOTE

1. Hot-Key command works on the top row numbers keys only.

2. When the binding of PC & Audio/Microphone port switching is enabled by

the Hot-Key sequence,any PC and Audio/Microphone source can be bound

together.

3. For non-PnP OS(Linux, Windows NT 4.0), please use the following

commands to reset the mouse setting:

ScrLk ScrLk

+ + M+1

2-key mouse setting:

ScrLk ScrLk

+ + M+2

3-key wheel mouse setting:

ScrLk ScrLk

+ + M+3

5-key wheel mouse setting:

Command Hot-Keys Description

Quick Reference Sheet for TK-208/TK-408

Select PC

Select Audio/Mic

Channel

Next higher PC

channel

Bind PC & Audio/Mic

Source

Console Mouse/

Keyboard Reset

UnBind PC & Audio/

Mic Switching

Autoscan

Next lower PC

channel

Stop Autoscan

ScrLk ScrLk X

+ +

x = 1 ~ 2 for PC channel number

ScrLk ScrLk

+ +

(Arrow up)

ScrLk ScrLk

+ +

(Arrow down)

ScrLk ScrLk

+ + W

ScrLk ScrLk

+ + End

ScrLk ScrLk

+ + S

Press any key on keyboard

Select the active PC channel.

Select the active Audio/Mic channel

Select the next lower available computer

Enable the binding of selected PC and

Audio/Microphone source

Reset mouse/keyboard on the console side. (works on

non-PnP OS only)

Disable the binding of PC port and Audio/Mic port

switching.

Autoscan through every connected channel for

quick screen browsing of each channel (scan delay

= 10 seconds).

Select the next higher available computer

Terminate Autoscan activity.

(Fx is a function key)

FX = F1~F4

ScrLk ScrLk

+ +

ScrLk ScrLk

+ +

English

ScrLk ScrLk

+ + (key)

Hot-Key Convention: The Hot-Key notation

denotes that you should hit the individual key consecutively one at a time, not

simultaneously.

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q6:

A6:

Where is the power supply? I did not find one in the box.

The TK-208/TK-408 does not require a power supply. It draws power from your computer's

keyboard connection. As long as your KVM switch is connected to the keyboard port, it will receive the

necessary power to function.

I have the KVM switch connected properly, but my keyboard and mouse don't work.

Can I connect and disconnect the USB cables while the computers are turned on?

Yes, you can connect or disconnect the KVM cables while the computers are turned on, because the

KVM switch is Plug-and-Play and Hot-Pluggable.

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching between your computers.

(i.e.: Caps Lock, Num Lock, etc.)

How do I switch from one computer to another with the KVM switch?

Please make sure your PS/2 ports are working properly by testing it with another mouse or keyboard.

Once you confirm that the PS/2 ports are functional, please reboot your computers, and try to use the

KVM switch again.

You can switch computers by pressing the Push Buttons on the KVM switch, or by using the "Hot-Key”

commands. Refer to Section 3 Operation for more information.

If you still encounter problems or have any questions regarding the TK-208K/TK-408K, please contact

TRENDnet's Technical Support Department.

Troubleshooting

Limited Warranty

TRENDnet warrants its products against defects in material and

workmanship, under normal use and service, for the following lengths of

time from the date of purchase.

TK-208K/TK-408K - 2-Year Warranty

If a product does not operate as warranted above during the applicable

warranty period, TRENDnet shall, at its option and expense, repair the

defective product or part, deliver to customer an equivalent product or

part to replace the defective item, or refund to customer the purchase

price paid for the defective product. All products that are replaced will

become the property of TRENDnet. Replacement products may be new

or reconditioned.

TRENDnet shall not be responsible for any software, firmware,

information, or memory data of customer contained in, stored on, or

integrated with any products returned to TRENDnet pursuant to any

warranty.

There are no user serviceable parts inside the product. Do not remove

or attempt to service the product by any unauthorized service center.

This warranty is voided if (i) the product has been modified or repaired

by any unauthorized service center, (ii) the product was subject to

accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within

the applicable warranty period for a Return Material Authorization (RMA)

number, accompanied by a copy of the dated proof of the purchase.

Products returned to TRENDnet must be pre-authorized by TRENDnet

with RMA number marked on the outside of the package, and sent

prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT

OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE

REMEDY SHALL BE, AT TRENDnet'S OPTION, REPAIR OR

REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDnet NEITHER ASSUMES NOR AUTHORIZES ANY OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDnet'S PRODUCTS.

TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS

TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE

BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,

FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW

TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY

LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT

OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION

OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY

TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE

PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR

DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of

the state of California.

AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a

1 Year Warranty
