TRENDnet TEG-S50G User manual

TEG-S50g

TEG-S80g

H/W: V1

Ghid de instalare in limba romana

Table of Contents

English ..................................................................................

Specificaţii tehnice ...............................................................................

1. Before You Start ............................................................

2. Hardware Installation ......................................................

3. LEDs .............................................................................. 4

Version 04.01.2009

1. Înainte de a începe ........................................................

2. Instalarea hardware .......................................................

3. LED-uri ..........................................................................

Româna ...........................................................................................

Troubleshooting .....................................................................................

.............................................Remedierea erorilor de funcţionare

1. Before You Start

English

Installation Requirements

 A computer with a network adapter installed

 Cat-5e or Cat-6 Network Cable

 The surface must support at least 1.5 Kg for the Switch

 The power outlet should be within 1.82 meters (6 feet) of the Switch

 Visually inspect the DC power jack to make sure that it is securely

connected to the power adapter

 Make sure that there is proper heat dissipation from and adequate

ventilation around the Switch

 Do not place heavy objects on the Switch

Package Contents

 TEG-S50g/TEG-S80g

 Quick Installation Guide

 AC Power Adapter (7.5V DC, 1A)

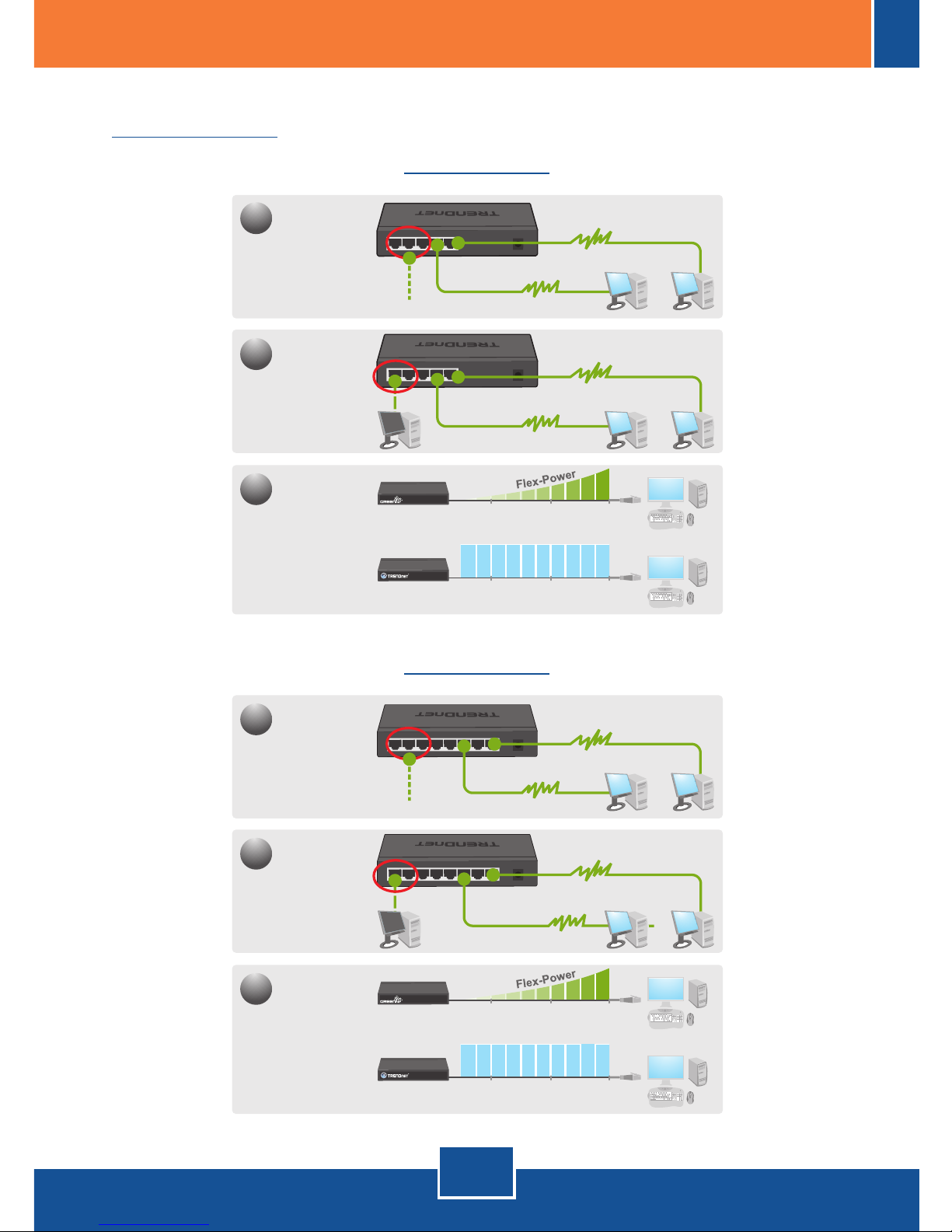

Application

TEG-S50g

TEG-S80g

60m

Full Power

60m

Delivers less power

to unused ports

100m

on on

less power

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

when devices are off

Delivers less power

with shorter

cable lengths

on on

off less power

*Max power savings compared with standard TRENDnet switches.

60m

Full Power

60m

100m

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

with shorter

cable lengths

Delivers less power

to unused ports

on on

less power

Delivers less power

when devices are off

on on

off less power

*Max power savings compared with standard TRENDnet switches.

English

2. Hardware Installation

English

1. Connect the AC Power Adapter to

the TEG-S50g/TEG-S80g and then

to a power outlet.

2. Connect a CAT-5e or CAT-6 RJ-45

network cable from the computer to

an available Ethernet port of the

TEG-S50g/TEG-S80g.

3. LEDs

English

TEG-S50g

Link/ACT

Green(Solid): Link to another

device.

Green(Blinking): Activity is

occurring from the link

Not Illuminated: Nothing is

detected on the port.

1000Mbps

Green: Connection for the port is

1000 (Full)

Not Illuminated: Connection for

the port is 10 or 100 or nothing

is detected on the port.

100Mbps

Green: Connection for the port is

100 (Full)

Not Illuminated: Connection for

the port is 10(Full/Half) or

1000(Full/Half) or nothing is

detected on the port.

Power

Green: Power is on.

Not Illuminated: Power is off.

English

TEG-S80gTEG-S50g

Link/ACT

Green(Solid): Link to another

device.

Green(Blinking): Activity is

occurring from the link

Not Illuminated: Nothing is

detected on the port.

100/1000Mbps

Green: Connection for the port is

1000 (Full)

Amber: Connection for the port

is 100 (Full/Half)

Not Illuminated: Connection for

the port is 10(Full/Half) or

nothing is detected on the port.

Power

Green: Power is on.

Not Illuminated: Power is off.

Your configuration is now complete.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

 Computer cu placă de reţea instalată

 Cablu de reţea Cat-5e sau Cat-6

 Locul de amplasare trebuie să suporte cel puţin 1.5 Kg pentru Switch

 Priza electrică va fi situată la aproximativ 1.82 metrii de Switch

 Verificati mufa jack a adaptorului DC pentru a vă asigura că este corect

conectată la adaptorul AC/DC

 Asiguraţi-vă că există o ventilaţie adecvată în jurul Switch-ului

 Nu aşezaţi obiecte grele deasupra Switch-ului.

 TEG-S50g/TEG-S80g

 Ghid rapid de instalare

 Adaptor AC/DC (7.5V DC, 1A)

1. Înainte de a începe

Cerinte de sistem

Continutul pachetului

Româna

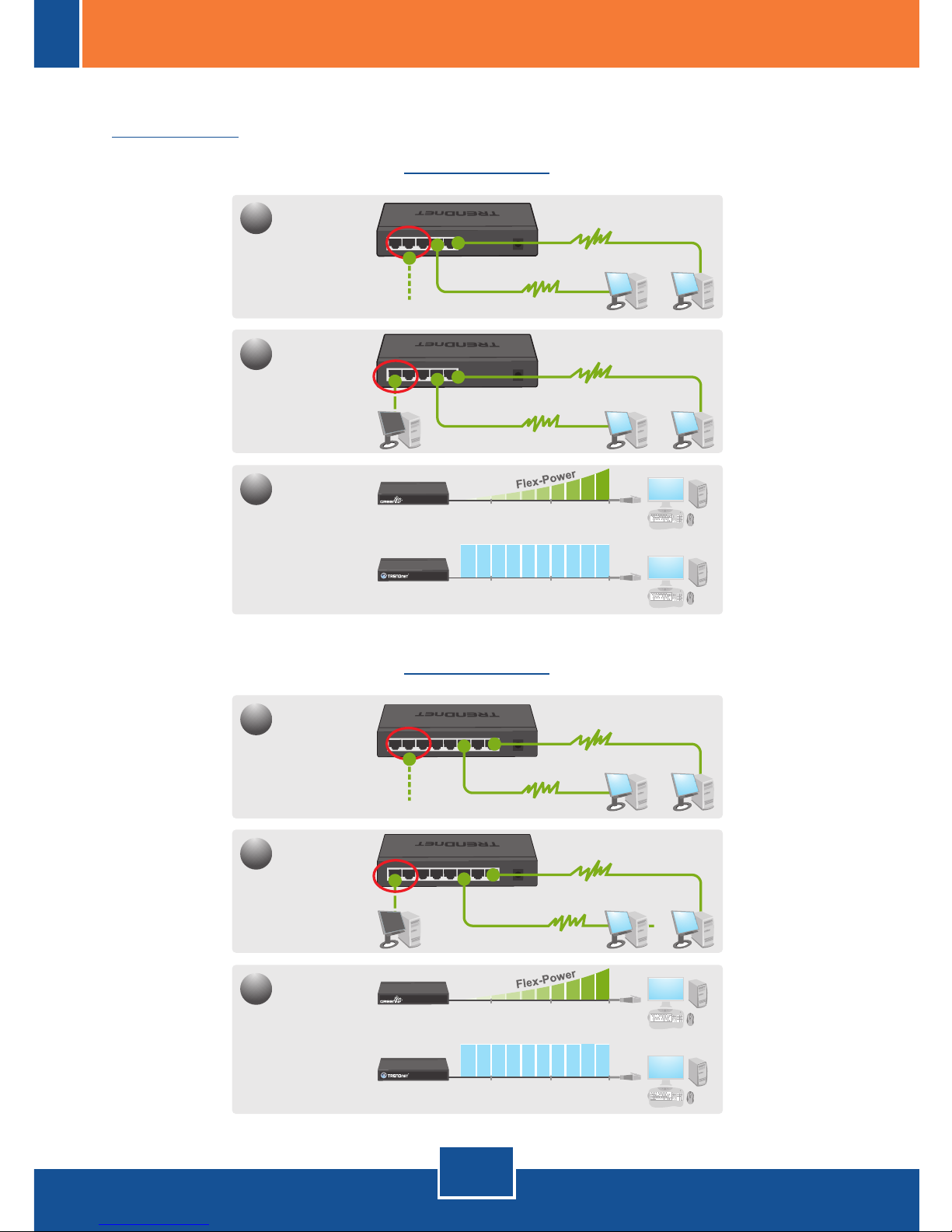

Aplicatie

TEG-S50g

TEG-S80g

60m

Full Power

60m

Delivers less power

to unused ports

100m

on on

less power

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

when devices are off

Delivers less power

with shorter

cable lengths

on on

off less power

*Max power savings compared with standard TRENDnet switches.

60m

Full Power

60m

100m

20m

Regular

Switch

GREENnet

Switch

20m

Delivers less power

with shorter

cable lengths

Delivers less power

to unused ports

on on

less power

Delivers less power

when devices are off

on on

off less power

*Max power savings compared with standard TRENDnet switches.

Româna

1. Conectaţi adaptorul AC/DC la

TEG-S50g/TEG-S80g şi la priza

electrică.

2. Conectaţi un cablu de reţea CAT-

5e sau CAT-6 RJ-45 de la

computer la un port liber Ethernet

de la TEG-S50g/TEG-S80g.

Româna

2. Instalarea Hardware
