TRENDnet TV-IP400W - Wireless Advanced Pan User manual

TABLE OF CONTENTS

ABOUT THIS GUIDE...........................................................3

1. INTRODUCTION..............................................................4

FEATURES AND BENEFITS .........................................................5

UNPACKING THE PACKAGE .......................................................7

SYSTEM REQUIREMENT.............................................................8

PHYSICAL DESCRIPTION............................................................9

2. HARDWARE INSTALLATION.................................12

TTACHING THE

ETAL

LIP

..................................................12

CONNECTING THE ETHERNET CABLE ......................................13

ATTACHING THE POWER SUPPLY............................................13

3. SECURITY.........................................................................14

4. APPLICATION OF THE CAMERA.......................15

APPLICATIONS.........................................................................16

APPLICATIONDIAGRAMSOFTHECAMERA .....................................17

5. USING THE CAMERA .................................................20

WEB CONFIGURATION UTILITY...............................................20

SYSTEM ADMINISTRATION......................................................22

VIEWING VIDEO ......................................................................51

6. IPVIEW SE........................................................................55

INSTALLATION.........................................................................55

GETTING STARTED ..................................................................60

HOW TO ADD A CAMERA ........................................................62

HOW TO CHANGE CAMERA .....................................................67

CONNECT/DISCONNECT THE IMAGE........................................68

HOW TO DELETE A CAMERA ...................................................71

EXTRA INFORMATION..............................................................72

HOW TO ADJUST THE PROPERTY SETTING..............................73

ADJUST THE RECORDING SETTING..........................................79

7. APPENDIX.........................................................................80

A. FREQUENTLY ASKED QUESTIONS.......................................80

B. PING YOUR IP ADDRESS....................................................83

C. TROUBLE SHOOTING...........................................................84

D. TIME ZONE TABLE..............................................................88

E. XPLUG CONTROL INSTALLATION........................................90

F. ADJUST INTERNET CAMERA FOCUS....................................94

G. SPECIFICATION....................................................................95

H. GLOSSARY OF TERMS .........................................................97

ABOUT THIS GUIDE

This manual provides instructions and illustrations on how to use

your Wireless Wireless Pan/Tilt Internet Camera, includes:

zChapter 1, Introduction, provides the general information

on the camera.

zChapter 2, Hardware Installation, describes the hardware

installation procedure for the camera.

zChapter 3, Security, explains the security feature of the

camera.

zChapter 4, Application of the Camera, provides the

illustrations of the camera’s applications.

zChapter 5, Using the Camera, guides you through the

configuration using the web browser.

zChapter 6, IPView SE, helps you to install and use the

software.

zChapter 7, Appendix.

Please note that the illustrations or setting values in this manual

are FOR YOUR REFERENCE ONLY. The actual settings and

values depend on your system and network. If you are not sure

about the respective information, please ask your network

administrator or MIS staff for help.

INTRODUCTION

Thank you for purchasing the Wireless Pan/Tilt Internet Camera,

a standalone system that can be connected directly to an Ethernet

or Fast Ethernet, and also supported by the wireless transmission

based on the IEEE 802.11g standard. Compared to the

conventional PC camera, the Wireless Pan/Tilt Internet Camera

features a built-in CPU and web-based solutions that can provide

a cost-effective solution to transmit the real-time high-quality

video images for monitoring. The camera can be managed

remotely, so that you can use a web browser to access and control

it from any notebook/desktop PC over the Intranet or Internet.

The simple installation procedures and web-based interface allow

you to integrate it into your network easily. With comprehensive

applications supported, the Internet camera is your best solution

for remote monitor, high quality, and high performance video

images.

Features and Benefits

Simple To Use

The Wireless Pan/Tilt Internet Camera is a standalone system

with built-in CPU, no special hardware (such as a PC frame

capture card) or software required. The camera supports DirectX

9.0; therefore, the only requirement you need is the web browser

software such as Internet Explorer 5.0 or above. Once you have a

valid IP Address, just connect it and you can view the picture

from your camera. In addition, the camera’s pan/tilt function

allows you to adjust the camera for optimal viewing angle. You

can tilt the camera right or left (up to 170/170 degrees), forward

or backward (up to 45/90 degrees) using the Web Configuration

Utility.

Support Variety of Platforms

The camera supports TCP/IP networking, SMTP e-mail, HTTP

and other Internet related protocols. It can be utilized in a mixed

operating system environment, including Windows 98SE/ME/

2000/XP and Windows NT 4.0. It can be integrated easily into

other www/Intranet applications.

Web Configuration

Applying a standard web browser, the administrator can configure

and manage the camera directly from its own web page via the

Intranet or Internet. Up to 64 users name and password are

permitted with privilege setting controlled by the administrator.

Remote Utility

The powerful IPView SE application assigns the administrator

with a pre-defined user ID and password, allowing the

administrator to modify the camera settings from the remote site

via Intranet or Internet. When new firmware is available, you can

also upgrade remotely over the network for added convenience.

Users are also allowed to monitor the image, and take snapshots.

Broad Range of Applications

With today’s high-speed Internet services, the camera can provide

the ideal solution for live video images over the Intranet and

Internet for remote monitoring. The camera allows remote access

from a web browser for live image viewing, and allows the

administrator to manage and control the camera anywhere and

anytime in the world. Apply the camera to monitor various

objects and places such as homes, offices, banks, hospitals, child-

care centers, amusement parks and other varieties of industrial

and public monitoring. The camera can also be used for intruder

detection; in addition, it can capture still images for archiving and

many more applications.

Unpacking the Package

Unpack the package and check all the items carefully. In addition

to this User’s Guide, be certain that you have:

One Wireless Pan/Tilt Internet Camera (with antenna)

One External Power Adapter (5V DC, 2A)

One RJ-45 Ethernet Cable

One Metal Clip

One Quick Installation Guide

One Installation CD-ROM

If any item contained is damaged or missing, please contact your

local dealer immediately. Also, keep the box and packing

materials in case you need to ship the unit in the future.

System Requirement

Networking

Local Area Network:

10Base-T Ethernet or 100Base-TX Fast Ethernet

Wireless Local Area Network (wireless model):

IEEE 802.11g Wireless LAN

Accessing the Camera

For Web Browser Users

Operating System: Microsoft® Windows® 98SE/ME/

2000/XP

CPU: Intel Pentium II, 266 MHz or above

Memory Size: 32MB (64MB recommended)

Resolution: 800x600 or above

Microsoft® Internet Explorer 5.0 or above

For IPView SE Application Users

Operating System: Microsoft® Windows® 98SE/ME/

2000/XP.

CPU: Intel Pentium III, 450 MHz or above

Memory Size: 128 MB (256 MB recommended)

Resolution: 800x600 or above

Physical Description

This section describes the externally components’ features of

your camera.

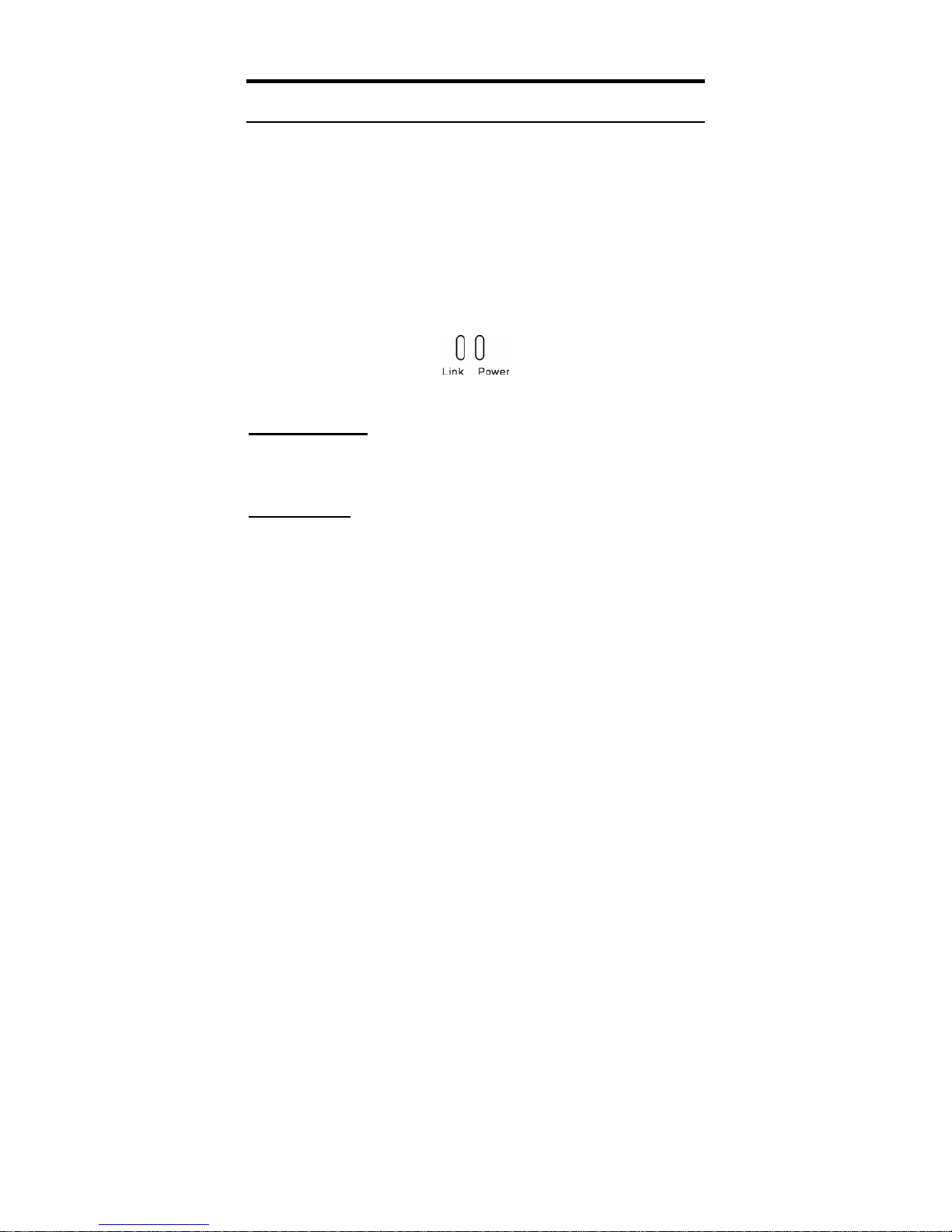

Front Panel

There are two LED indicators on the front panel of the camera:

Power LED and Link LED.

1. Power LED

The Power LED is positioned on the right side of the two LEDs.

A steady BLUE light confirms that the camera is powered on.

2. Link LED

The Link LED is positioned on the left side of the two LEDs. A

steady ORANGE light confirms that the camera has good

connection to LAN connectivity.

Dependent on the data traffic, the LED will begin to flash to

indicate that the camera is receiving/sending data from/to the

network.
